Overview:

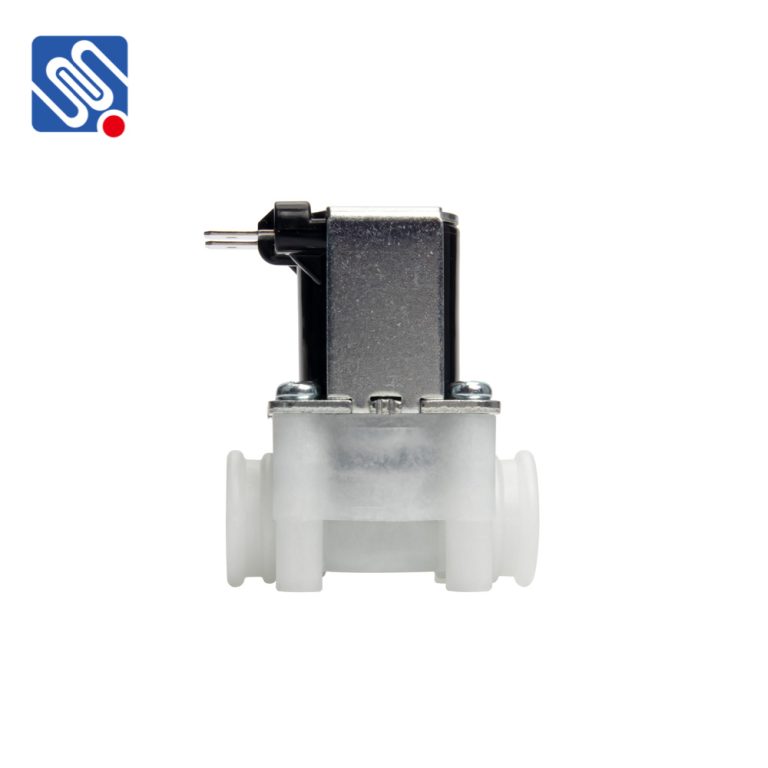

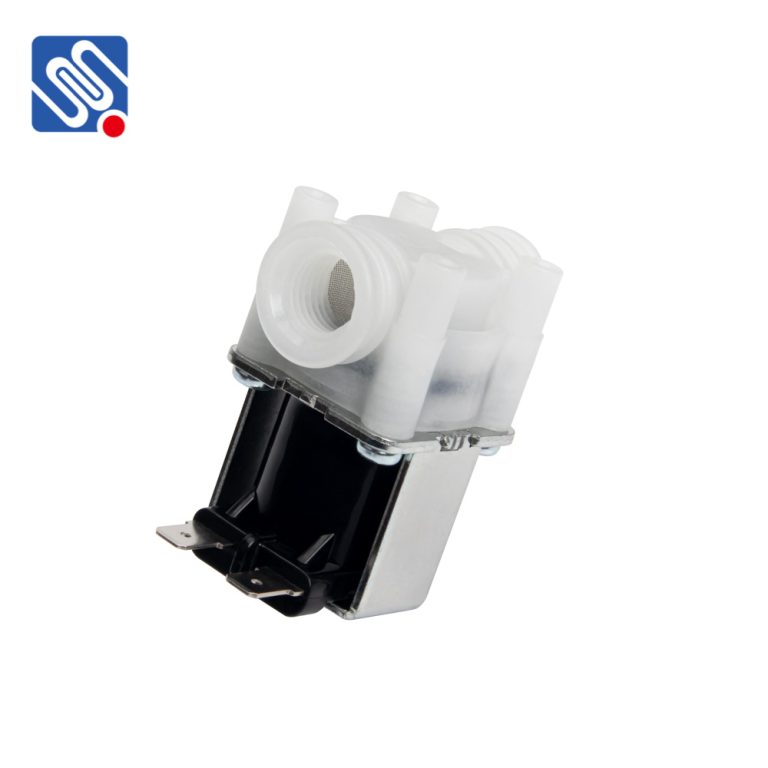

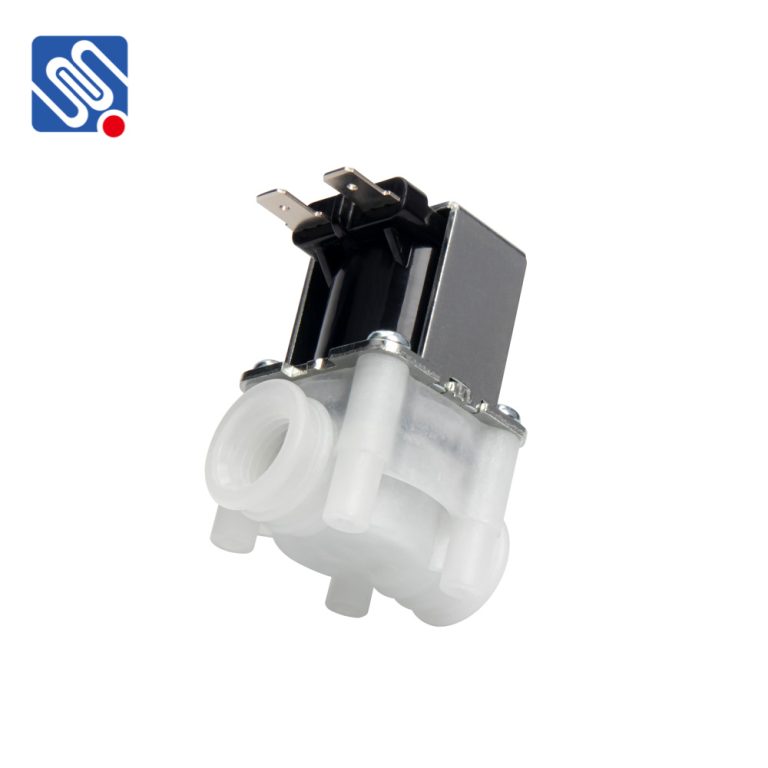

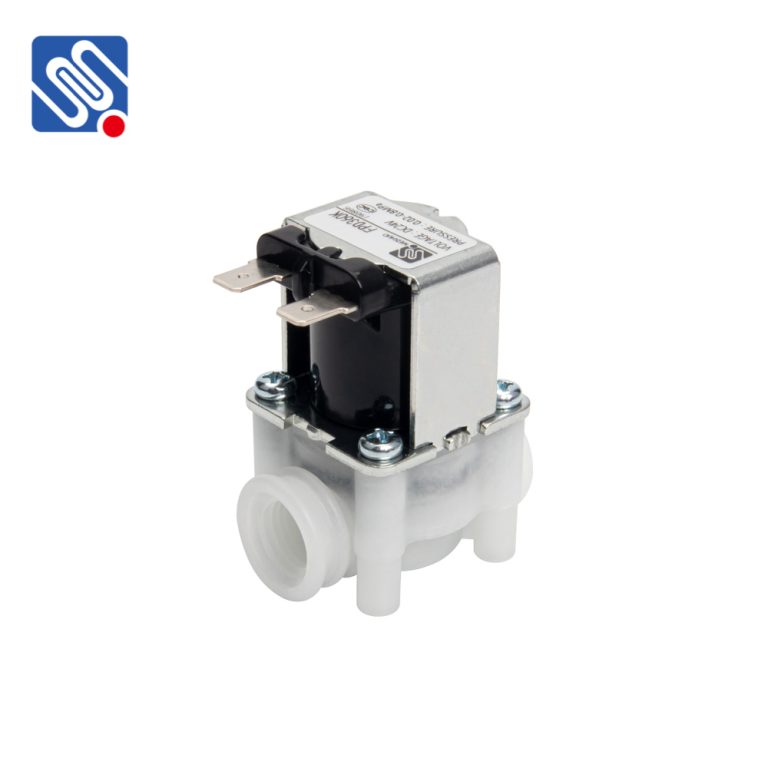

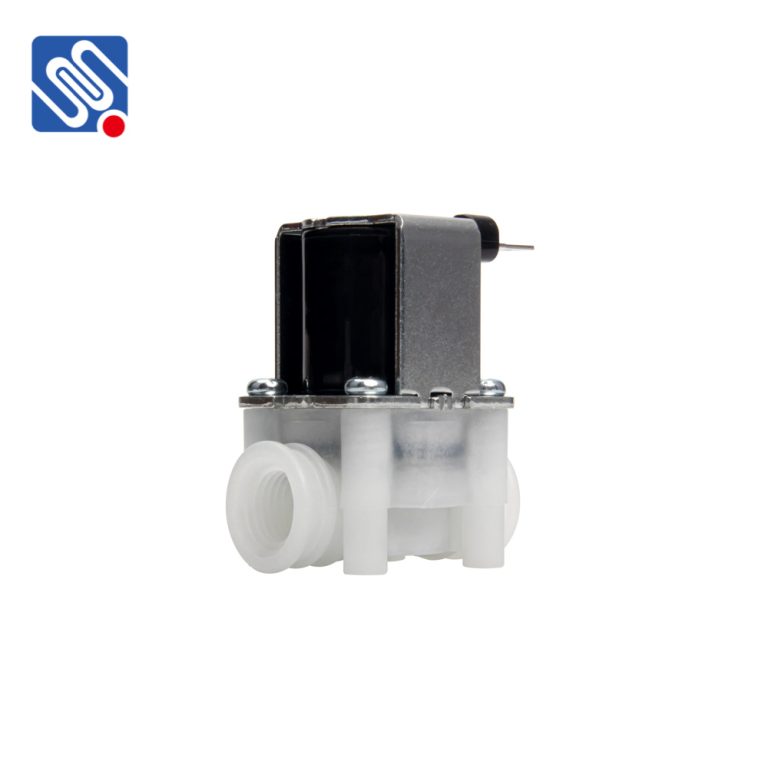

The FPD360K inlet solenoid valve belongs to the water purifier and water dispenser series. Its inlet and outlet adopt NPT 1/4 size and are normally in a closed state. It can withstand a maximum water pressure of 0.8MPa and has good durability.
| Product Model: | FPD360K |
| Rated Voltage: | DC12V 24V 36V AC110V 220V 50/60Hz |
| Operate Life: | ≥100000 OPS |
| Pressure Range: | 0.02-0.8MPa |
| Inlet: | NPT 1/4 internal thread |
| Outlet: | NPT 1/4 internal thread |
| Hydraulic Pressure: | 0.3MPa |
| Flow Rate: | ＞3L/min |

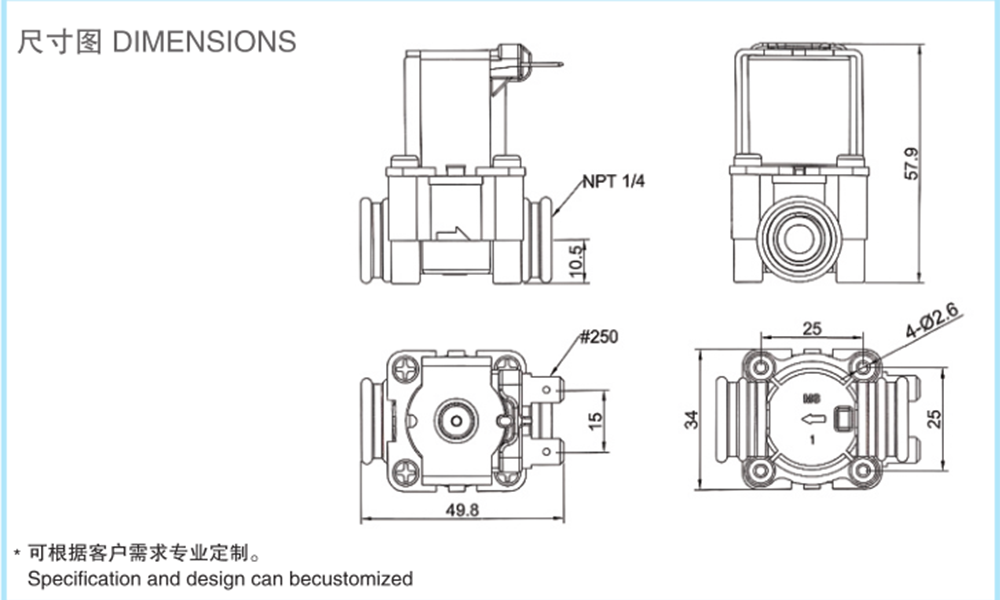

| Spacing: | 25×25mm |
Naming rules
Product series: F
Inlet and outlet angle: P: Parallel type
Outlet number: D: Single Outlet
Coil terminal direction: 360: 0°(360°)
Product design code: K
Our advantages
Multiple logistics transportation methods
Strong technical force
Fully functional laboratoryMultiple quality certification
Strict quality control system
Professional R&D team
Great chat support

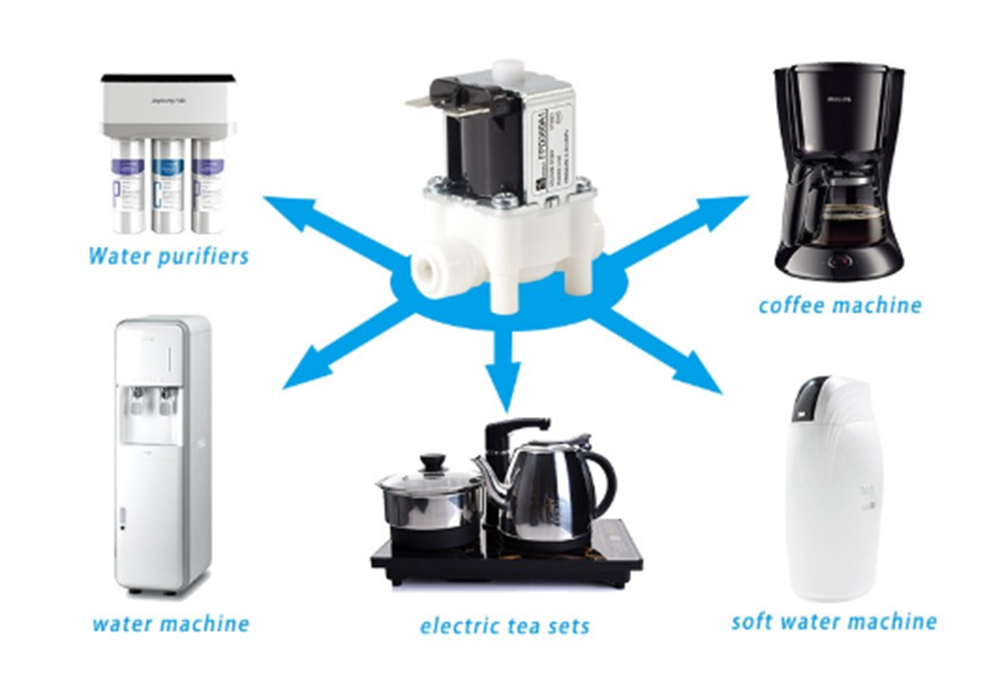

Product application
FPD360K inlet solenoid valve is suitable for water purifiers, water dispenser, water softener, coffee machine, electric tea sets, etc.

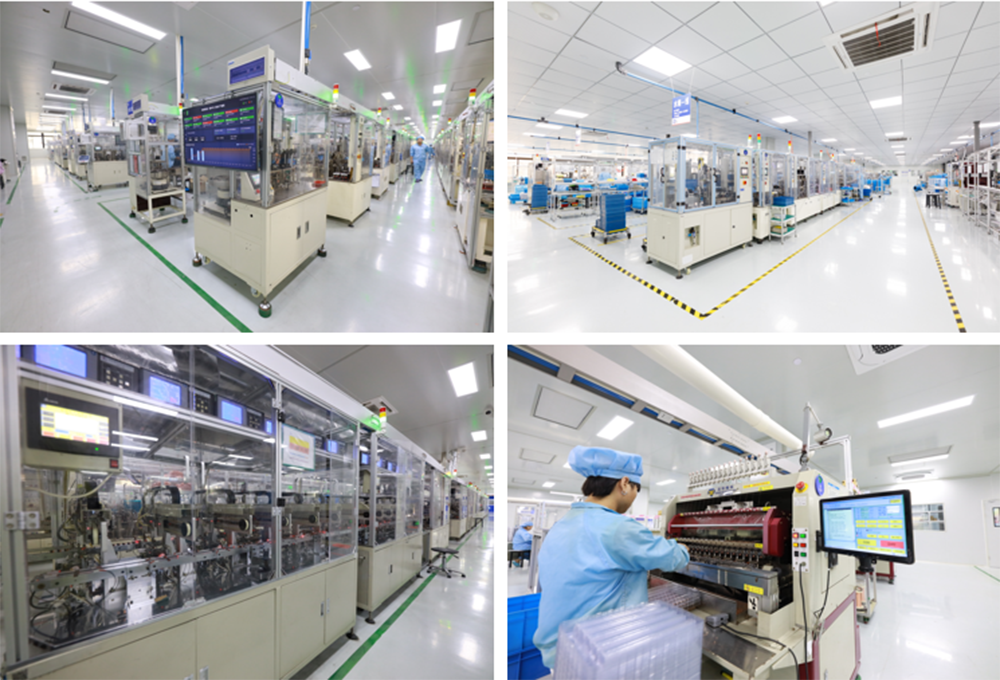

Production workshop display
Our company has advanced manufacturing technology, high standard production lines, high-level technical personnel, production management, and inspection teams. 45 fully automated production lines ensure the production capacity and stable quality of products.
Product packagin
* 20 PCS/ plastic box
* 5 plastic boxes/ master box
* 100 pcs/master box
* MEAS: 36.5*31.5*20cm
Support your OEM/ODM needs and provide one-stop customized solutions
