Overview

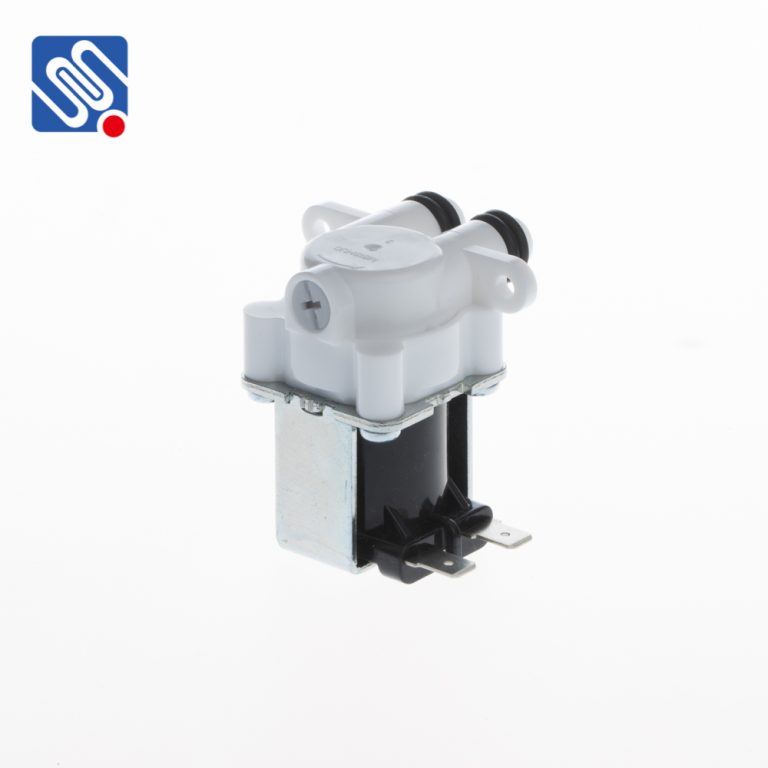

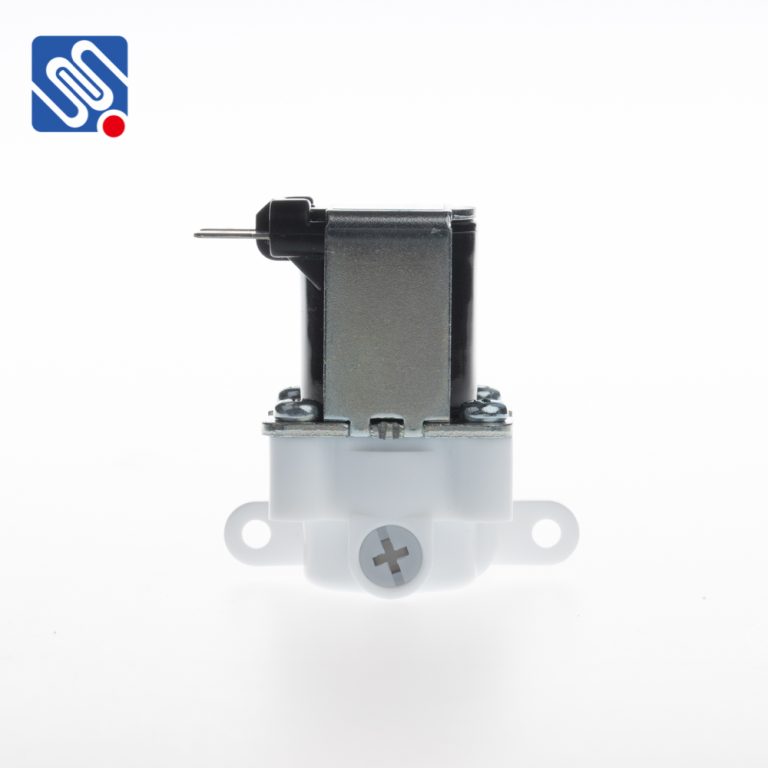

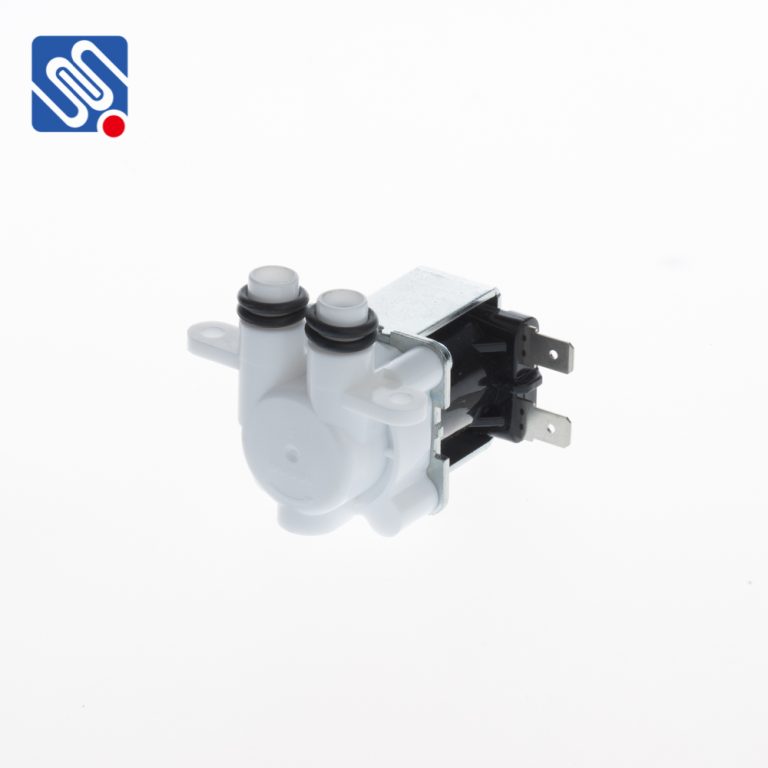

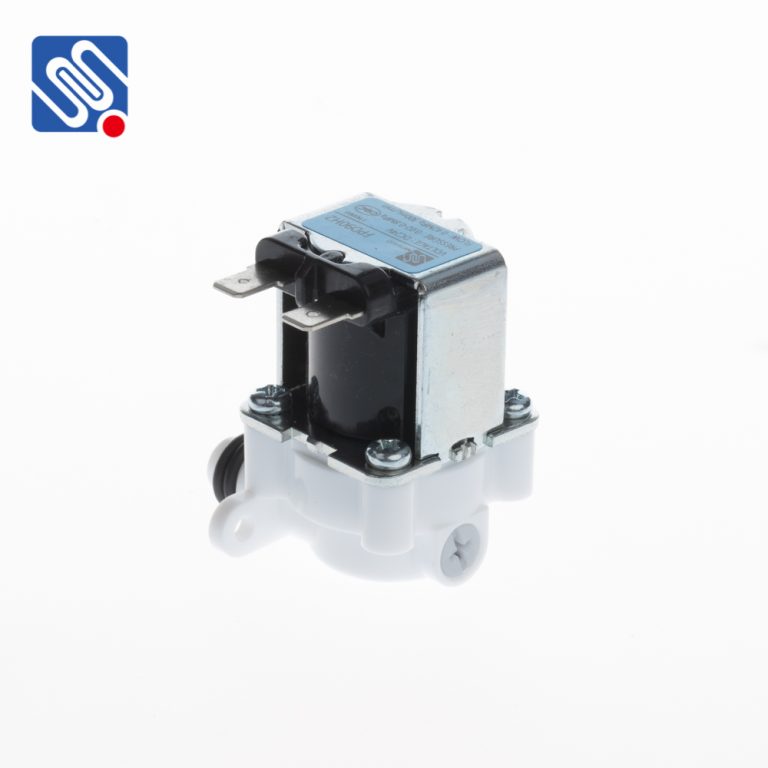

The FPD90H2 solenoid valve is a combined flushing solenoid valve with a maximum wastewater flow rate of 1500 milliliters per minute. Its inlet and outlet are both φ9mm. According to customer needs, models with rated voltages of 12V, 24V, and 36V can be selected, suitable for integrated water purifiers and water dispensers.
| Product Model: | FPD90H2 |
| Rated Voltage: | DC12V 24V 36V |
| Pressure Range: | 0.02-0.8MPa |
| Operate Life: | ≥100000 OPS |
| Spacing: | 41mm |
| Inlet: | φ9mm |
| Outlet: | φ9mm |
| Flow Rate: | 0.3MPa, ＞5L/min |
| Waste Flow Rate: | 0.42/0.5MPa, 300/450/800/1000/1500mL/min |
Product advantages
Advantage 1:
Fast response speed: The response time of solenoid valves is very short, able to quickly respond to control signals and can be controlled in milliseconds.
Advantage 2:
Highly automated: The current generates a magnetic field through the coil to control the opening and closing of the solenoid valve, which can achieve fully automatic operation.

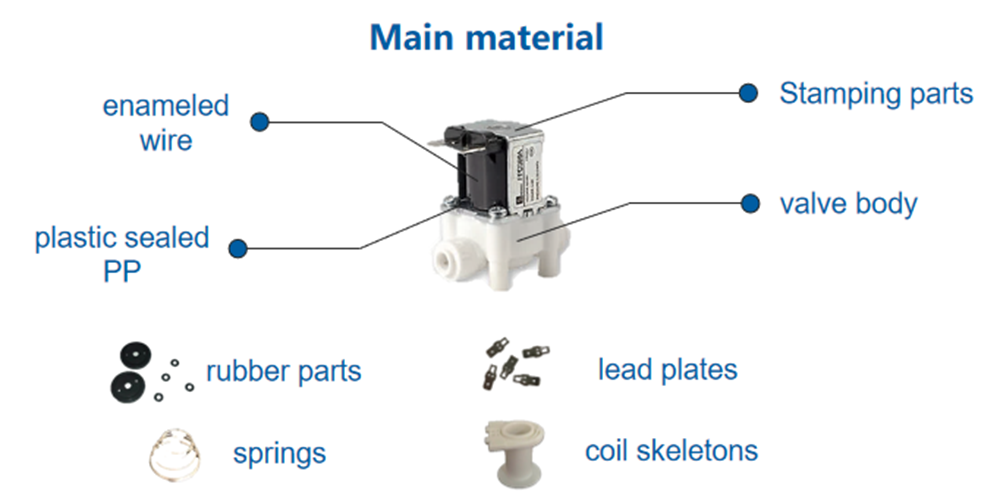

Main materials
We pay attention to quality, service, price, delivery time, and other aspects when introducing components provided by suppliers. All supplier introductions need to be investigated and evaluated according to the QSA requirements of the system to ensure the high quality of the final product.
Laboratories
The company has established an advanced experimental center and obtained certifications from UL Witness Laboratory, TUV Witness Laboratory, VDE Witness Laboratory, and CNAS Laboratory. It is equipped with many experimental equipment to ensure stable performance in all aspects of its products.

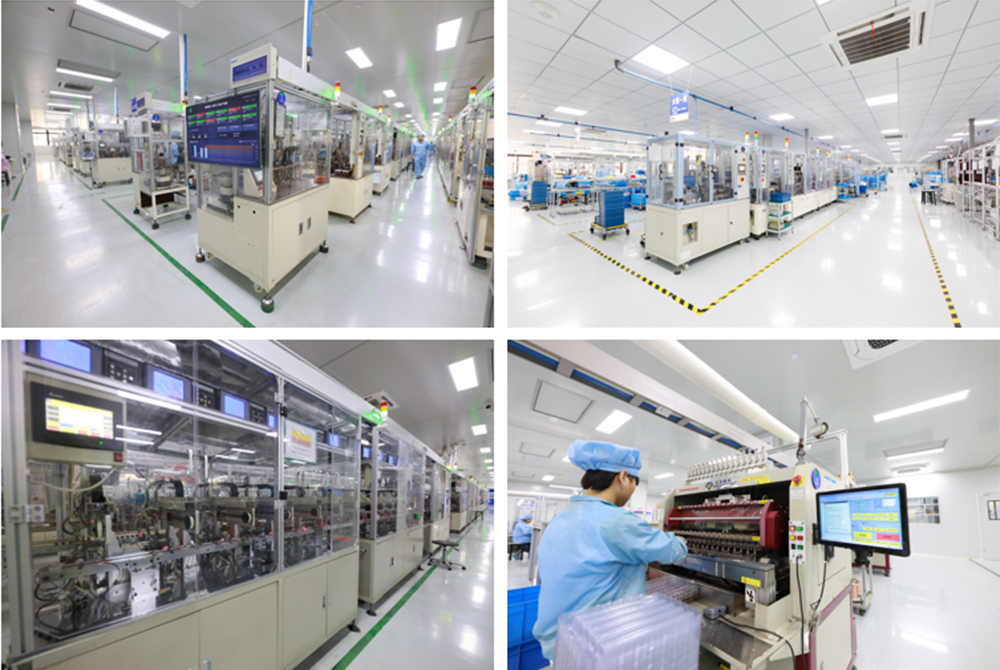

Production workshop display
Shipping
We provide customers with multiple transportation options to ensure they receive their goods within the agreed upon deadline.
Support your OEM/ODM needs and provide one-stop customized solutions
