Product Overview

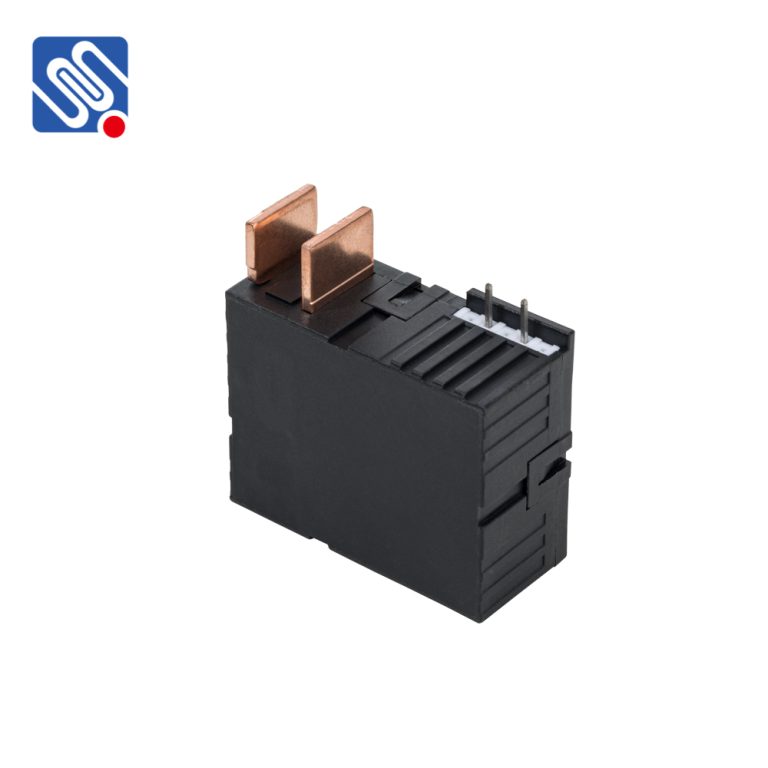

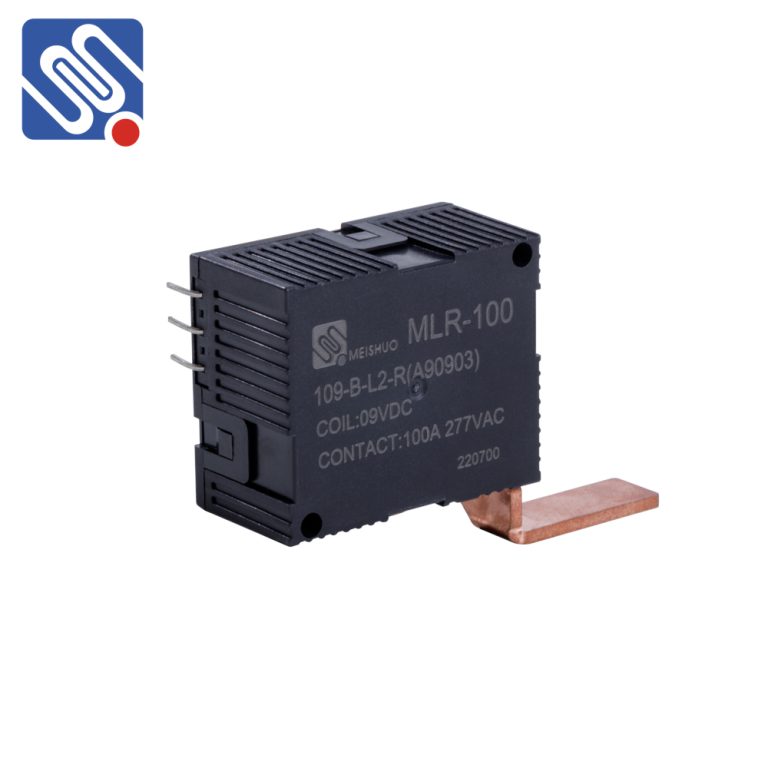

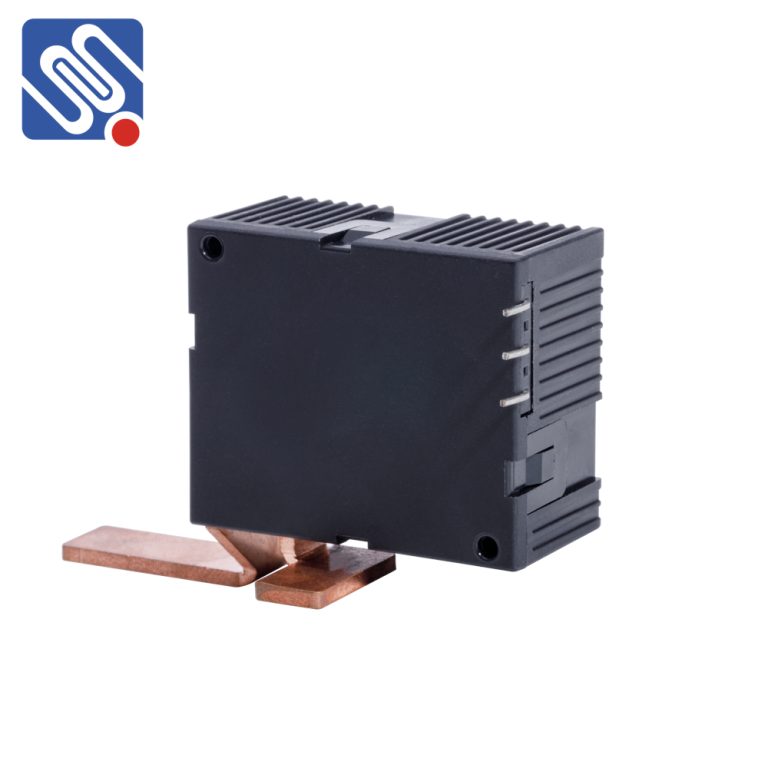

The MLQ-100 magnetic latching relay has a contact switching capability of 100A and is widely used in smart meters, smart switches, smart capacitors and other devices. It is driven by pulse coils and has low energy consumption. Customers can choose single coil or double coil configurations according to their personal needs, or weld accessories according to their requirements.
Contact Parameters
| Contact Form | 1A, 1B |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤1.0mΩ (1A 6VDC) |
| Contact Rating | 100A 250VAC |
| Max. Switching Current | 100A |
| Max. Switching Voltage | 250VAC |
| Max. Switching Power | 25000VA |
| Electrical Life | 10000 OPS |
| Mechanical Life | 100000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ Min. (500VDC) |
| Dielectric Strength | Between Coil & Contacts: 4000VAC 1min |
| Between Open Contacts: 2000VAC 1min | |
| Set Time | ≤20ms |
| Reset Time | ≤20ms |
| Shock | Functional: 98m/s² |
| Destructive: 980m/s² | |
| Vibration | 10Hz～55Hz 1.5mm(DA) |
| Humidity | 5%～85%TH |
| Ambient Temperature | -40℃～+85℃ |
| Construction | Dust Protected |
| Unit Weight | Approx.55g |
Naming Rules
Model : MLQ
Load : 100A
Contact Group : 1 Group
Coil Voltage: 05, 06, 09, 12, 24, 48VDC
Contact Form: 1A, 1B

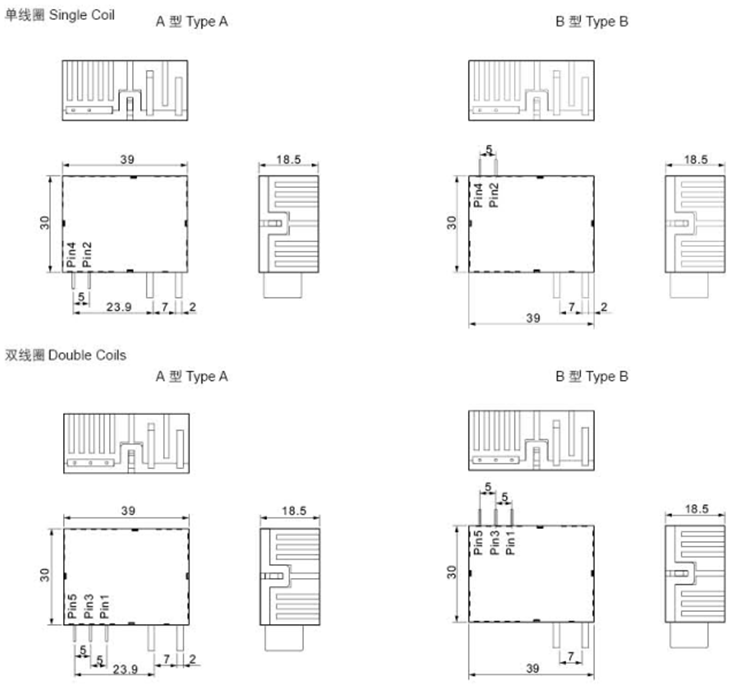

Coil Type: L1: Single Coil Latching L2: Double Coils Lathing
Polarity: R: Negative Polarity Nil: Positive Polarity
Special Code: XXX: Customer Special Requirement
Application
Electric Vehicle Charging Stations: Controls high-current charging circuits, ensuring safe and efficient energy transfer.
Energy Storage Systems: Coordinates the charging and discharging processes in battery storage systems for peak load management.
