Overview

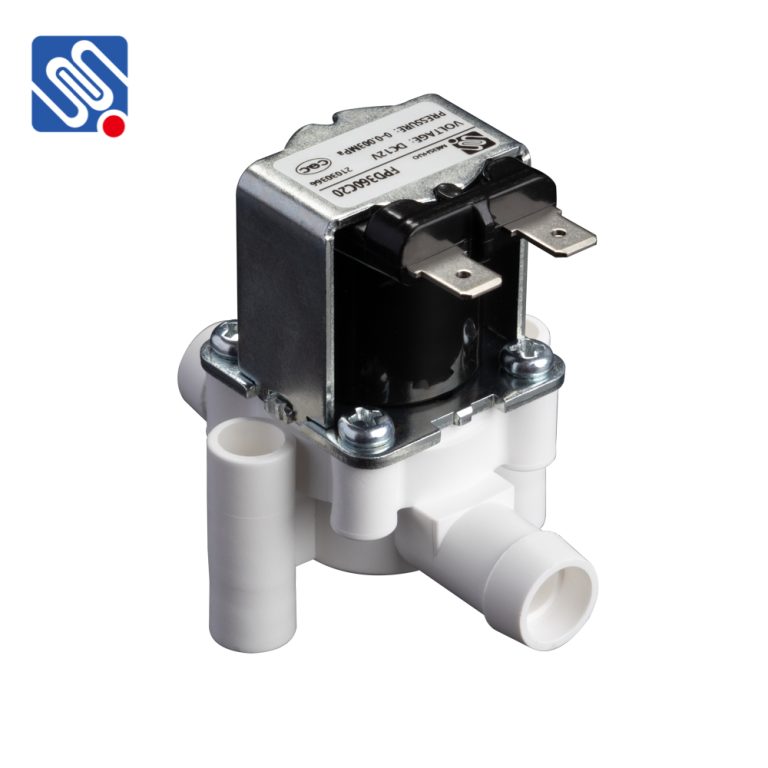

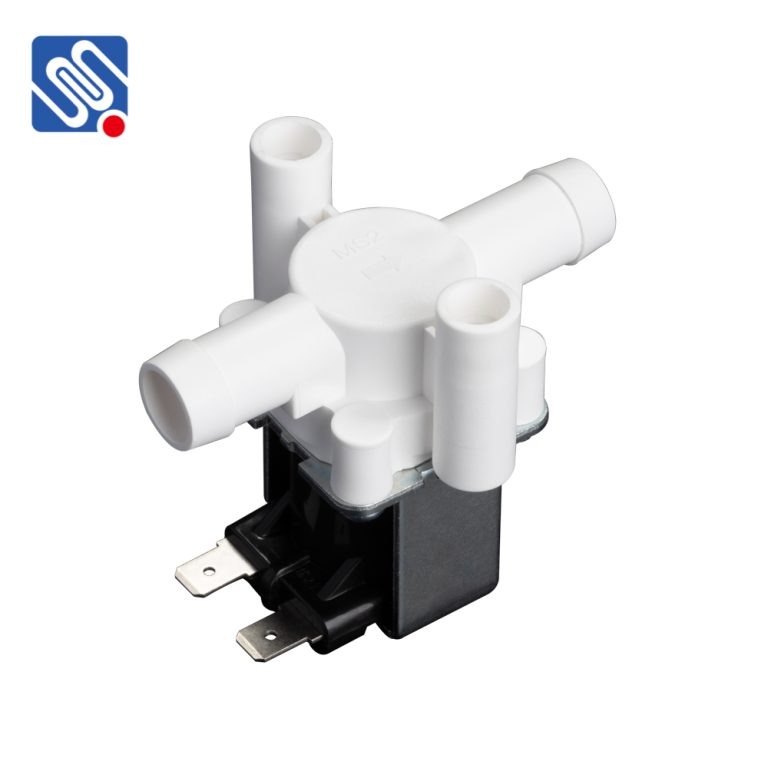

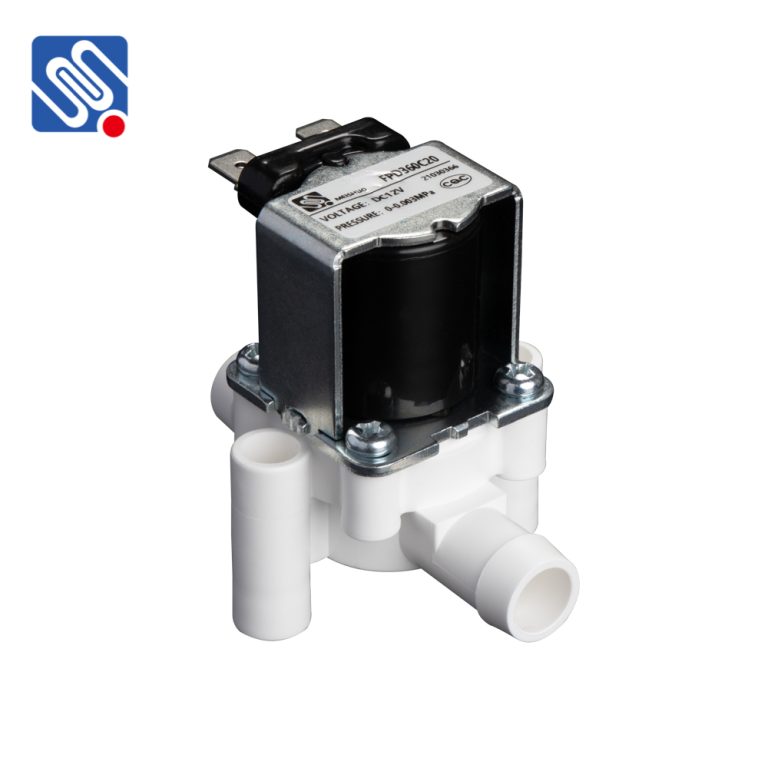

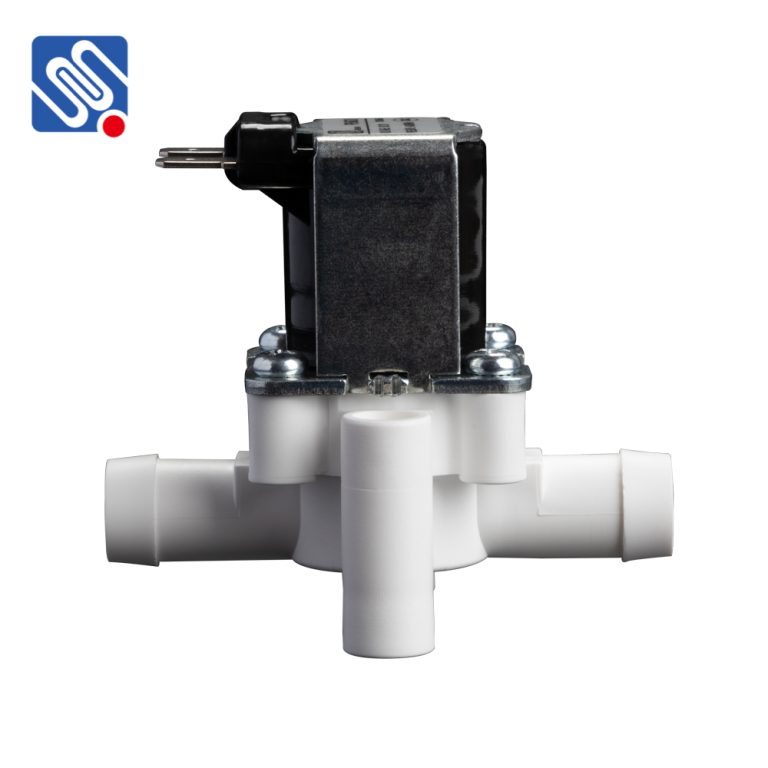

The FPD360C20 solenoid valve is a discharge solenoid valve with a 13.7mm inlet and outlet design, featuring long service life and high reliability. When the set water level is reached, the outlet will automatically open to release excess water.
| Product Model: | FPD360C20 |
| Rated Voltage: | DC12V 24V 36V AC110V 220V 50/60Hz |
| Pressure Range: | 0-0.003MPa |
| Operate Life: | ≥100000 OPS |

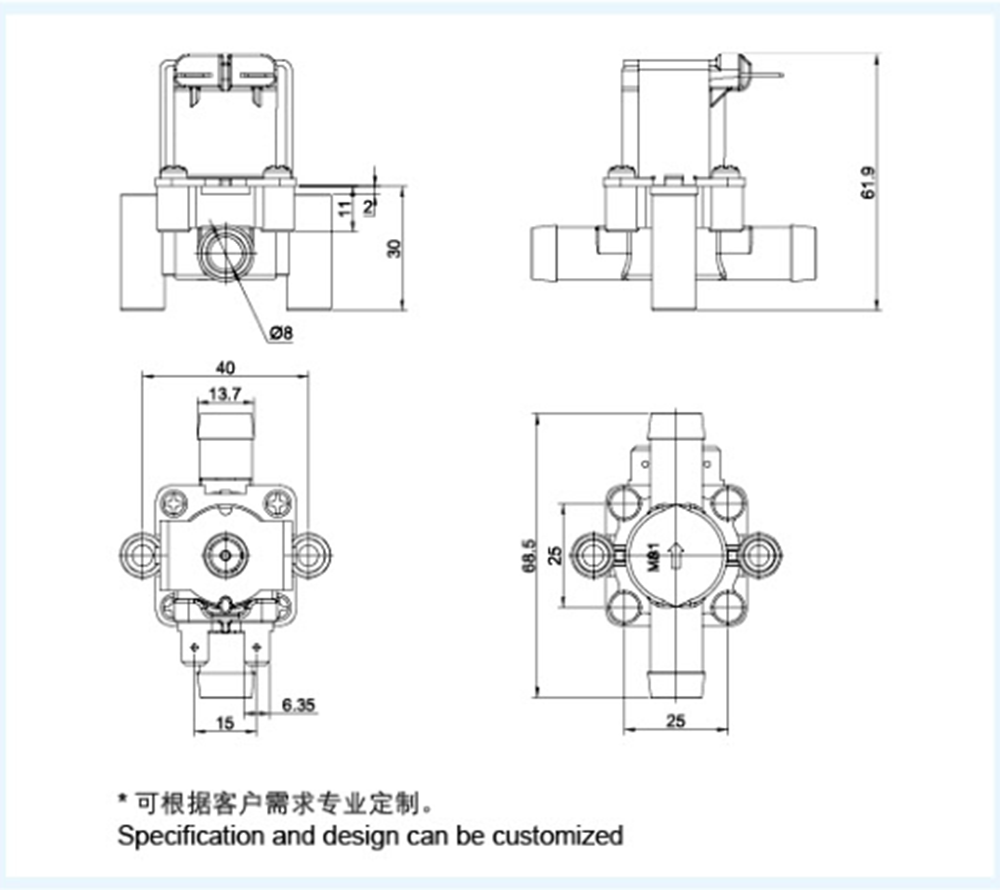

| Spacing: | 25×25mm |
| Inlet: | Φ13.7mm pagoda |
| Outlet: | Φ13.7mm pagoda |
| Hydraulic Pressure: | 0.003MPa |
| Flow Rate: | ＞1.2L/min |

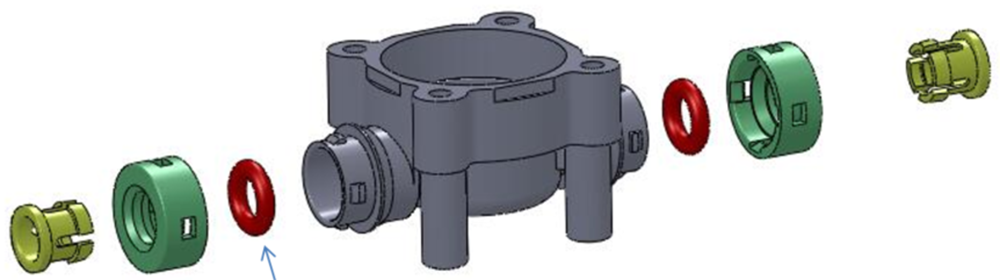

Valve body structure
To ensure good air tightness of the product, the valve body is composed of components such as a filter screen, O-ring, quick connect cap, clamp, and sealing ring.

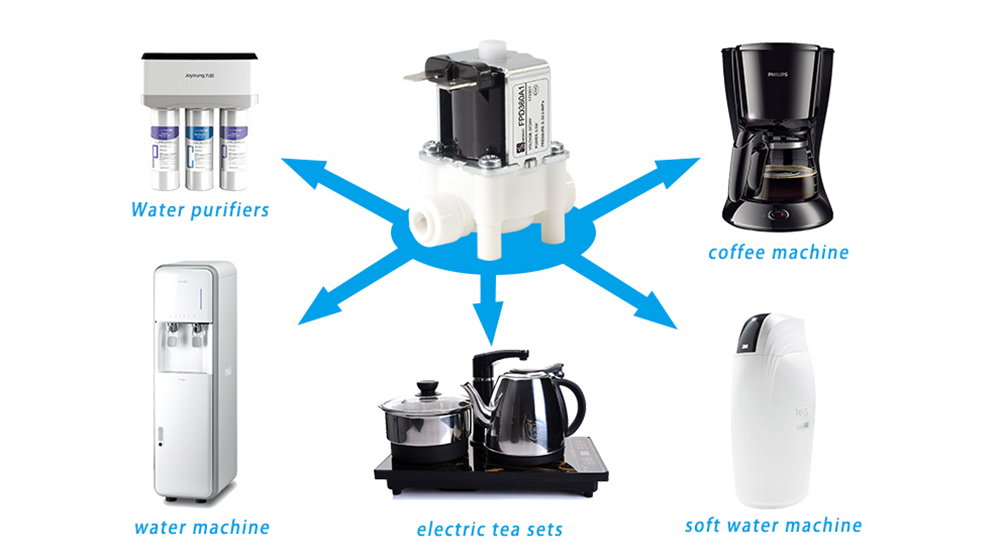

Product applicatio
FCD360C20 discharge solenoid valve is suitable for water purifiers, water dispenser, water softener, coffee machine, electric tea sets, etc.
Certificate
Company profile
Zhejiang Meishuo Electric Technology Co., Ltd. is a high-tech enterprise specializing in the production of various electromagnetic water valves and relays.After more than ten years of development, it has now formed a listed enterprise with a registered capital of 51 million yuan, a construction area of over 50000 square meters, and more than 700 employees. Meishuo has its own research and development team, including modern laboratories, engineers and technical personnel, the establishment of a complete product development process.

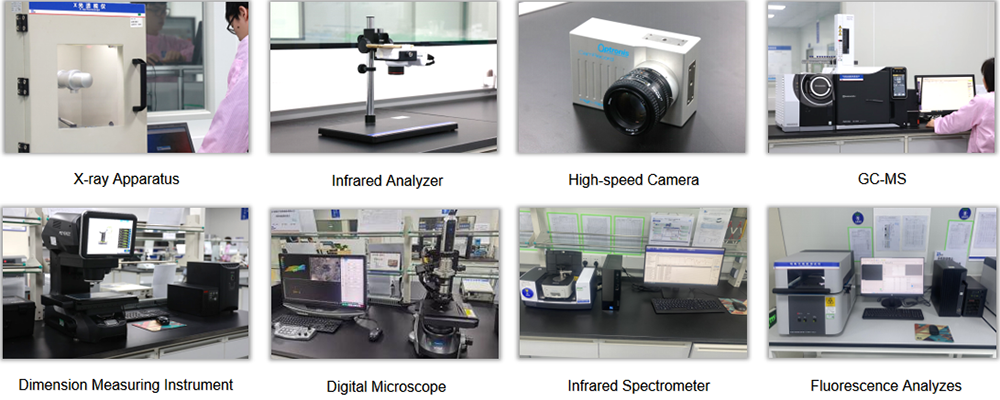

Testing equipment
The introduction of high-speed cameras, Infrared Analyzers and other instruments has significant advantages in improving testing accuracy, enhancing the comprehensiveness of product performance evaluation, and promoting product research and development.
Support your OEM/ODM needs and provide one-stop customized solutions
