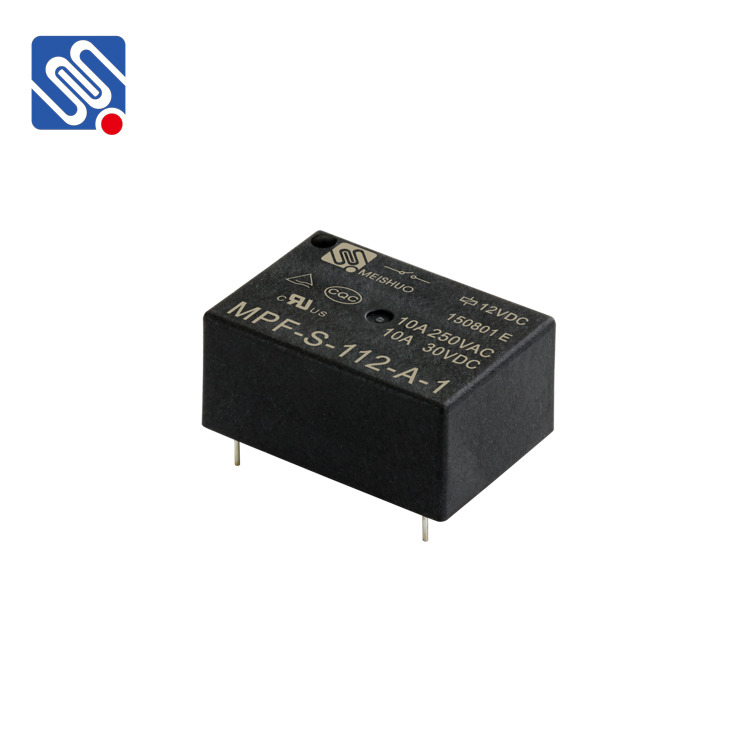

Single Pole Single Throw Relay

CertificationTUV R50332928UL E313266CQC CQC15002128204 MPF produces coils that are processed by the company....

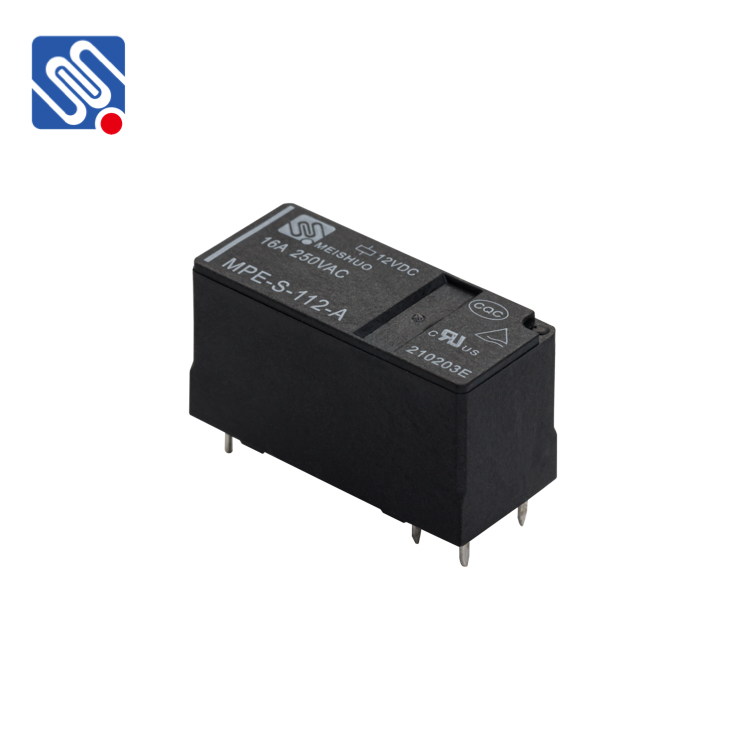

4 Pin Electric Universal Relay

The MPE 16A relay features an electromagnetic coil with an ample number of turns exceeding international...

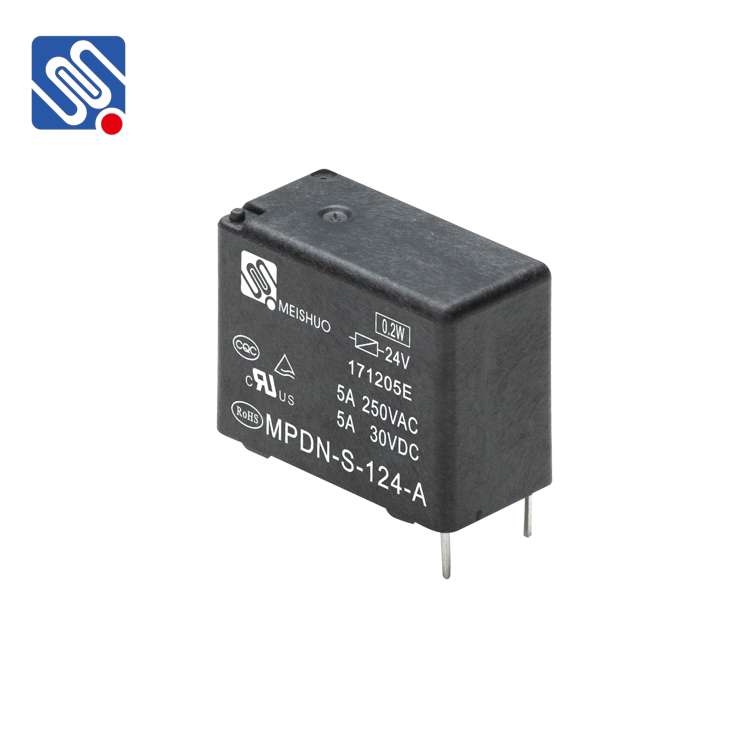

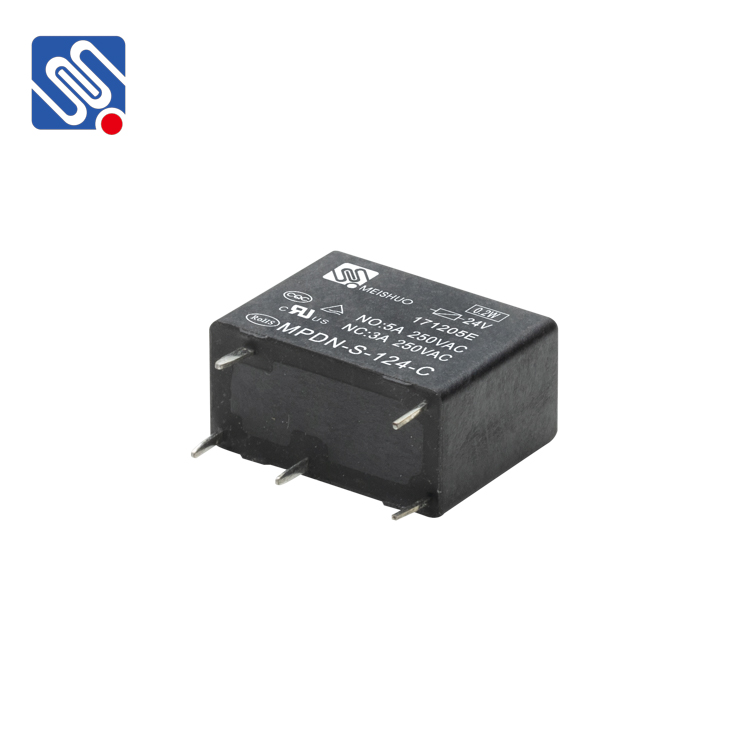

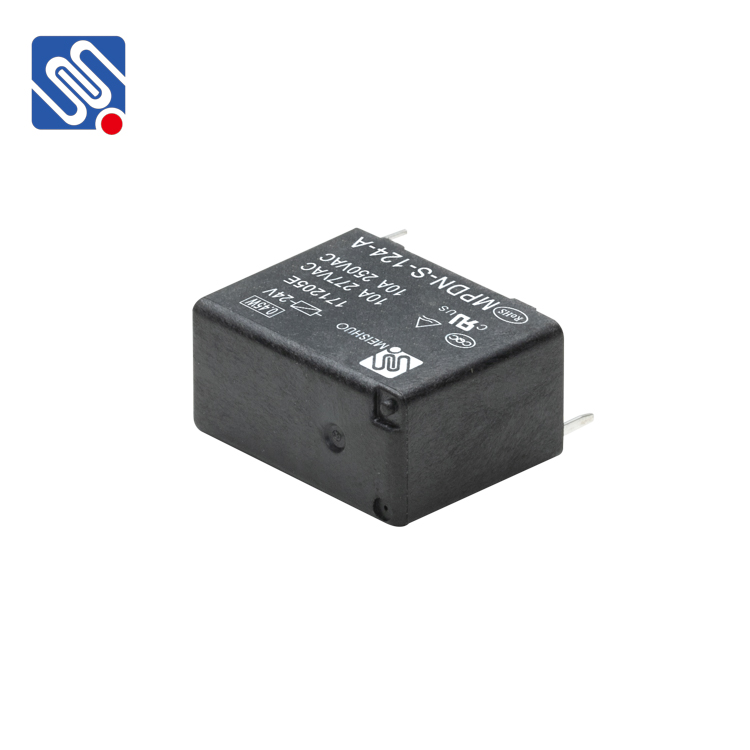

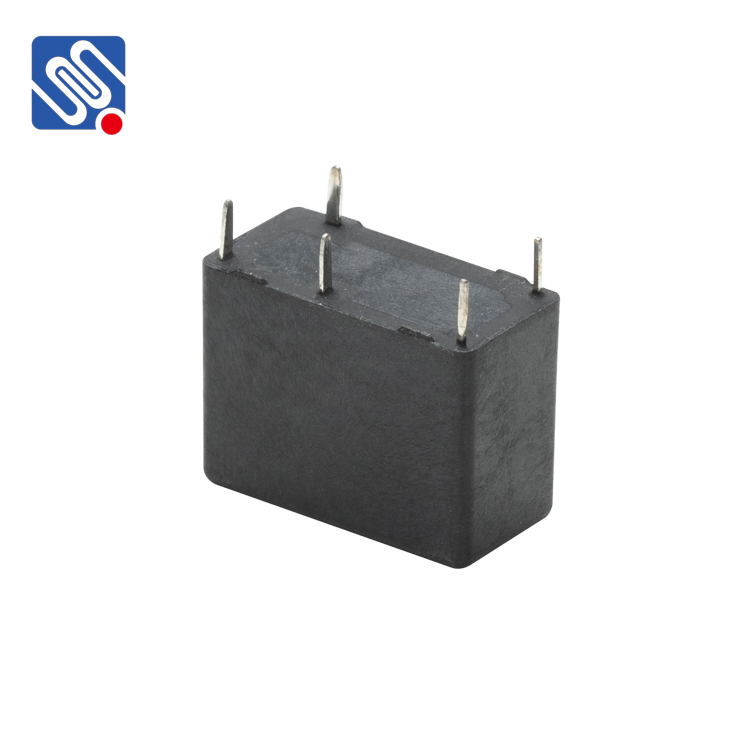

12 Volt SPDT Relay

• 10A Switching capability • 1 Form A and 1 Form C configurations • Standard PCB layout • Wash tight and flux proofed types available • Outline dimensions L*W*H:20.5*10.2*15.3mm

Certification
UL E358149
TUV R50403369
CQC CQC18002195922

The 10A super compact medium-power relay excels not only in its small size, making it ideal for various space-constrained applications including household appliances, automotive electronics, and industrial automation. Designed with precision in performance, it ensures safe circuit operation with excellent electrical conductivity and low contact resistance. Its outstanding durability and long-term reliability make it suitable for applications such as lighting control, motor driving, and other medium-power loads, meeting high customer demands for performance and reliability.

Contact Arrangement	1A 1C
Rated Load	10A 250VAC
Max.Switching Current	1.A
Operate Time	≤8ms
Release Time	≤5ms
Coil Power	0.2W 0.4W 0.45W
Construction	Wash tight/Flux proof
Unit Weight	Approx.7g

Product Naming Rules
Model: MPDN
Structure: Wash tight/Flux proof
Contact group: 1 pole
Coil voltage: 05,06,09,12,24 VDC
Contact form: 1A,1C

3-Key Features Of The Meishuo Mpdnrelays：
1.Ease of Installation:
The MPDN universal PCB relay is designed with simplicity in mind, catering to the needs of average users. It can be easily integrated into circuit boards without requiring specialized skills, ensuring straightforward installation for both beginners and experienced users alike.
2.Compatibility with 4-pin/5-pin Configurations:
Designed to accommodate both 4-pin and 5-pin relay interface standards commonly found in the market, this relay is versatile and suitable for a wide range of household appliances. It ensures reliable circuit operation, regardless of the specific interface requirement.

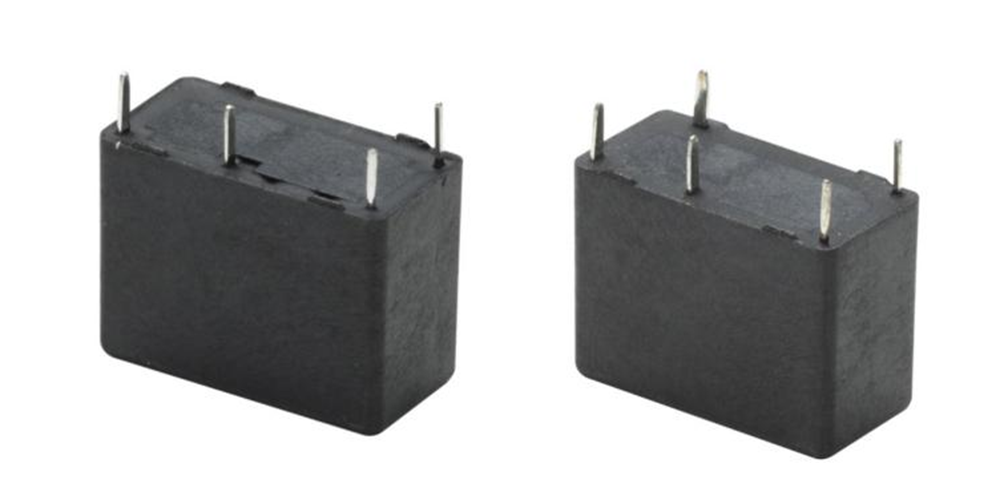

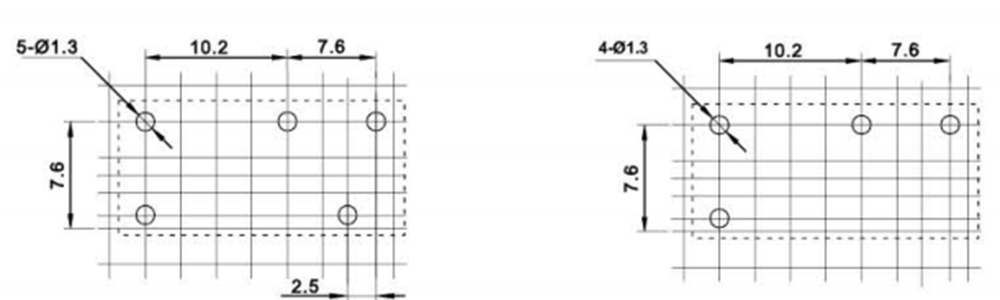

Note: The left side is 4pins, and the right side is 5pins

3.High-Quality Copper Coil:
The MPDN relay features a high-quality copper coil, known for its excellent electrical conductivity and heat dissipation properties. This ensures reliable performance in various environmental conditions, making it ideal for demanding industrial and commercial applications.
