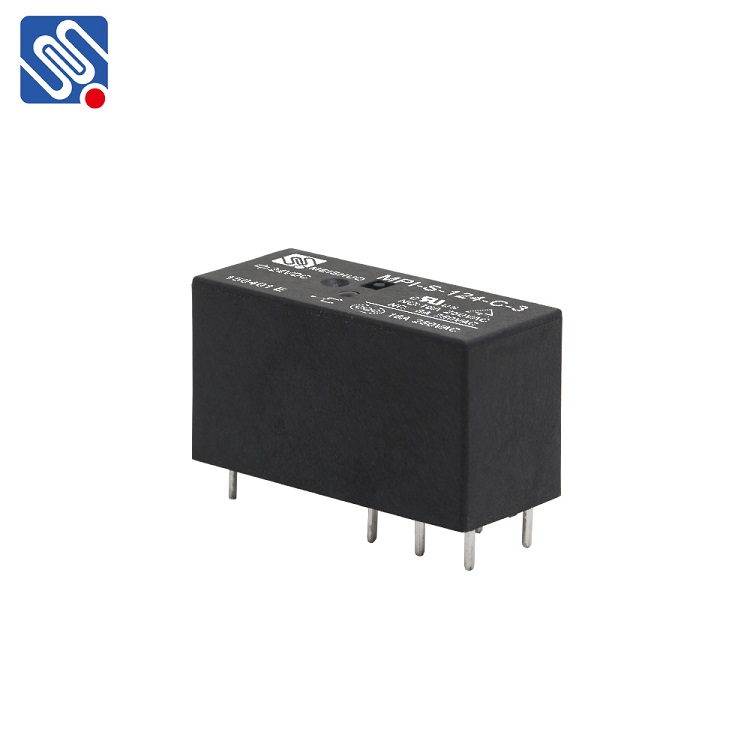

16A 24V PCB 8 Pin Relay

CertificationVDE 40057251UL E358149TUV R50302776CQC CQC15002122984 Product Parameters Contact Arrangement 1A ...

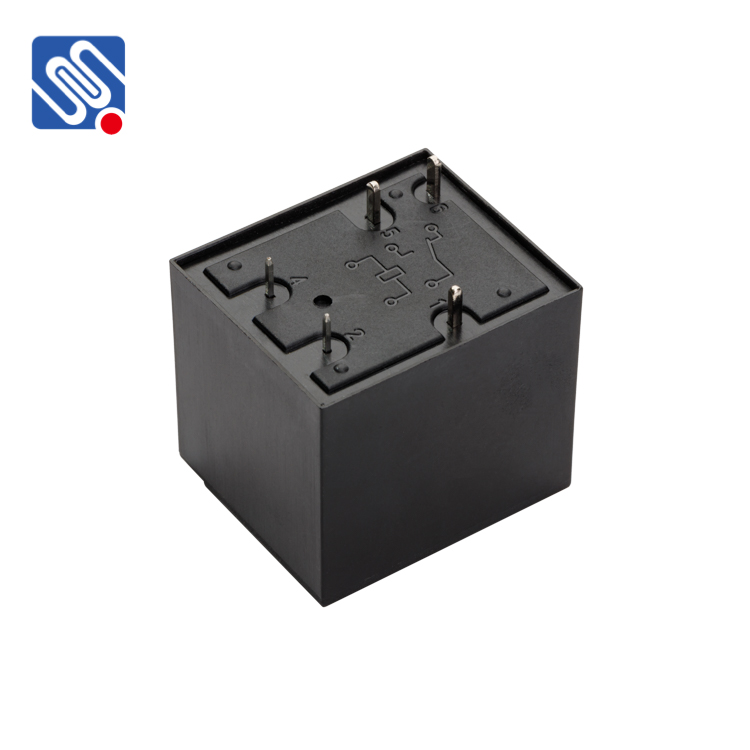

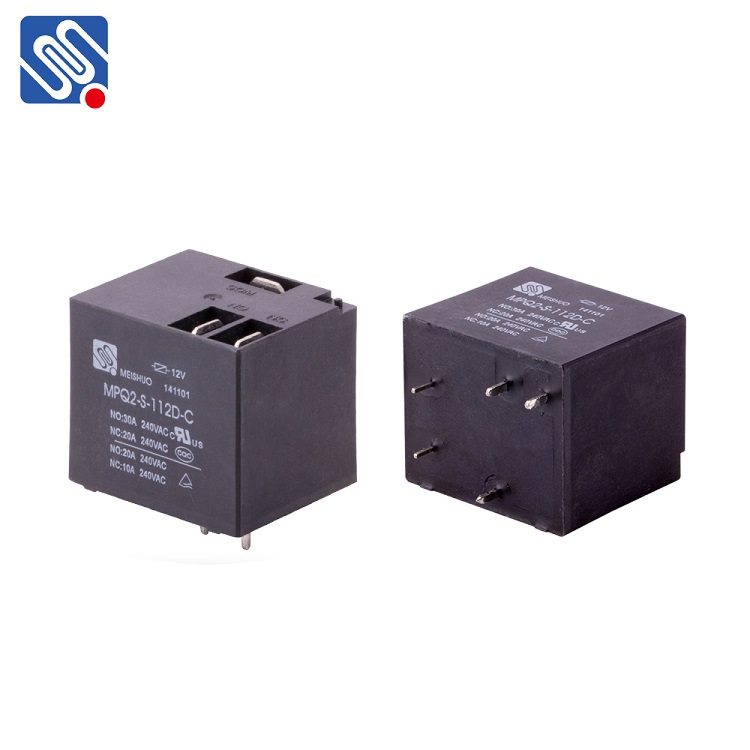

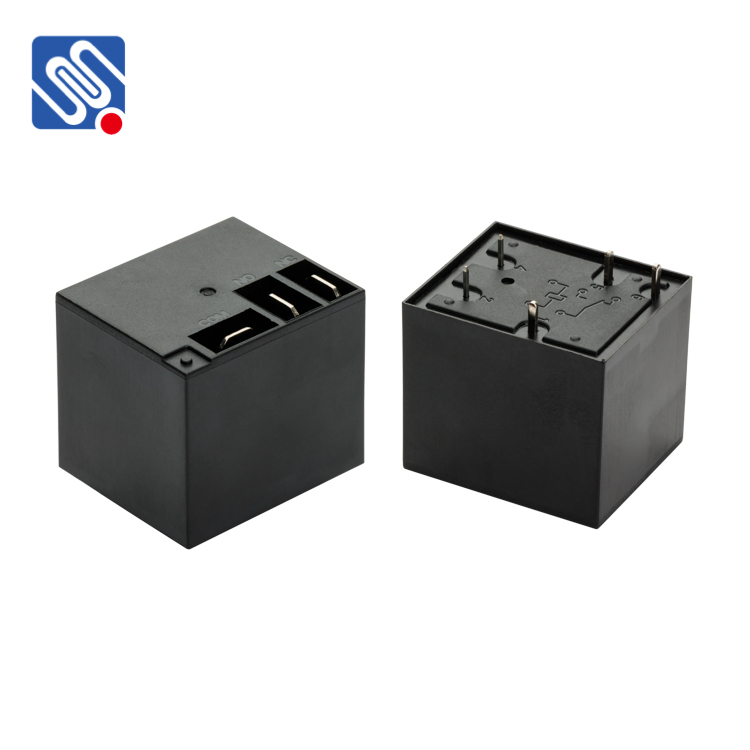

12V 30A T91 Relay

•30A Switching capability •Class F insulation available •Wash tight type •PCB layout contact QC layout •Outline dimensions L*W*H:32*27.1*28.3mm

Certification
UL E358149
TUV R50184977
CQC CQC10002051838

Advantage
High-quality shell:The shell is made of high-quality plastic, with good thickness and smoothness, safer performance, wear resistance and high temperature resistance

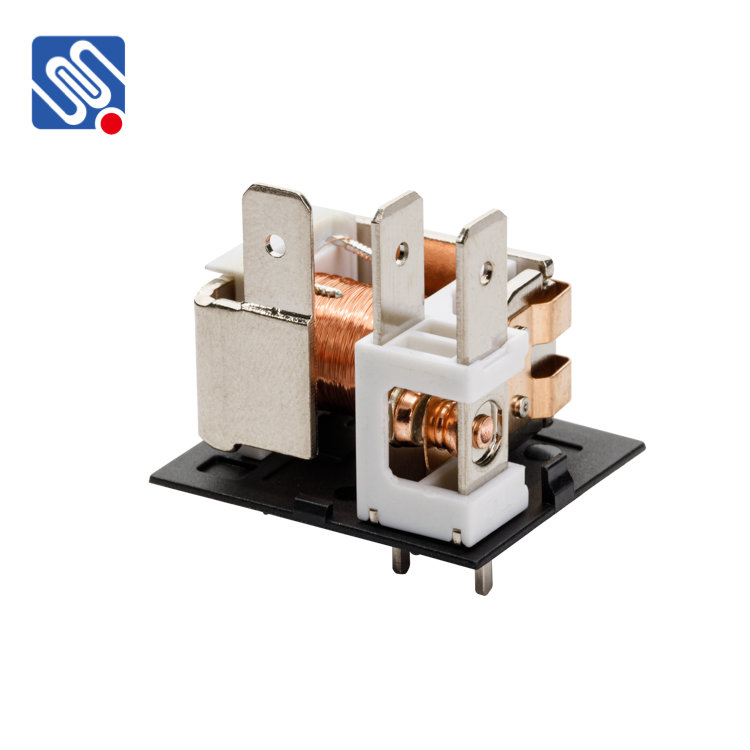

High-quality coil:This product uses an international standard full-turn electromagnetic coil, which is more reliable to attract
Composite silver contacts:Using composite silver material, the conductivity is better

Product Description
Rated load: 30A 240VAC
Contact switching current: 30A
Contact switching voltage: 05,06,09,12,24,48 VDC
Contact form: NO, conversion
Protective features: Wash tight
Operate Time:≤15ms
Release Time:≤10ms
Coil power: 0.9w
Unit Weight: Approx.35g

Application
Household appliances: air conditioners, water heaters, rice cookers, induction cookers, electric welders, electric irons, coffee machines, bread machines, massagers, water pumps, smart sockets, smart lighting controls, etc.
Commercial equipment: computers, fax machines, shredders, vending machines, automatic electric skylights, car door locks, etc.

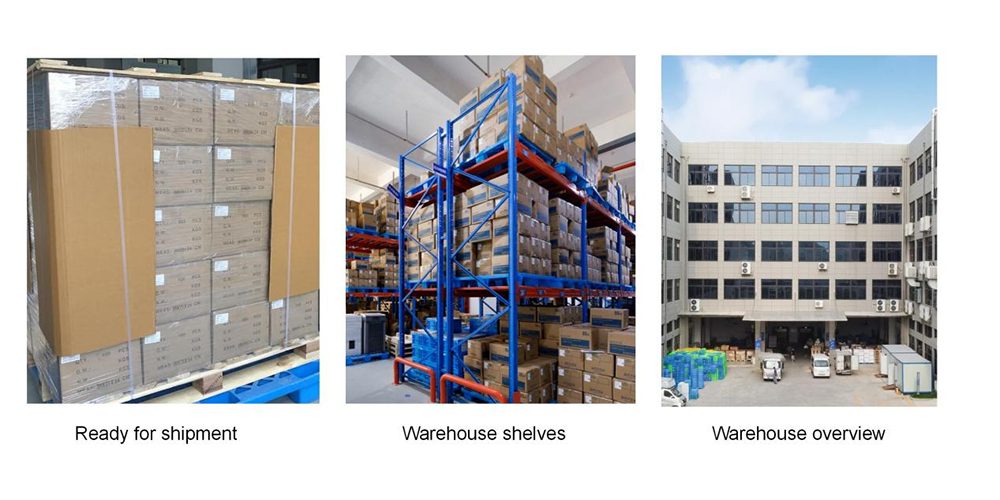

Warehouse Display
Our store has thousands of product styles, but only some of them are in stock and 100% original. Please contact us for specific product models and to confirm prices and delivery dates. Thank you!
