Product Overview

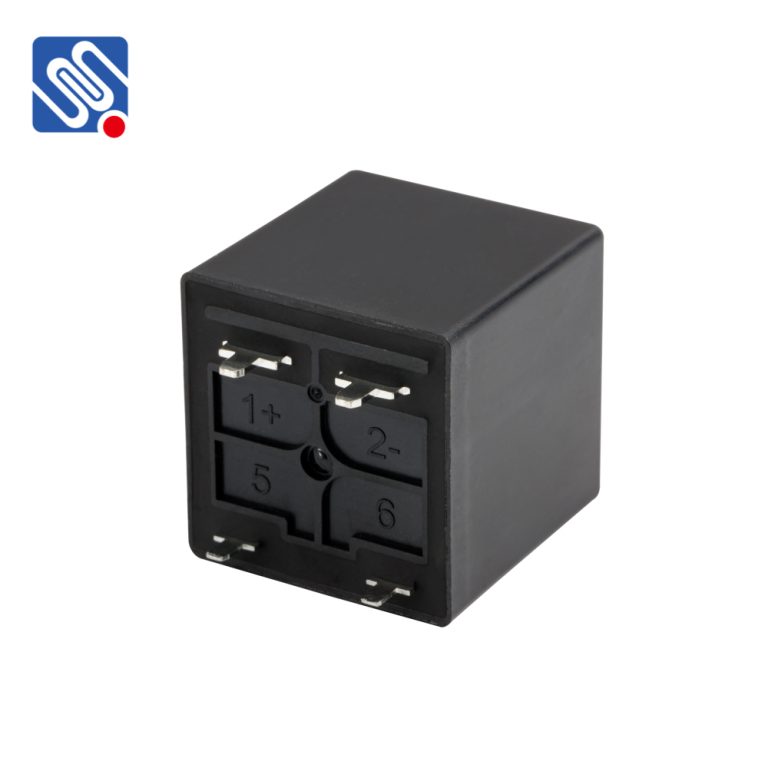

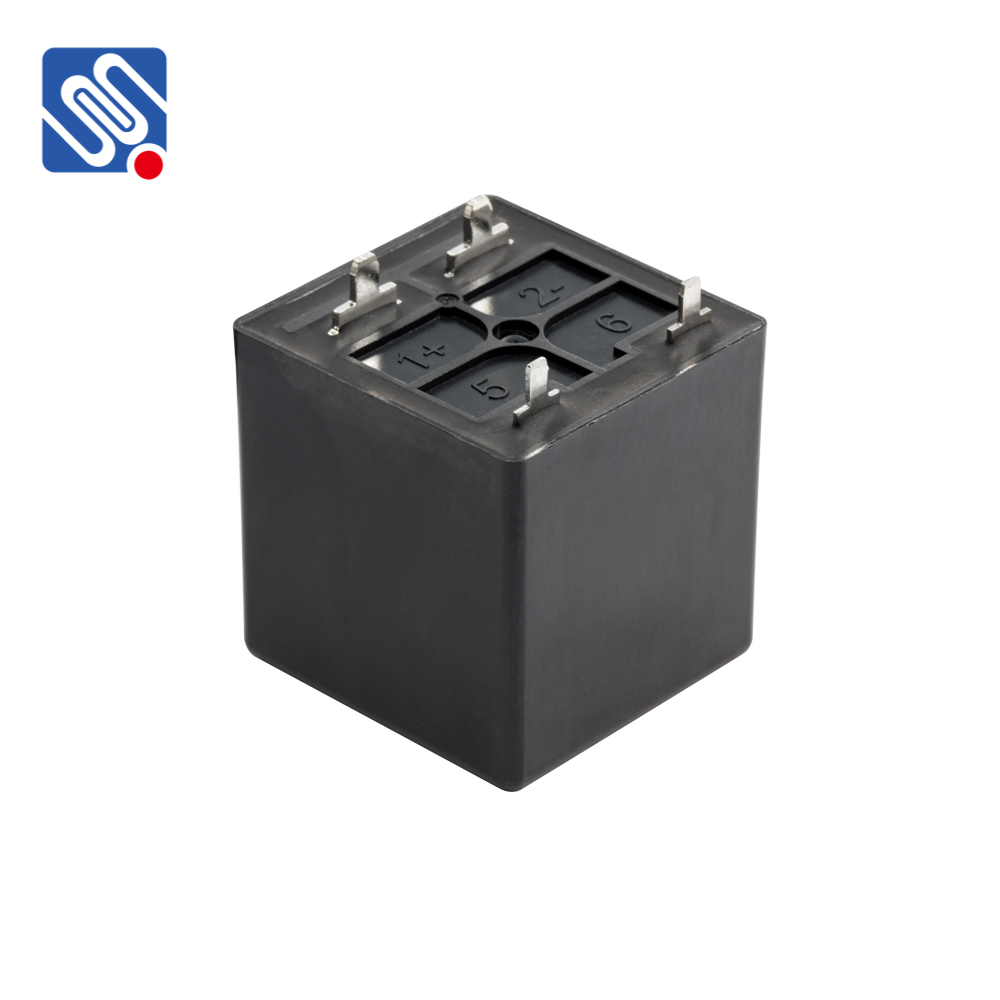

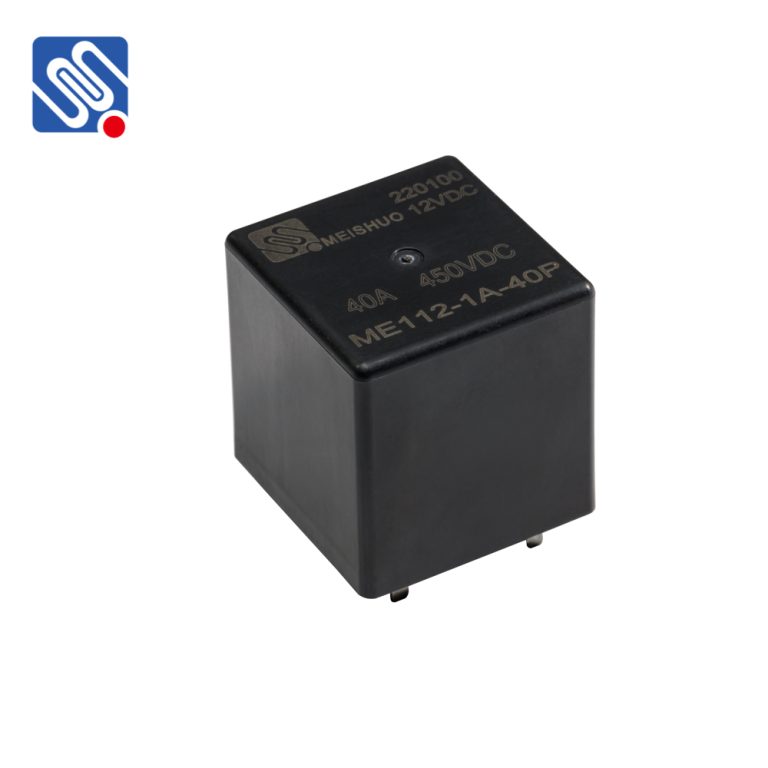

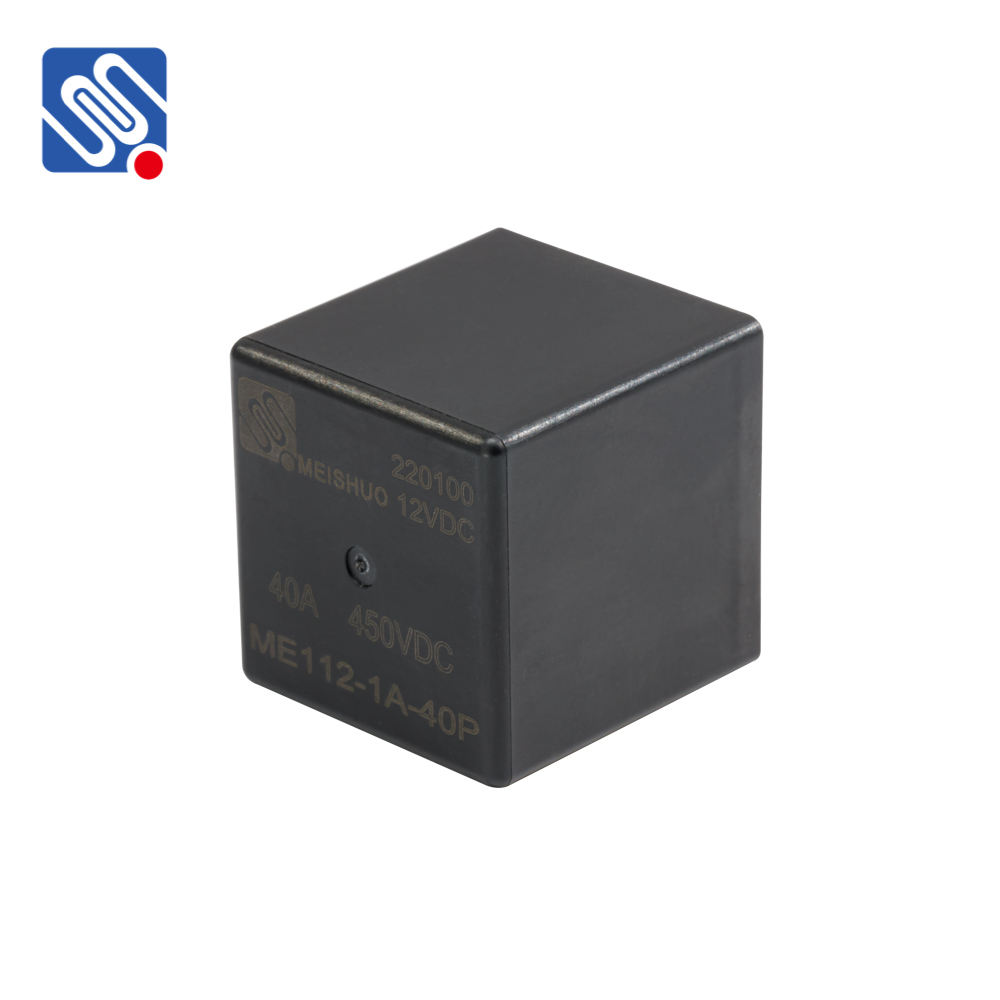

ME112 relay is a commonly used relay in inverters and new energy systems. According to the customer’s application requirements, rated load models of 20A or 40A can be selected. It has the advantages of high reliability, fast response, strong durability, low power consumption, and easy installation and maintenance.
Contact Parameters
| Contact Arrangement | 1A |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤50mΩ (at 1A 6VDC) |
| Max. Switching Current | 40A |
| Max. Switching Voltage | 750VDC |
| Max. Switching Power | 30kW |
| Electrical Life | 10000 OPS |
| Mechanical Life | 200000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ (500VDC) |
| Dielectric Strength | Between Coil & Contacts: 3000VAC 1min Between Open Contacts: 2000VAC 1min |
| Operate Time | ≤30ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃～+85℃ |
| Vibration | 10Hz～55Hz 1.5mm(DA) |
| Shock | Functional: 196m/s² (20G) Destructive: 490m/s² (50G) |
| Release Time | ≤10ms |

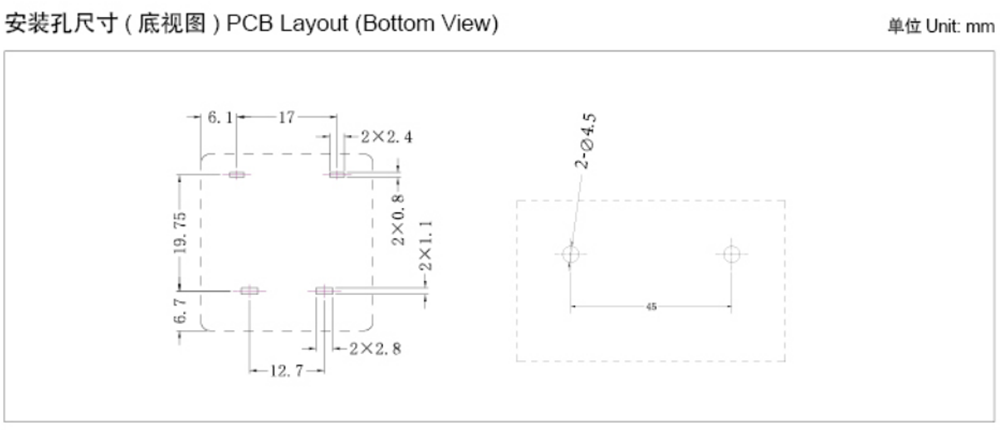

| Terminal Form | PCB, QC |
| Construction | Plastic sealed |
| Unit Weight | Approx.51g |
Application
Solar Power Systems: The ME112 relay is used to manage the flow of electricity in photovoltaic systems, ensuring safe and efficient energy conversion from sunlight to electricity.
Pre charging auxiliary relay for new energy vehicles: The ME112 relay provides appropriate voltage and current to the charging coil by controlling the power switch, and plays a role in protecting the battery and charging interface before the power is connected to the charger.
