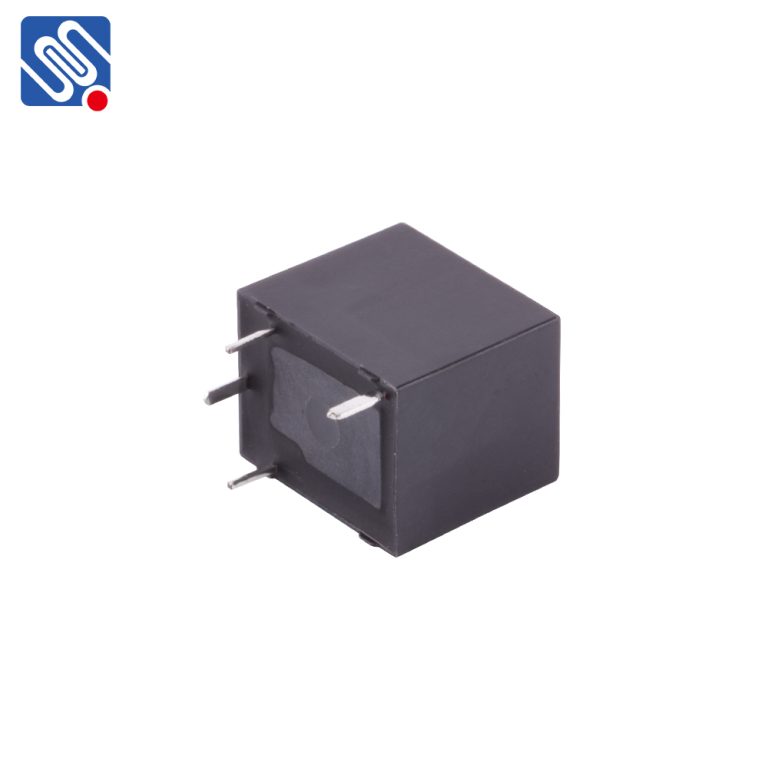

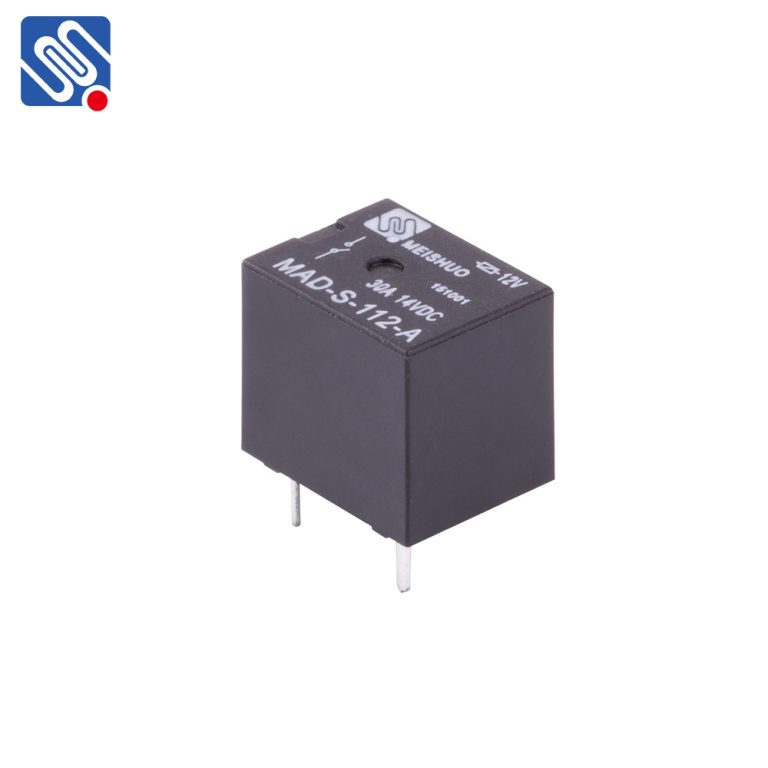

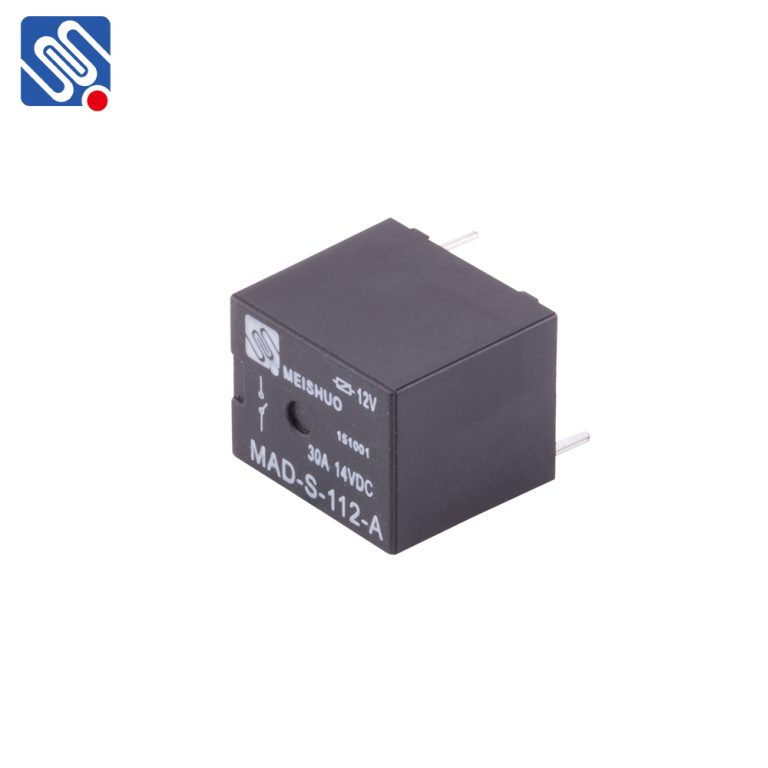

12V Mini Automotive Applications Relay MAD

Product Overview MAD automotive relays have a compact structure, light weight, and high heat resistance. They can reach a rated current of 20A in a working environment of 85 degrees Celsius. It achieves switching and regulation functions by controlling high current with small current, ensuring the reliable execution of various functions of the car.   Contact Parameters

Contact Arrangement	1A, 1B, 1C
Contact Material	Silver Alloy
Voltage Drop(Initial)	NO:Type.100mV, Max.300mV
	NC: Type.100mV, Max.300mV
Rated Load	NO: 20A 14VDC
	NC: 15A 14VDC
Max. Continuous Current	NO: 20A
	NC: 15A
Max. Switching Voltage	16VDC
Electrical Life	100000 OPS
Mechanical Life	1000000 OPS

Characteristics

Insulation Resistance	100MΩ(500VDC)
Dielectric Strength	Between Coil & Contacts: 500VAC 1min
	Between Open Contacts: 500VAC 1min
Operate Time	≤10ms
Release Time	≤5ms
Ambient Temperature	-40℃～+85℃
Vibration	10Hz～500Hz 49m/s²(5G)
Shock	98m/s² (10G)
Terminal Form	PCB
Construction	Sealed
Unit Weight	Approx.6g

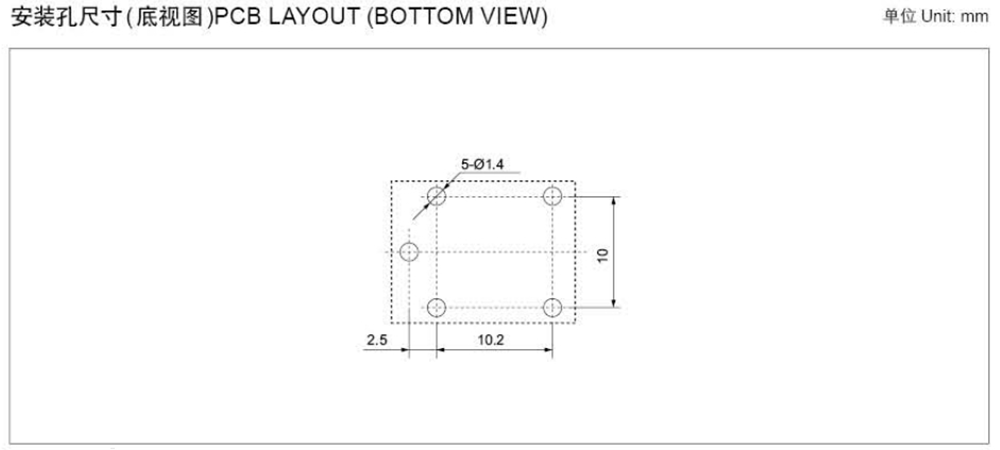

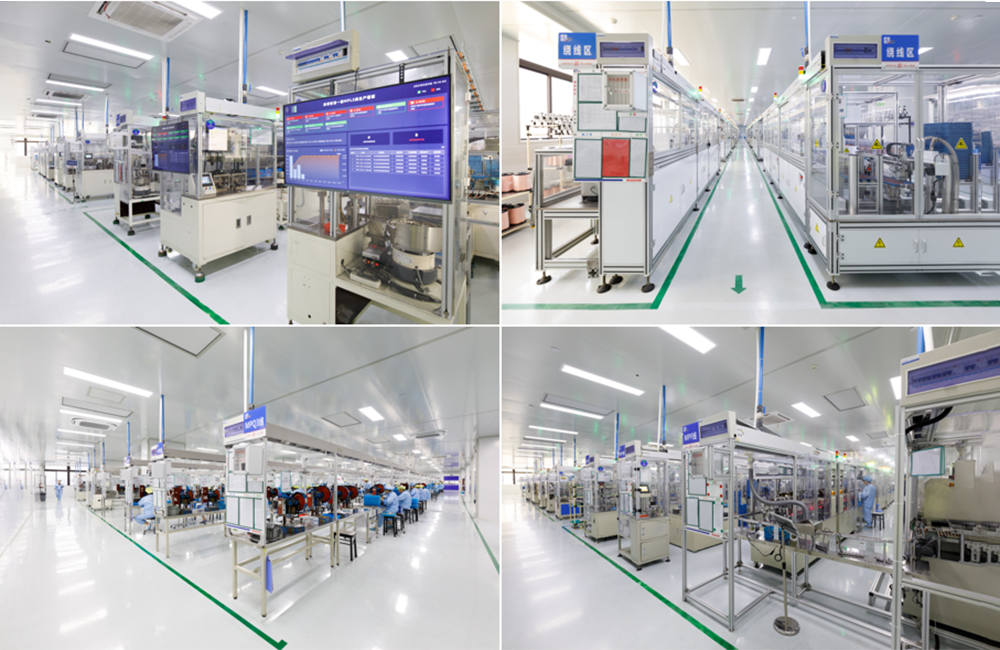

Product advantages Advantage 1: MAD relays have low power consumption, which can effectively reduce the energy consumption of switching power supplies and ensure their reliability. Advantage 2: High temperature resistance: MAD relays have high heat resistance. In an environment of 85 degrees Celsius, their rated current load can reach 20A and still maintain stable performance.   Application MAD Automotive Relays are designed to be suitable for a wide range of automotive applications, including electric windows, door locks, wipers, radiators, power distribution systems, and other essential vehicle components. With their robust design, MAD relays are adaptable to different vehicle models and provide long-lasting durability in demanding automotive environments.   Product Packaging 100 pcs/inner box 20 inner boxes/middle boxes, 2 middle boxes/master box 4000 pcs/master box MEAS: 40×35×38cm   G.W.: 23.5KGS   N.W.: 22.5KGS Company Profile Meishuo Electric Technology focuses on improving manufacturing processes and automating equipment. Through large-scale technological upgrades, the company has optimized its production lines, significantly enhancing efficiency and product quality. As a result, Meishuo has achieved a high level of automation in its production, becoming one of the most automated relay manufacturers in China. This automation ensures consistent quality and reliable output across its range of relay and electromagnetic valve products.
