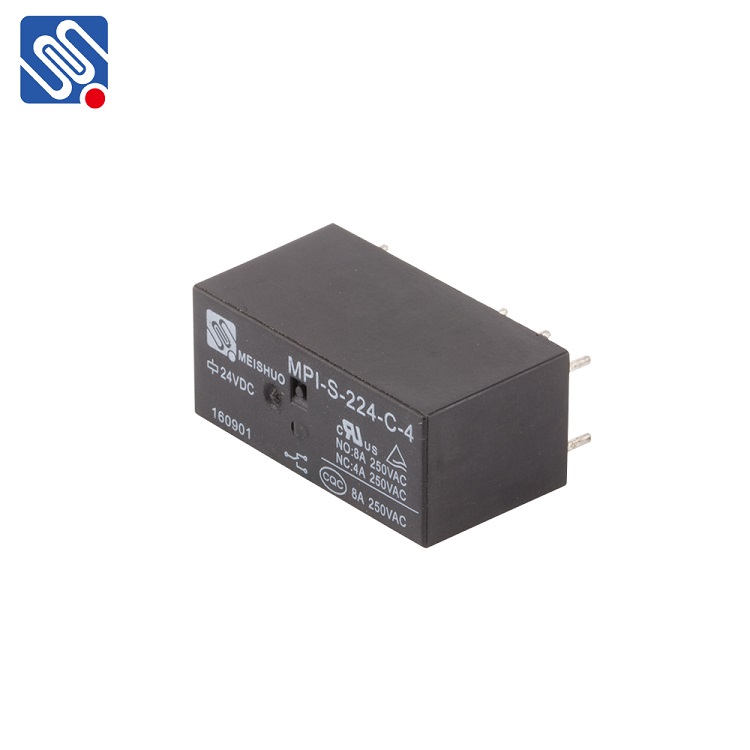

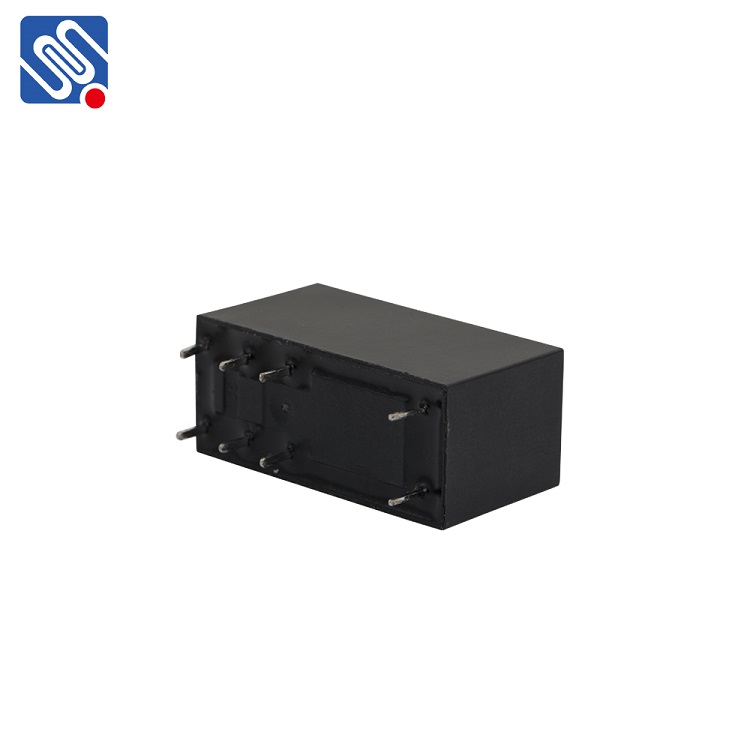

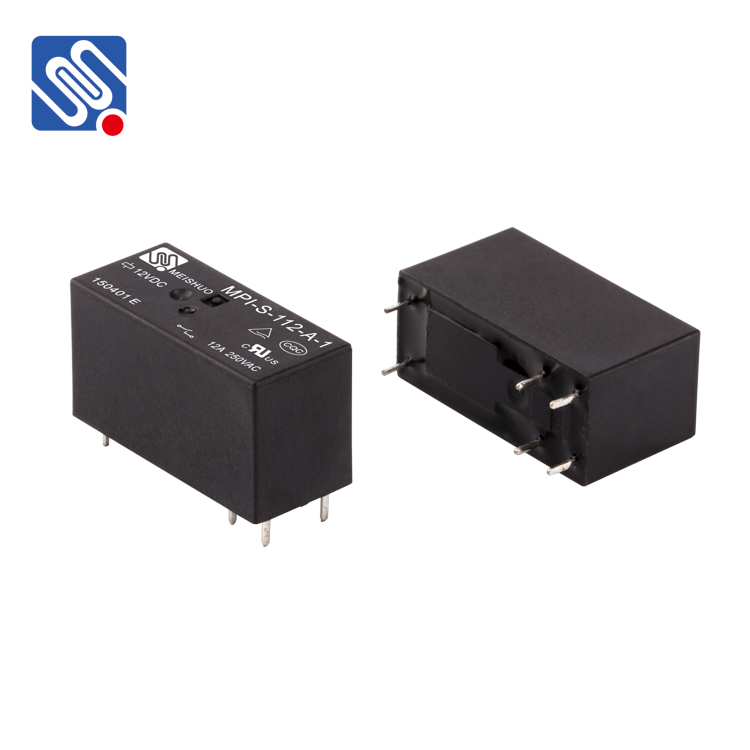

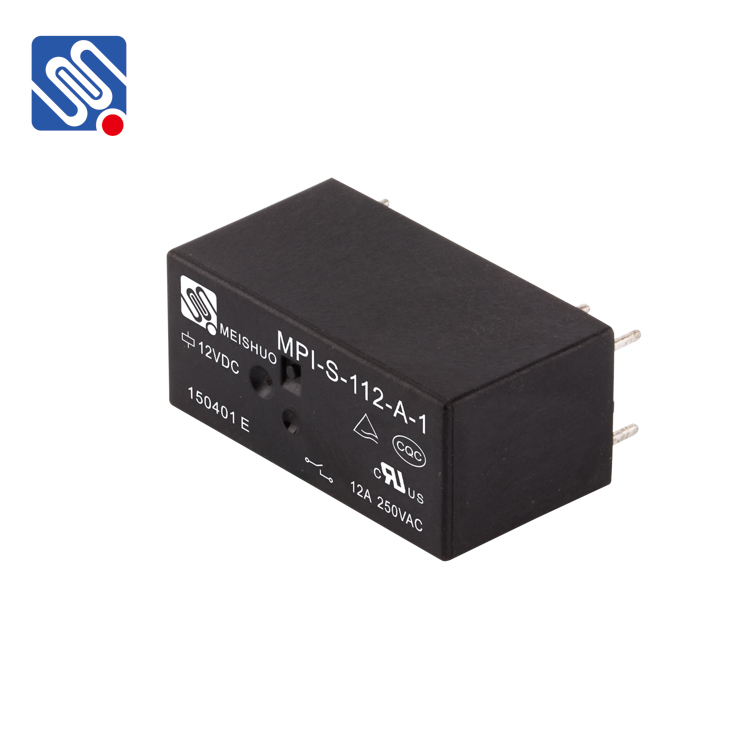

16A 24V PCB 8 Pin Relay

•16A Contact switching capability •Low height:15.9mm •Kinds contact Form available •Kinds socket available •Outline dimensions L*W*H:29*12.7*15.9mm

Certification
VDE 40057251
UL E358149
TUV R50302776
CQC CQC15002122984

Product Parameters

Contact Arrangement	1A 1C 2A 2B 2C
Rated Load	16A 250VAC
Max.Switching Current	16A
Operate Time	≤10ms
Release Time	≤5ms
Coil Power	0.36W
Construction	Wash tight
Unit Weight	Approx.10g

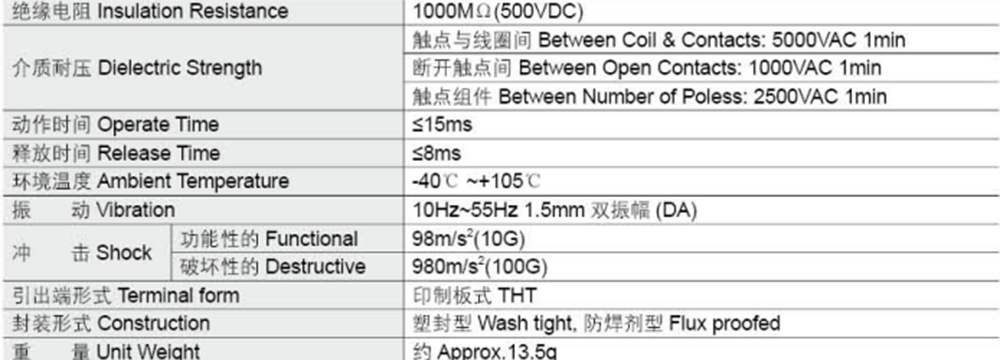

Characteristics

Ordering Information
Model: MPI
Structure: S:Wash tight
Nil:Flux proofed
Contact group: 1:1 pole
2:2 poleCoil voltage: 05,06,09,12,24,48 VDC
Contact arrangement: 1A,1C,2A,2B,2C
Contact form:1: 1 Group, 3.5mm, 12A
2:1 Group, 5.0mm, 12A
3:1 Group, 5.0mm, 16A
4:2 Group, 5.0mm, 8A
Coil power:N:0.53W
Nil:0.4W
Insulation Class:F:Class F
Nil:Standard type, Class B

Certification

Our products have obtained ISO45001, ISO14001 and other system certifications, some products have obtained CQC, UL, TUV and other safety certifications, all products have RoHS and Reach environmental certifications

Application
MPI can be used in home appliance heating systems, such as microwave ovens and dryers, and can also be used in smart home systems, such as smart sockets.
