Product Overview

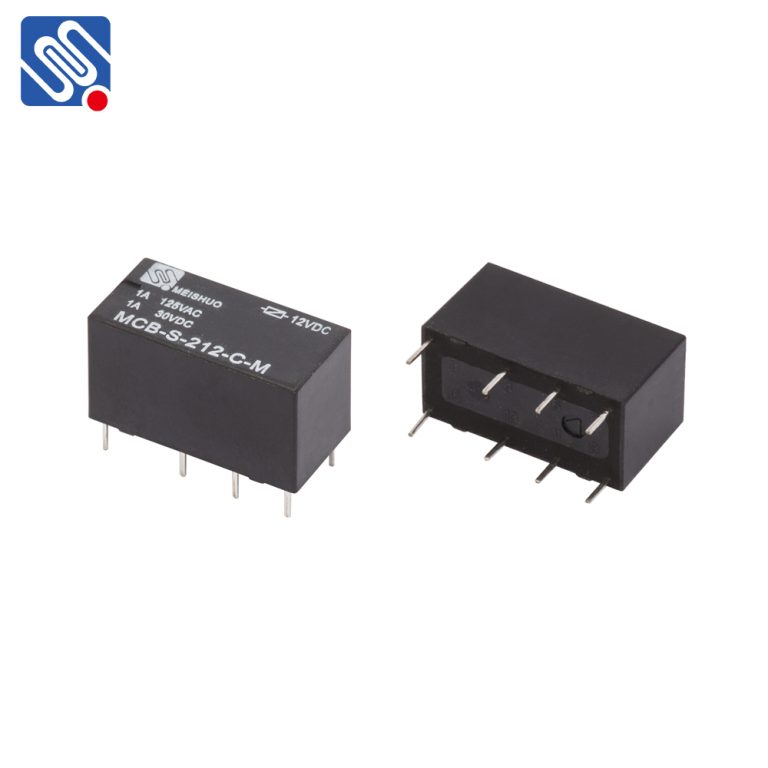

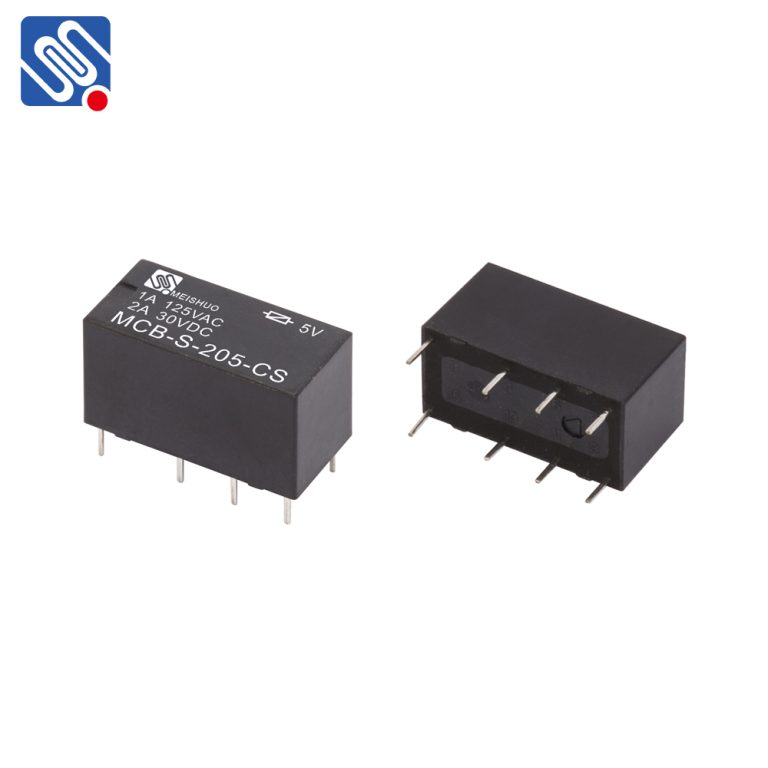

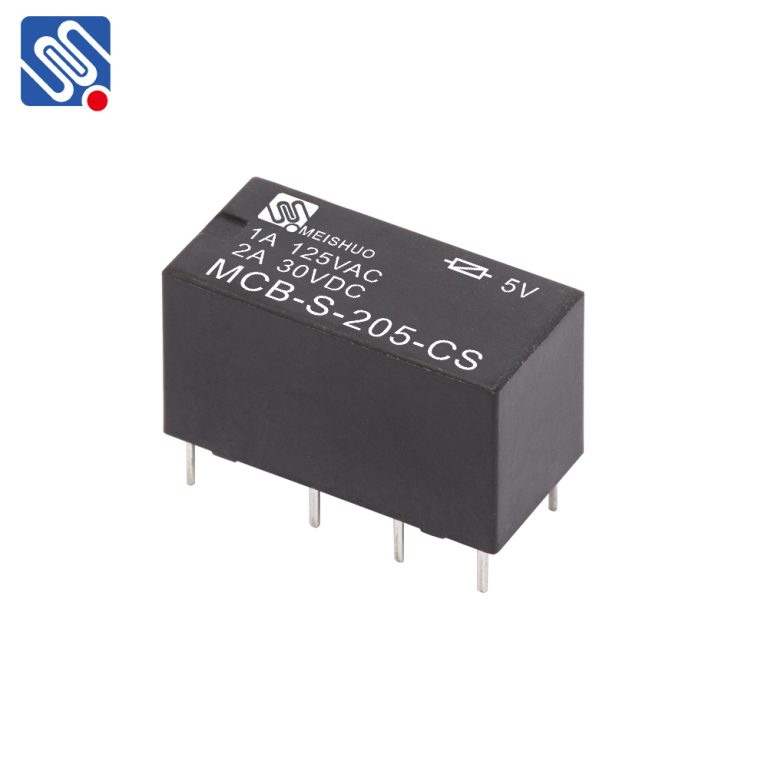

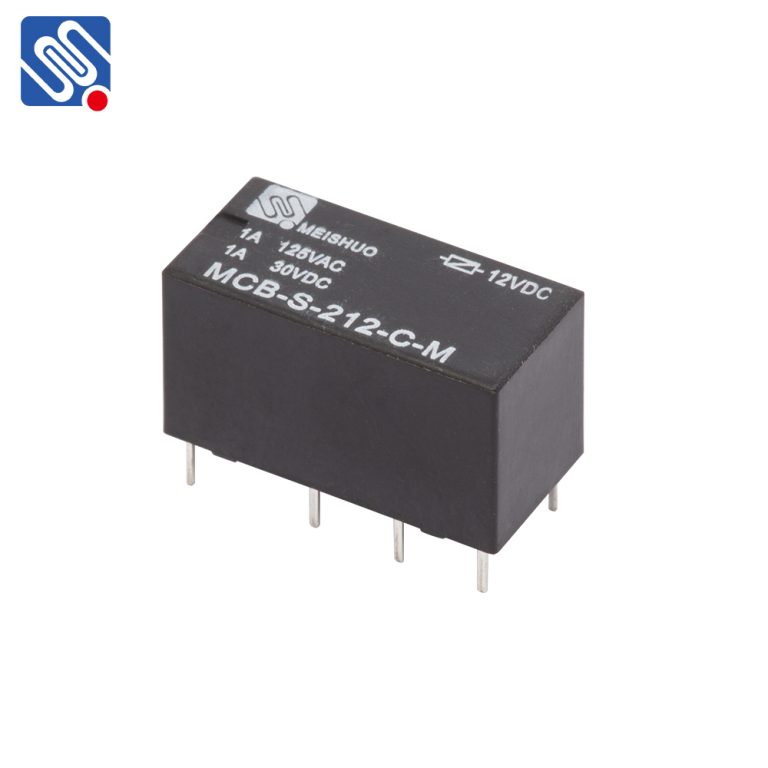

The MCB signal relay adopts DIP structure and can be matched with standard 16 pin IC sockets. It has the advantages of high reliability, fast response, strong durability, and low power consumption, and is commonly used in signal relay equipment systems.
Contact Parameters
| Contact Arrangement | 2C |
| Contact Material | AgNi (Gold-plated) |
| Contact Resistance | ≤100mΩ(10Ma 30mVDC) |
| Max. Switching Current | 2A(Resistive) |
| Max. Switching Voltage | 240VAC/120VDC |
| Max. Switching Power | 125VA/60W |
| Minimum application load | 10mV 10μA |
| Electrical Life | 100000 OPS |
| Mechanical Life | 100000000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ(at 500VDC) |
| Dielectric Strength | Between Coil & Contacts: 1500VAC 1min Between Open Contacts: M/S: 1000VAC 1min H: 750VAC 1min |
| Operate Time | ≤7ms |
| Release Time | ≤4ms |
| Ambient Temperature | -40℃～+85℃ |
| Vibration | 10Hz～55Hz 1.5mm(DA) |
| Shock | Functional: 196m/s²(10G) Destructive: 980m/s²(100G) |
| Terminal Form | PCB |
| Construction | Sealed Flux Proofed |
| Unit Weight | Approx.5g |
Naming Rules
Model: MCB
Structure: S: Sealed Nil: Flux proofed
Contact Group: 2 Group
Coil Voltage: 03,06,09,12,24VD
Contact Form: 1C
Coil power: M: Standard (0.28-0.58W) S: Sensitive (0.2W) H: Highly sensitive (0.15W)
Application
Telecommunication Systems: The MCB signal relays can be used in telecommunication systems to manage and route various signals ensuring efficient data transmission.
