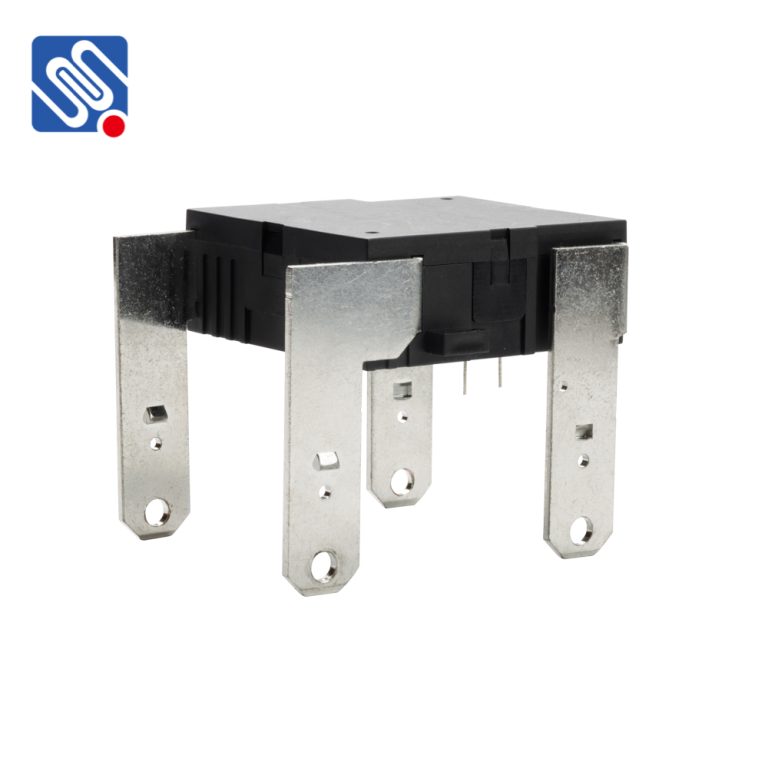

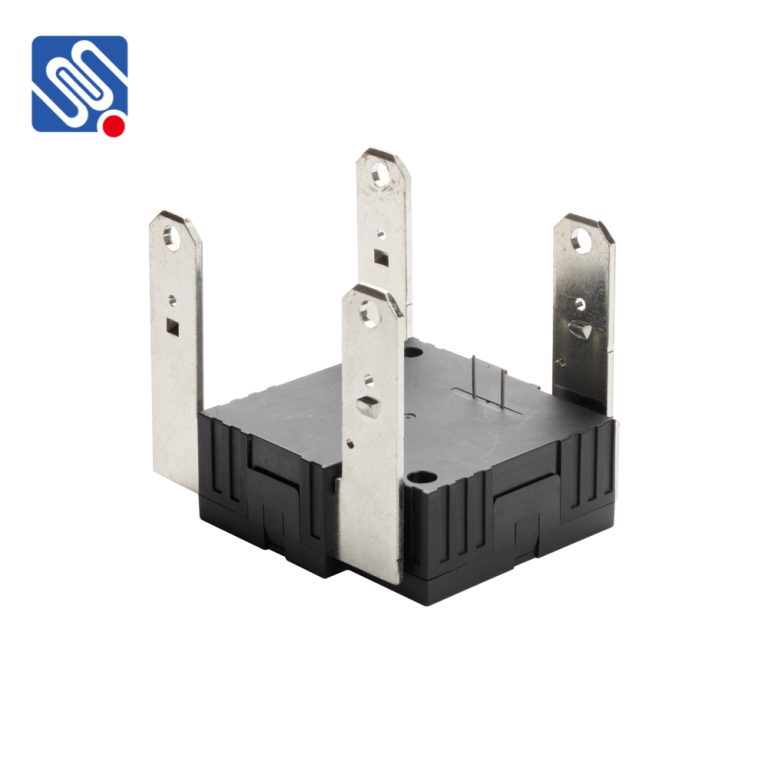

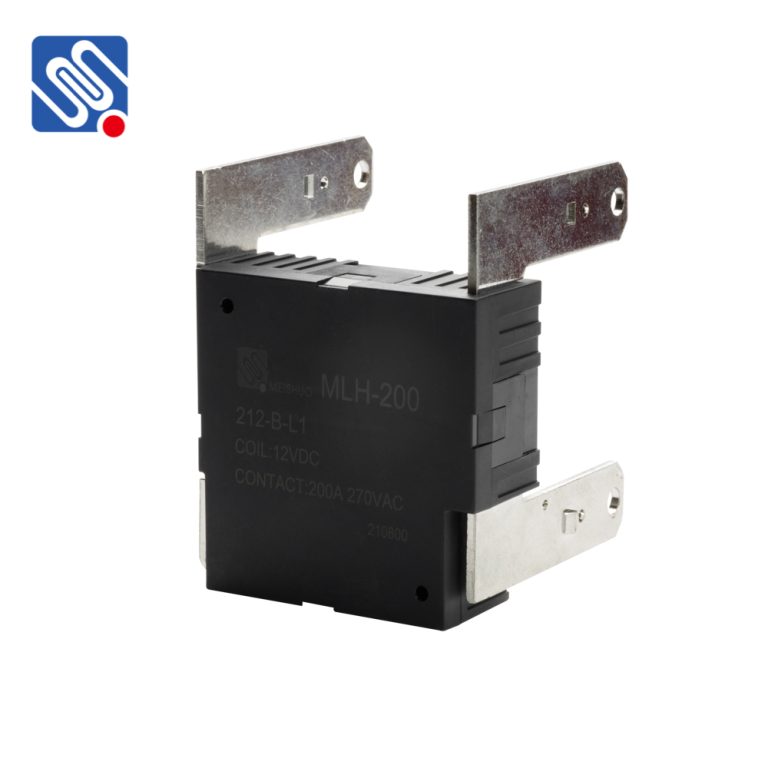

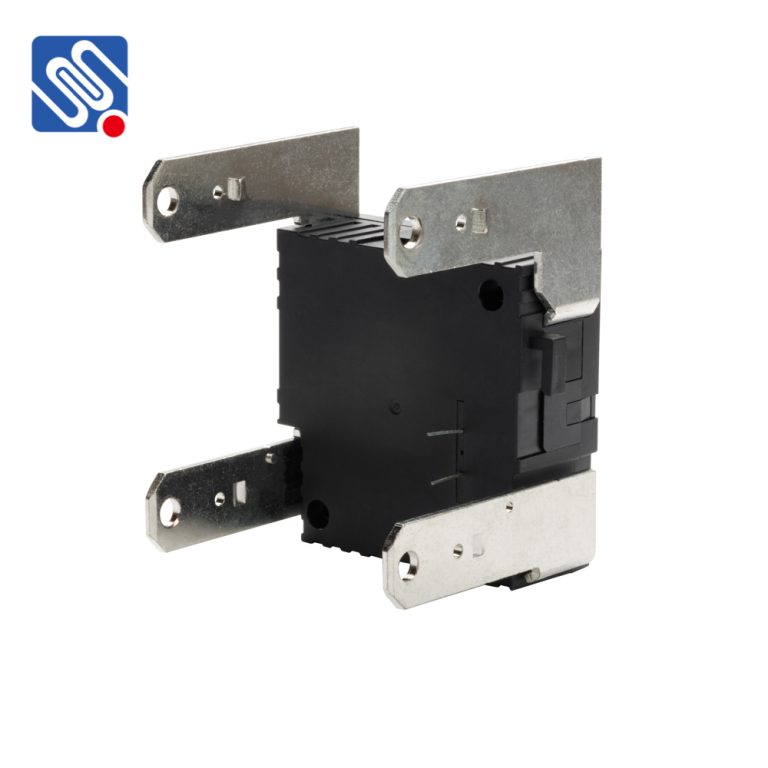

Product Overview
The MLH relay is suitable for various electrical control scenarios, such as power grid systems, single-phase meters, composite switches, intelligent capacitors, etc. This product is an environmentally friendly product that complies with RoHS and supports 12V power input. The withstand voltage between its coil and contacts is 4KV, with a contact switching capability of up to 200A.
Contact Parameters
| Contact Form | 2A,2B |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤0.5mΩ (1A 6VDC) |
| Contact Rating | 200A 250VAC |
| Max. Switching Current | 200A |
| Max. Switching Voltage | 265VAC |
| Max. Switching Power | 4.8KVA |
| Electrical Life | 6000 OPS |
| Mechanical Life | 100000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ Min. (500VDC) |
| Dielectric Strength | Between Coil&Contacts: 4000VAC 1min |
| Between Open Contacts: 2000VAC 1min | |
| Between 2 groups of contacts: 4000VAC 1min | |
| Set Time | ≤20ms |
| Reset Time | ≤20ms |
| Shock | Functional: 98m/s² |
| Destructive: 980m/s² | |
| Vibration | 10Hz～55Hz 1.5mm(DA) |
| Humidity | 5%～85%RH |
| Ambient Temperature | -40℃～+85℃ |
| Construction | Dust Protected |
| Unit Weight | Approx.400g |
Product Advantages
Advantage 1:
Strong impact resistance: Due to its structural characteristics and materials used, the relay has strong impact resistance. Even when the power supply is subjected to strong external impacts, the relay can work normally without being affected.
Advantage 2:
Safe and reliable: the relay can be isolated and protected to avoid circuit failure caused by load failure and improve safety.
Product Materials
External wiring and contacts
Using pure red copper copper sheet silver alloy contacts, good performance and fast switching
External structure and materia
The shell is made of flame-retardant material, and the four-side buckle design is reliable in structure.
internal structure and material
Using silver alloy contacts, permanent magnets, pure copper coils, longer life and safer
Certificate

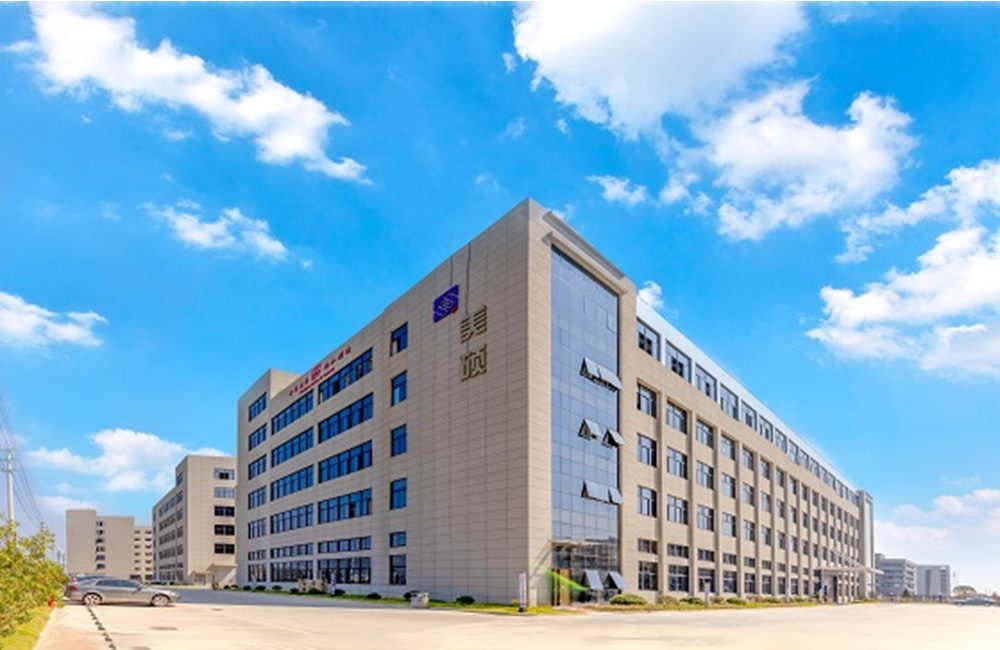

Company Profile
