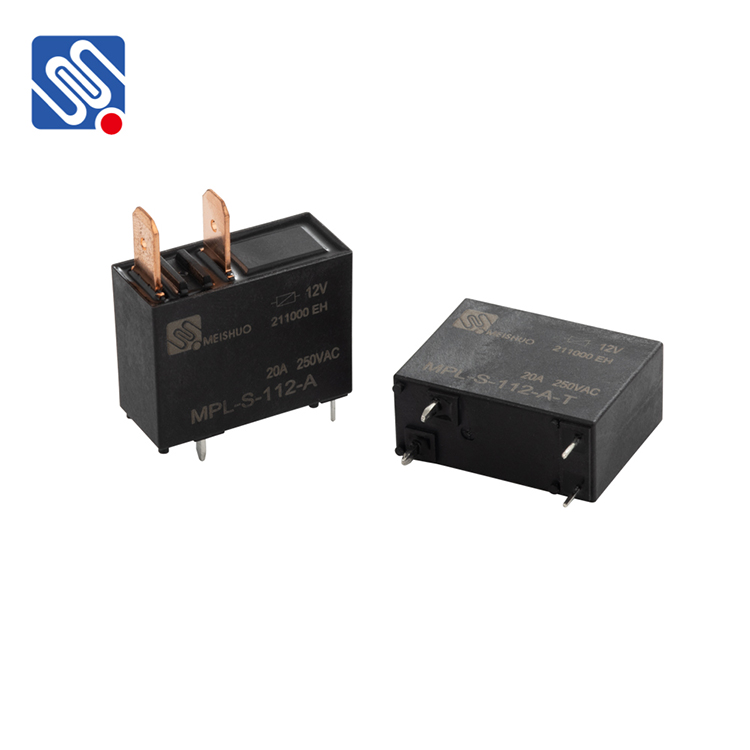

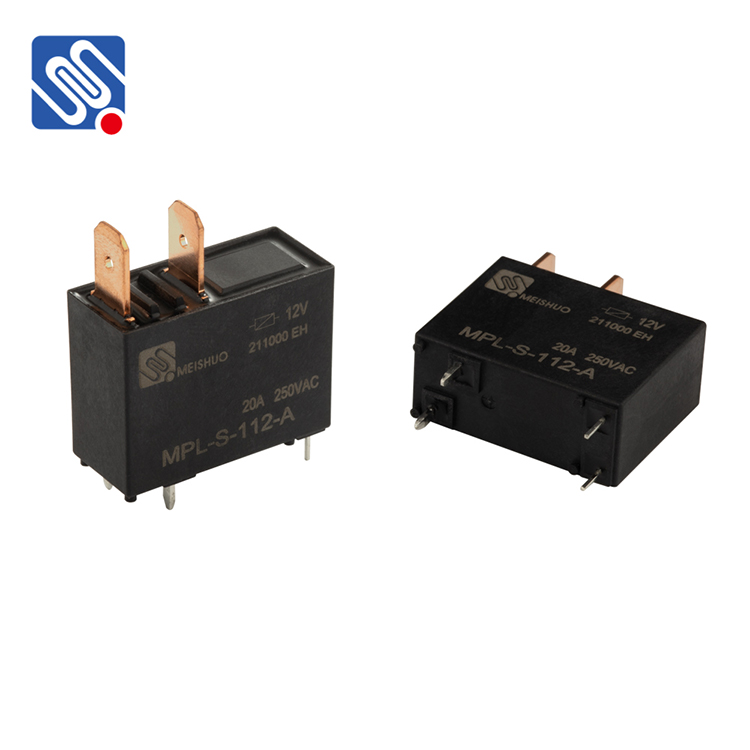

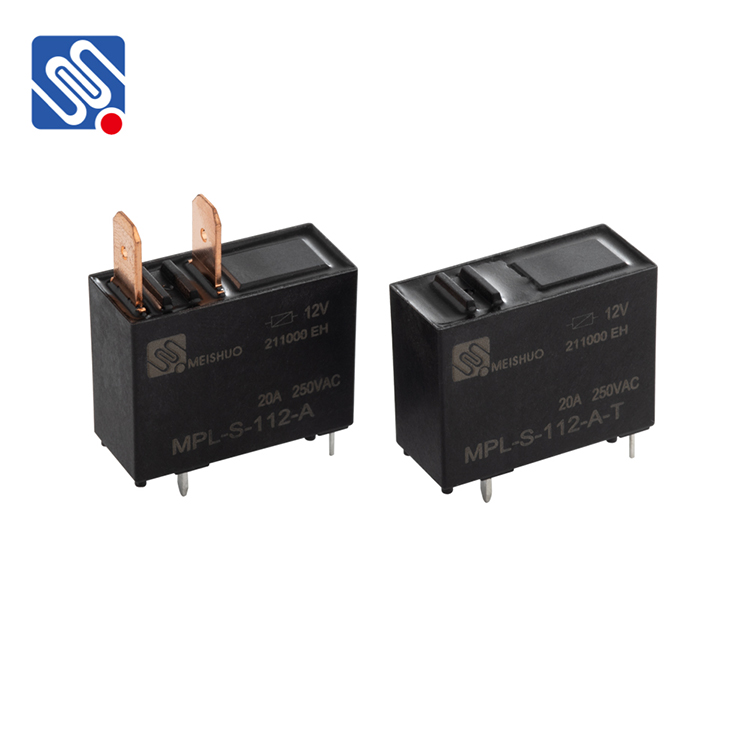

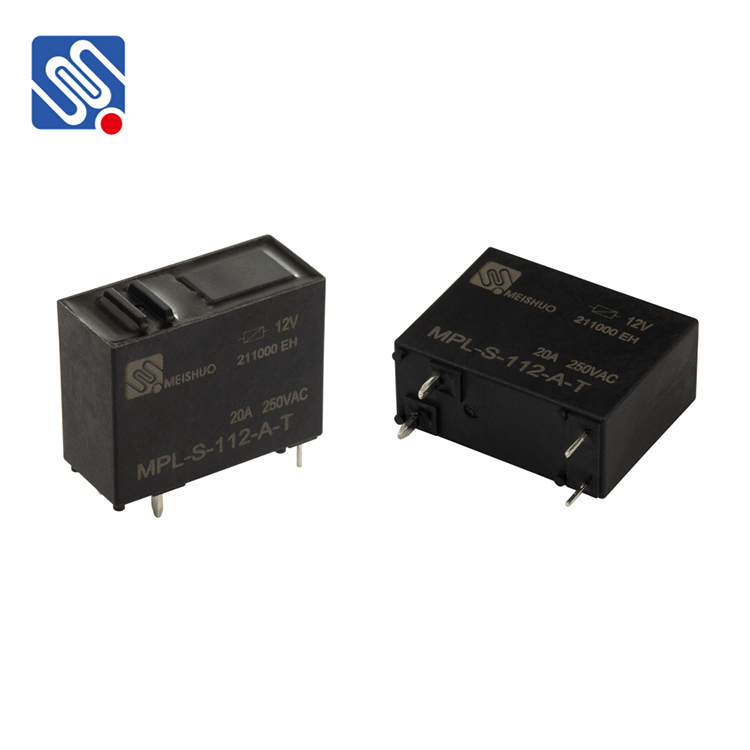

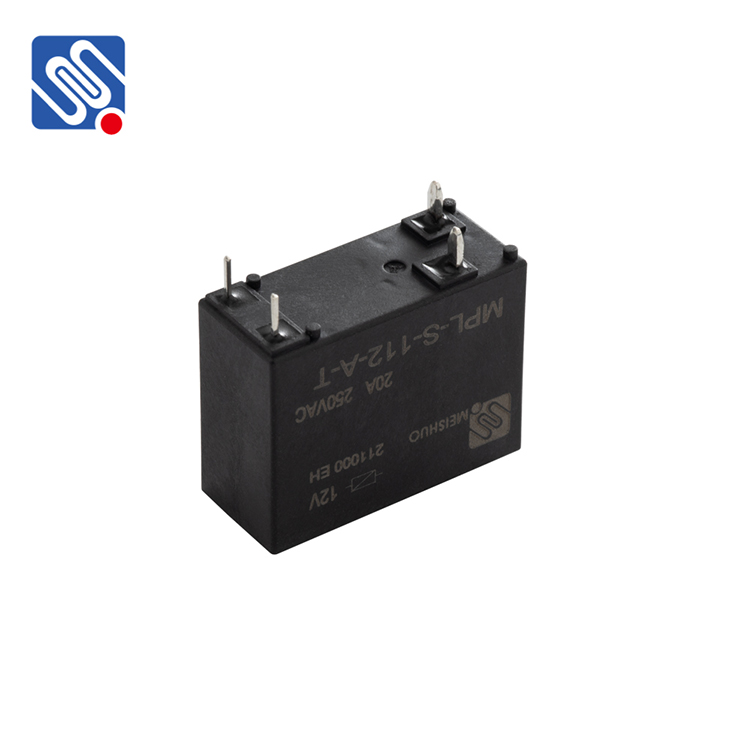

20A Electrical Power Relay Switch

•20A switching capability •1A contact arrangement •Standard PCB layout QC layout •Outline dimensions L*W*H:29.2*12.6*23.0mm

Certification
UL E358149
TUV R50236892
CQC CQC12002086219

The MPL-H relay has a small size, light weight, and a coil consumption of only 0.54W, High Rating up to 20A，PC board mounting，Suitable for household electrical appliances, automation system, electronic equipment, instrument, meter, telecommunication facilities and remote control facilities.

Characteristics

Contact Arrangement	1A
Rated Load	20A 250VAC
Max.Switching Current	20A
Operate Time	≤20ms
Release Time	≤10ms
Coil Power	0.54W
Construction	Wash tight/Flux proof
Unit Weight	Approx.18g

Naming Rules
Model: MPL
Structure: S:Wash tight
Nil:Flux proof
Contact group: 1 pole
Coil voltage: 05,06,09,12,24 VDC
Contact form: 1A
Termination:T:PCB
Nil:PCB+QC
Insulation class:F:Class F

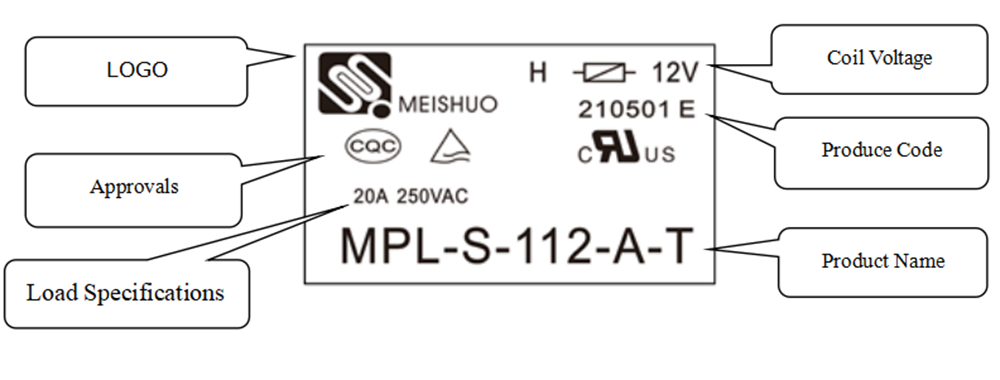

Printing and remarks

The picture is a printed picture of the product, which shows the manufacturer, batch number,certification, etc. As can be seen from the picture:,
1.The MPL-H relay has a variety of coil voltages to choose from, including 5V, 9V, 12V, 24V, etc., which can be directly identified from the printed words.
2.This product has CQC, TUV, and UL certifications, and the product is safe.
3.The production batch allows the product to be traced back to the source, prevents overdue, and strictly complies with the first-in-first-out principle.

Differences between MPL and MPL-
MPL only has flux proof type, but MPL-H can have wash tight type
The load of MPL is 16A, but the load of MPL-H can reach 20A
