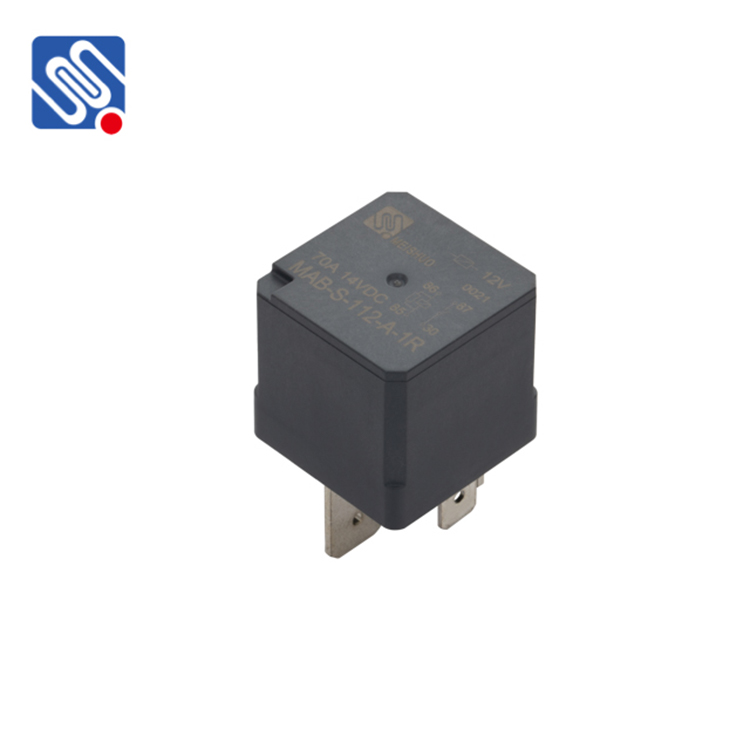

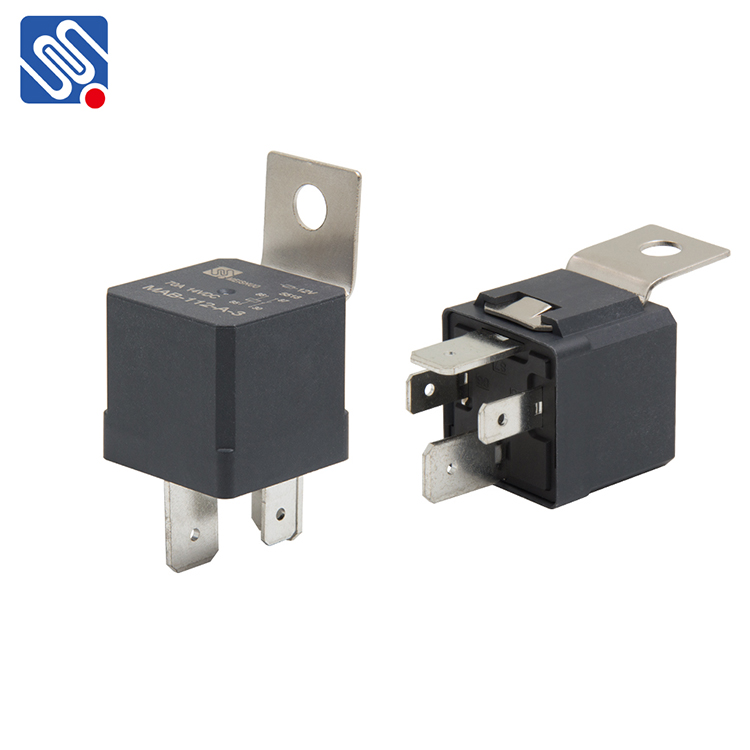

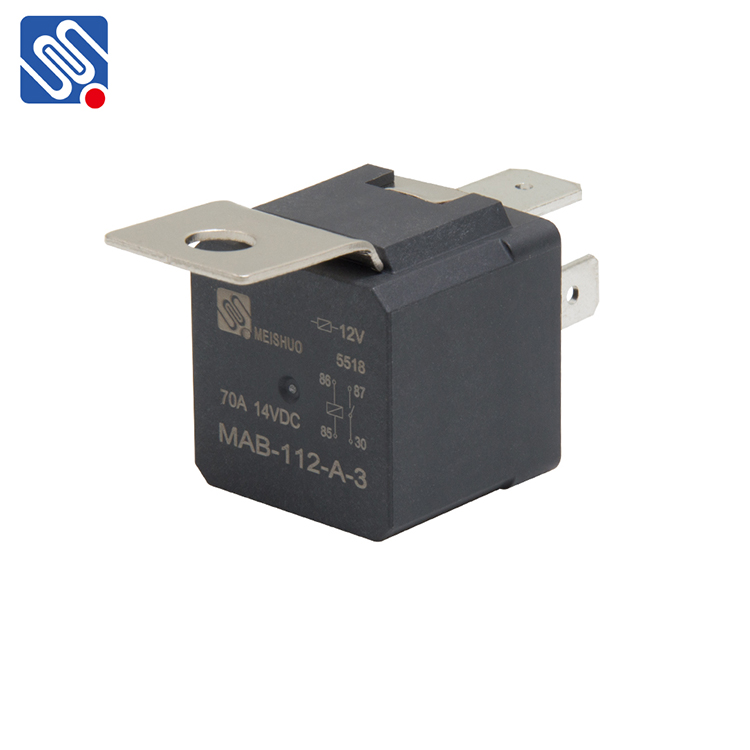

24V 70A 4 Pin Plug-in Automotive Relay Metal Bracket

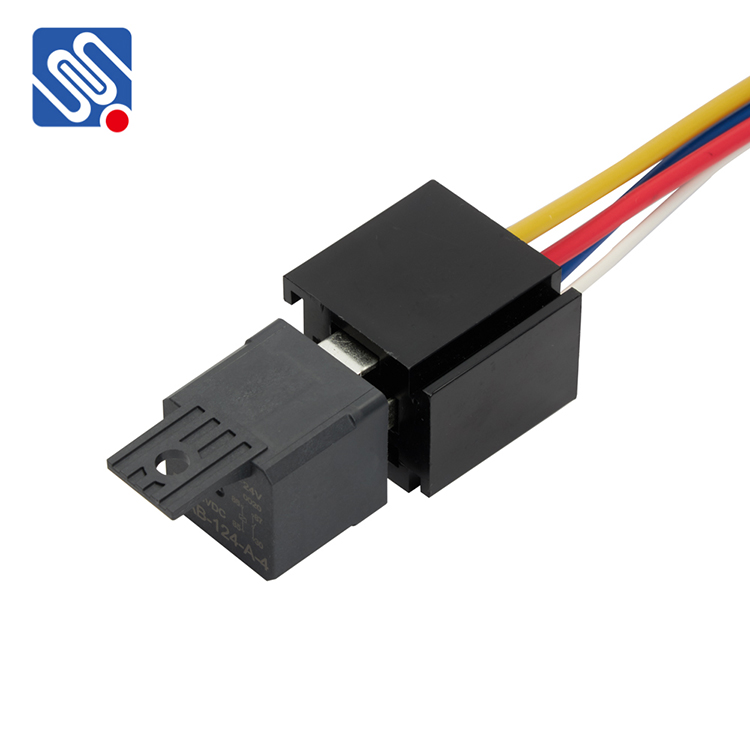

Product Overview The MAB relays are commonly used in automotive and charging piles. They have 70A contact switching capability and can withstand operating temperatures up to 125 degrees Celsius. There are metal backs, light backs, PCB layout, plastic backs, 12V, 24V, etc. to choose from, and can be matched with wiring harnesses to meet different application needs. Contact Parameters

Contact Arrangement	1A
Contact Material	Silver Alloy
Voltage Drop(Initial)	Typ.20mV, Max.300mV
Max. Continuous Current	70A(23℃)
	50A(85℃)
	30A(125℃)
Max. Switching Voltage	50VDC
Electrical Life	100000 OPS
Mechanical Life	1000000 OPS

Characteristics

Insulation Resistance	100MΩ(500VDC)
Dielectric Strength	Between Coil & Contacts: 500VAC 1min
	Between Open Contacts: 500VAC 1min
Operate Time	≤10ms
Release Time	≤10ms
Ambient Temperature	-40℃～+125℃
Vibration	10Hz～500Hz 49m/s²(5G)
Shock	294m/s² (30G)
Terminal Form	QC, PCB
Construction	Dust Protected, Sealed
Unit Weight	Approx.5g
Mechanical Data	Cover Retention:(Pull, Push) 200N
	Terminal Retention:(Pull, Push) 100N
	Terminal Retention To Bending:(Front, Side) 10N

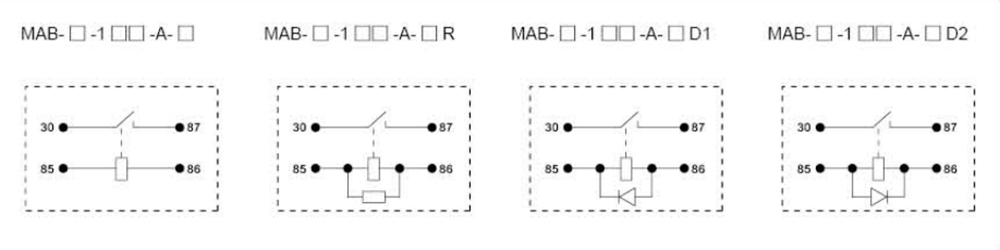

4 Pin Relay Wiring Diagram Product Advantages Advantage 1: High Load Capacity Automotive relays can control high-current loads, such as starter motors, lights, and fans, ensuring the stable operation of the vehicle’s electrical system. Advantage 2: Temperature and Harsh Environment Resistance Automotive relays are designed to withstand high temperatures, vibrations, and moisture, making them reliable even in harsh conditions, such as under the hood of the vehicle. Application Automotive Industry: Our relays are designed for controlling and protecting various automotive circuits, such as headlights, horns, power windows, and more. They are compatible with a wide range of vehicles, from passenger cars to trucks, ensuring reliable performance across different applications. These relays handle high-current loads, improve circuit safety, and provide precise control, all while protecting sensitive electronics from overloads and short circuits. 25 pcs/plastic box 8 plastic boxes/inner boxes, 2 inner boxes/master box 400 pcs/master box MEAS: 45.5×41×20.5cm   G.W.: 21.1KGS   N.W.: 20.1KGS Company Profile Zhejiang Meishuo Electric Technology Co., Ltd. was established in 2007. The company’s main business is the research and development, production, and sales of relay control components and their derivative actuator fluid solenoid valve products. The products mainly include general relays, automotive relays, magnetic latching relays, new energy relays, communication relays, and fluid solenoid valves, which are applied in various fields such as household appliances, smart homes, automotive manufacturing, photovoltaic relays, charging piles, smart meters, industrial control, and communication facilities.
