Overview:

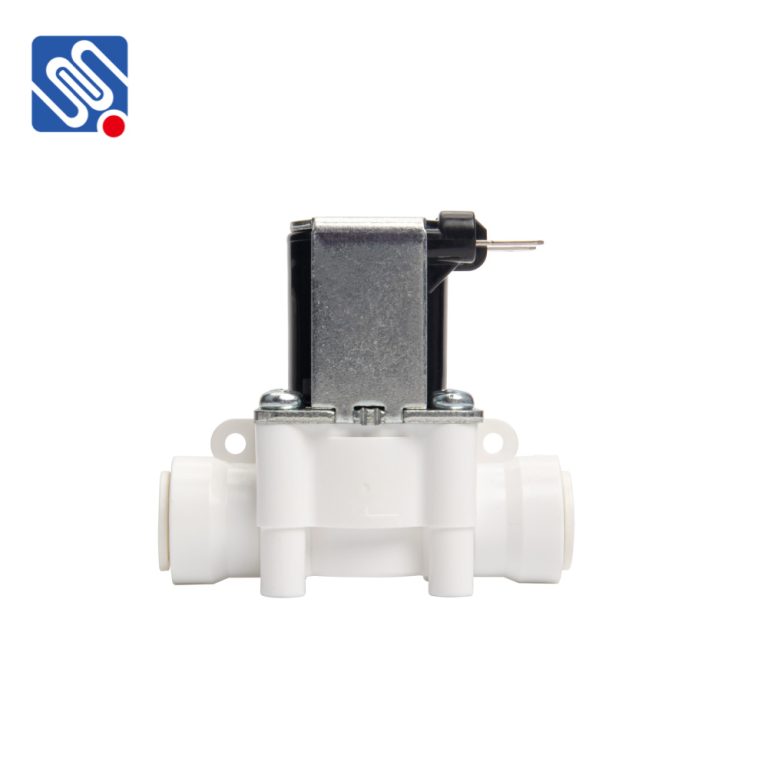

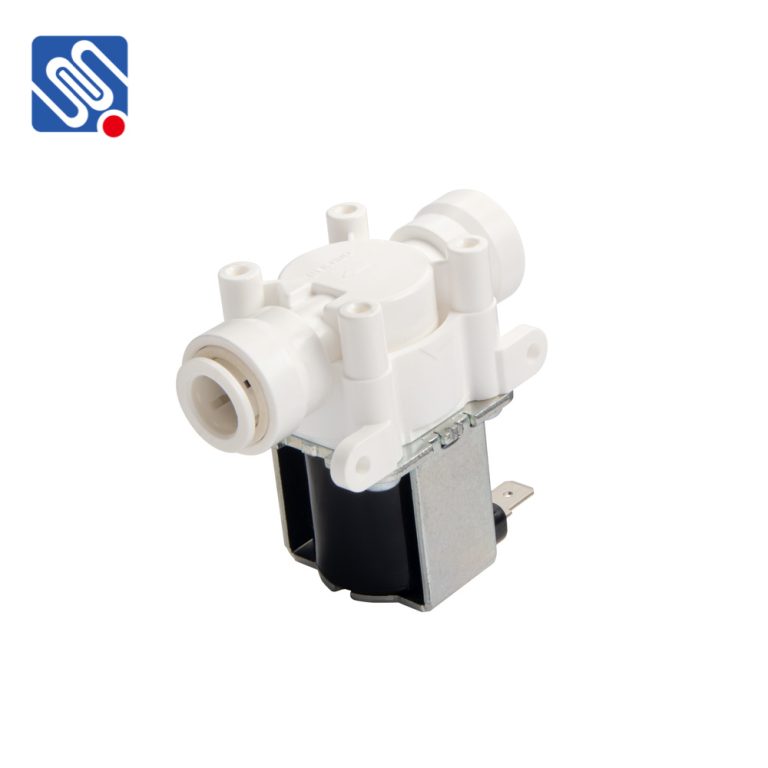

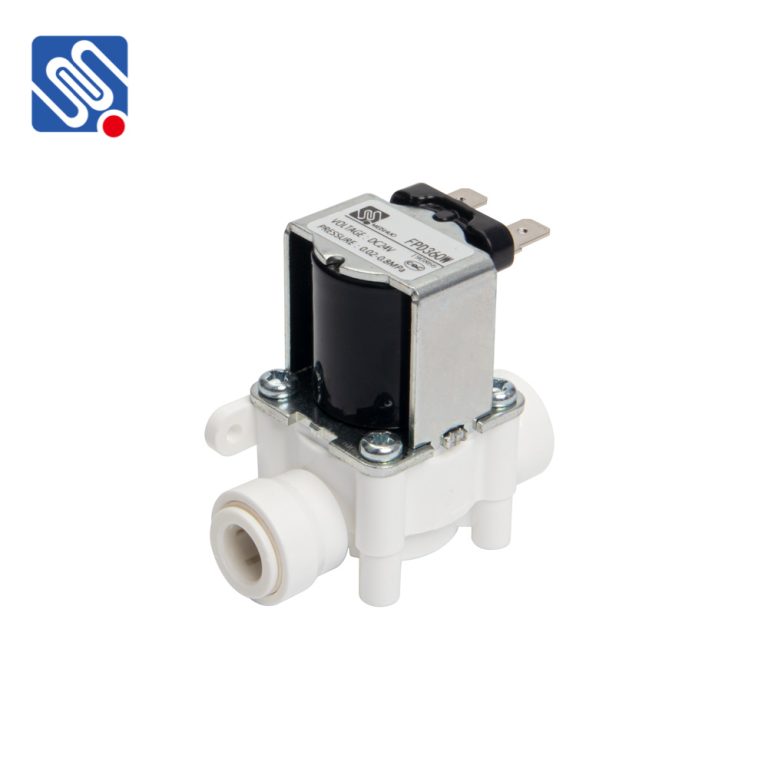

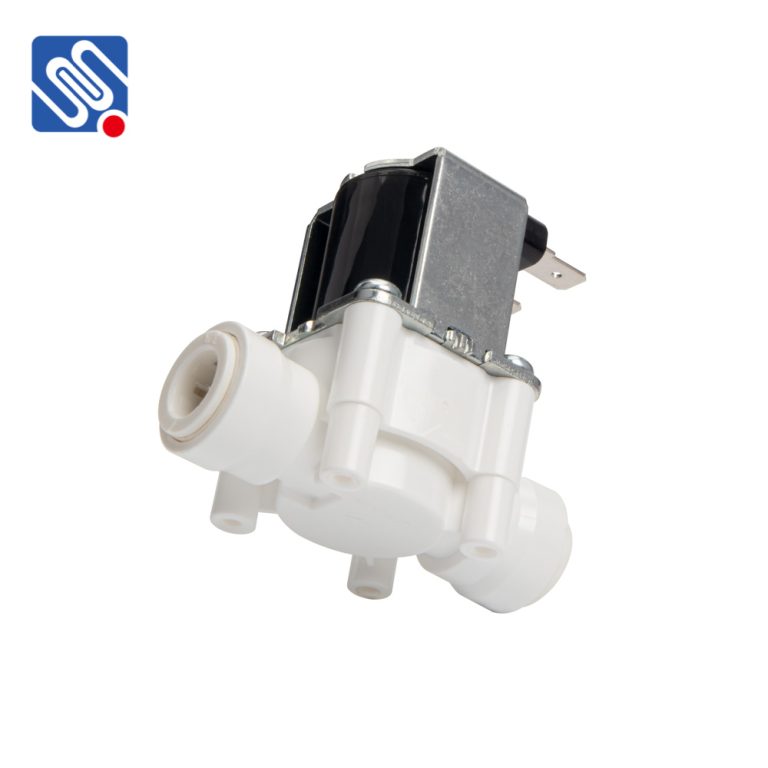

The FPD360W inlet solenoid valve is a normally closed valve with a 3/8’’ quick connect inlet and outlet diameter. When powered on, the coil generates electromagnetic force, which pushes the iron core to overcome the spring force and move, achieving the opening of the solenoid valve. This solenoid valve is commonly used in water purifiers and water dispensers series.
| Product Model: | FPD360W |
| Rated Voltage: | DC12V 24V 36V AC110V 220V 50/60Hz |
| Pressure Range: | 0.02-0.8MPa |
| Operate Life: | ≥100000 OPS |

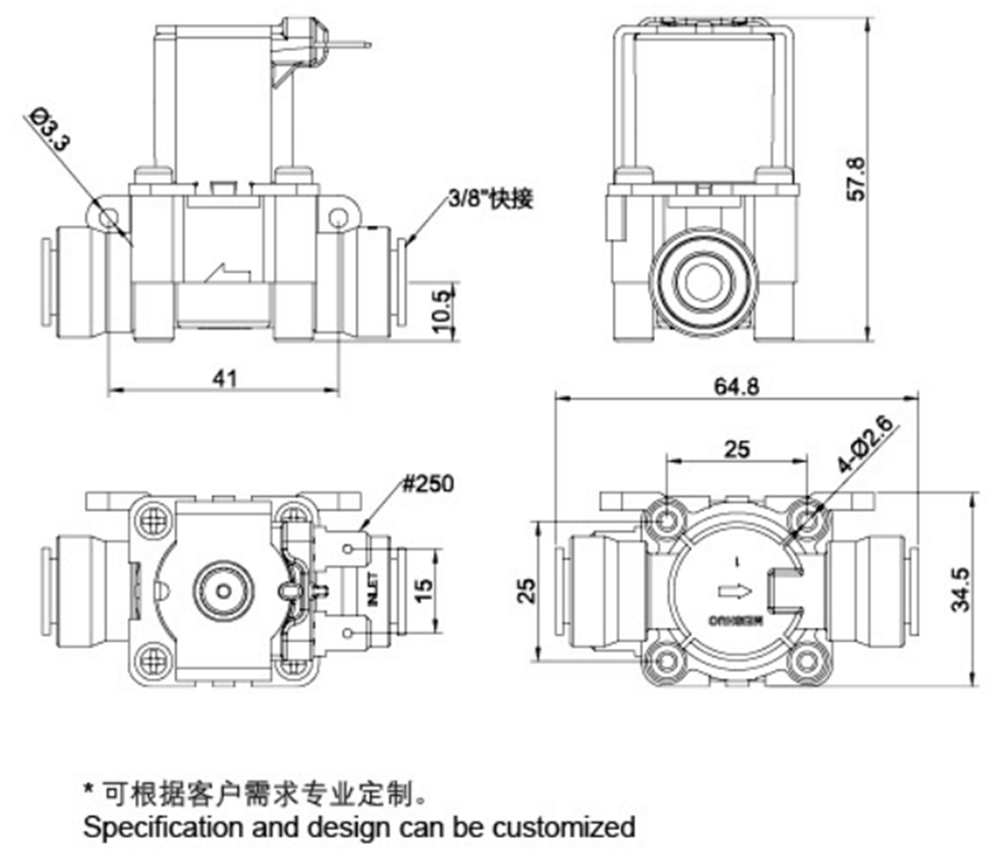

| Spacing: | 25×25mm or 41mm |
| Inlet: | 3/8” Quick Connect Fitting |
| Outlet: | 3/8” Quick Connect Fitting |
| Hydraulic Pressure: | 0.3MPa |
| Flow Rate: | ＞5L/min |
Naming rules
Product series: F
Inlet and outlet angle: P: Parallel type
Outlet number: D: Single Outlet
Coil terminal direction: 360: 0°(360°)
Product design code: W
Our advantages
Production System:
High standardization of production inspection
Clean, constant temperature and humidity production environment control
Highly automated production
R&D System:
High level R&D team
Professional R&D equipment
Quickly customize research and development according to customer needs
Quality Assurance System:
Raw materials – production – factory inspection control
Certification of UL Witness Laboratory, TUV Witness Laboratory, VDE Witness Laboratory, and CNAS Laboratory
Certificate
Production workshop display
The R&D team is composed of over 100 full-time R&D personnel and continuously absorbs professional talents. 45 fully automated production lines, linear motors, CCD image detection systems, and various high-precision sensors are widely used to ensure the high quality of products.
Our customers
We have collaborated with clients from over 90 countries worldwide, providing high-quality products and services and receiving positive feedback from them.
Support your OEM/ODM needs and provide one-stop customized solutions
