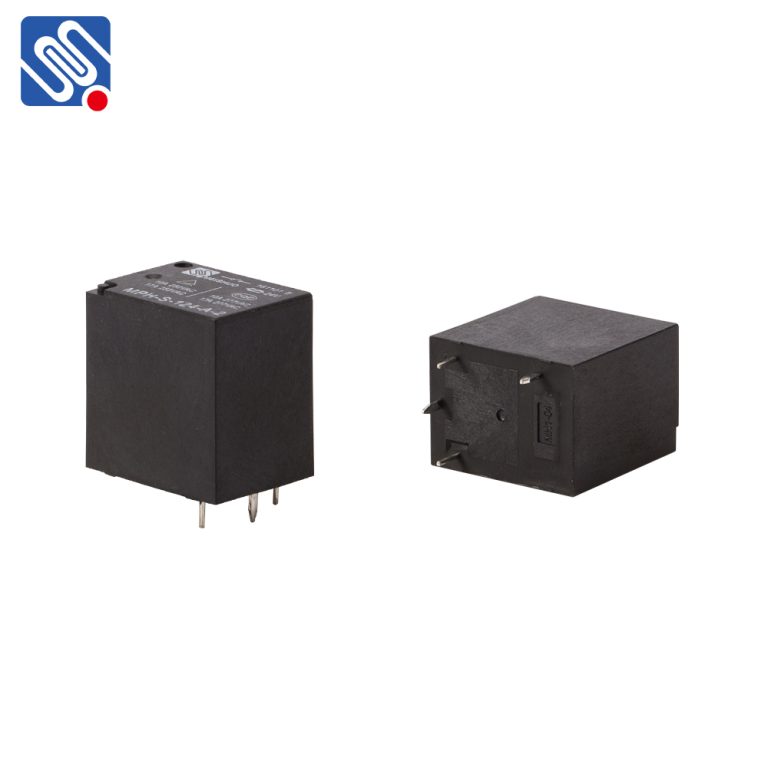

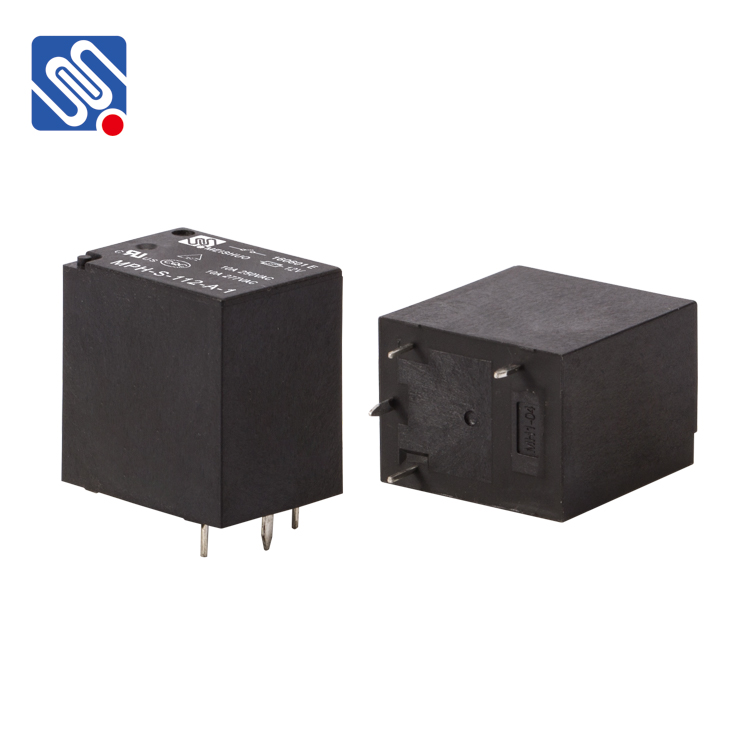

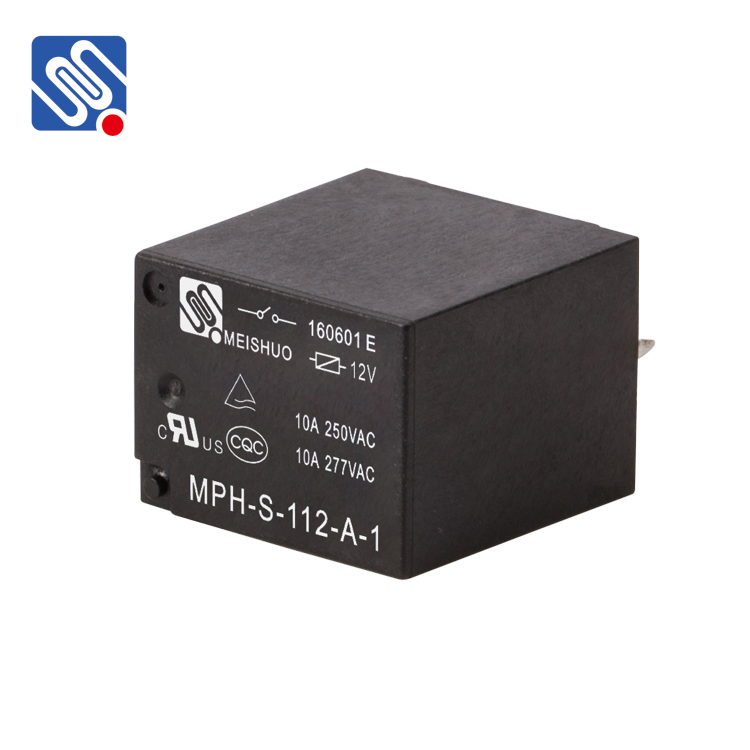

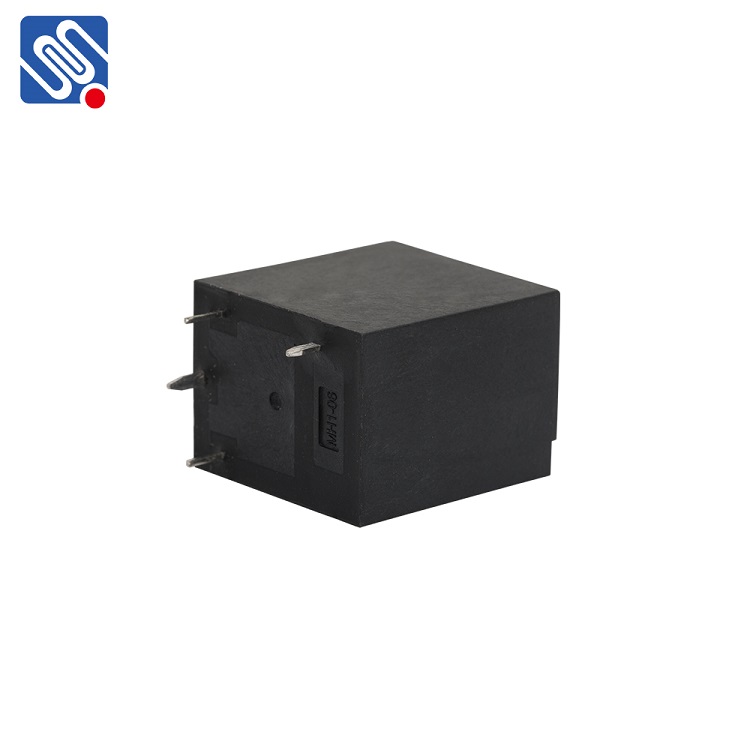

24V DC Single Pole Relay

•17A Switching capability •1 From A and 1 from C configurations •Subminiature, standard PCB layout •Outline dimensions L*W*H:21*16*21.6mm •Meet the requirements GB3836.1, GB3836.8

Certification
UL E358149
TUV R50342666
CQC CQC16002150101

MPH products are packed in boxes of 1,000 pieces each, with quadruple protection and shockproof foam packaging, so they will not break when shipped to the world.To solve your worries, we provide 7*24 hours of rapid response service, with senior relay engineers providing technical guidance, and the products provide a 1-year warranty.

Contact Arrangement	1A 1C
Rated Load	17A 277VAC
Max.Switching Current	17A
Operate Time	≤15ms
Release Time	≤5ms
Coil Power	0.36W
Construction	Wash tight or Flux Proof
Unit Weight	Approx.11g

Ordering Information:
Model: MPH
Structure: S:Wash tight
Nil:Flux proof
Contact group: 1 pole
Coil voltage: 05,06,09,12,24 VDC
Contact form: 1A,1C
Polarity:1.Common type
High load type
Insulation class:F:Class F
Nil:Standard type, class B

Our Advantage

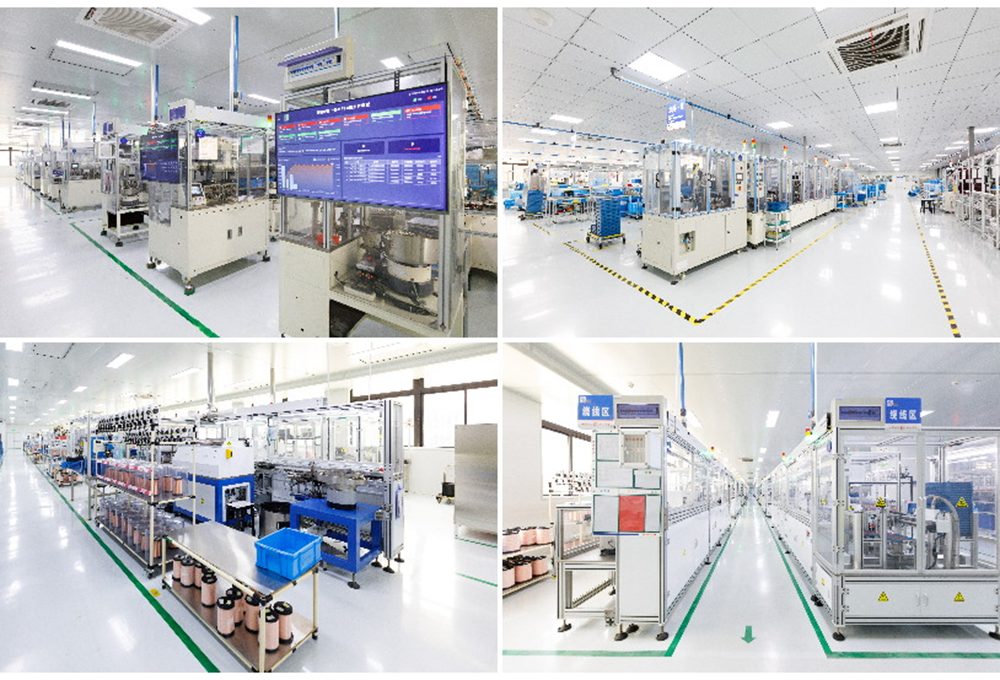

•17+ years professional factory, quality assurance
•Processing customization
•One-month shipping
•Customized packaging
•Small batch customization
•Not easy to damage
•Worry-free after-sales
