Overview

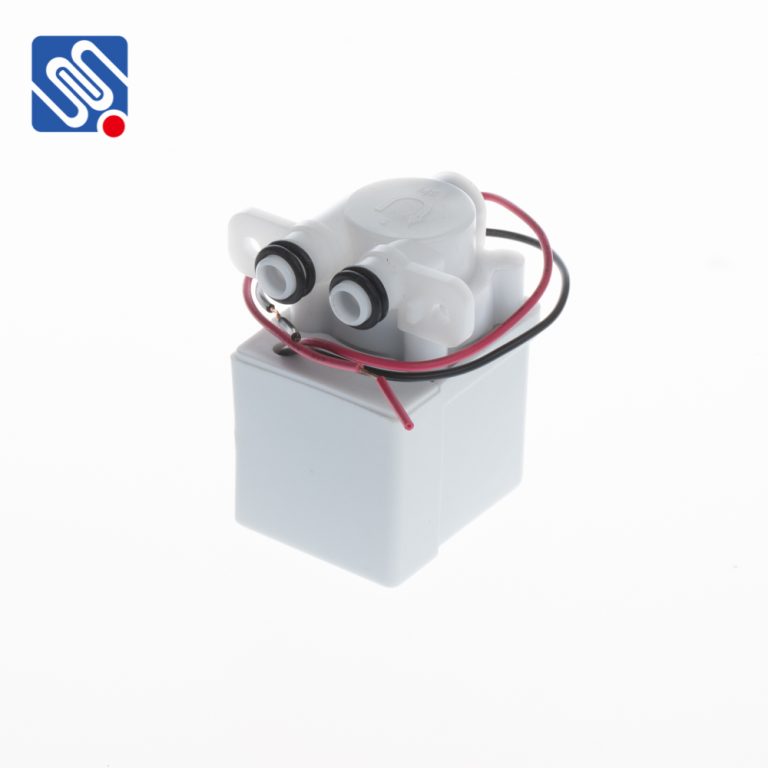

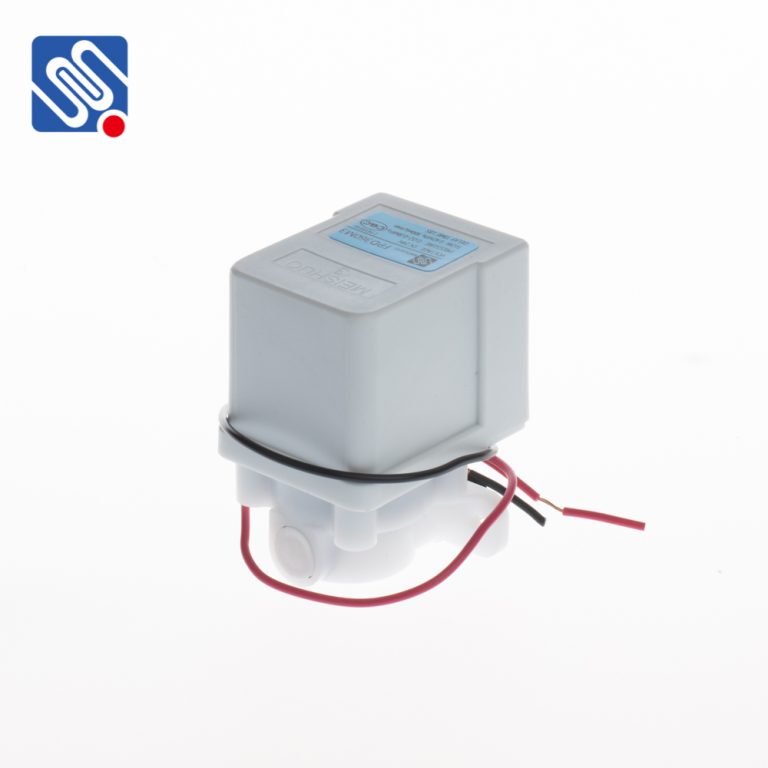

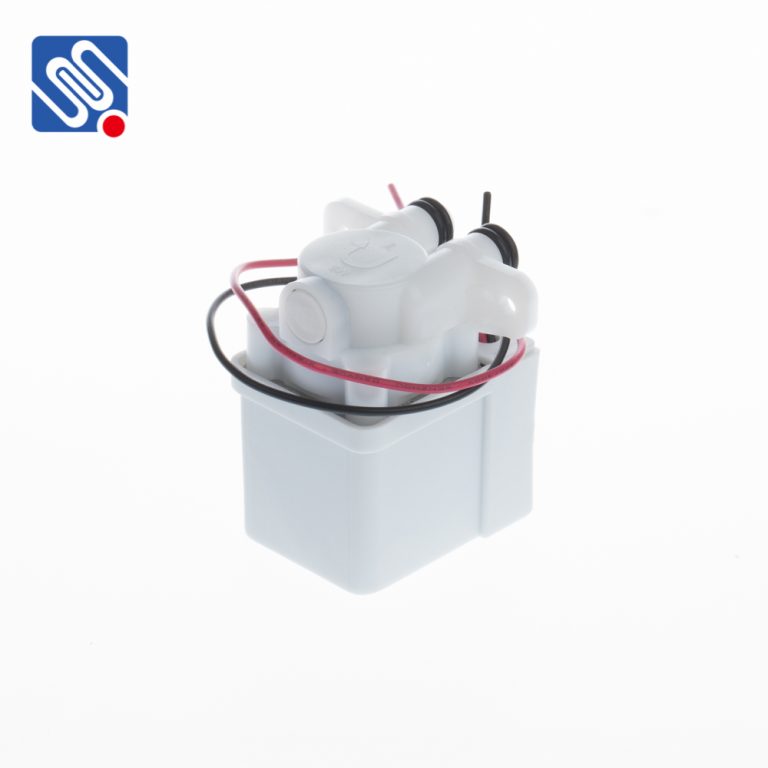

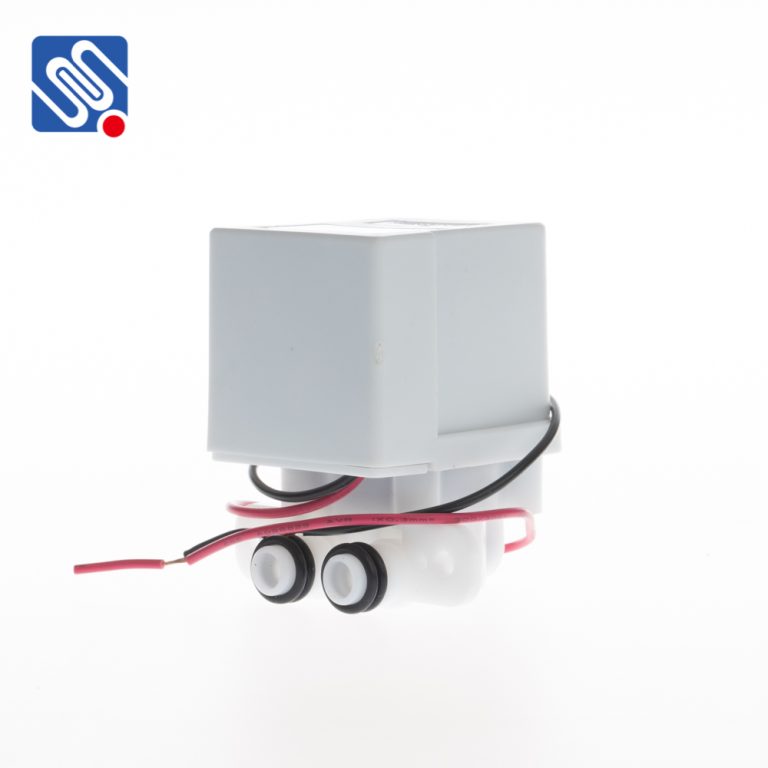

Customers can choose the FPD360M3 delay combined flushing solenoid valve with a rated voltage of 12V, 24V, or 36V based on the actual circuit voltage. By controlling the delay time, the duration of liquid residence in the equipment can be controlled, thereby ensuring the normal operation of the equipment.
| Product Model: | FPD360M3 |
| Rated Voltage: | DC12V 24V 36V |
| Pressure Range: | 0.02-0.8MPa |
| Operate Life: | ≥100000 OPS |

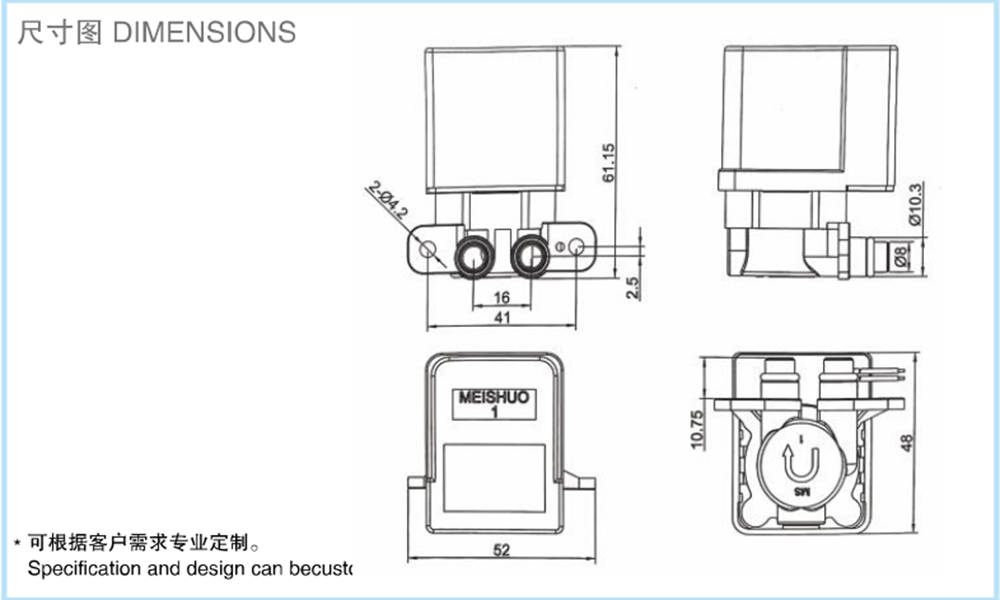

| Spacing: | 41mm |
| Inlet: | Φ8mm |
| Outlet: | Φ8mm |
| Flow Rate: | 0.3MPa,＞3L/min |
| Waste Flow Rate: | 0.42/0.5MPa, 300/450/800/1000/1500mL/min |
Naming rules
Product series: F
Inlet and outlet angle: P: Parallel type
Outlet number: D: Single Outlet
Coil terminal direction: 360: 0°(360°)
Product design code: M3
Product application
FPD360M3 delay combined flushing solenoid valve is suitable for integrated water purifier and water dispenser.
Company profile
Zhejiang Meishuo Electric Technology Co., Ltd. was established in 2007. Our company has advanced manufacturing technology, high standard production lines, high-level technical personnel, production management, and inspection teams.
On the path of continuous innovation, our professional team constantly researches and develops new technologies to improve the performance and quality of our products. We provide satisfactory customized solutions based on customer needs to ensure that Meishuo always occupies a leading position in the relay industry.
Technological process
1.Design Control:
We have a professional solenoid valve design team that ensures potential quality defects are eliminated during the design phase through precise design and simulation analysis, improving product reliability.

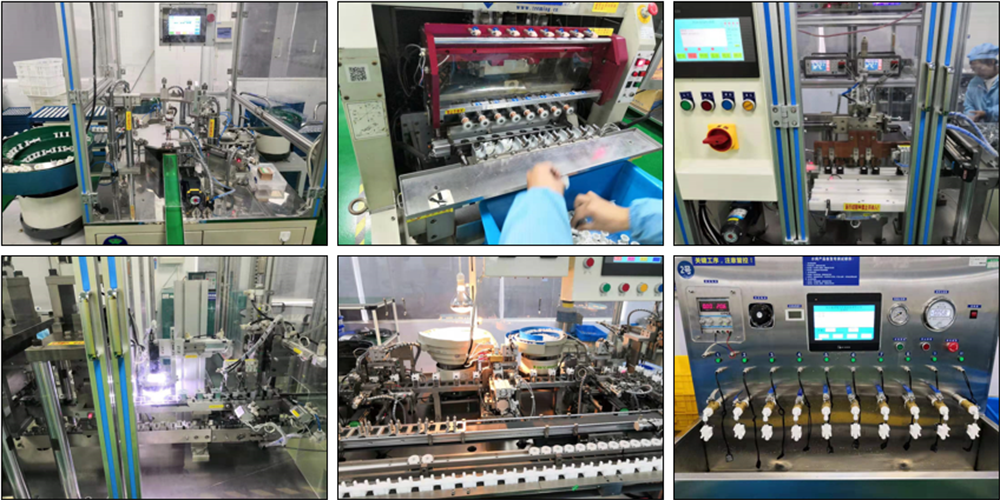

2.Manufacturing Process Control:
We specialize in solenoid valve and accessory mold manufacturing, with mature technology and a good reputation. Key control areas include;
Injection Molding Defect Control: Strict monitoring of the injection molding process to minimize defects.
Coil Material: We use high-temperature resistant enameled wire to ensure stability at high temperatures.
Precision Processing: Using centerless grinders and high-precision surface grinders to ensure the accuracy of the core dimensions and part fitting.
3.Inspection Control:
Each product undergoes strict inspection:
Appearance Inspection: Ensuring there are no surface defects.
Water Test: Ensuring proper sealing and leak resistance.
Support your OEM/ODM needs and provide one-stop customized solutions
