Product Overview

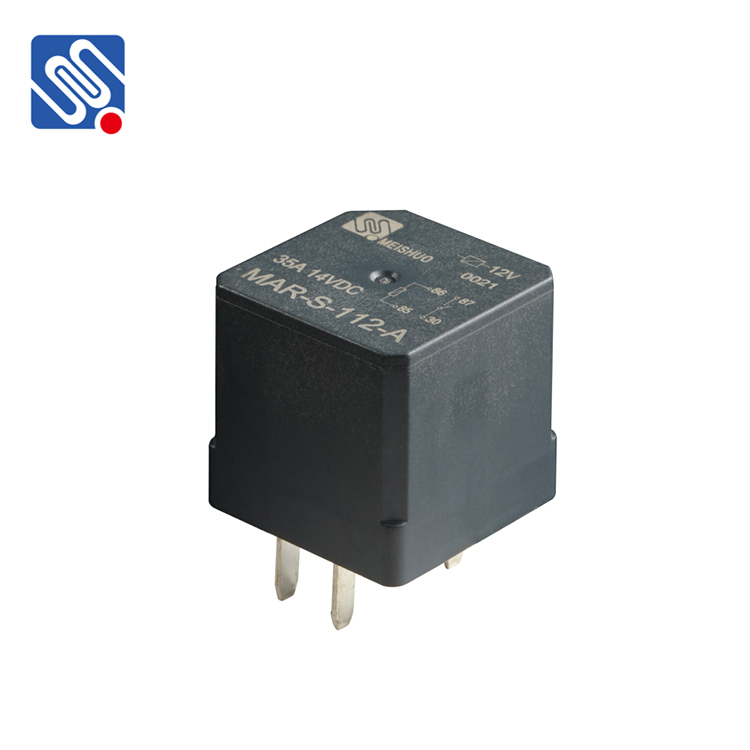

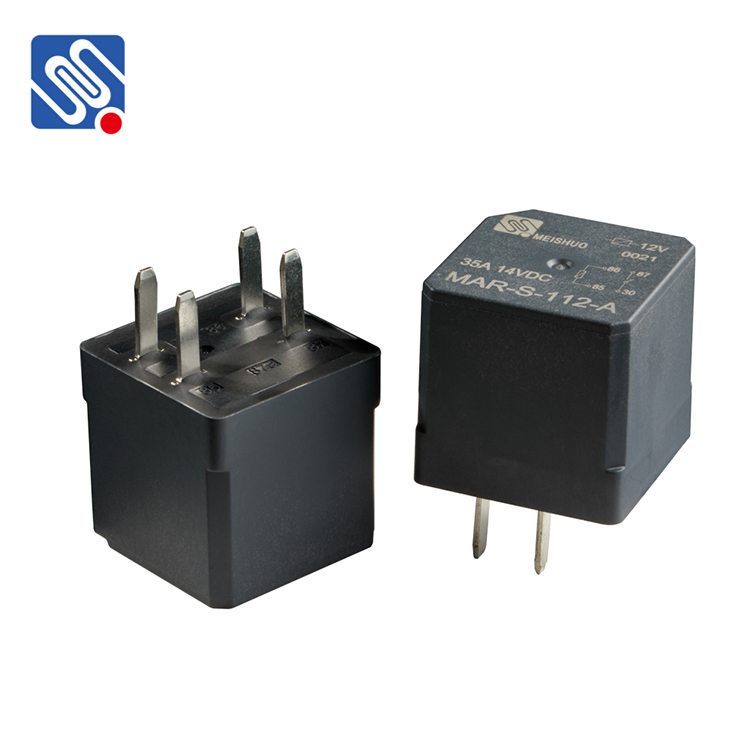

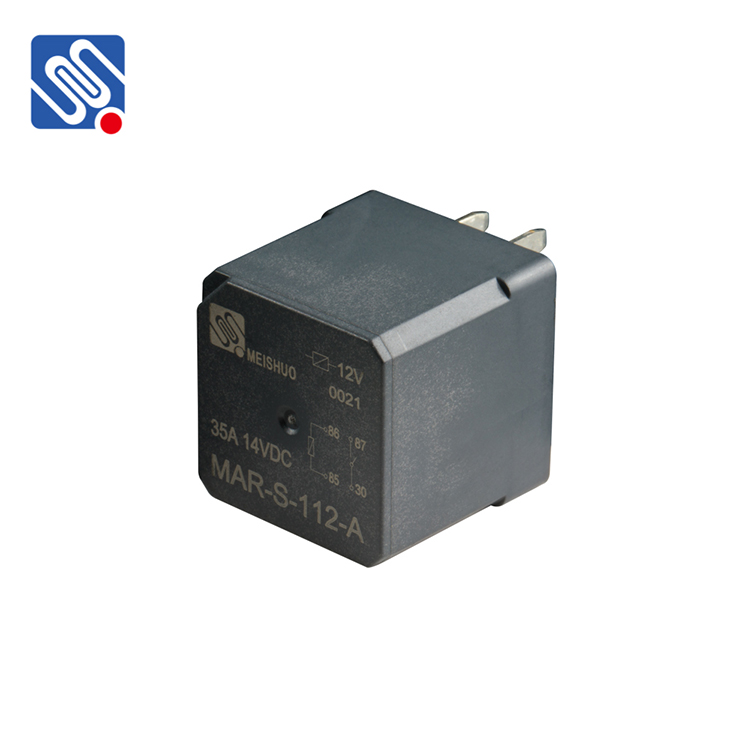

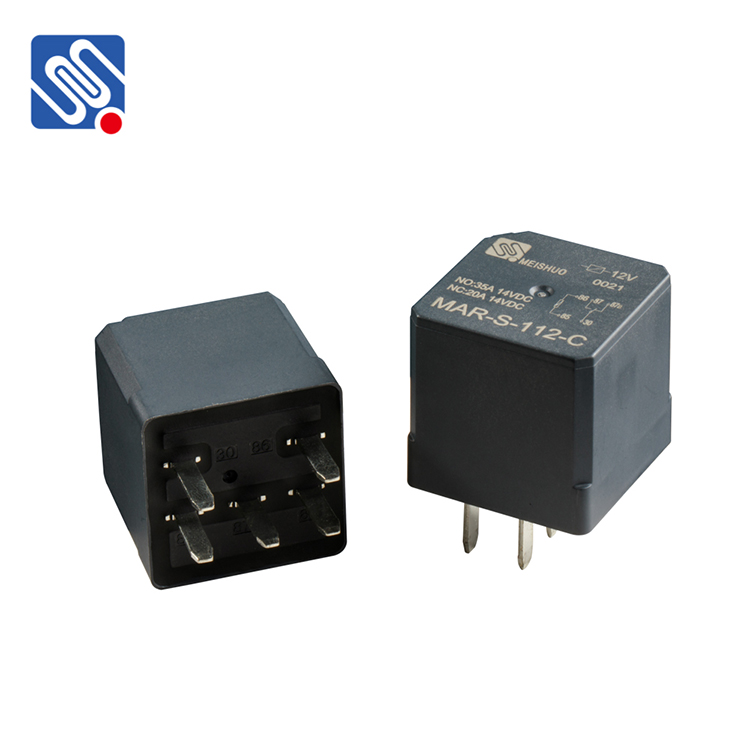

The maximum continuous current of MAR automotive relay during operation can reach 35A, which has the characteristics of high reliability, good temperature resistance, and high impact resistance. This relay is mainly used in the automotive industry, such as automotive power distribution systems.
Contact Parameters
| Contact Arrangement | 1A, 1C |
| Contact Material | Silver Alloy |
| Voltage Drop(Initial) | Typ.50mV, Max.250mV |
| Max. Continuous Current | NO: 35A, NC: 20A |
| Max. Switching Voltage | 28VDC |
| Electrical Life | 100000 OPS |
| Mechanical Life | 1000000 OPS |
Characteristics
| Insulation Resistance | 100MΩ(500VDC) |
| Dielectric Strength | Between Coil & Contacts: 500VAC 1min |
| Between Open Contacts: 500VAC 1min | |
| Operate Time | ≤10ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃～+125℃ |
| Vibration | 10Hz～500Hz 19.8m/s²(5G) |
| Shock | 1000m/s² (30G) |
| Terminal Form | 2.8mm QC |
| Construction | Dust Protected, Sealed |
| Unit Weight | Approx.30g |
| Mechanical Data | Cover Retention:(Pull, Push) 200N |
| Terminal Retention:(Pull, Push) 100N | |
| Terminal Retention To Bending:(Front, Side) 10N |
Product advantages
Advantage 1:
Temperature resistance: In extreme high or low temperature environments(-40℃～+125℃), MAR relays can still maintain stable performance in the system.
Advantage 2:
Long life: Relative to the general electronic components, the service life of the relay can reach hundreds of thousands of times.
Application

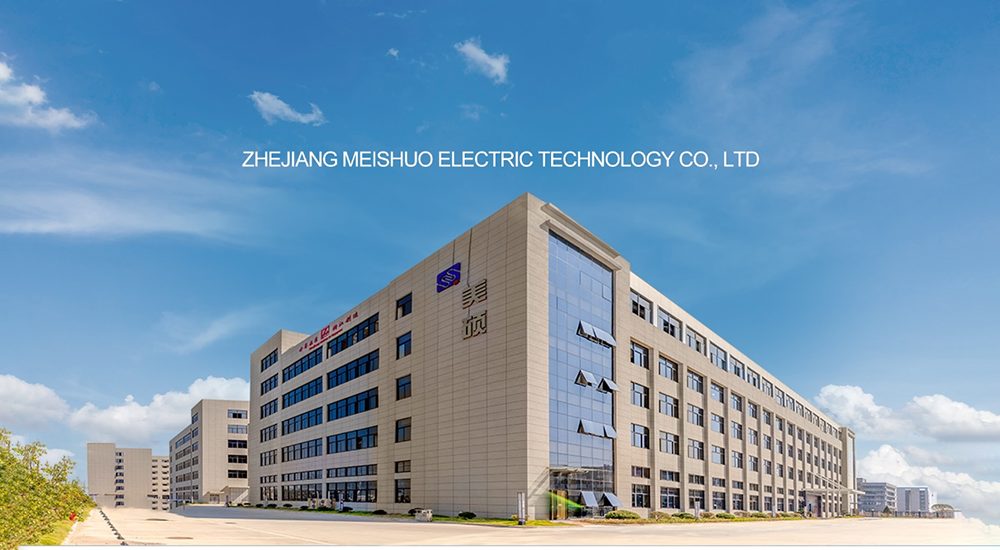

Zhejiang Meishuo Electric Technology Co., Ltd. is a high-tech enterprise specializing in the production of various electromagnetic water valves and relays. The company was established in 2007.The company has excellent equipment and advanced technology, using automated assembly line operations and complete testing equipment to ensure consistency and accuracy of performance. At the same time, we have strong production technology and development capabilities, with product testing centers and material testing centers to ensure product quality.
Laboratories
Automotive Industry: Used for control and protection of automotive circuits such as headlights, horns, power windows, etc.
Charging stations: Controls high-current charging circuits, ensuring safe and efficient energy transfer.
Company Profile
The company has set up a perfect quality control management system, with UL witnessing laboratory in the United States, TUV witnessing laboratory in Germany and CNAS national accredited laboratory in China, to ensure the reliability and consistency of the product quality.
Logistics & Packaging
25 pcs/plastic tube
200pcs/inner box
500 pcs/master box
shockproof packing: packaging filler foam board
MEAS: 46*30*31cm G.W.: 12KGS N.W.: 11KGS
Our Customers
We have partnered with clients from over 90 countries worldwide to provide them with high-quality products and services.
Support your OEM/ODM needs and provide one-stop customized solutions
