Product Overview

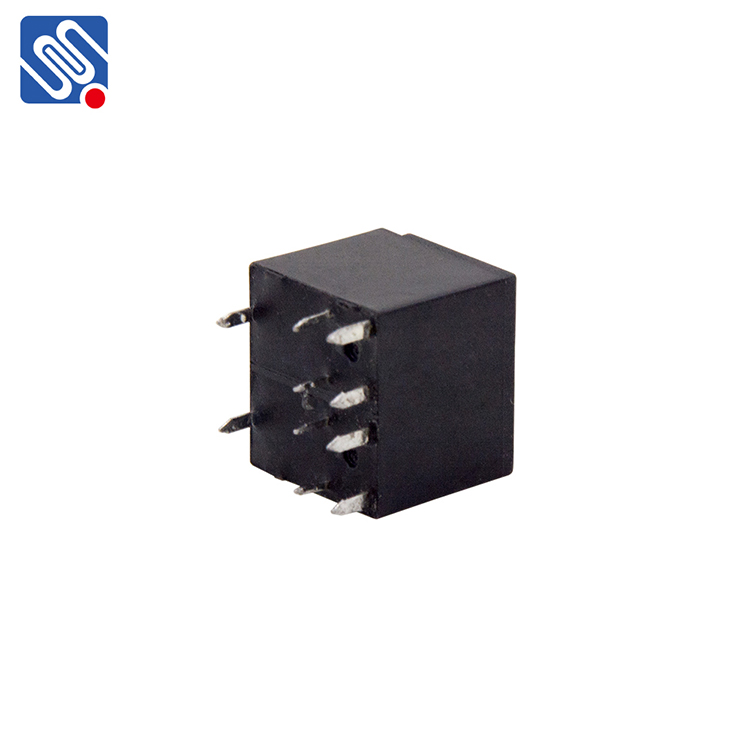

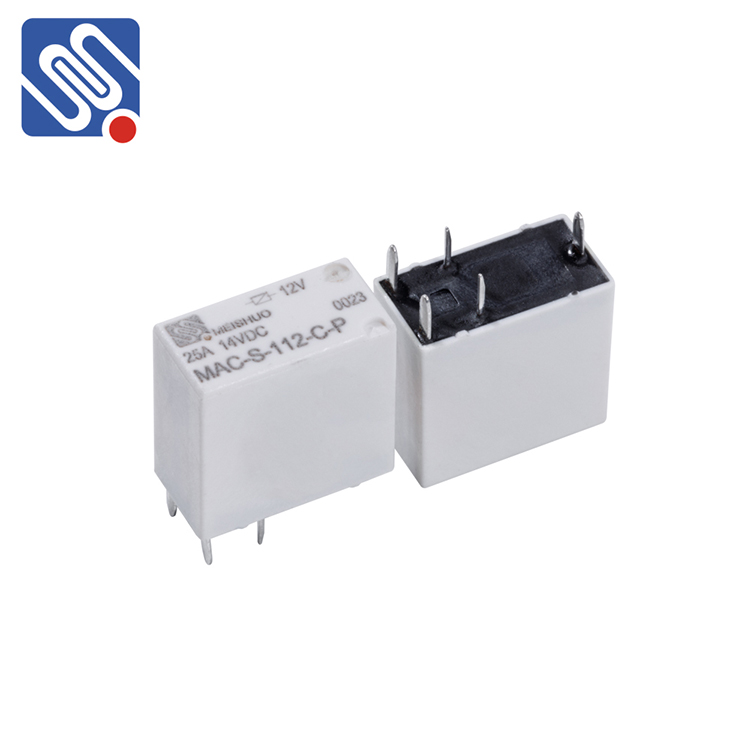

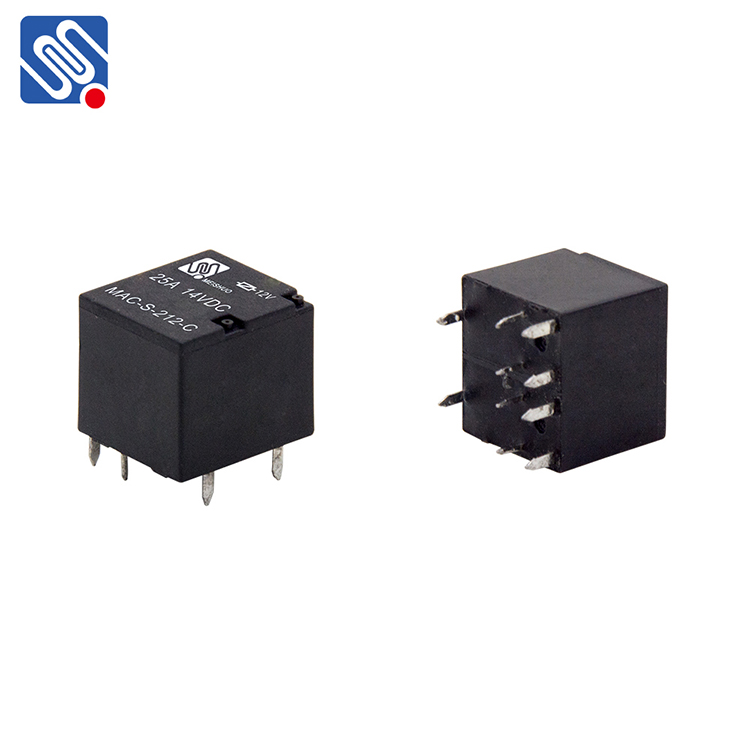

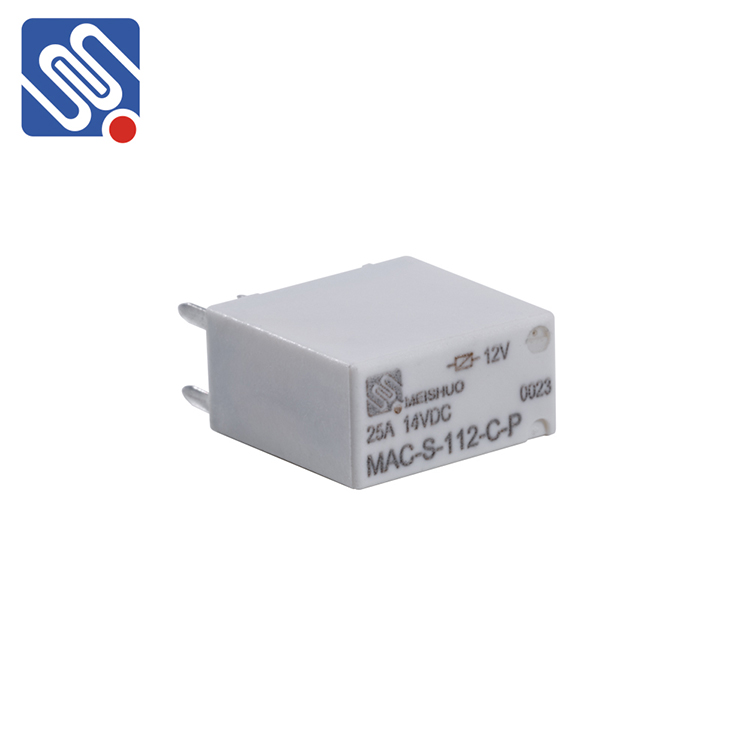

MCA relays are widely used in the automotive industry and other fields, supporting 12V power input. According to customer needs, there are single and dual-bank relay forms to choose from. The MAC repeater adopts an extremely small size design, which is easy to install and maintain.
Contact Parameters
| Contact Arrangement | 1C: Single Relay 2C: Dual-bank Relay |
| Contact Material | Silver Alloy |
| Voltage Drop(Initial) | Typ.50mV, Max.250mV |
| Max. Continuous Current | 30A |
| Max. Switching Voltage | 16VDC |
| Electrical Life | 100000 OPS |
| Mechanical Life | 1000000 OPS |
Characteristics
| Insulation Resistance | 100MΩ(500VDC) |
| Dielectric Strength | Between Coil & Contacts: 500VAC 1min |
| Between Open Contacts: 500VAC 1min | |
| Operate Time | ≤10ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃～+125℃ |
| Vibration | 10Hz～500Hz 49m/s² |
| Shock | 98m/s² |

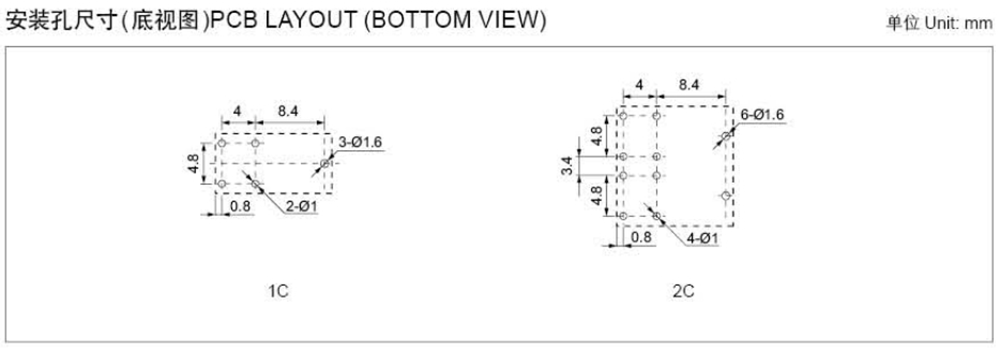

| Terminal Form | PCB |
| Construction | Sealed |
| Unit Weight | 1C: Approx.4g |
| 2C: Approx.8g |
Naming Rules
Model: MAC
Structure: Sealed
Contact Group: 1: Single Relay 2: Dual-bank Relay
Coil Voltage: 12VDC
Contact Form: 1C
Coil Power: P: Low pick-up voltage Nil: Standard
Application
The MAC relays are widely used in windshield wipers, battery powered, automatic doors, light control, car windows, oil pumps, car fans, fog lights and other automotive components.
Certificate

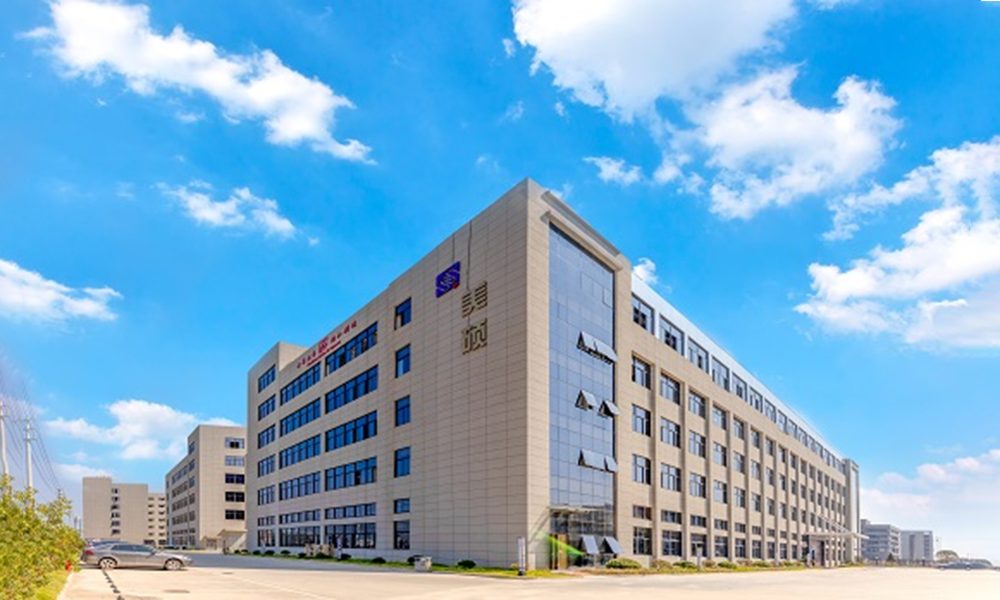

Company Profile
Zhejiang Meishuo Electric Technology Co., Ltd. is one of the pioneers in the electrical industry, committed to shaping future energy solutions. Our company’s vision is to stand out in the electrical industry. With a tradition of innovation and excellence, our company stands at the forefront of electrical engineering technology progress, constantly exploring global markets through relentless pursuit of excellent product quality and a firm commitment to customer satisfaction.

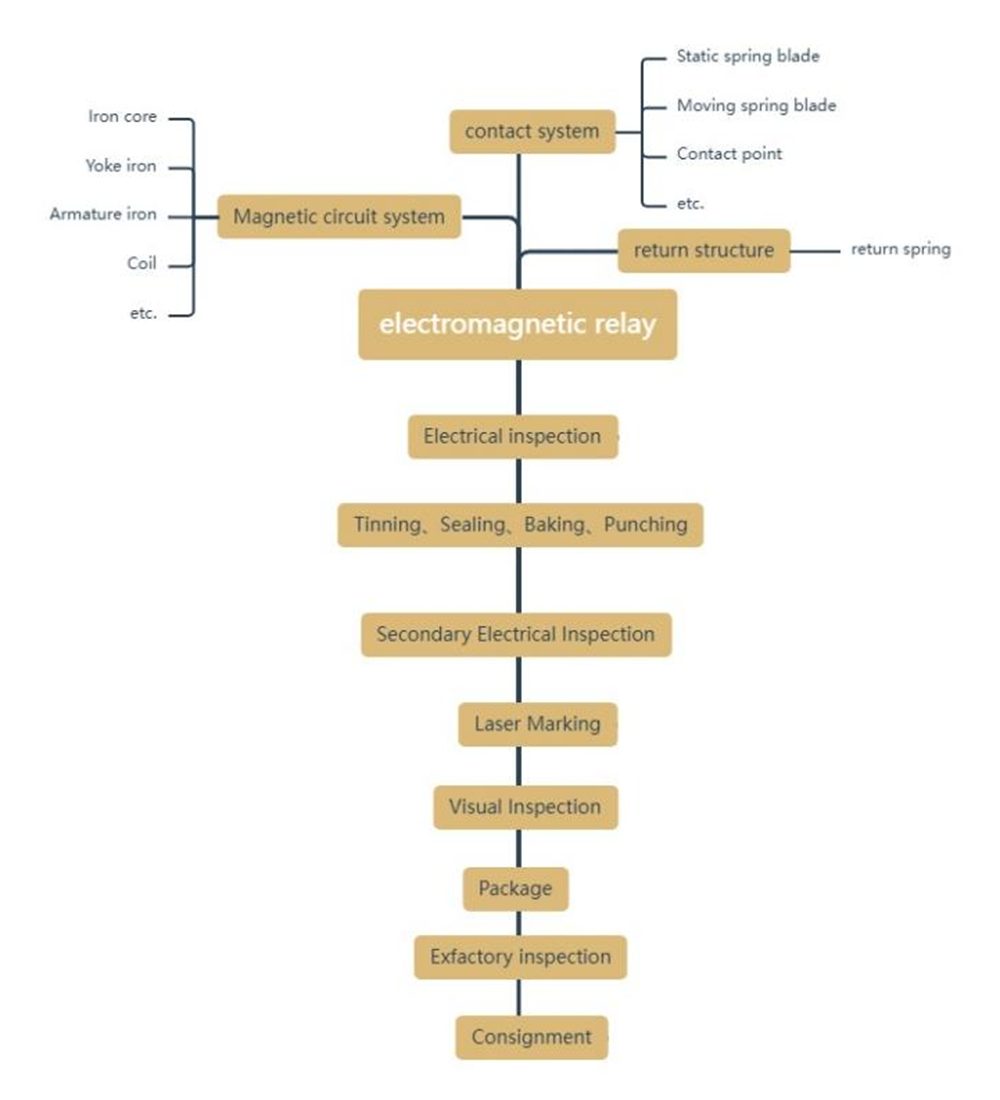

Production Process
Support your OEM/ODM needs and provide one-stop customized solutions
