Overview:

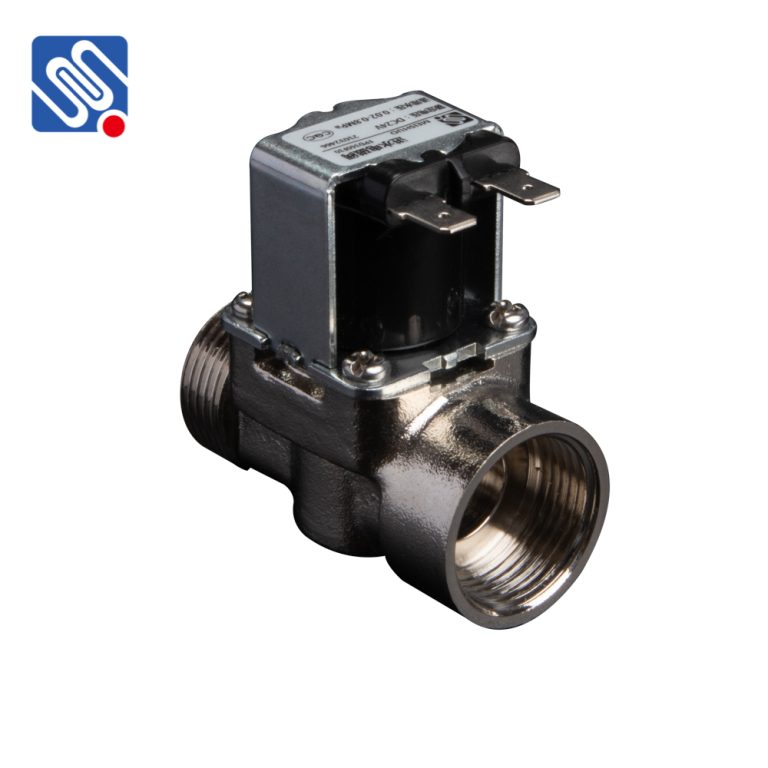

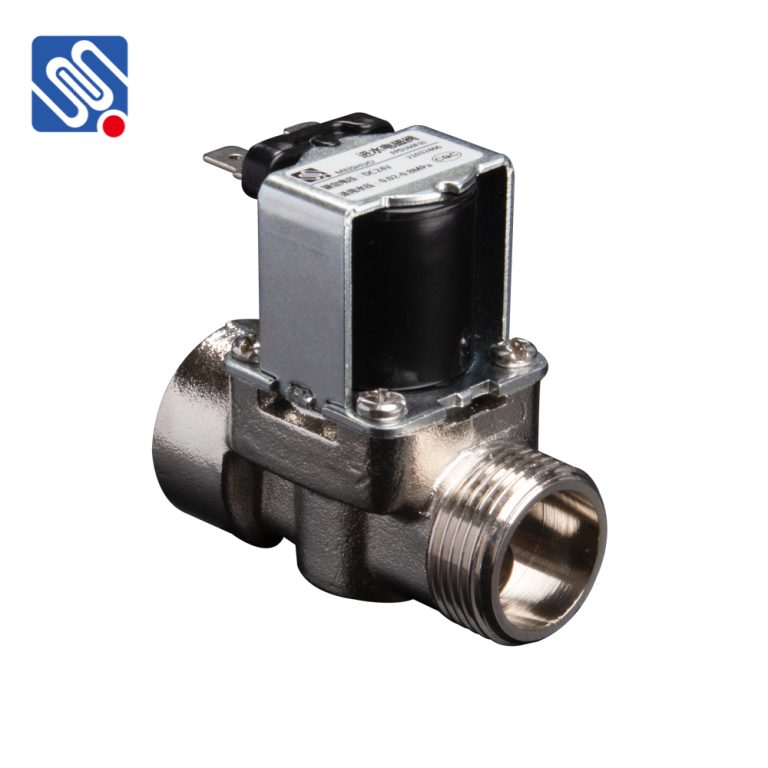

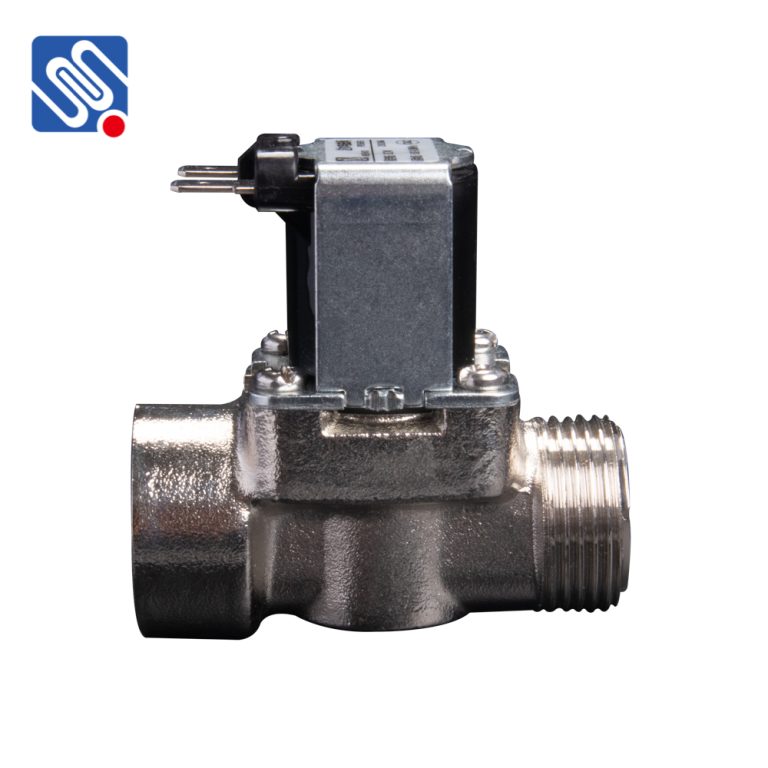

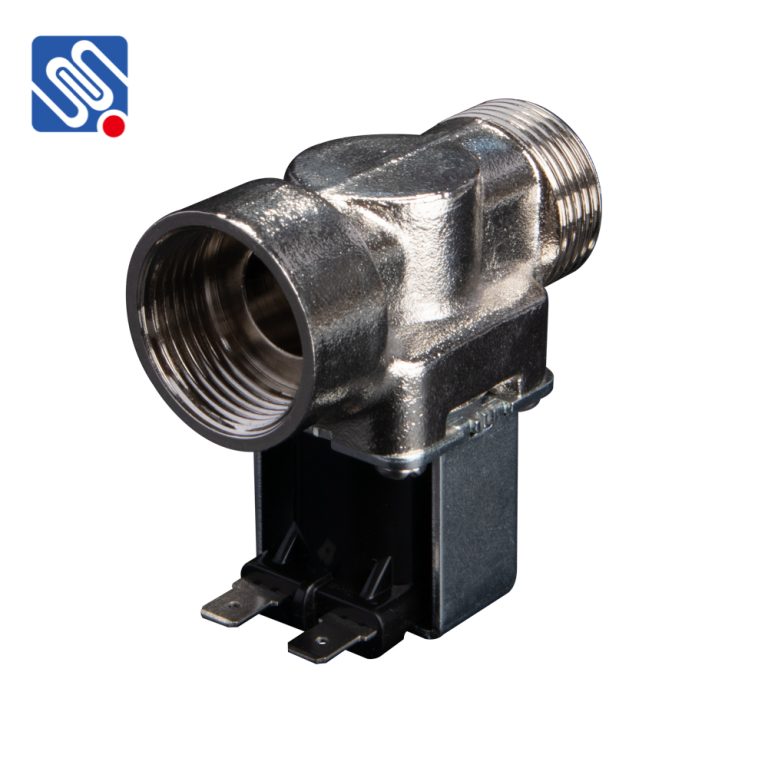

The FPD360F30 inlet solenoid valve adopts a G3/4 size inlet and outlet design, which can maintain a working water pressure of 0.3MPa at rated voltage. Under normal circumstances, it is in a normally closed state. This solenoid valve is suitable for compact water boilers and solar water heaters.
| Product Model: | FPD360F30 |
| Rated Voltage： | DC12V 24V 36V AC110V 220V 50/60Hz |
| Pressure Range: | 0.02-0.8MPa |
| Inlet： | G3/4 |
| Outlet： | G3/4 |
| Hydraulic Pressure： | 0.3MPa |
| Flow Rate： | ＞3L/min |
| Operate Life: | ≥100000 OPS |
Naming rules
Product series: F
Inlet and outlet angle: P: Parallel type
Outlet number: D: Single Outlet
Coil terminal direction: 360: 0°(360°)
Product design code: F30
Company Profile
Zhejiang Meishuo Electric Technology Co., Ltd. is a high-tech Enterprise specializing in R&D, production and sales of electric water valves, relays and other products. The products are widely used in Household appliances, automotive electronics, industrial control, electric power, smart home and other fields.
The company continuously carries out institutional innovation, technological innovation, and management innovation, and expands its market from domestic to global, striving to make Meishuo Technology a leading global manufacturer of electronic control and safety components.
Product advantages
Advantage 1: Fast response speed:
The electric water valve opens and closes quickly, with a short response time. This rapid response enables it to cope with instantaneous fluid demands and maintain system stability.
Advantage 2: High security:
The operation of electric water valves is simpler and more convenient than manual valves, and can achieve automatic control, effectively reducing errors in manual operation and reducing safety risks caused by human errors.
Product application

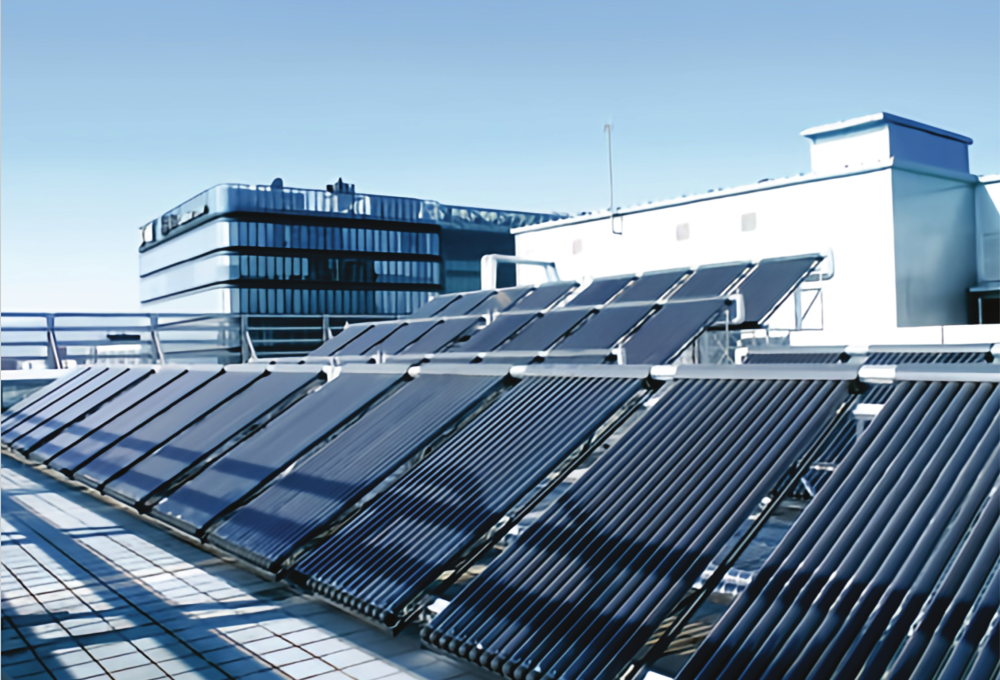

FPD360F30 inlet solenoid valve is suitable for solar water heater, compact water heaters, etc.

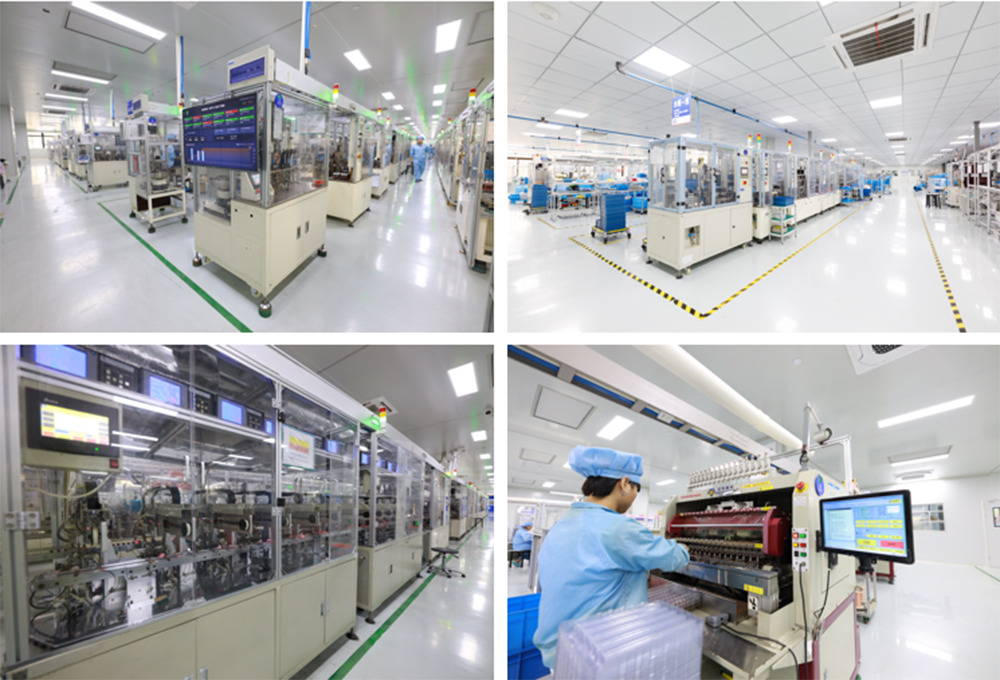

Production workshop display
Exhibition
We have participated in exhibition activities in different countries and regions, and each exhibition has attracted active participation from many new partners. Our products have gained recognition and favor from customers in different regions. We look forward to growing and progressing together with you.
Support your OEM/ODM needs and provide one-stop customized solutions
