STOCK CODE: 301295
STOCK CODE: 301295
— Your Prime Source for Advanced Relays And Water Valves —
Certification
UL E358149
TUV R50184977
CQC CQC10002051838

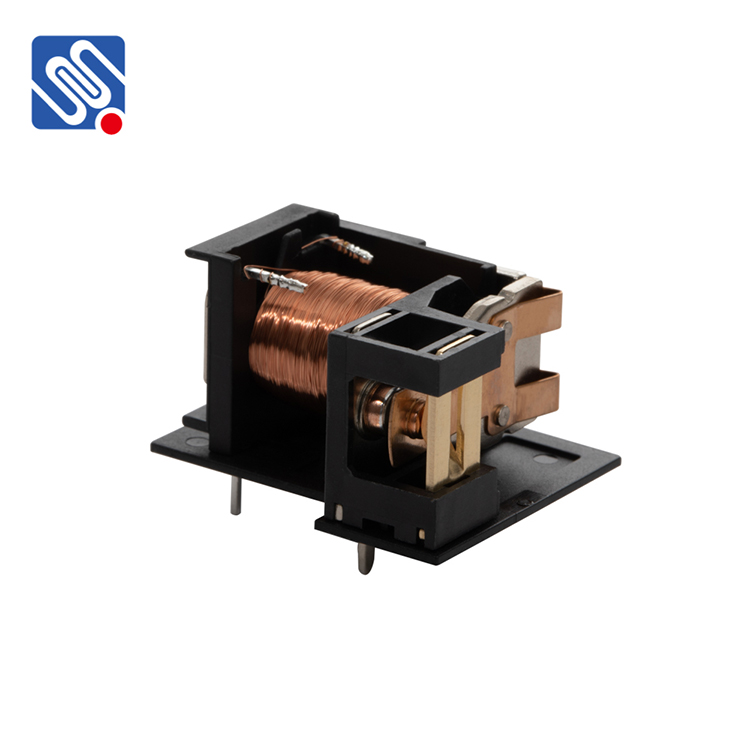

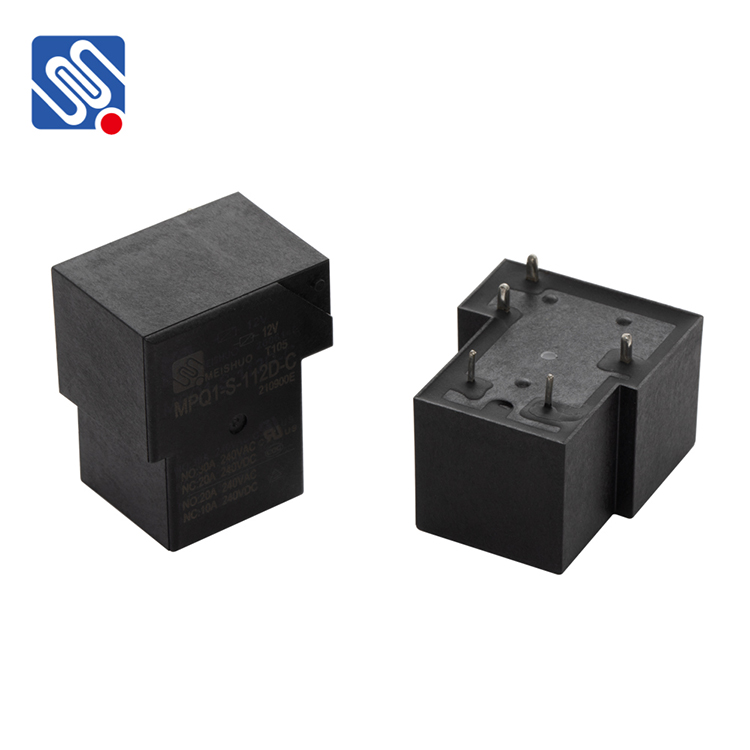

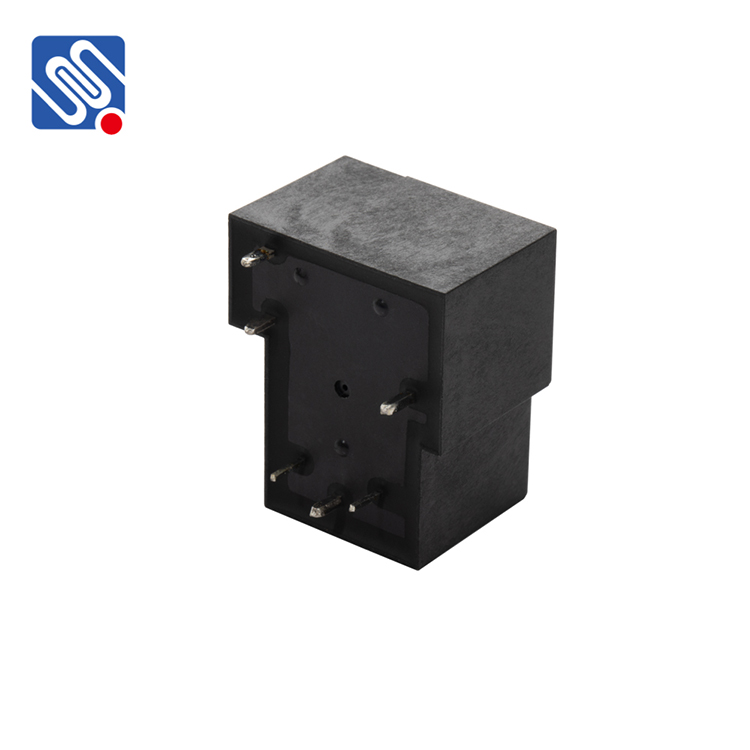

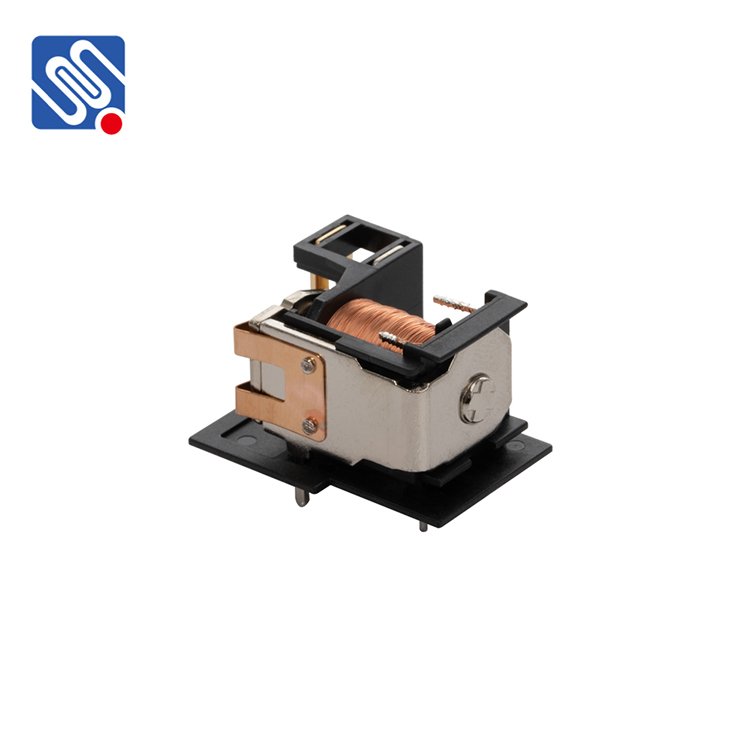

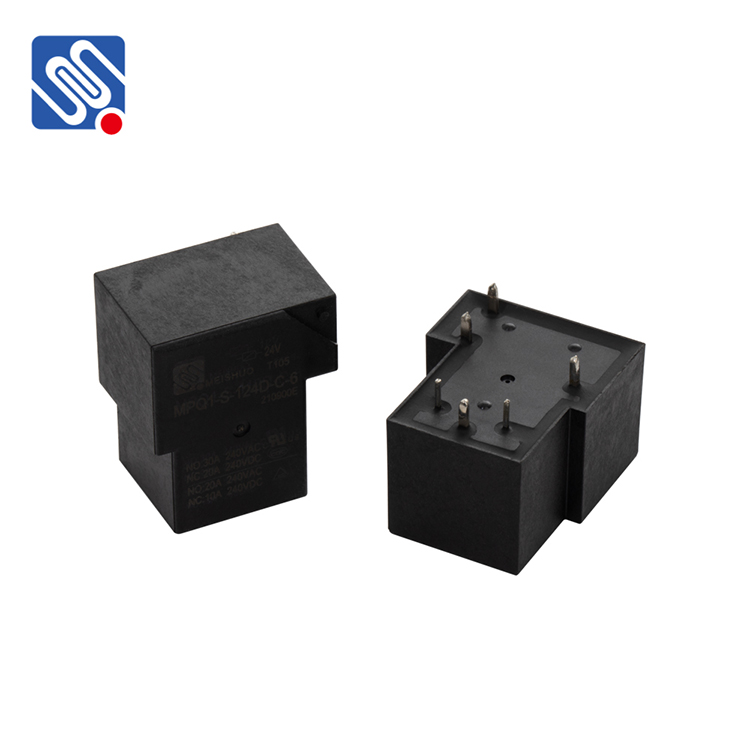

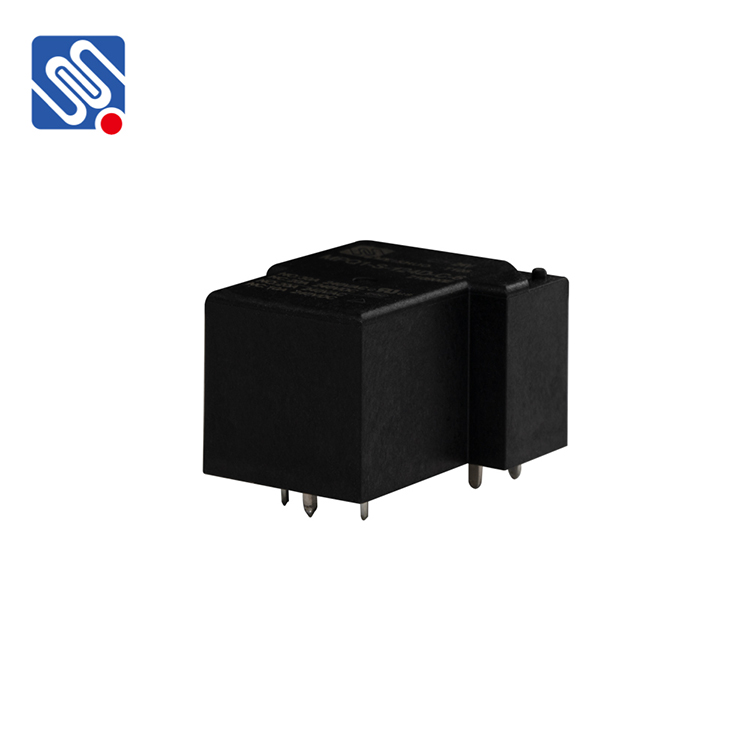

The T90 relay 12v has a one-year warranty and a lifespan of over 100,000 times. It uses tin oxide indium contacts, which have strong conductivity and carry large current. At the same time, the contact material can be customized to be suitable for resistive load, inductive load or capacitive load
| Contact Arrangement | 1A 1B 1C |
| Rated Load | 40A 250VAC |
| Max.Switching Current | 40A |
| Operate Time | ≤15ms |
| Release Time | ≤10ms |
| Coil Power | 0.9W/2.25W |
| Construction | Unenclosed/Wash tight/Dust cover type |
| Unit Weight | Approx.35g |
Ordering Information
Model: MPQ1
Structure: S:Wash tight
Nil:Dust cover type
Contact group: 1 pole
Coil voltage: 05,06,09,12,24,48 VDC
Coil power:DC
Contact form: 1A,1B,1C
Termination:6:With #6 terminal
Nil:Without #6 terminal
Special parameters:Nil:Standard type
Number or letters:RTIII or other
Production Process

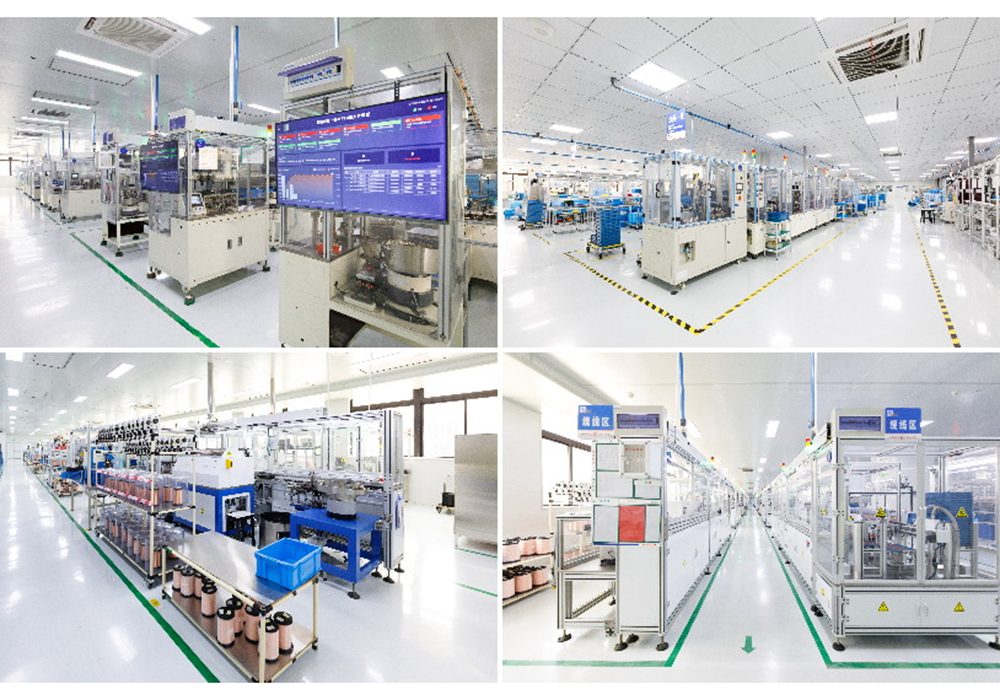

The production of a relay requires 50 to 60 processes and five tests over four hours before it can be qualified for storage.
Meishuo offers a one-stop BOM matching service.
Simply send your BOM list of components to our professional quotation team, and you will receive a detailed quote.
Support your OEM/ODM needs and provide one-stop customized solutions
