Product Overview

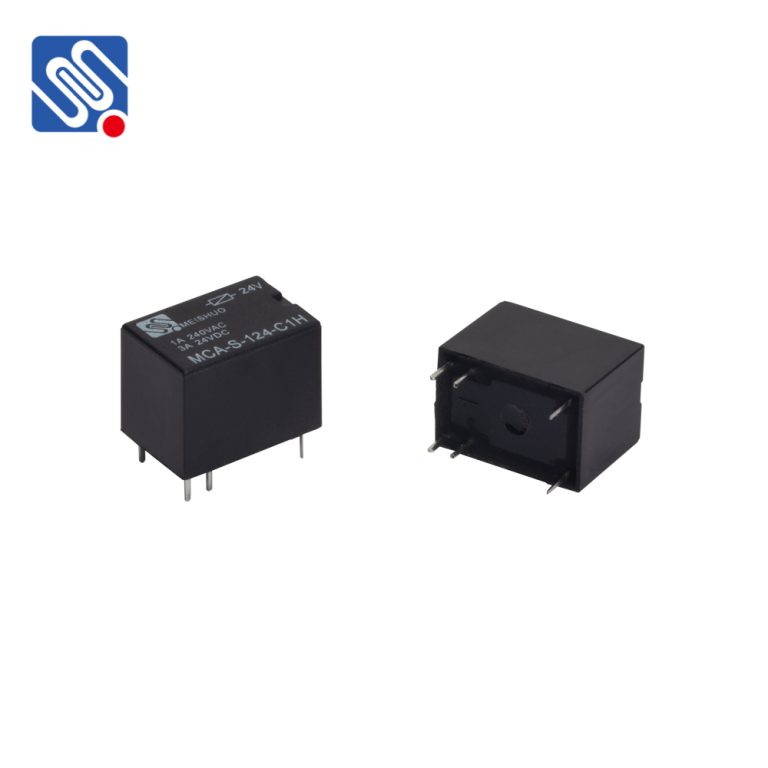

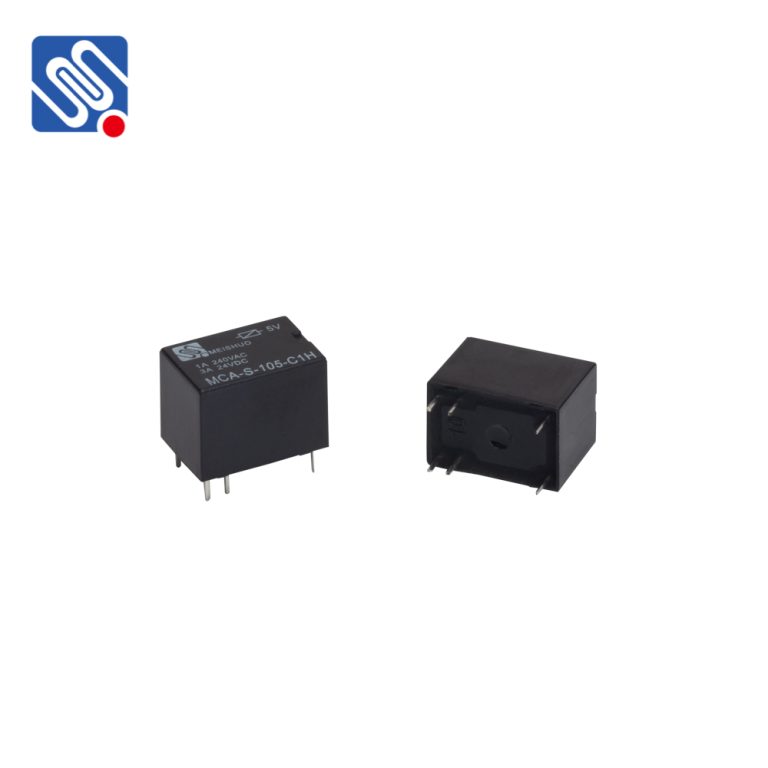

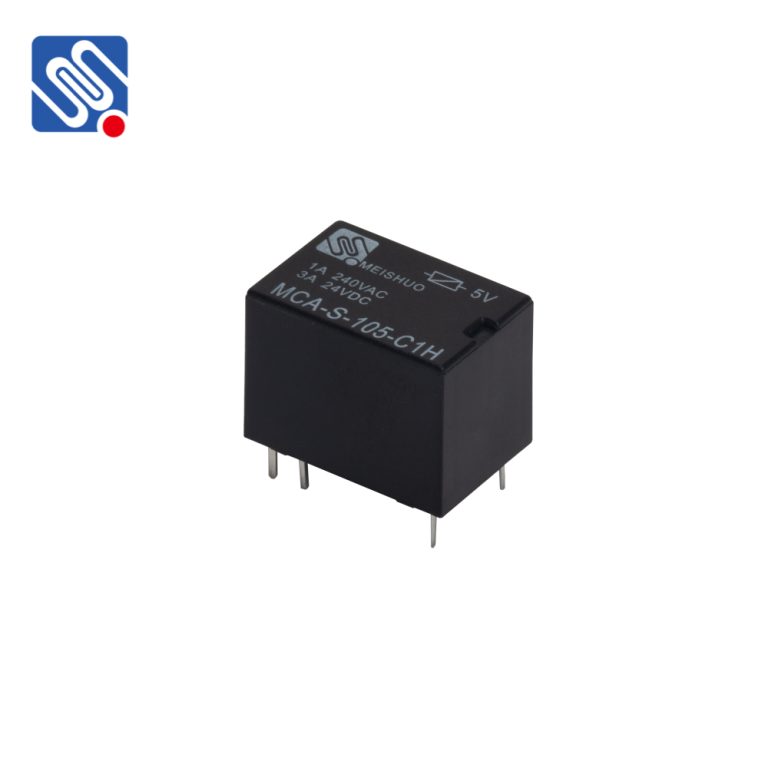

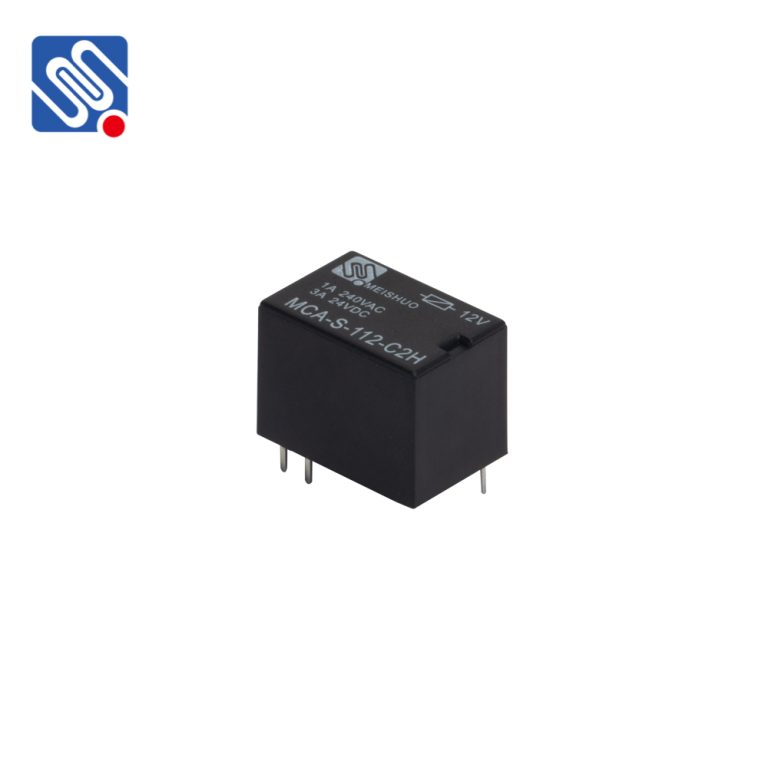

The MCA Relay from Meishuo Company is a high-performance relay, and it has a set of change-over contacts and 3A contact switching capability. It is engineered to provide reliable switching in critical control systems, ensuring consistent operation and minimal downtime.
Contact Parameters
| Contact Arrangement | 1C |
| Contact Material | Silver Alloy |
| Contact Resistance (Initial) | ≤100MΩ(0.1A 6VDC) |
| Max. Switching Power | 720VA/72W |
| Max. Switching Current | 3A |
| Max. Switching Voltage | 240VAC/24VDC |
| Electrical Life | 100000 OPS |
| Mechanical Life | 1000000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ(500VDC) |
| Dielectric Strength | Between Coil&Contacts: 1000VAC 1min |
| Between Open Contacts: 500VAC 1min | |
| Operate Time | ≤10ms |
| Release Time | ≤5ms |
| Ambient Temperature | -40℃～+85℃ |
| Vibration | 10Hz～55Hz 1.5mm (DA) |
| Shock | Functional: 98m/s² (10G) |
| Destructive: 980m/s² (100G) | |
| Terminal Form | PCB |
| Construction | Sealed |
| Unit Weight | Approx.5g |
Application
Telecommunications Infrastructure: The MCA signal relay can be used in telecommunications systems to manage the routing of calls and data traffic. Its fast response time ensures minimal signal delay, which is crucial for maintaining the efficiency of communication networks.
Company Profile

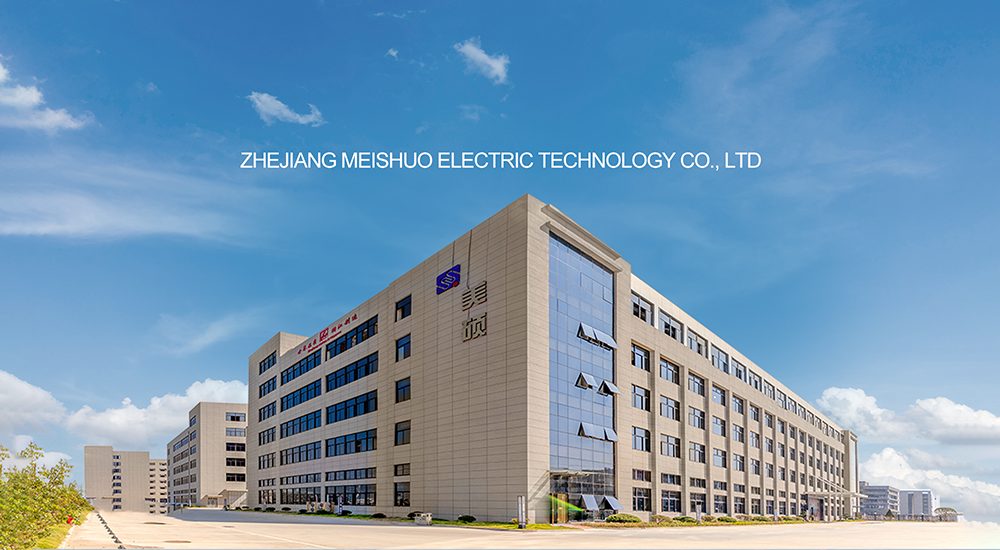

Meishuo Technology was established in February 2007, is a professional R & D, production and sales of relay control parts and its derivative actuator fluid solenoid valve products of high-tech enterprises.
The company continues to carry out institutional innovation, scientific and technological innovation and management innovation, and expand the market from domestic to global, and strive to make Meisho Technology become the world’s leading manufacturer of electronic control and safety components.
R&D Advantages
Experimental Center
The company has established a comprehensive quality control management system, with UL Witness Laboratories in the United States, TUV Witness Laboratories in Germany, and CNAS accredited laboratories in China to ensure the reliability of product quality.
R&D Team
The company currently has over 100 full-time research and development personnel. The company continues to invest in the development and optimization of products, processes, and equipment.
Technical Cooperation
The company has launched industry university research cooperation projects with universities such as Zhejiang University, China University of Metrology, and Wenzhou University.

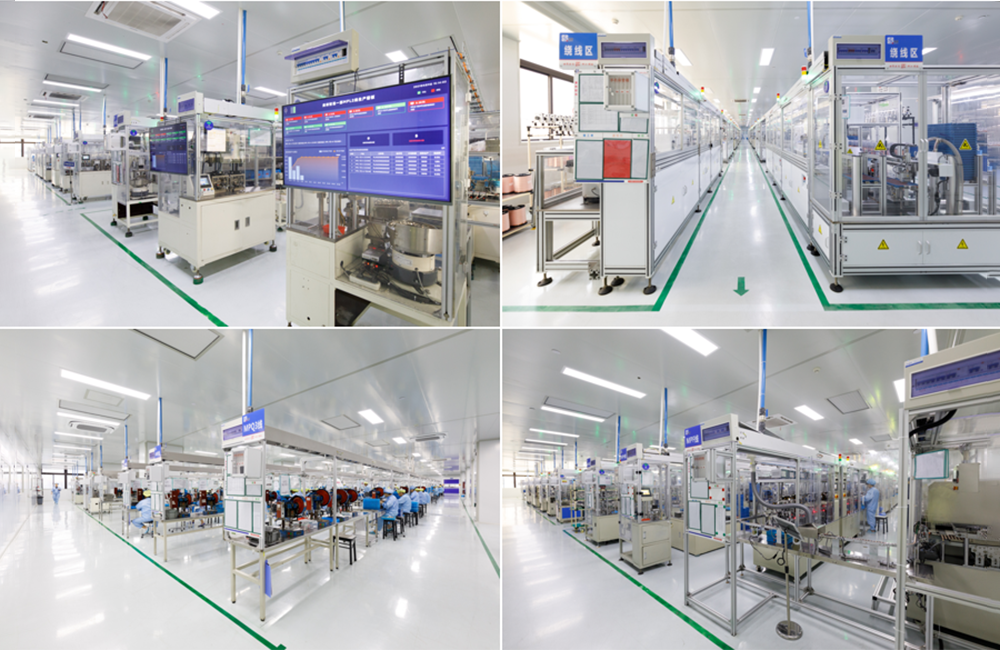

Production Workshop Display
In terms of production, Meishuo has a complete automation equipment system and independent research and development manufacturing capabilities. We can provide customized services for products based on customer needs.
Product Packaging
50 pcs/plastic tube
20 plastic tube/middle box
4000 pcs/master box
shockproof packing: packaging filler foam board
MEAS: 45.5*39*19.5cm G.W.: 18KGS N.W.: 17KGS

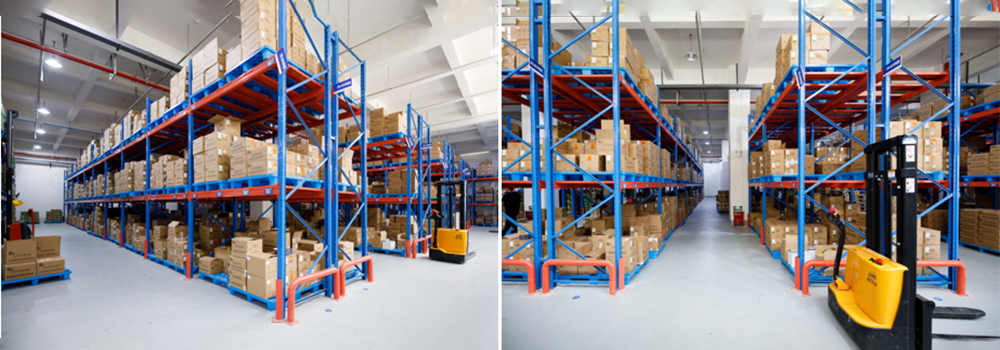

Warehouse
Support your OEM/ODM needs and provide one-stop customized solutions
