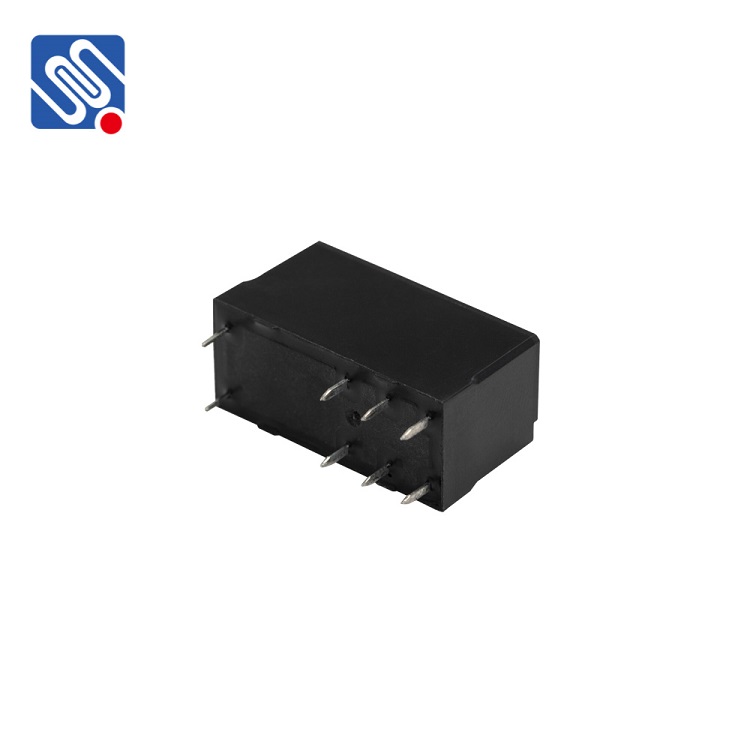

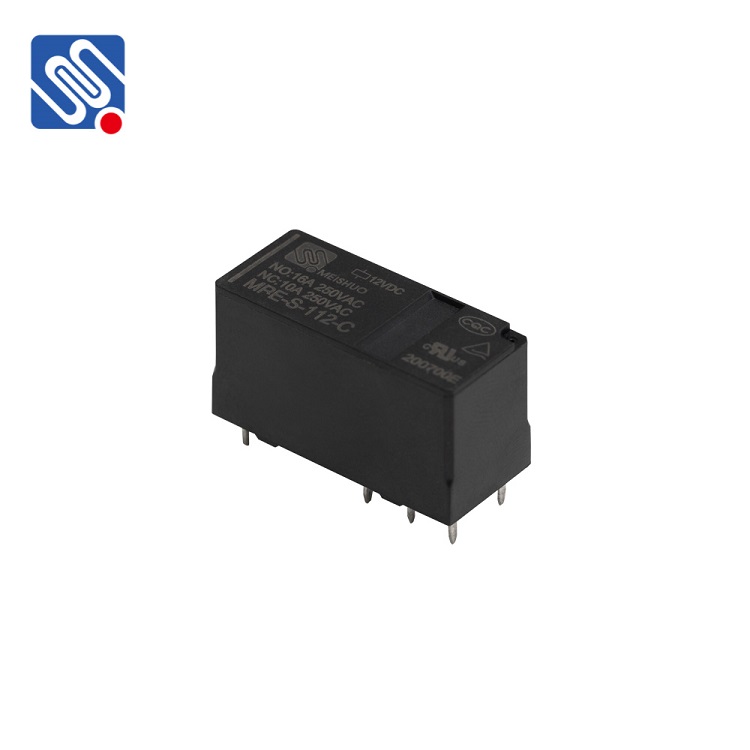

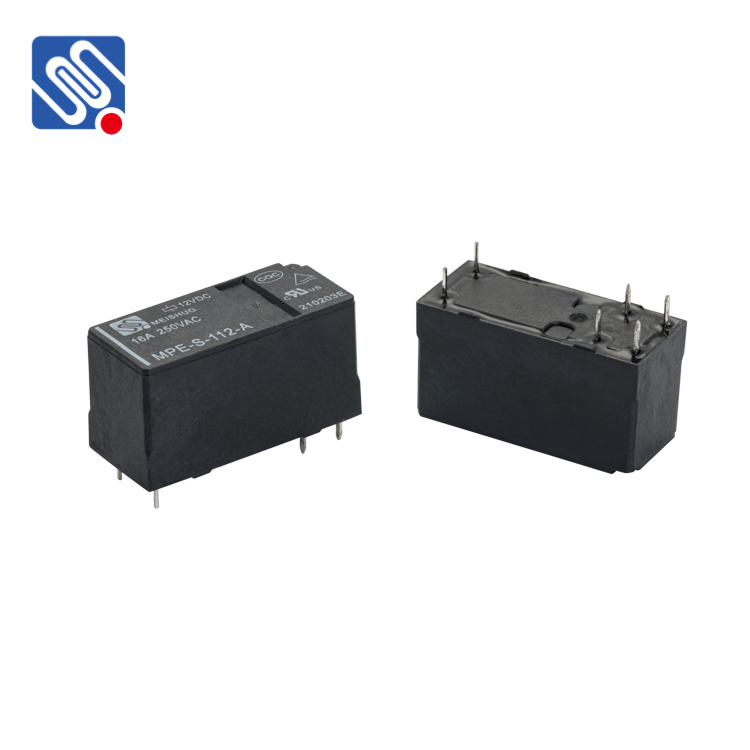

4 Pin Electric Universal Relay

•16A Switching capability •5KV Dielectric strength between coil and contacts •Outline dimensions L*W*H:29*12.7*15.5mm

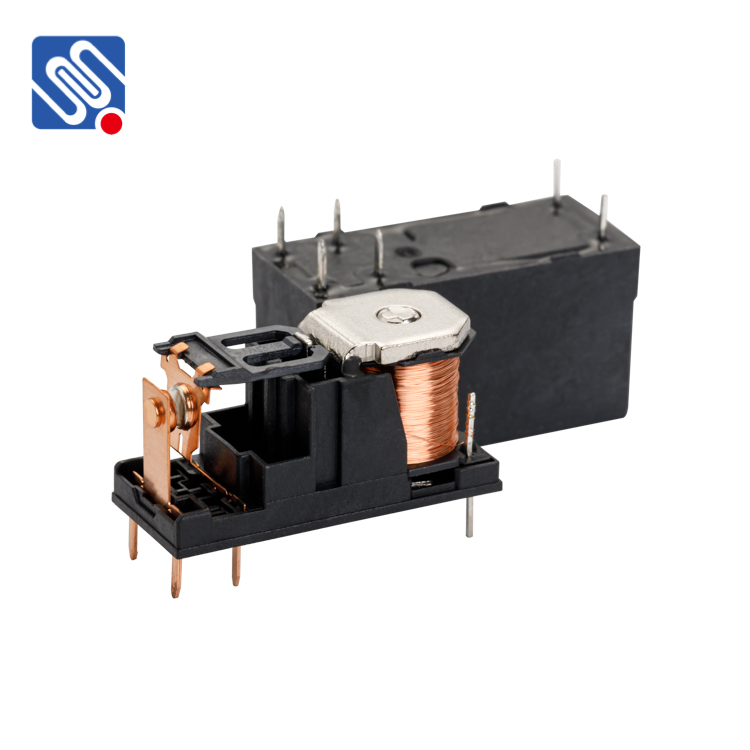

The MPE 16A relay features an electromagnetic coil with an ample number of turns exceeding international standards, ensuring reliable actuation; Its densely wound copper wires can withstand higher voltages, extending operational lifespan; Manufactured on 45 fully automated production lines for enhanced speed, stability, and precision. Certification UL E358149 TUV R50302777 CQC CQC15002122983
Contact Arrangement 1A  1C
Rated Load 10A 250VAC
Max.Switching Current 15A
Operate Time ≤10ms
Release Time ≤5ms
Coil Power 0.36W
Construction Wash tight
Unit Weight Approx.10g
Naming rules Model: MPE Structure: Wash tight Contact group: 1 pole Coil voltage: 05,06,09,12,24 VDC Contact form: 1A What is usually included on the print of this relay? Meishuo (company logo) 1.16A 250VAC (rated load) 2.MPE-X-1XX-X (product model) 3.production batch 4.CQC, UL, TUV (certificate logo) 5.12VDC (rated voltage) These labels can help customers better distinguish products at a glance       Six advantages of choosing Meishuo 1.Original and authentic products, each component is carefully checked at every level, ensuring worry free quality and keeping up with the latest trends. 2.17 years+original factory direct sales, complete qualifications, quality assurance. 3.Integrity management, offering competitive pricing for large quantities, supporting one-stop procurement. 4.All categories complete, with hundreds of products and thousands of models, waiting for your selection. 5.45+ fully automated products, with a daily production capacity of one million units, guaranteed delivery times. 6.Equipped with a professional service team and technical team to ensure your peace of mind with every purchase.
