STOCK CODE: 301295
STOCK CODE: 301295
— Your Prime Source for Advanced Relays And Water Valves —
Certification
UL E358149
TUV R50236892
CQC CQC12002086219
| Contact Arrangement | 1A |
| Rated Load | 16A 250VAC |
| Max.Switching Current | 16A |
| Operate Time | ≤20ms |
| Release Time | ≤10ms |
| Coil Power | 0.54W |
| Construction | Dust protected |
| Unit Weight | Approx.15g |
Naming Rules

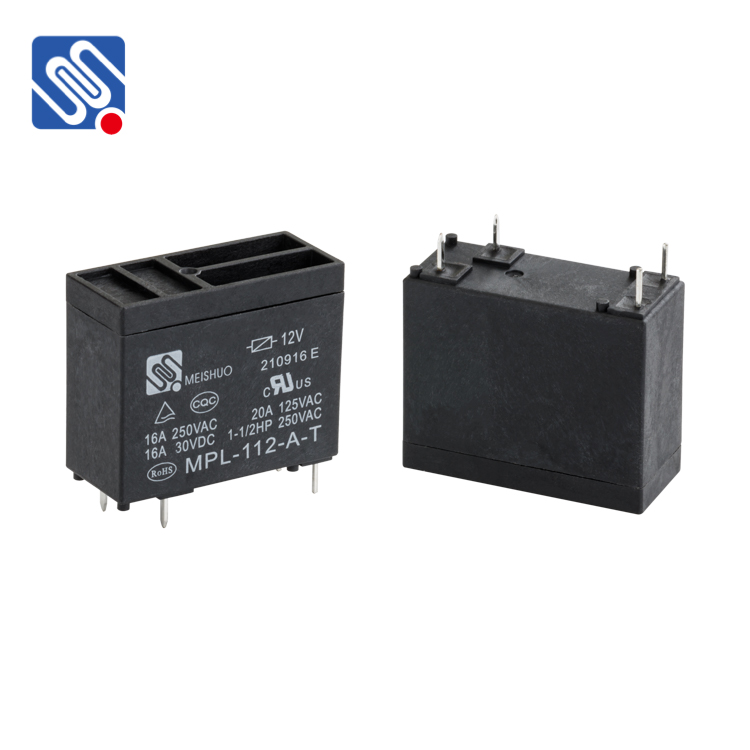

Model: MPL
Contact group: 1 pole
Coil voltage: 05,06,09,12,24 VDC
Contact form: 1A
Termination:T:PCB
Nil:PCB+QC
Insulation class:F:Class F
Nil:Standard type, Class B
| MPL | 1 | 12 | A | T | F |
| Model | Numberof Poles | ol Voltage | Contact Form | Termination | Insulation Class |
| 1 Pole | 05,06,09,12 18,24,48VDC | A .NO | T:PCB Nit PC +QC | F:Class F NilL.Standard Type, Class B |
Application：
Household Appliances: Used in household appliances such as washing machines, electric kettles, air conditioners, etc.
Smart Home: Used in smart home systems such as smart lighting, smart door locks, etc.
New Energy: Used for circuit control and protection in solar energy systems, wind energy systems, etc.
Smart Grid: Used for monitoring, regulation, and protection of power systems.
Automotive Industry: Used for control and protection of automotive circuits such as headlights, horns, power windows, etc.
Industrial Control: Used for control of machinery and equipment on production lines.
Communication IoT: Used for circuit switching control in devices such as telephone exchanges, routers, etc.
Others: Applicable in fields such as aerospace, medical equipment, security systems, etc.
Company Information：
1.Company Profile: Founded in 2007, headquartered in Yueqing, Wenzhou, 2 R&D centers + laboratories, with more than 700 employees
2.Business scope: Own brand, professional R&D, production and sales of relays, electric water valves and other products
3.Business performance: Serving more than 10,000 customers, with a turnover of more than 500 million yuan in 2023

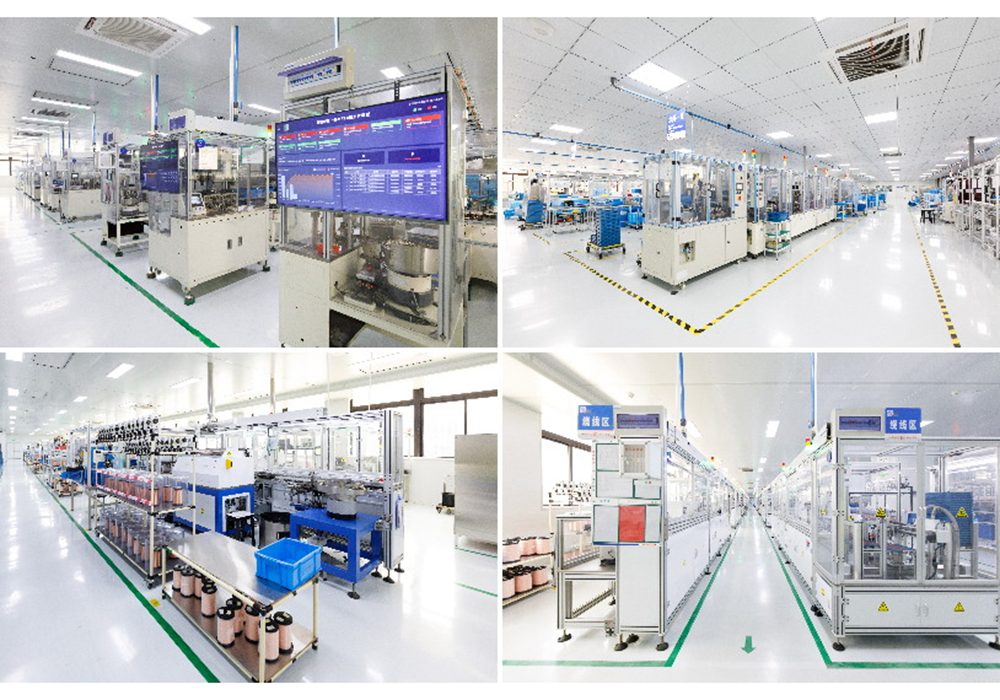

4.Workshop：With more than 45 full automatic production lines, a large use of various high -precision sensors to ensure the high quality of the product
Support your OEM/ODM needs and provide one-stop customized solutions
