Product Overview

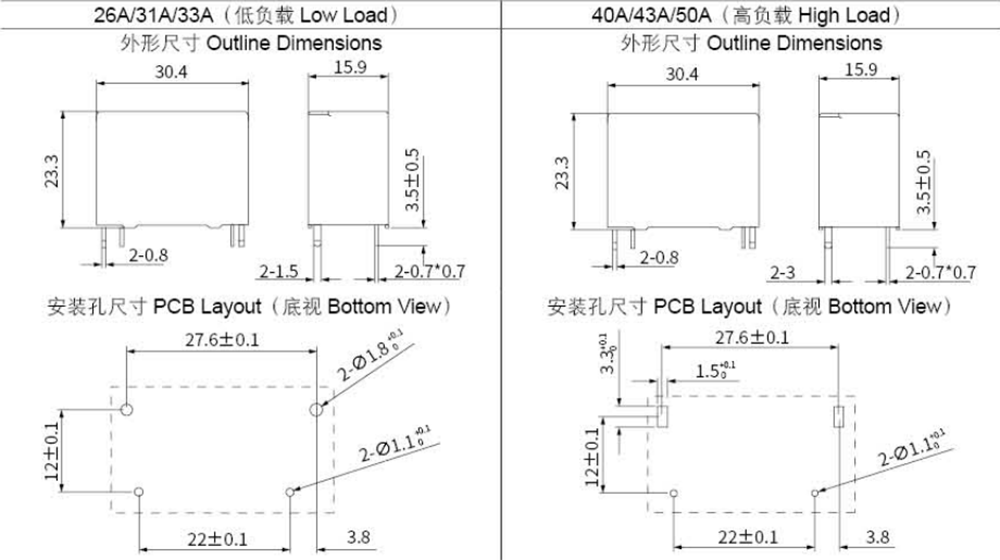

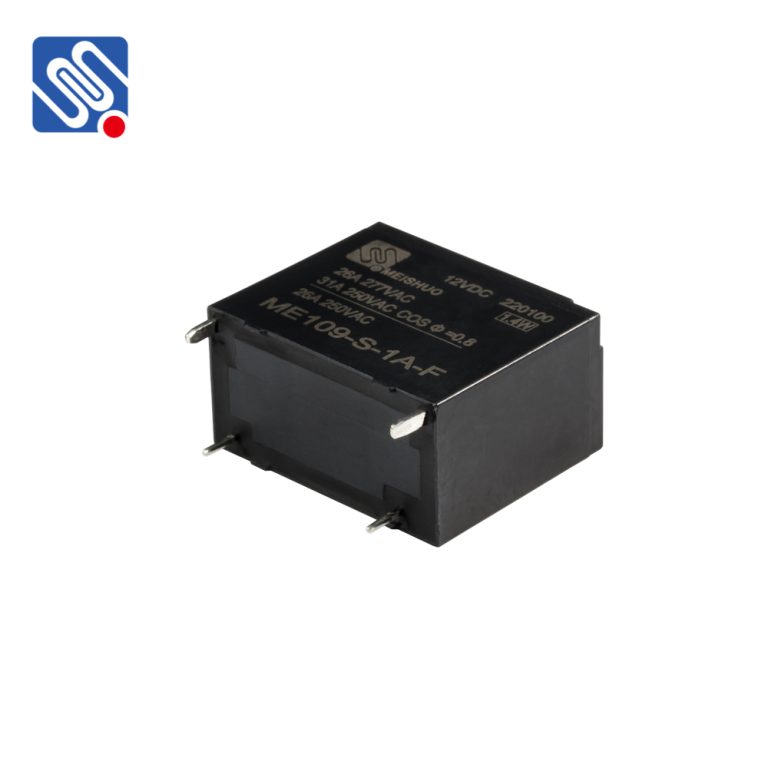

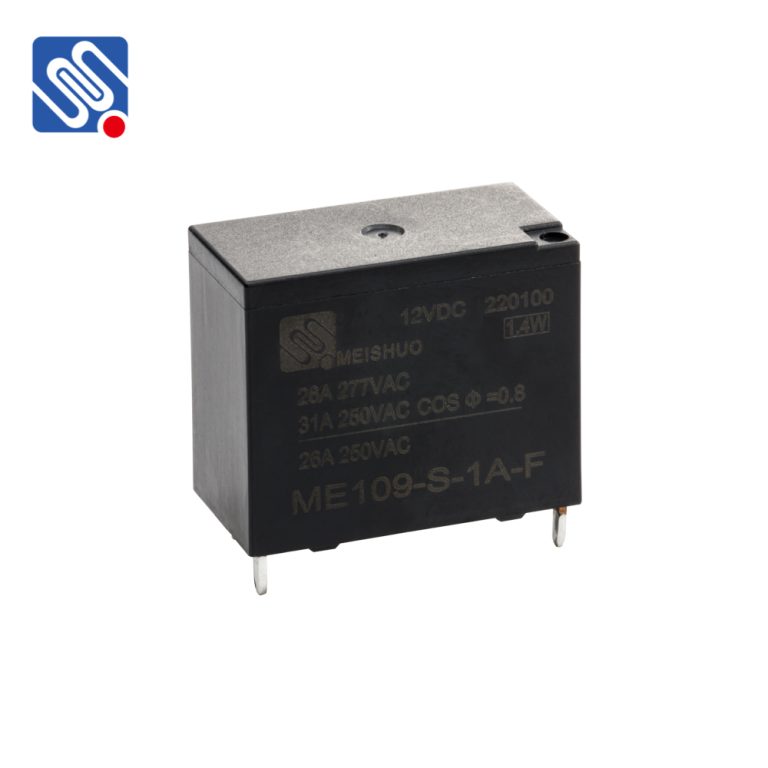

ME109 relay belongs to the category of inverters and new energy products, and can be applied in fields such as photovoltaic inverters, UPS power supplies, and industrial control. According to actual needs, there are low load specifications of 26-33A and high load specifications of 40-50A to choose from.
Contact Parameters
| Contact Arrangement | 1A |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤100MΩ（1A 6VDC） |
| Max. Switching Current | High Load: 50A |
| Low Load: 33A | |
| Max. Switching Voltage | 400VA |
| Max. Switching Power | High Load: 16000VA |
| Low Load: 9141VA | |
| Electrical Life | ≥30000 Ops (Res.Load, 85℃, 1s On: 9s Off) |
| Mechanical Life | Contact gap <1.5mm: 1000000 Ops Contact gap≥1.5mm: 100000 Ops |
Characteristics
| Insulation Resistance | 1000MΩ（500VDC） | |
| Dielectric Strength | Between Coil & Contacts: 4500VAC 1min | |
| Between Open Contacts | 1700VAC 1min (Contact gap <1.5mm) | |
| 2500VAC 1min (Contact gap≥1.5mm) | ||
| Surge Voltage | 10kV (1.2/50us) | |
| Operate Time | ≤20ms | |
| Release Time | ≤10ms | |
| Ambient Temperature | -40℃~+85℃ | |
| Vibration | 10Hz~55Hz 1.5mm (DA) | |
| Shock | Functional: 196m/s² | |
| Destructive: 980m/s² | ||
| Terminal Form | PCB | |
| Construction | Sealed | |
| Unit Weight | Approx.21g | |
Product Advantages
Advantage 1:
Safe and reliable: Relays play a role in isolation and protection, avoiding circuit failures caused by load faults and improving safety.
Advantage 2:
Precise control: Relays can accurately control the switching state of photovoltaic circuits, thereby achieving stable operation of photovoltaic systems and precise control of electrical energy output.
Application
Photovoltaic energy storage inverter system: The inverter converts the variable DC voltage generated by the solar panel into AC power. The ME109 relay, as an output isolation relay, can play a safe on-off role on the grid connected AC side of the inverter.
New energy vehicles and charging station systems: ME109 relays can be used in on-board chargers for new energy vehicles, as well as in AC charging stations responsible for controlling the charging switch.
