Product Overview
MCD relays have high sensitivity and coil power consumption of only 0.12w, commonly used in home appliances, smart homes, industrial control, signal communication and other systems. It is engineered for reliability, efficiency, and versatility, ensuring seamless integration into a wide range of control systems.
Contact Parameters
| Contact Arrangement | 1A |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤100mΩ(1A 6VDC) |
| Max. Switching Current | 5A |
| Max. Switching Voltage | 250VAC/30VDC |
| Max. Switching Power | 1250VA/150W |
| Electrical Life | 100000 OPS (3A 250VAC/30VDC, 85℃, 1s On:9s Off ) 50000 OPS (5A 250VAC/30VDC, Room Temp., 1s On:9s Off ) |
| Mechanical Life | 20000000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ(at 500VDC) |
| Dielectric Strength | Between Coil & Contacts:3000VAC 1min Between Open Contacts:1000VAC 1min |
| Operate Time | ≤10ms |
| Release Time | ≤5ms |
| Ambient Temperature | -40℃～+85℃ |
| Vibration | 10Hz～55Hz 1.5mm (DA) |
| Shock | Functional: 98m/s²（10G） Destructive: 980m/s²（100G） |

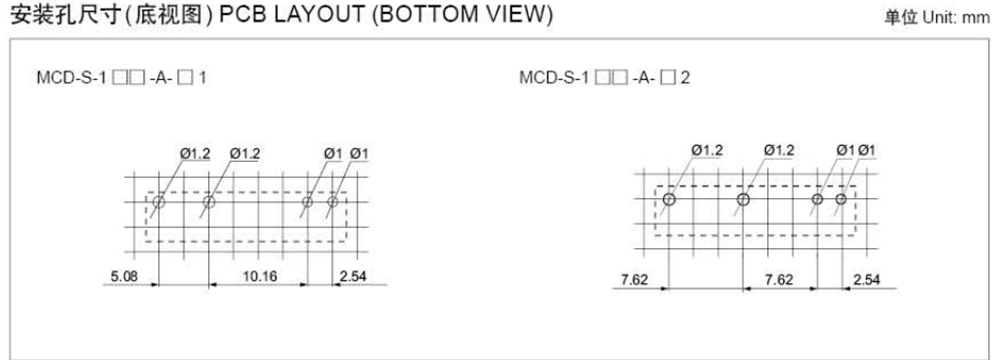

| Terminal Form | PCB |
| Construction | Sealed |
| Unit Weight | Approx.3g |
Product Advantages
Advantage 1:
Strong durability: Compared to general electronic components, the service life of relays can reach hundreds of thousands of times or more, ensuring the reliability of switching power supplies.
Advantage 2:
The relay has a low power consumption, which means that the relay needs less energy when it is used, which can effectively reduce the energy consumption of the switching power supply, and also ensure the reliability of the switching power supply.
Application
Smart Home Appliances: MCD relays can be used for devices in smart homes, such as temperature control systems, security control systems, etc
Industrial Control: MCD relays can be used in I/O interface board for PLC, for output control.
Telecommunications Infrastructure: The MCD relay can be used in telecommunications systems to manage the routing of calls and data traffic.
Telecommunication Systems: The MCD signal relays can be used in telecommunication systems to manage and route various signals ensuring efficient data transmission.
