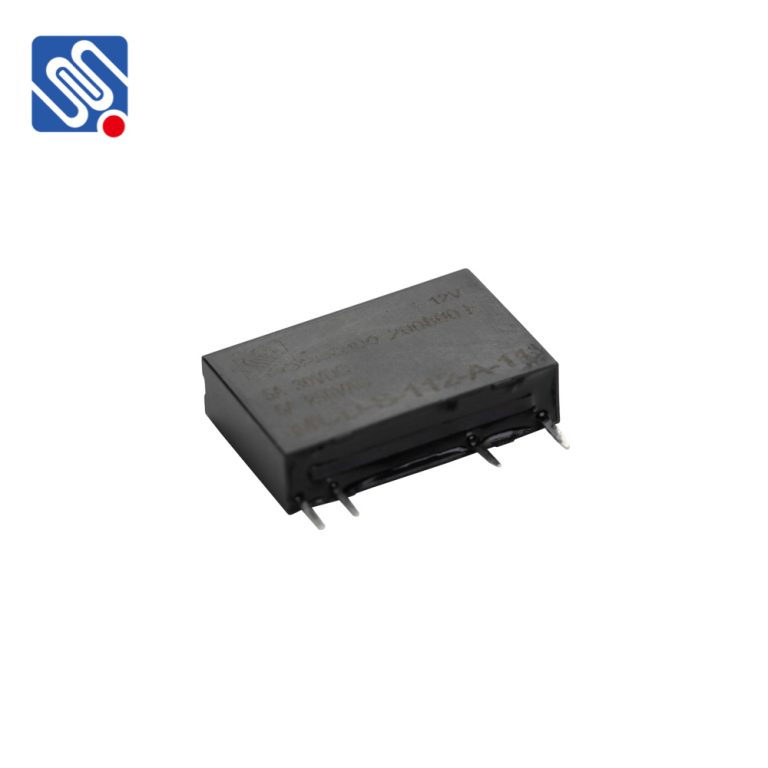

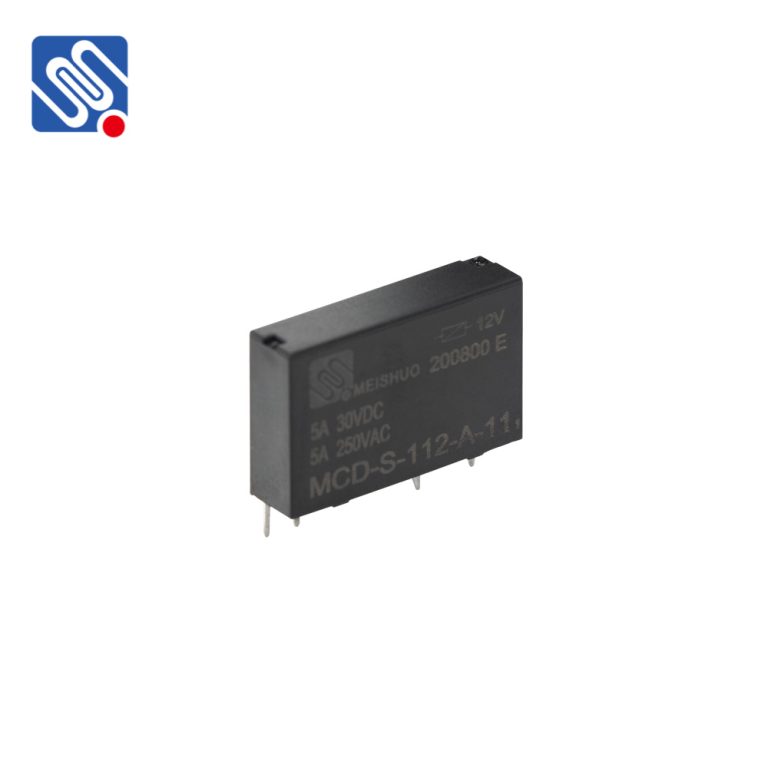

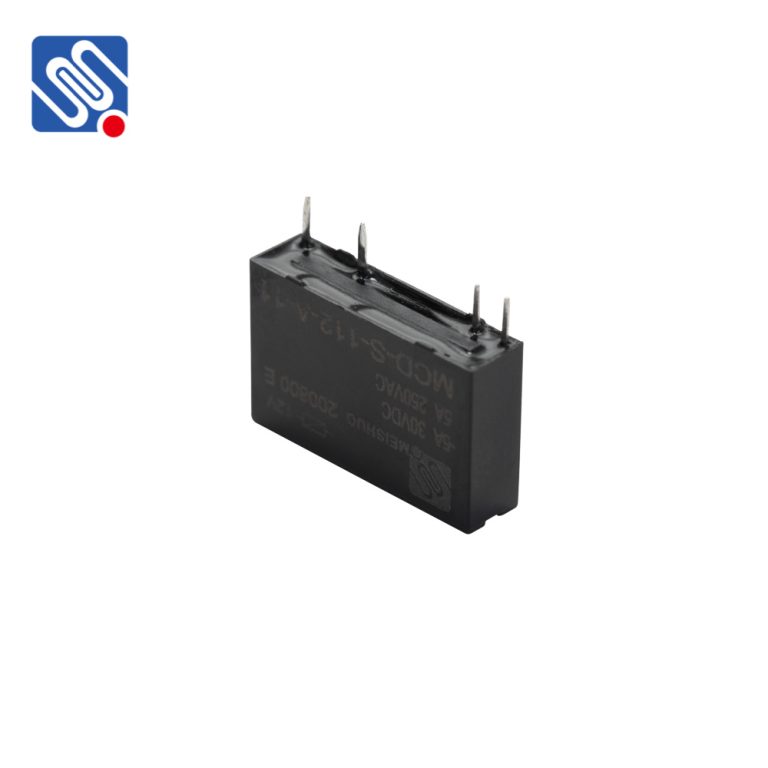

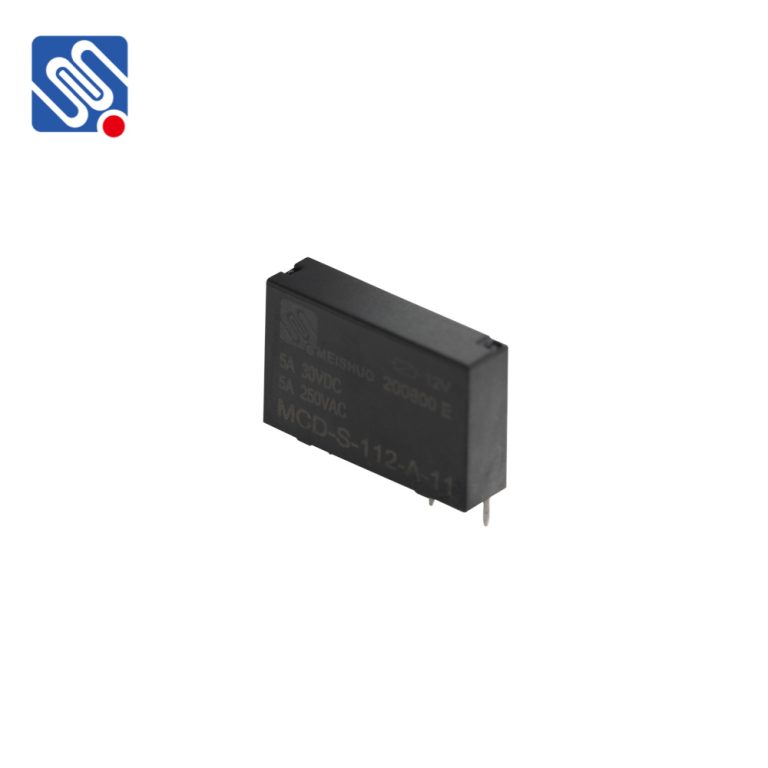

5A SPDT Industrial Relay (4-Pin)

Certification UL E358149 TUV R50549150 CQC 21002325693 Product Overview MCD relays have high sensitivity and coil power consumption of only 0.12w, commonly used in home appliances, smart homes, industrial control, signal communication and other systems. It is engineered for reliability, efficiency, and versatility, ensuring seamless integration into a wide range of control systems. Contact Parameters

Contact Form	1A
Contact Material	Silver Alloy
Contact Resistance	≤100mΩ (1A 6VDC)
Max. Switching Current	5A
Max. Switching Voltage	250VAC/30VDC
Max. Switching Power	1250VA/150W
Electrical Life	10000 OPS (3A 250VAC/30VDC, 85℃, 1s on: 9s off) 50000 OPS (5A 250VAC/30VDC, Room temp, 1s on: 9s off)
Mechanical Life	2000000 OPS

Characteristics

Insulation Resistance	1000MΩ (at 500VDC)
Dielectric Strength	Between Coil & Contacts: 3000VAC 1min Between Open Contacts: 1000VAC 1min
Operate Time	≤10ms
Release Time	≤5ms
Ambient Temperature	-40℃～+85℃
Vibration	10Hz～55Hz 1.5mm(DA)
Shock	Functional: 98m/s² (10G) Destructive: 980m/s² (100G)
Termination	PCB
Construction	Wash tight
Unit Weight	Approx. 3g

Product Advantages Advantage 1: Strong durability: Compared to general electronic components, the service life of relays can reach hundreds of thousands of times or more, ensuring the reliability of switching power supplies. Advantage 2: The relay has a low power consumption, which means that the relay needs less energy when it is used, which can effectively reduce the energy consumption of the switching power supply, and also ensure the reliability of the switching power supply. Application Smart Home Appliances: MCD relays can be used for devices in smart homes, such as temperature control systems, security control systems, etc Industrial Control: MCD relays can be used in I/O interface board for PLC, for output control. Telecommunications Infrastructure: The MCD relay can be used in telecommunications systems to manage the routing of calls and data traffic. Telecommunication Systems: The MCD signal relays can be used in telecommunication systems to manage and route various signals ensuring efficient data transmission. Company Profile Zhejiang Meishuo Electric Technology Co., Ltd. is a dynamic and innovative enterprise in the field of electrical technology. Our corporate mission is to create value for our customers with a professional spirit. We focus on providing products with relays and solenoid valves as the core, and constantly provide corresponding solutions for our customers. Our industries cover smart homes, new energy, smart grids, automotive industry, and industrial control, striving to meet customer needs and provide customers with more valuable products. Production Workshop Display Cooperation Our customer-centric strategy ensures that we understand and meet the unique needs of our customers, providing them with tailored solutions and excellent services.
