Certification
UL E358149

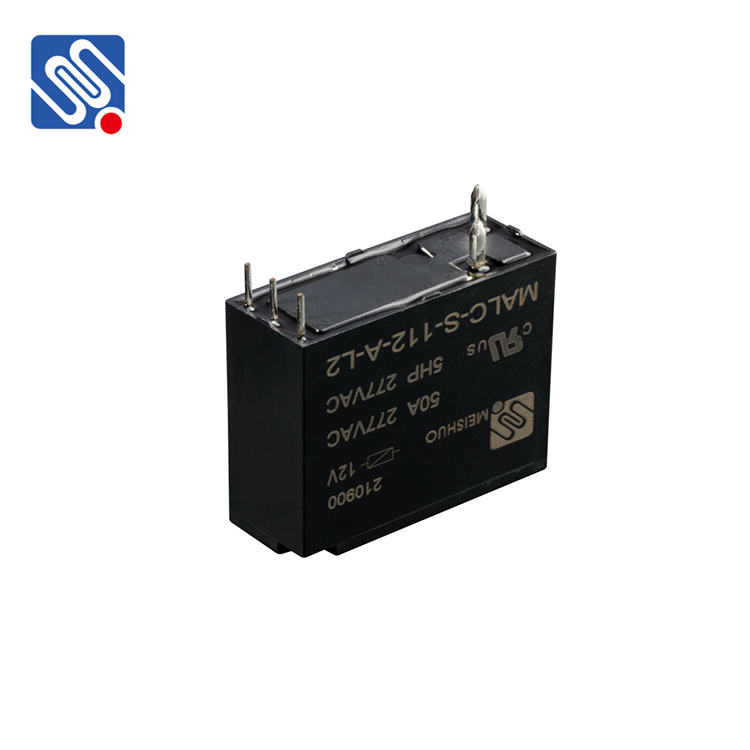

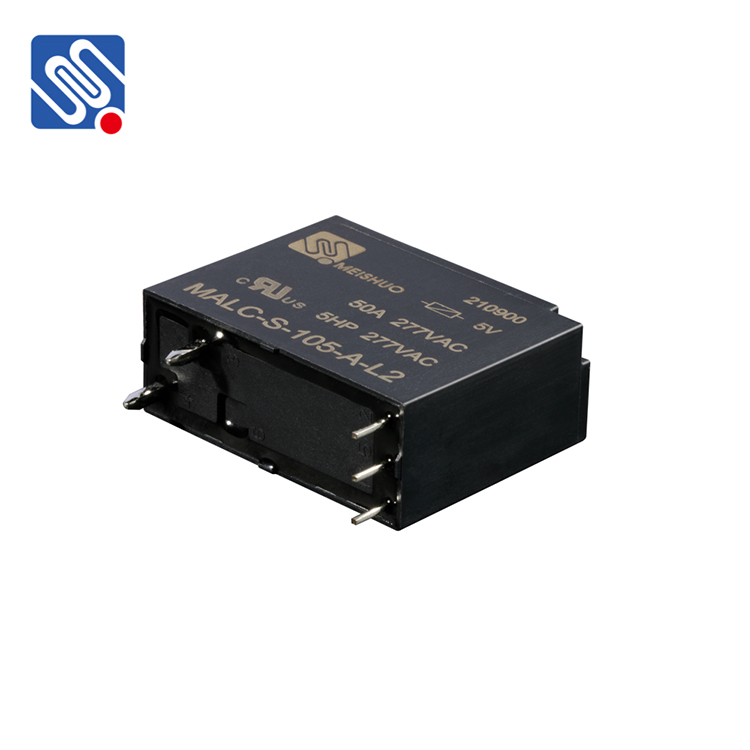

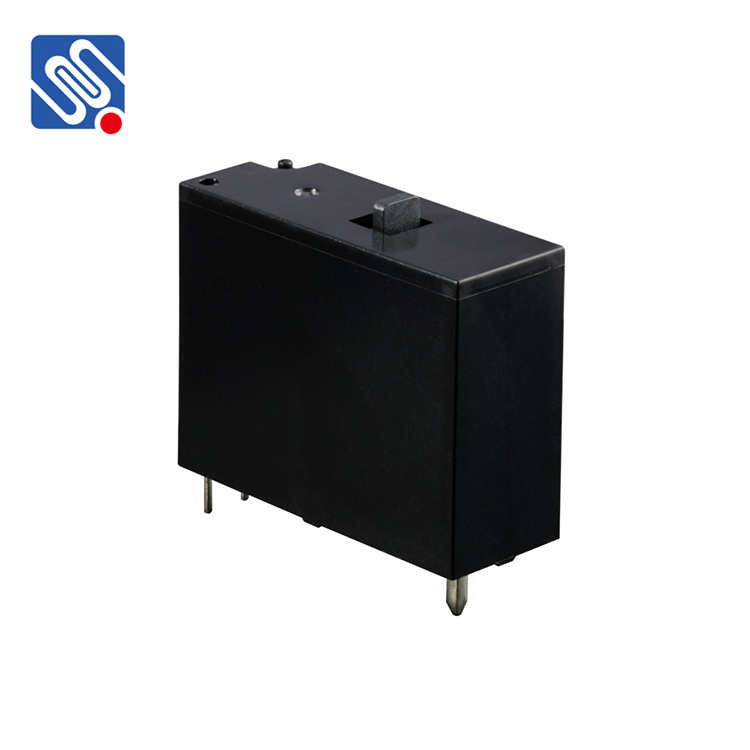

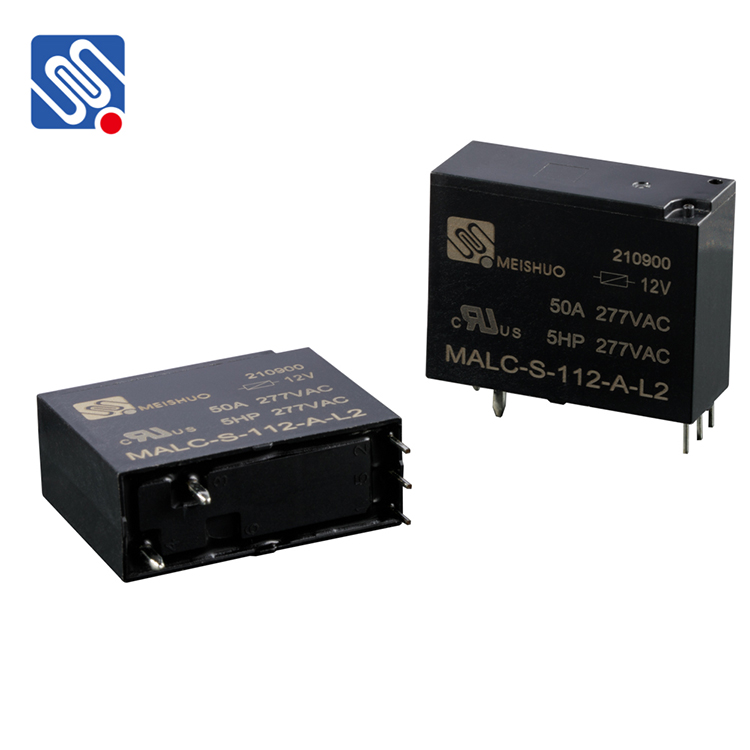

Product Overview
MALC Relays play a crucial role in smart home systems, especially in devices such as smart panels, where they receive signals from the intelligent control system to control the flow of current and enable remote control of home equipment. For example, users can control the on/off of lights, curtains, or appliances through the smart panel, while relays are responsible for converting these control instructions into actual current switching, allowing the device to operate according to the user’s needs.
Characteristic
| Contact Arrangement | 1A 1B |
| Rated Load | 50A 250VAC |
| Max.Switching Current | 50A |
| Operate Time | ≤15ms |
| Release Time | ≤15ms |
| Coil Power | 3W/1.5W |
| Construction | Wash tight/Flux proofed |
| Unit Weight | Approx.32g |
Naming Rules
In order to quickly identify and distinguish different products, the naming usually includes the serial number and the specific technical specifications of the relay
| MALC | S | 1 | 12 | A | L1 | R | 1 |
| Mode | Structure | Number of Poles | Coi Voltage | Contact Fom | Coi Type | Polarty | Version |
| S:Wash tght NLflux Proof | 1 Pole | 05,06,09,12, 24,48 VDC | A: NO B : NC | L1:Single Coil Latching L2:Double Cols Latching | R:Negatve Polanty NI:Posstive Polarity | 1:WthAuxiliary Convexity N:NoAunolary Convexity |

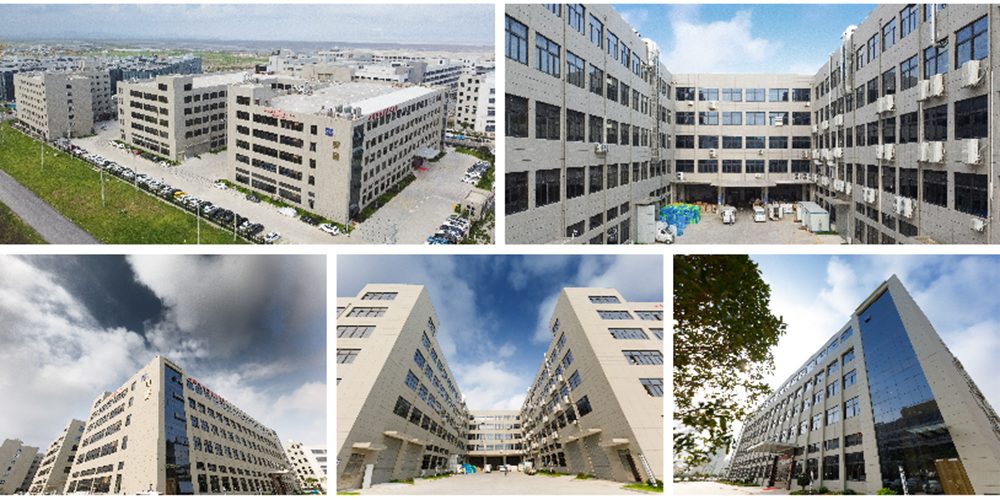

Company advantages
•Dust-free workshop, dust-free contacts, fully automated equipment production and inspection
Effectively avoiding the impact of dust and impurities on relays, by reducing production failures and product scrap caused by pollution, production costs can be significantly reduced, equipment damage caused by poor contact can be minimized, and the service life of equipment can be extended.
•We can solve technical problems encountered by customers during installation and use, and provide one-on-one answers
We have a professional after-sales team that promptly and accurately receives customer feedback, patiently answers customer questions, and improves our products and services
•Complete certification, worry-free quality
More than 100 series, 10,000 specifications, most products have passed UL, TUV, CQC and other certifications
Support your OEM/ODM needs and provide one-stop customized solutions
