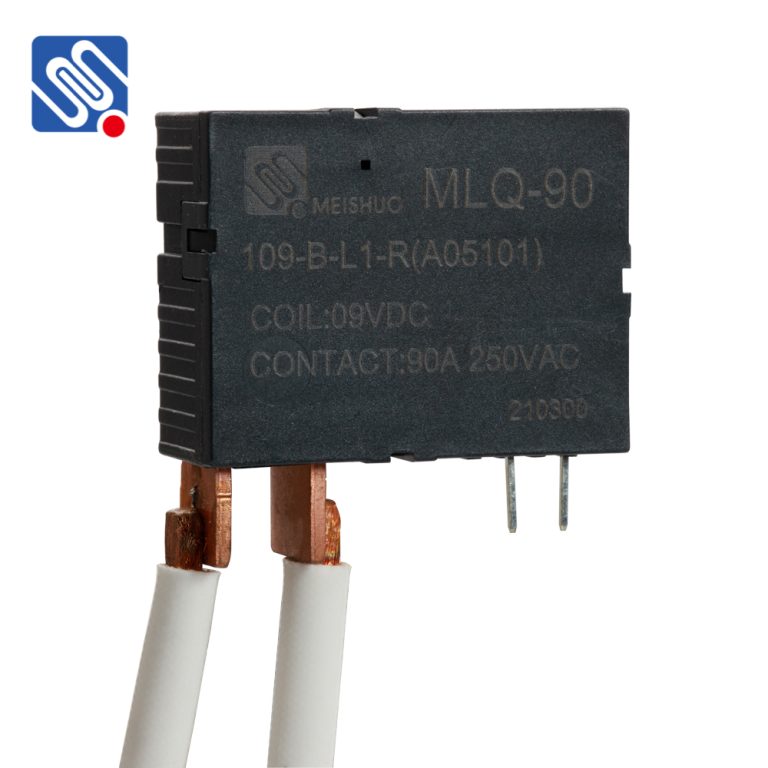

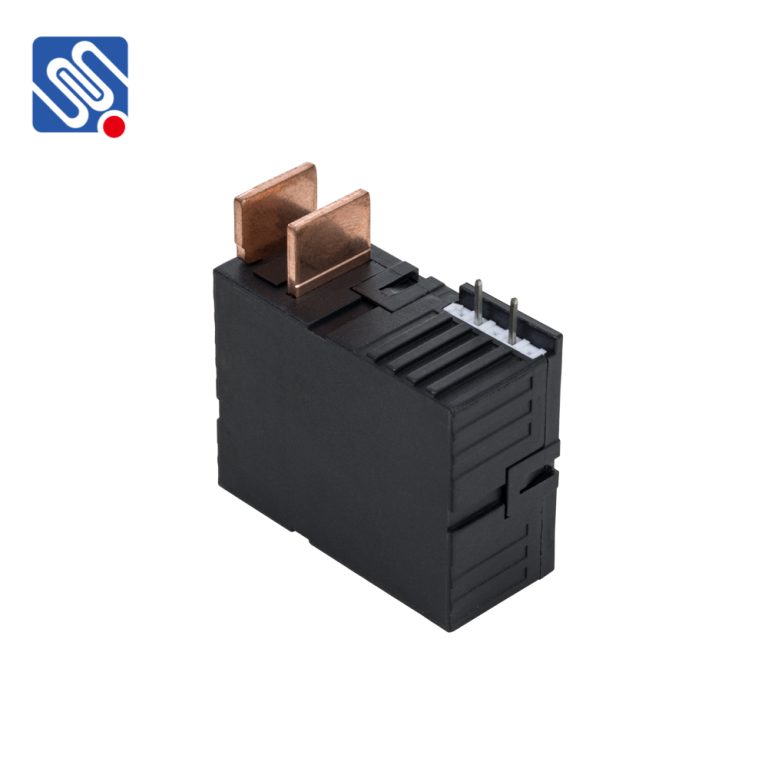

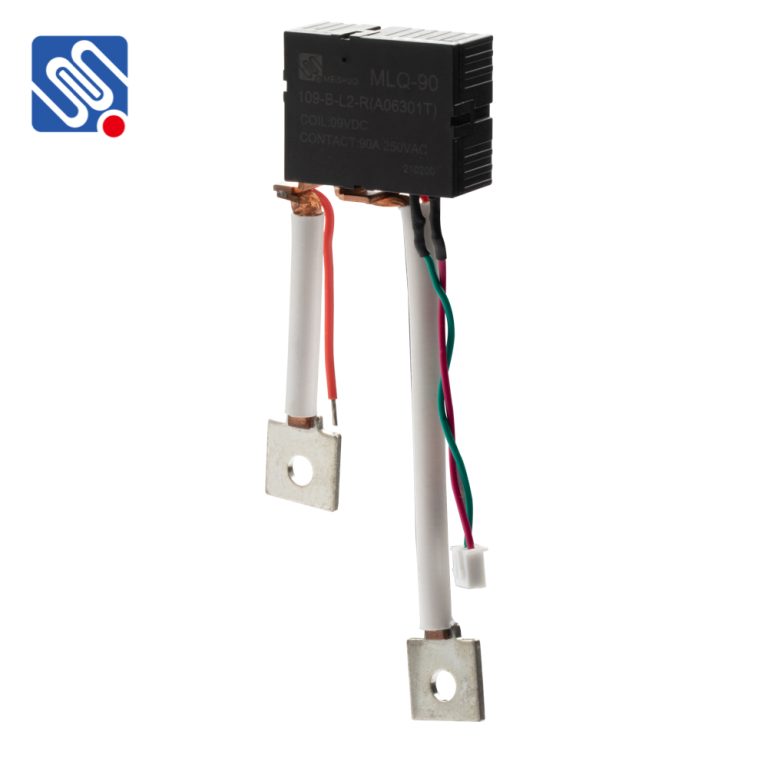

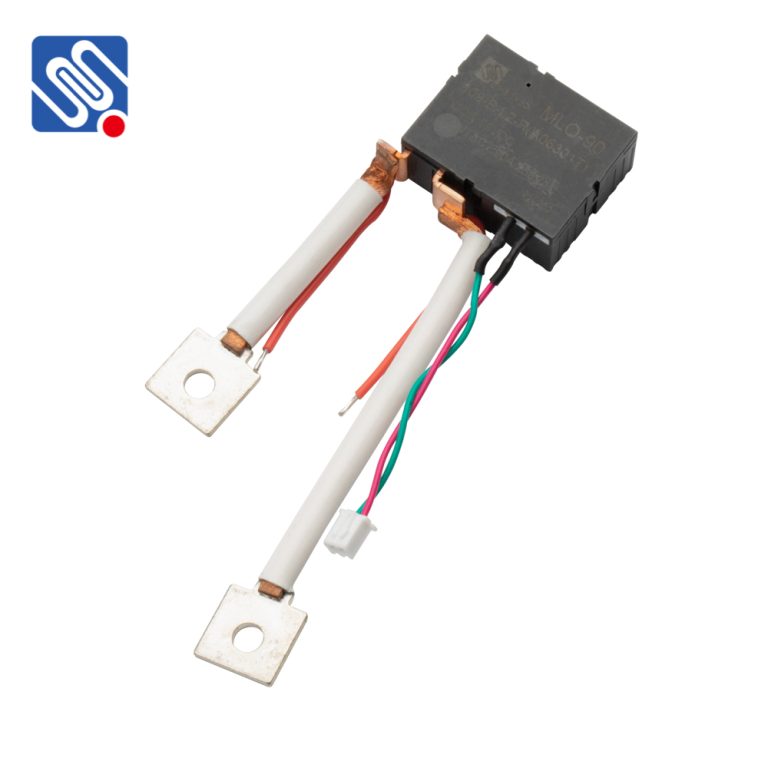

Product Overview
The MLQ-90 relay is suitable for various electrical control scenarios, such as smart switches, smart capacitors, etc. It can also be applied to DC charging stations, playing a role in safe disconnection on the AC side of the charging module.
Contact Parameters
| Contact Form | 1A, 1B |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤1.0mΩ（1A 6VDC） |
| Contact Rating | 90A 250VAC |
| Max. Switching Current | 90A |
| Max. Switching Voltage | 250VAC |
| Max. Switching Power | 22.5KVA |
| Electrical Life | 10000 OPS |
| Mechanical Life | 100000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ Min. (500VDC) |
| Dielectric Strength | Between Coil & Contacts: 4000VAC 1min |
| Between Open Contacts: 2000VAC 1min | |
| Set Time | ≤20ms |
| Reset Time | ≤20ms |
| Shock | Functional: 98m/s² |
| Destructive: 980m/s² | |
| Vibration | 10Hz～55Hz 1.5mm(DA) |
| Humidity | 5%～85%RH |
| Ambient Temperature | -40℃～+85℃ |
| Construction | Dust Protected |
| Unit Weight | Approx.50g |
Product Advantages
Advantage 1:
Low power consumption: The relay has a low power consumption, which means that the relay needs less energy when it is used, which can effectively reduce the energy consumption of the switching power supply, and also ensure the reliability of the switching power supply.
Advantage 2:
Fast response: The switching speed of the relay can be from a few milliseconds to a few subtle, to achieve fast conversion.
Application
Smart grid: Used for monitoring, regulation and protection of power systems.
Smart meters: Generally, it is recommended to use magnetic holding relays to ensure that smart meters are in a long-term connected state
DC fast charging: The relay plays a role in the safe disconnection of the AC side in the DC charging station charging module.
Certificate
Our product is certified by ISO, CQC, and RoHS, guaranteeing quality, safety, and adherence to environmental standards.
Company Profile
Meishuo Technology was established in 2007 and is a high-tech enterprise specializing in the research and development, production, and sales of relay control components and their derivative actuator fluid solenoid valve products.
Meishuo Technology core values revolve around innovation, excellence, and sustainability. We strive to break through the boundaries of technology while ensuring that our solutions are environmentally responsible and have an impact on society. All of our product designs are based on the needs of our users.
Laboratories
The company has established a comprehensive quality control management system, with UL Witness Laboratories in the United States, TUV Witness Laboratories in Germany, and CNAS accredited laboratories in China. It is one of the relay industry companies with the most comprehensive testing capabilities.
Support your OEM/ODM needs and provide one-stop customized solutions
