Product Overview

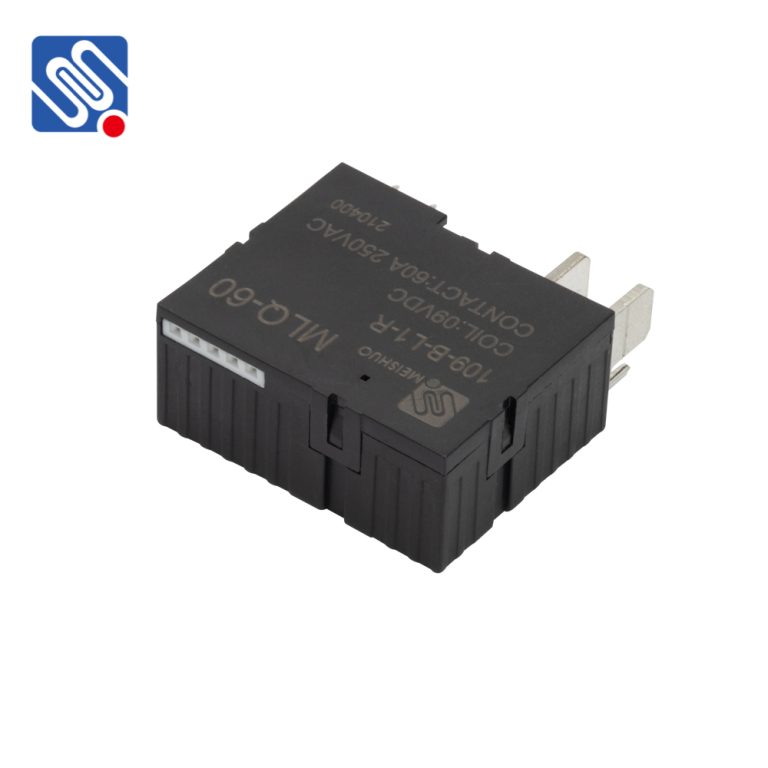

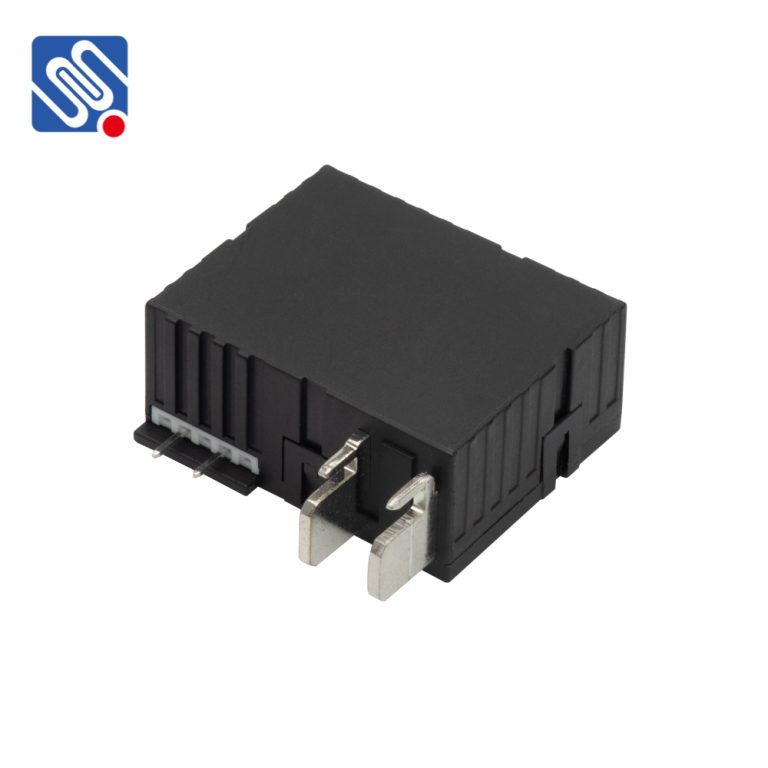

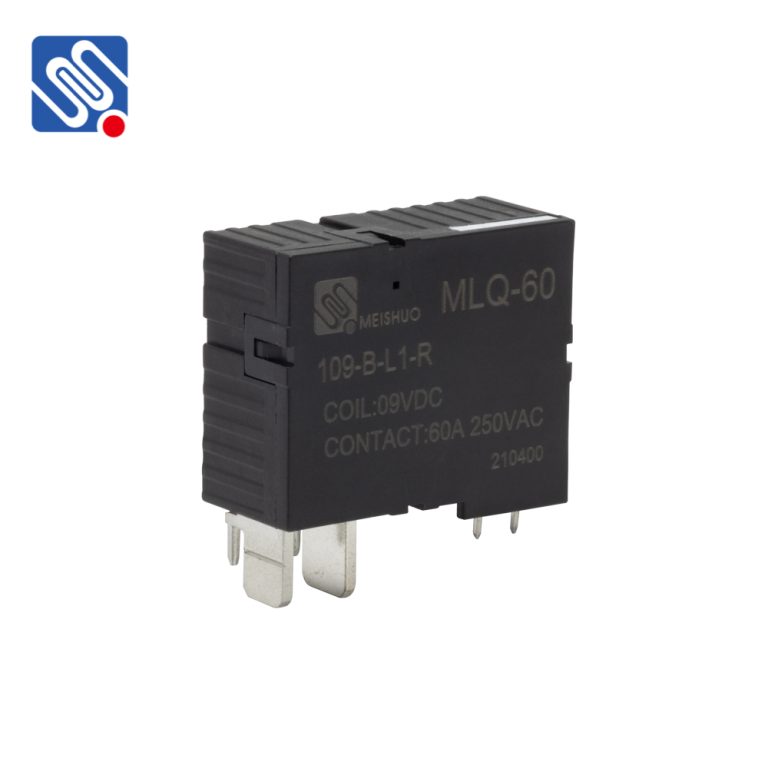

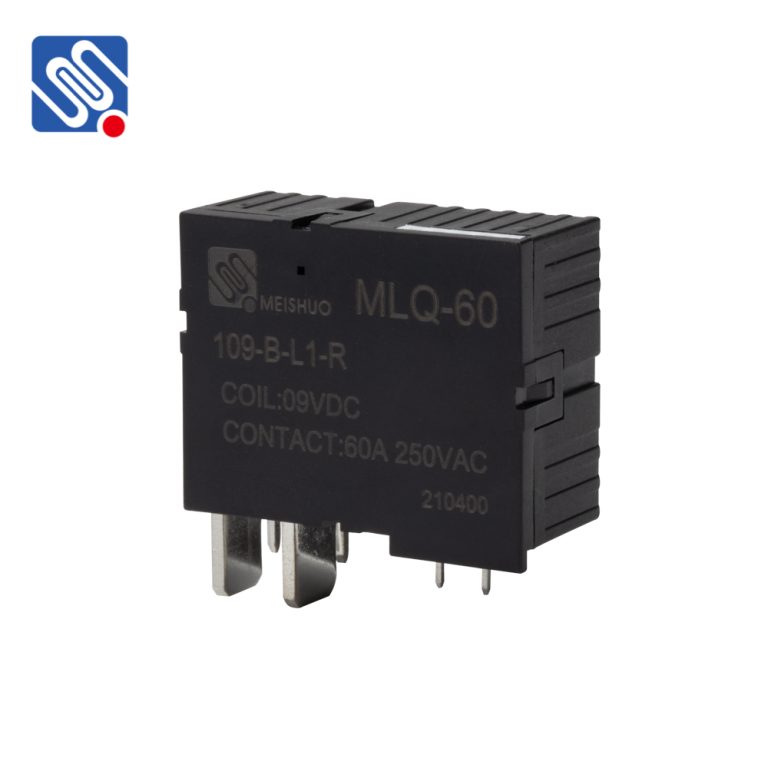

The MLQ-60 magnetic latching relay has a contact load of 60A and is a key component of smart meters, smart switches, smart capacitors, and AC charging stations. By applying currents in different directions to the coil, the state of the armature component is changed, thereby enabling the contacts to achieve the functions of opening and closing.
Contact Parameters
| Contact Form | 1A, 1B |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤1.0mΩ（1A 6VDC） |
| Contact Rating(Res. Load) | 60A 250VAC |
| Max. Switching Current | 60A |
| Max. Switching Voltage | 250VAC |
| Max. Switching Power | 15KVA |
| Electrical Life | 10000 OPS |
| Mechanical Life | 100000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ Min. (500VDC) |
| Dielectric Strength | Between Coil & Contacts: 4000VAC 1min |
| Between Open Contacts: 2000VAC 1min | |
| Set Time | ≤20ms |
| Reset Time | ≤20ms |
| Shock | Functional: 98m/s² |
| Destructive: 980m/s² | |
| Vibration | 10Hz～55Hz 1.5mm (DA) |
| Humidity | 45%～90%RH |
| Ambient Temperature | -40℃～+85℃ |
| Construction | Dust Protected |
| Unit Weight | Approx.50g |
Product Advantages
Advantage 1:
Strong impact resistance: Due to its structural characteristics and materials used, the relay has strong impact resistance. Even when the power supply is subjected to strong external impacts, the relay can work normally without being affected, thus ensuring the stability and reliability of the switching power supply.
Advantage 2:
Quick response: Magnetic holding relays have a fast response speed and can complete switching actions in milliseconds. This is very important for the fast response and real-time control of the circuit, which can improve the control accuracy of the circuit.
Application
Smart meters: Generally, it is recommended to use magnetic holding relays to ensure that smart meters are in a long-term connected state.
Reactive power compensation: synchronous switch, composite switch, smart capacitor.
Intelligent control: smart home, solar street light control, automation equipment, etc.
New energy field: MLQ-60 relays play a switch role in controlling charging in AC charging stations.
Company Profile
Meishuo Technology is a leading force in the technology industry, focusing on the research and development, production, and sales of products such as relays and solenoid valves. Meishuo has a visionary team of engineers and designers dedicated to developing user centered products that improve life and production efficiency.
On the path of continuous innovation, our professional team constantly researches and develops new technologies to improve the performance and quality of our products. We provide satisfactory customized solutions based on customer needs to ensure that Meishuo always occupies a leading position in the relay industry.

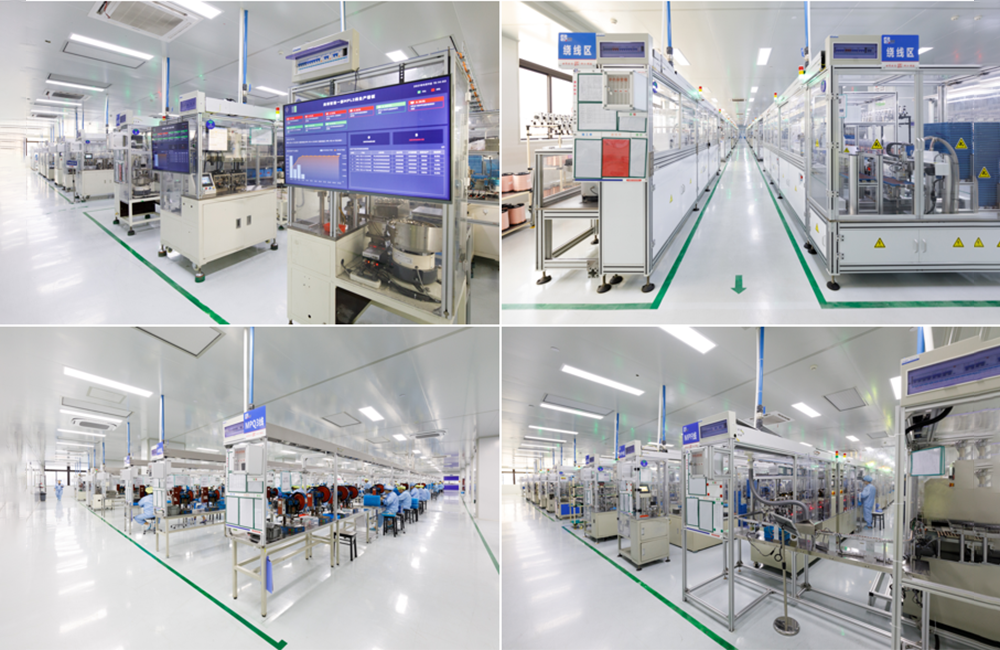

Production Workshop Display

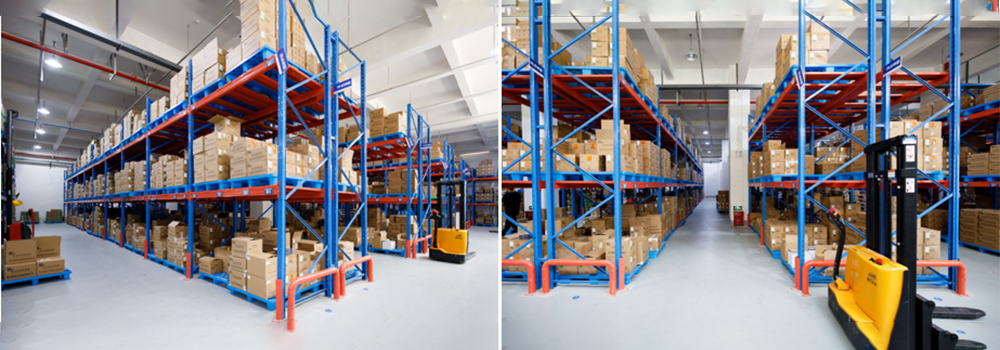

Warehouse
