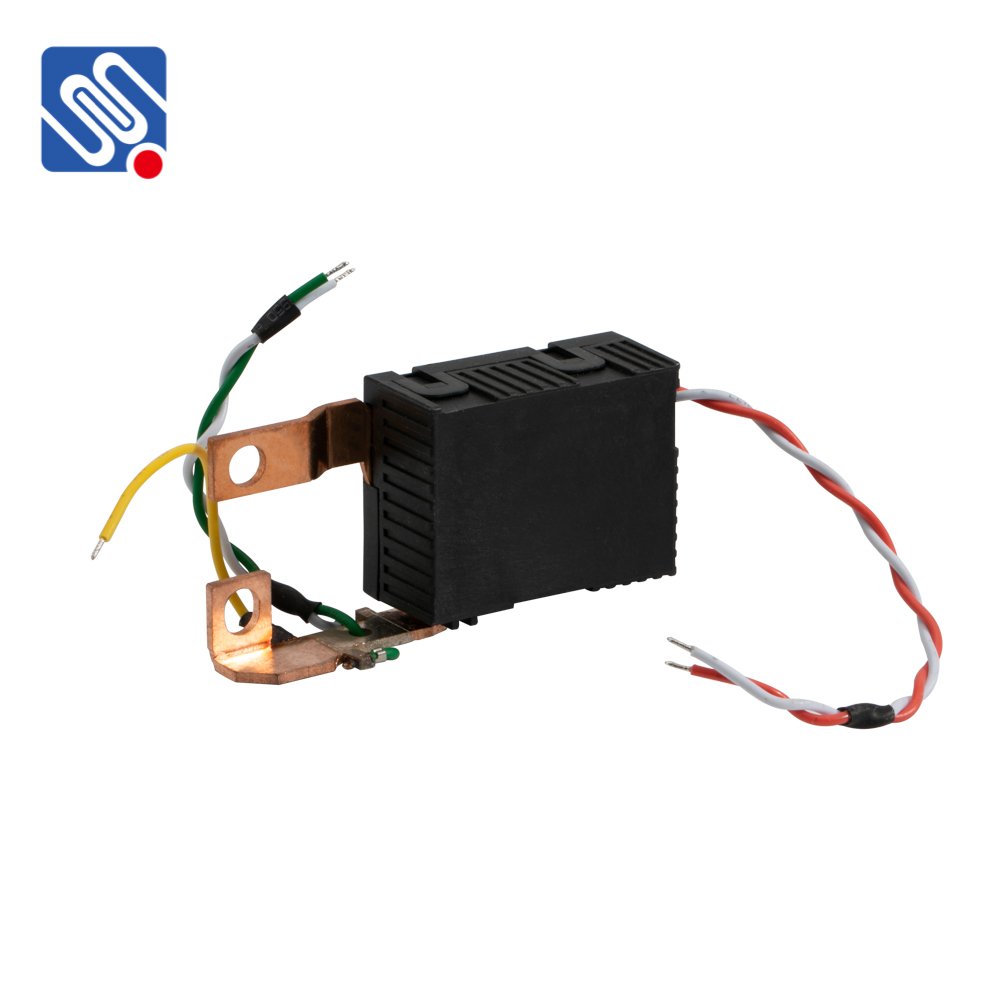

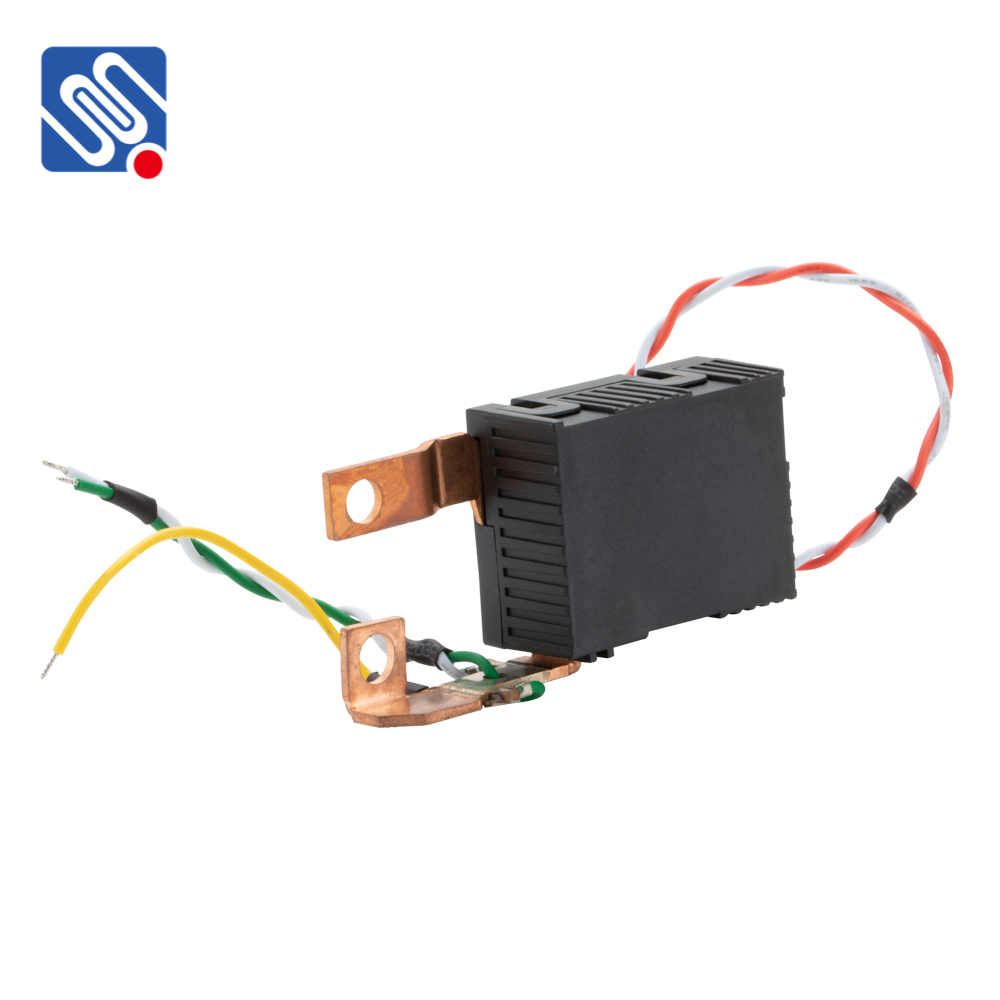

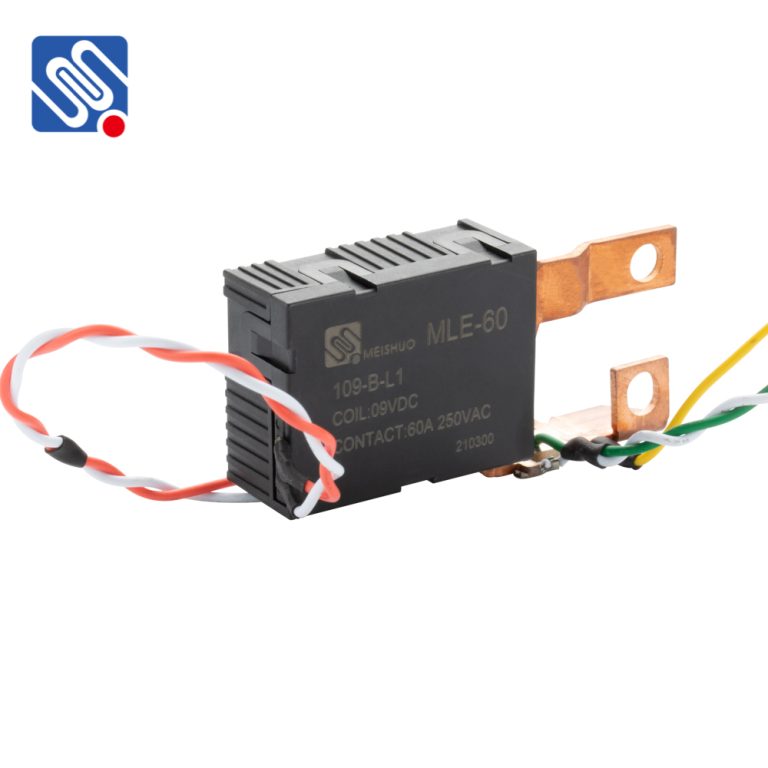

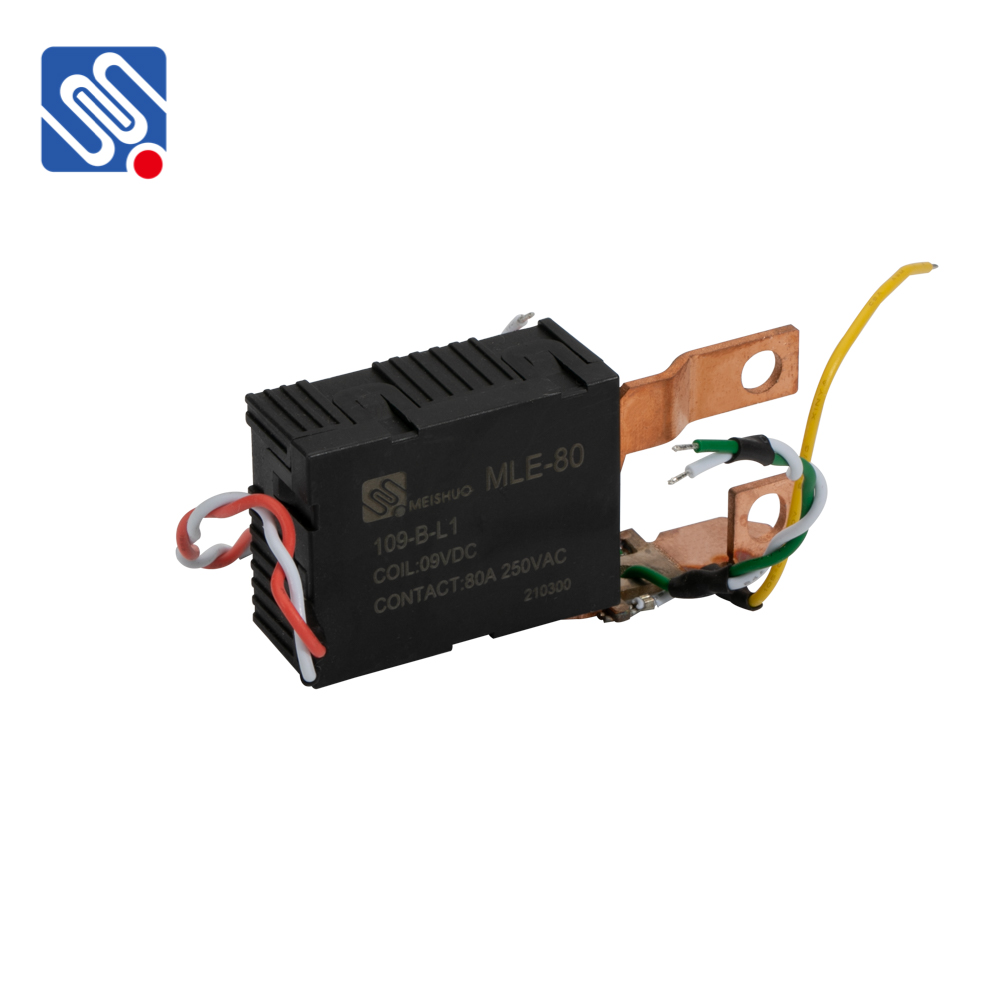

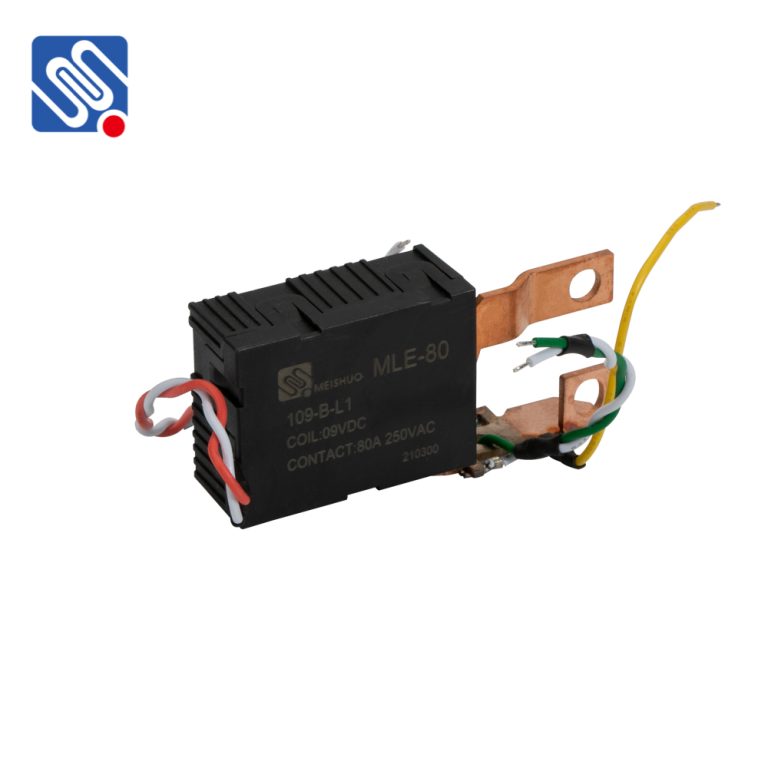

60A/80A Single Phase Latching Relays

•60A, 80A specification optional •Withstand voltage between coil and contact is 4KV •Environmental friendly product (RoHS compliant) •Dimensions L×W×H: (39×30×16.5)*60A, 80A specification optional •Withstand voltage between coil and contact is 4KV •Environmental friendly product (RoHS compliant) •Dimensions L×W×H: (39×30×16.5) mm mm60A/80A Single Phase Latching Relays

Product Overview

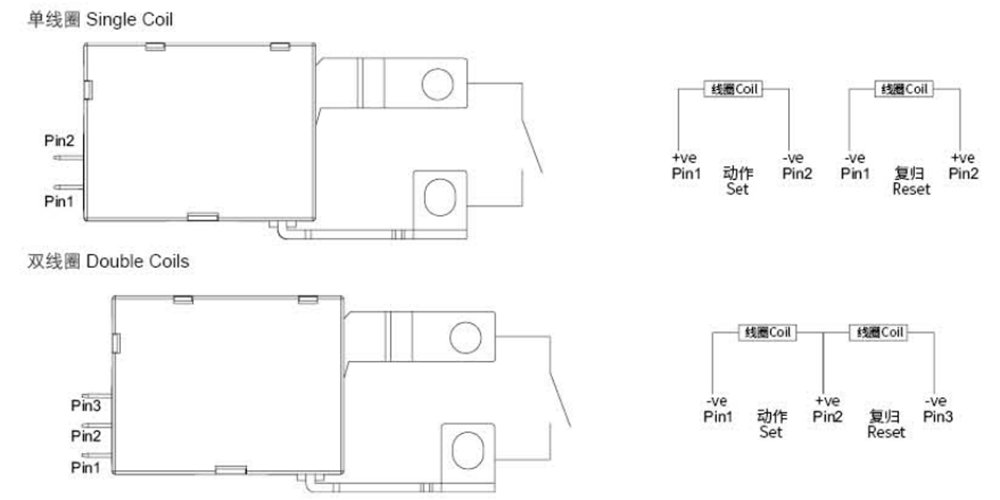

MLE relays are available in two load specifications, 60A and 80A, and are widely used in systems such as smart meters, composite switch, smart capacitor and power grids. Customers can choose between single coil or double coil types according to their own needs.

Contact Parameters

Contact Arrangements	1A, 1B
Contact Material	Silver Alloy
Contact Resistance	≤1.0mΩ(1A 6VDC)
Contact Rating (Res.Load)	60A 250VAC	80A 250VAC
Max. Switching Current (Res.Load)	60A	80A
Max. Switching Voltage (Res.Load)	250VAC
Max. Switching Power	15KVA	20KVA
Electrical Life	10000 OPS
Mechanical	100000 OPS

Characteristics

Insulation Resistance	1000MΩ Min. (500VDC)
Dielectric Strength	Between Coil & Contacts: 4000VAC 1min
	Between Open Contacts: 2000VAC 1min
Set Time	≤20ms
Reset Time	≤20ms
Ambient Temperature	-40℃～+85℃
Vibration	10Hz～55Hz 1.5(DA)
Shock	Functional: 98m/s²
	Destructive: 980m/s²
Humidity	45%～90%RH
Ambient Temperature	5%～85%RH
Construction	Dust Proofed
Unit Weight	Approx.50g

Product Advantages
Advantage 1:
Flexible adaptation: The relay is suitable for various electrical control systems, and can flexibly control the switch of the circuit.

Advantage 2:
Quick response: Magnetic holding relays have a fast response speed and can complete switching actions in milliseconds.

Application
Smart Grid: Used for monitoring, regulation, and protection of power systems.

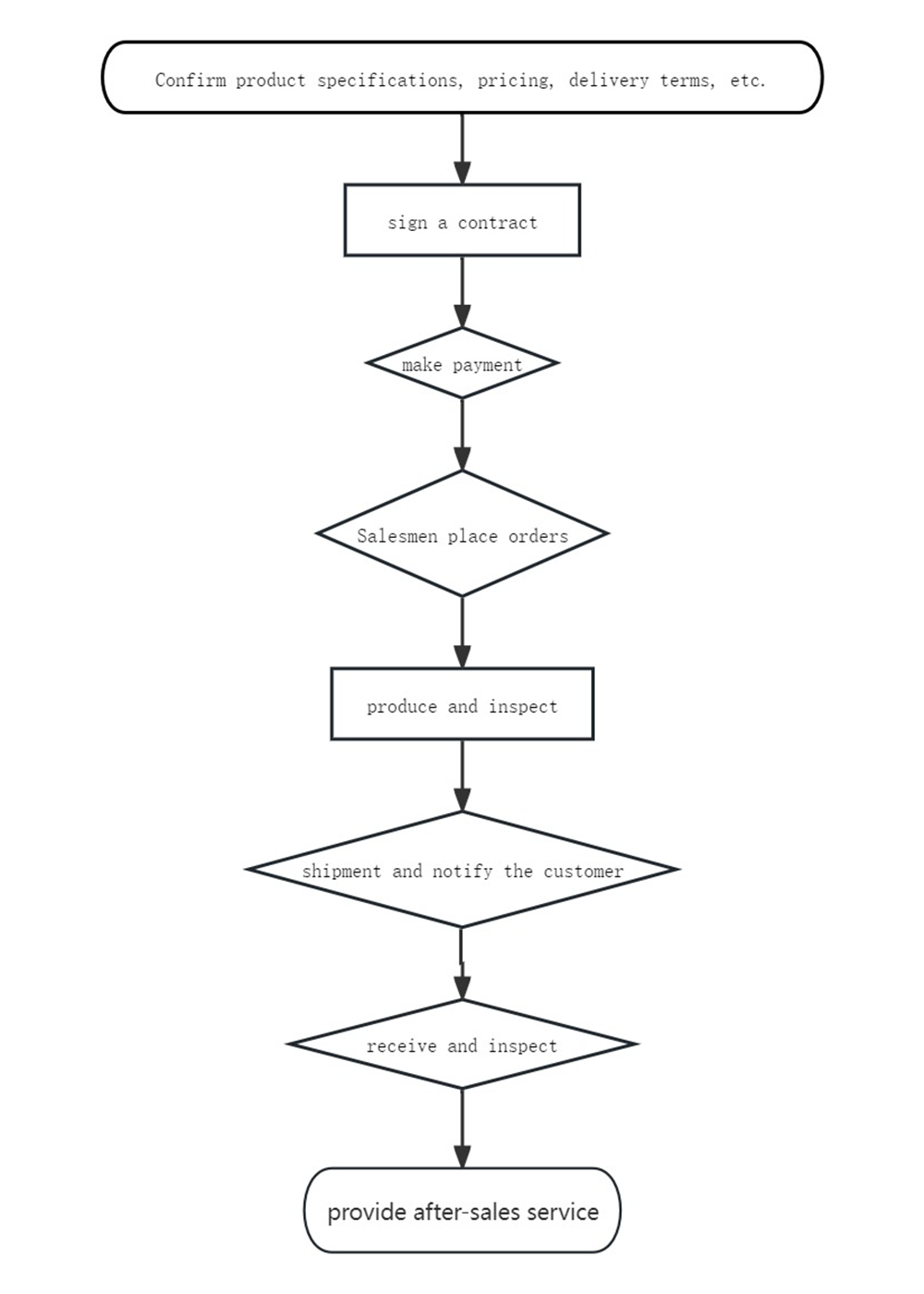

Order Production Process

For the order placed by the customer, we will carry out an orderly process to ensure that the customer’s product will not make any mistakes.

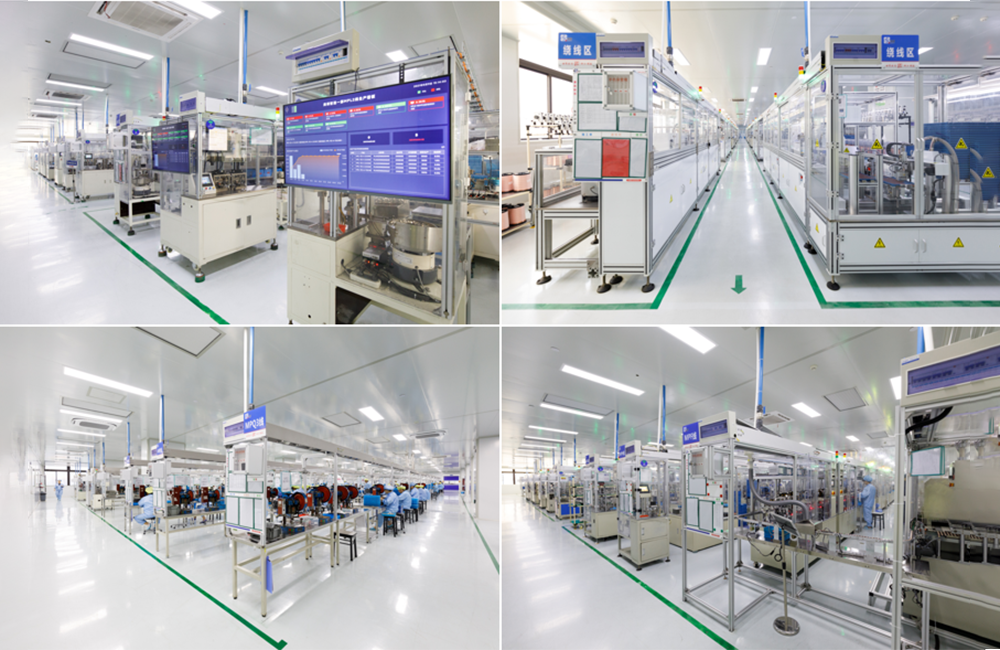

Production Workshop Display

The production workshop is equipped with advanced automated production lines and equipment, greatly improving production efficiency and ensuring product consistency and stability. The workshop adopts a refined management mode to continuously optimize and improve the production process.

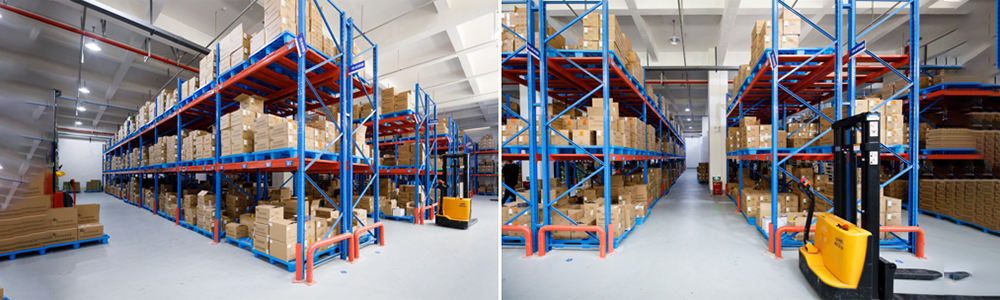

Warehouse
