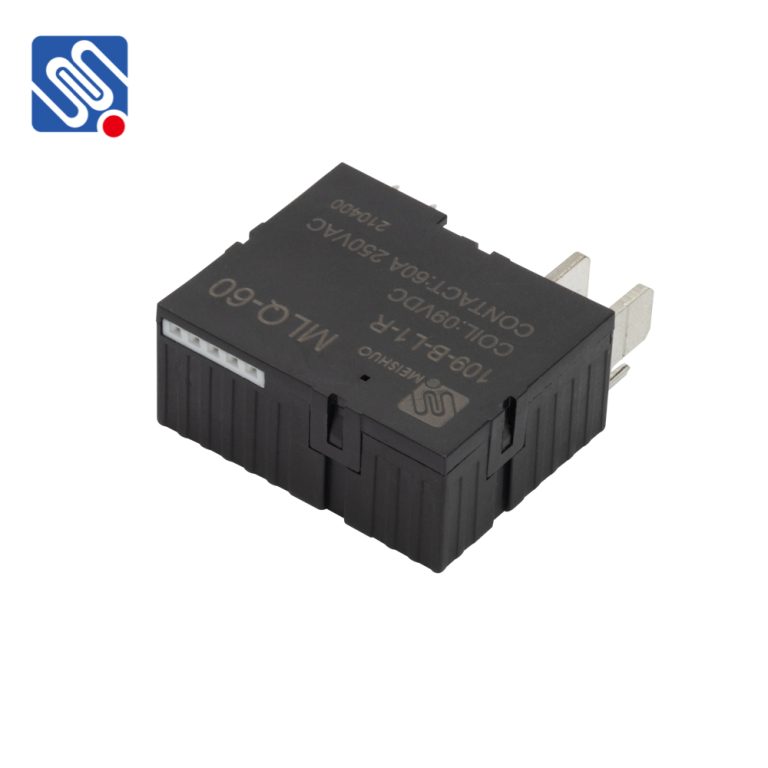

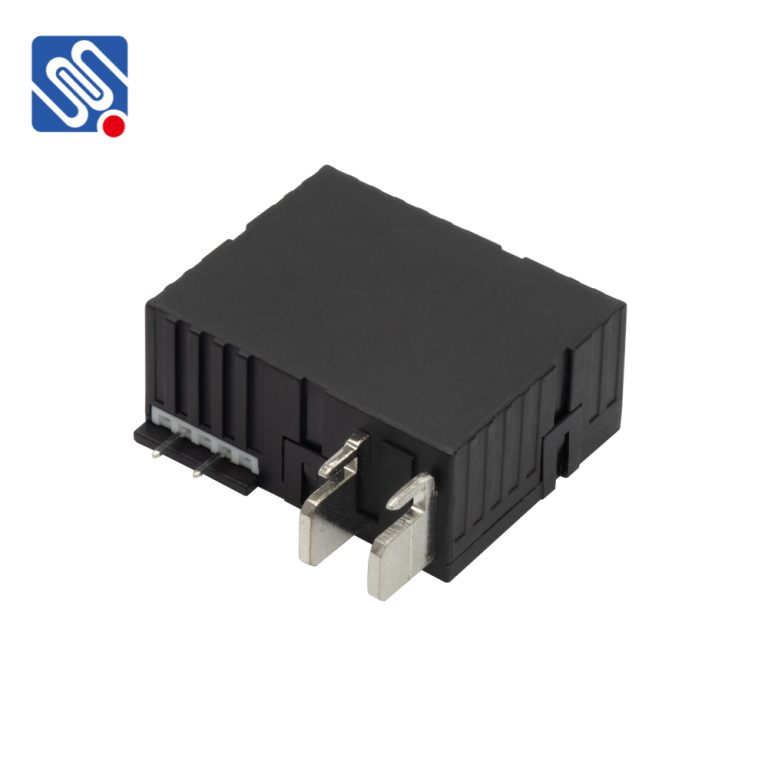

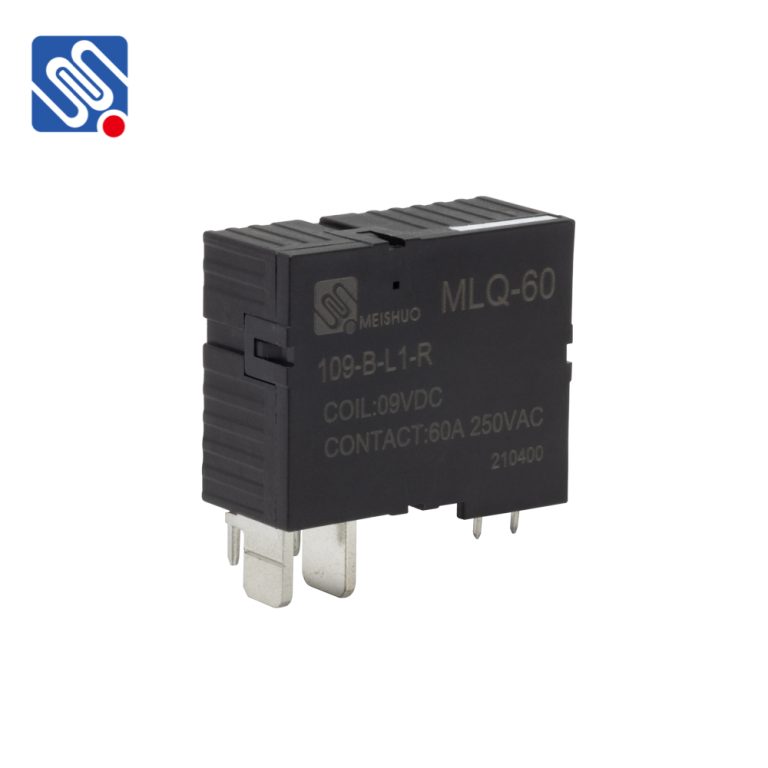

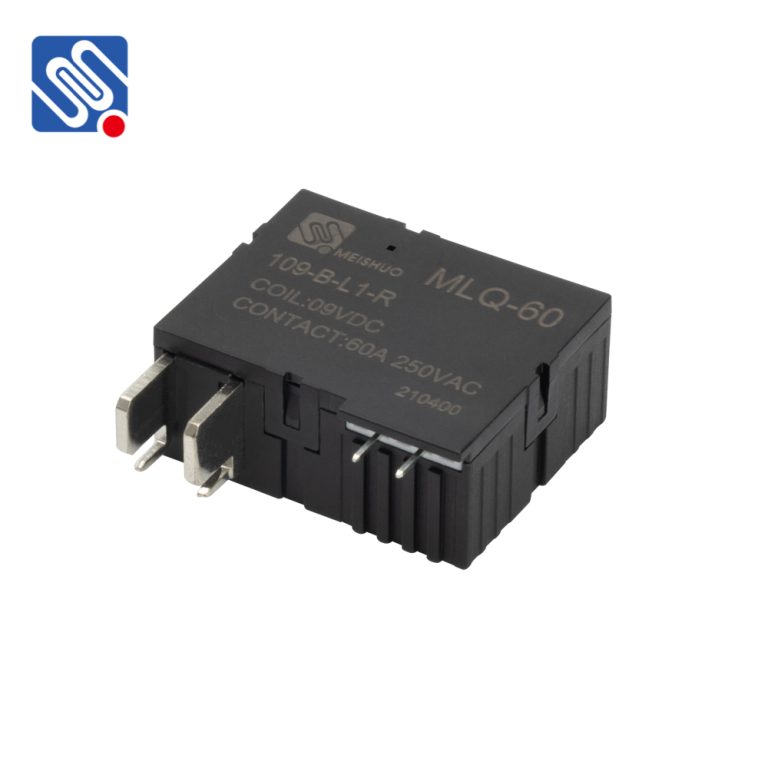

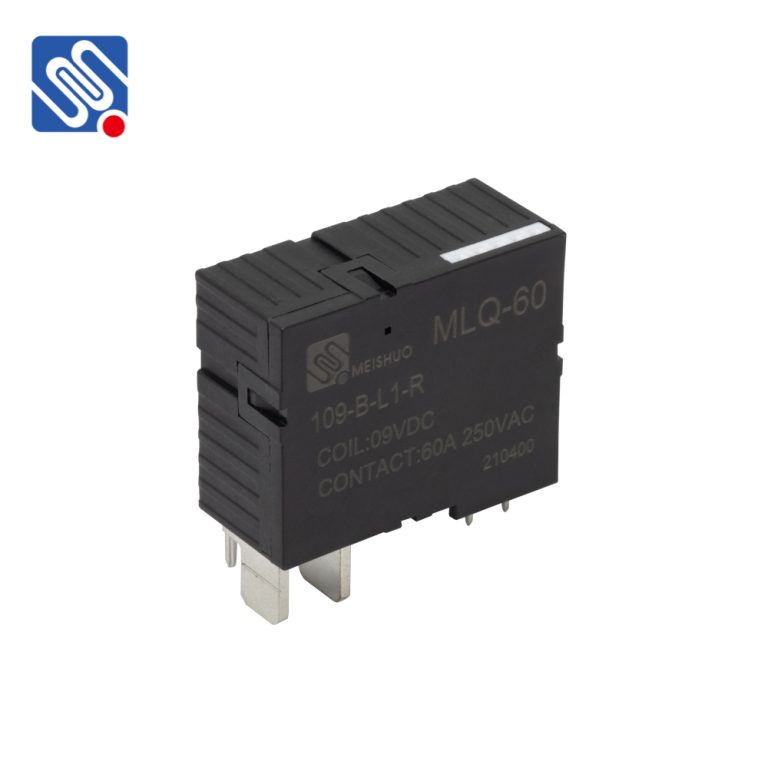

60A Environmental Latching Relay

Product Overview The MLQ-60 magnetic latching relay has a contact switching capability of 100A and is widely used in smart meters, smart switches, smart capacitors and other devices. It is driven by pulse coils and has low energy consumption. Customers can choose single coil or double coil configurations according to their personal needs, or weld accessories according to their requirements. Contact Parameters

Contact Form	1A, 1B
Contact Material	Silver Alloy
Contact Resistance	≤1.0mΩ (1A 6VDC)
Contact Rating	60A 250VAC
Max. Switching Current	60A
Max. Switching Voltage	250VAC
Max. Switching Power	15KVA
Electrical Life	10000 OPS
Mechanical Life	100000 OPS

Characteristics

Insulation Resistance	1000MΩ Min. (500VDC)
Dielectric Strength	Between Coil & Contacts: 4000VAC 1min
	Between Open Contacts: 2000VAC 1min
Set Time	≤20ms
Reset Time	≤20ms
Shock	Functional: 98m/s²
	Destructive: 980m/s²
Vibration	10Hz～55Hz 1.5mm(DA)
Humidity	45%～90%TH
Ambient Temperature	-40℃～+85℃
Construction	Dust Protected
Unit Weight	Approx.50g

Naming Rules Model : MLQ Load : 60A Contact Group : 1 Group Coil Voltage: 05, 06, 09, 12, 24, 48VDC Contact Form: 1A, 1B Coil Type: L1: Single Coil Latching   L2: Double Coils Lathing Polarity: R: Negative Polarity   Nil: Positive Polarity Special Code: XXX: Customer Special Requirement Application Electric Vehicle Charging Stations: Controls high-current charging circuits, ensuring safe and efficient energy transfer. Energy Storage Systems: Coordinates the charging and discharging processes in battery storage systems for peak load management. Company Profile Zhejiang Meishuo Electric Technology Co., Ltd. is located at No. 158 Weisi Road, Yueqing Economic Development Zone, Yueqing City, Zhejiang Province. It was established in February 2007. Our main field is the research and production of relays, solenoid valves and other products. Currently, we have over 700 employees, including more than 100 R&D personnel. Testing equipment The introduction of high-speed cameras, Infrared Analyzers and other instruments has significant advantages in improving testing accuracy, enhancing the comprehensiveness of product performance evaluation, and promoting product research and development. Production Workshop Display We have nearly 50 automated high-speed assembly production lines that achieve efficient and precise assembly through intelligent technology. Each production line is equipped with CCD visual inspection equipment and performance comprehensive testing instruments. Unqualified products will be automatically screened to ensure the high quality of the final product.
