STOCK CODE: 301295
STOCK CODE: 301295
— Your Prime Source for Advanced Relays And Water Valves —
Certification
UL E358149
CQC CQC22002368431

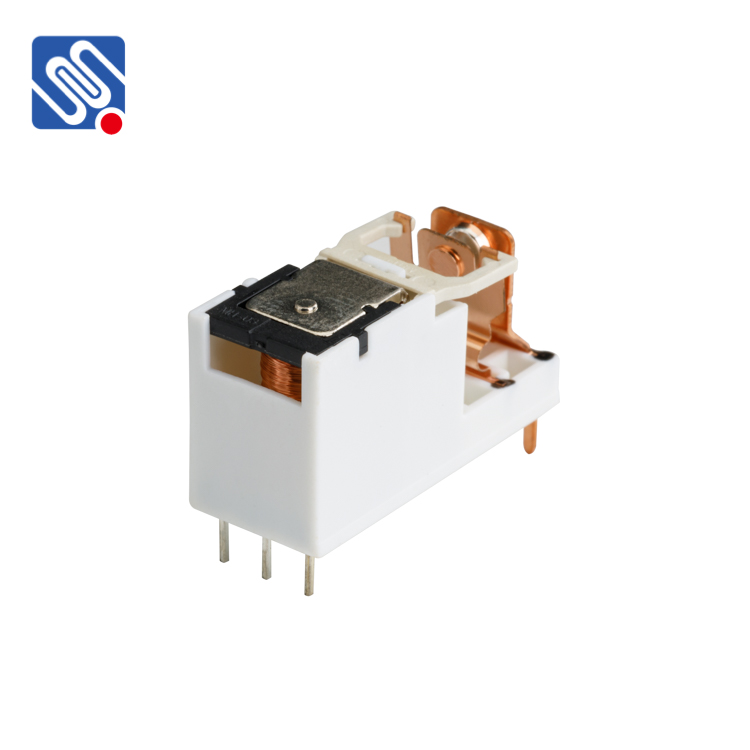

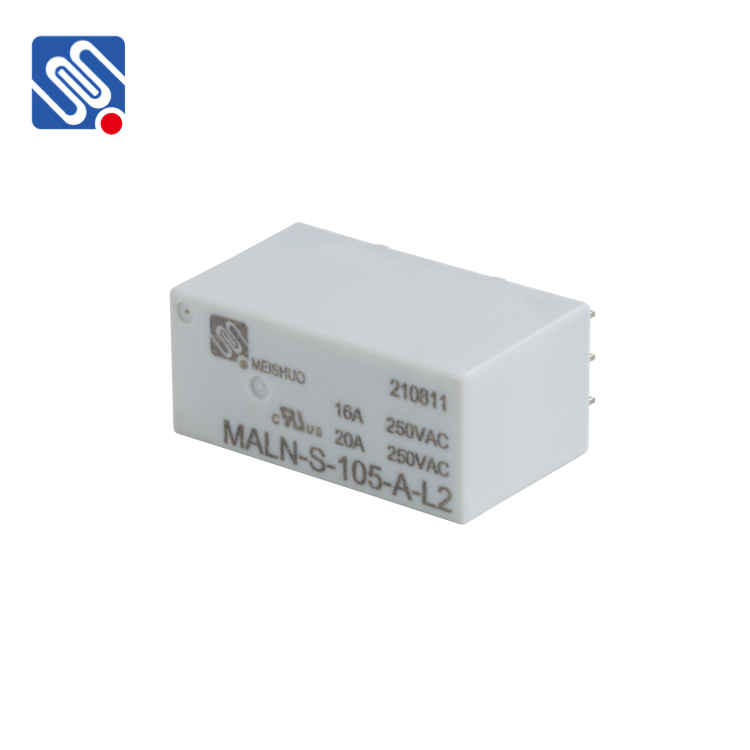

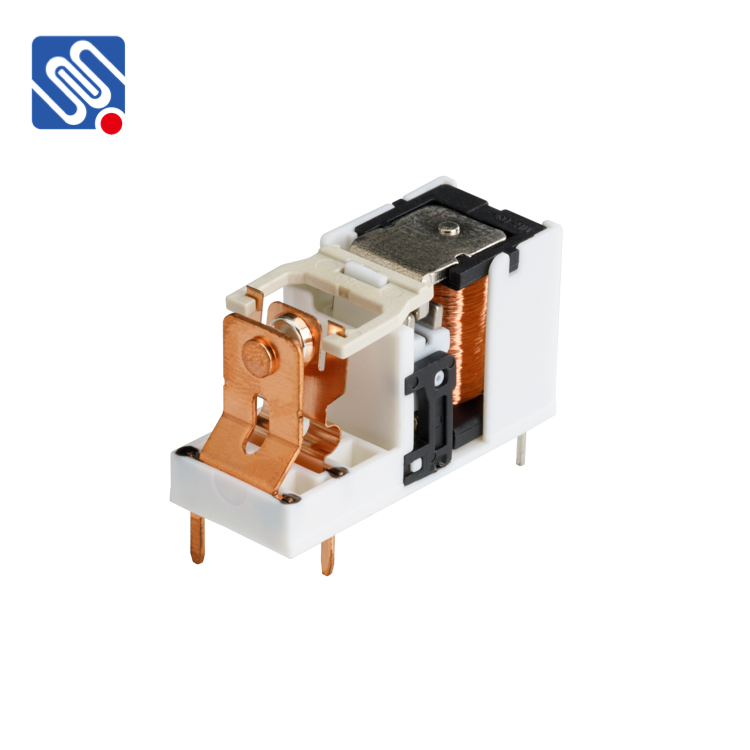

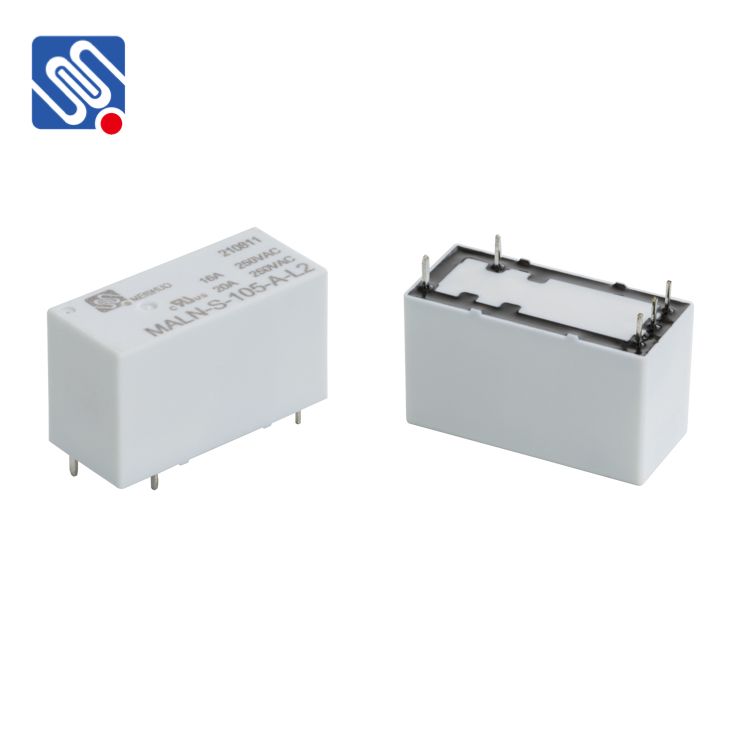

20A Power Relay for Smart Home, capable of handling a large amount of electrical signal conversion, suitable for occasions requiring high-frequency switching operations, environmental protection standards (RoHS compliant), has broad application prospects in industrial automation, power control and other fields
Characteristic
| Contact Arrangement | 1A 1B 1C |
| Rated Load | 16A 250VAC |
| Max.Switching Current | 20A |
| Operate Time | ≤15ms |
| Release Time | ≤15ms |
| Coil Power | 0.6W/0.4W/1.2W |
| Construction | Wash tight |
| Unit Weight | Approx.13g |
Naming Rules
The product name consists of model, product structure, number and form of contact groups, coil voltage, coil type, polarity characteristics, and series code.
| MALN | S | 1 | 12 | A | L1 | R | 1 |
| Model | Structure | Number of Poles | Cod Voltage | Contac Fom | Coi Type | Polanty | Version |
| S：Wash tght | 1 Pole | 05.06.09. 12,24VDC | A:NO B：NC C：CiO | L1:0.6W Single CoilLatching L2.12W Double Cois Latching L3:0.4W Single CoilLatchina L4:0.6W Double Cois Latching | R：Negatve Polanty N： Postive Polanty | 1.Wch Aupdliary Convexity 2:No switch on both feet N ：No Auxdiary Convexity |
Product Features
1.Made with eco-friendly materials, it helps reduce resource consumption and waste production, providing you with greater peace of mind.
2.Durability largely depends on the design and materials of the relay. A high-durability relay can withstand frequent switching operations and high current loads, which extends its operational lifespan and reduces the frequency of maintenance and replacement.

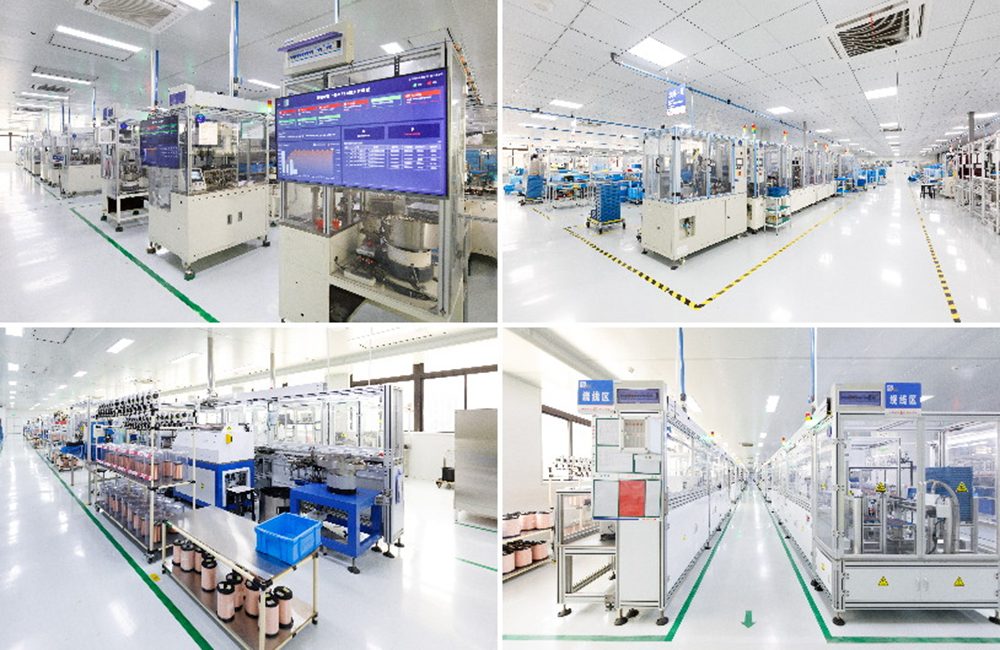

3.Our company has a skilled team of manufacturing personnel to ensure high product quality, including strict design, premium materials, precise processing, and meticulous quality control, guaranteeing that each product meets the highest standards.
4.As a direct manufacturer, we cut out the middleman, allowing us to offer products at more competitive prices. This approach not only helps in reducing costs but also ensures that customers receive high-quality items while enjoying a straightforward, transparent shopping experience.
Support your OEM/ODM needs and provide one-stop customized solutions
