Product Overview

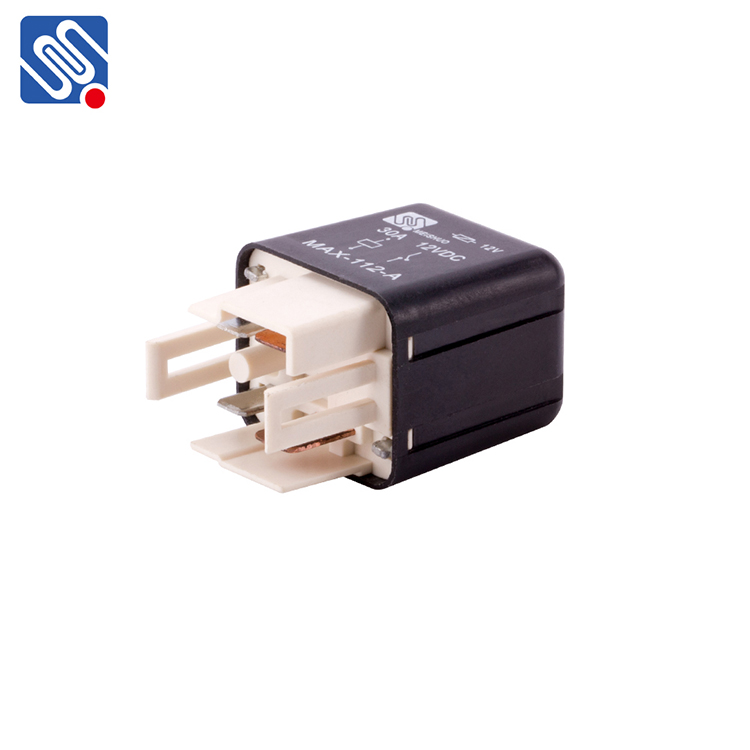

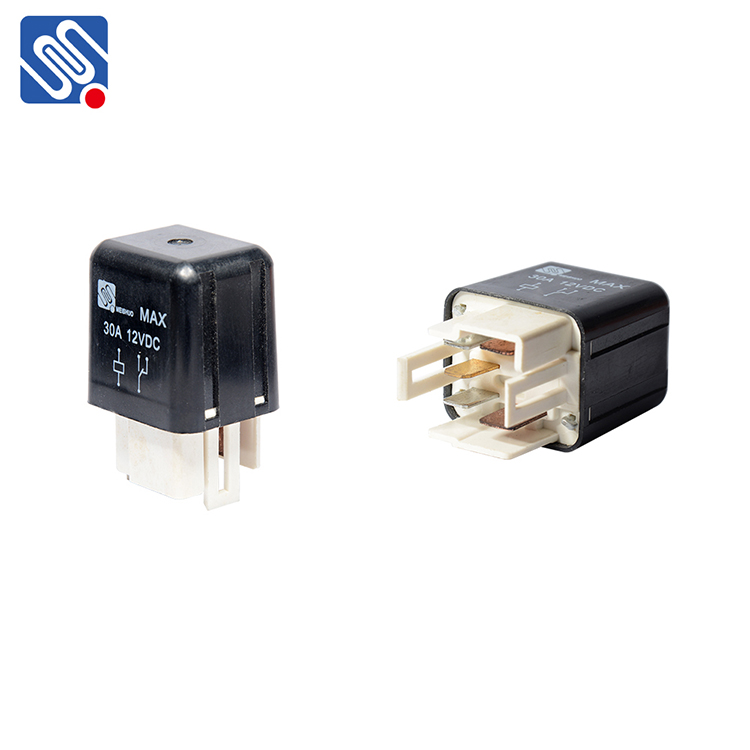

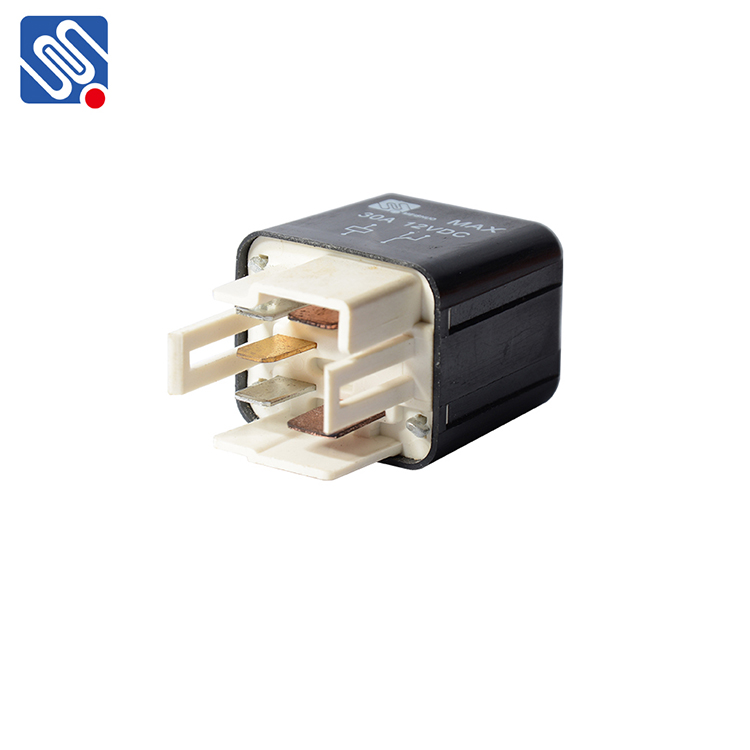

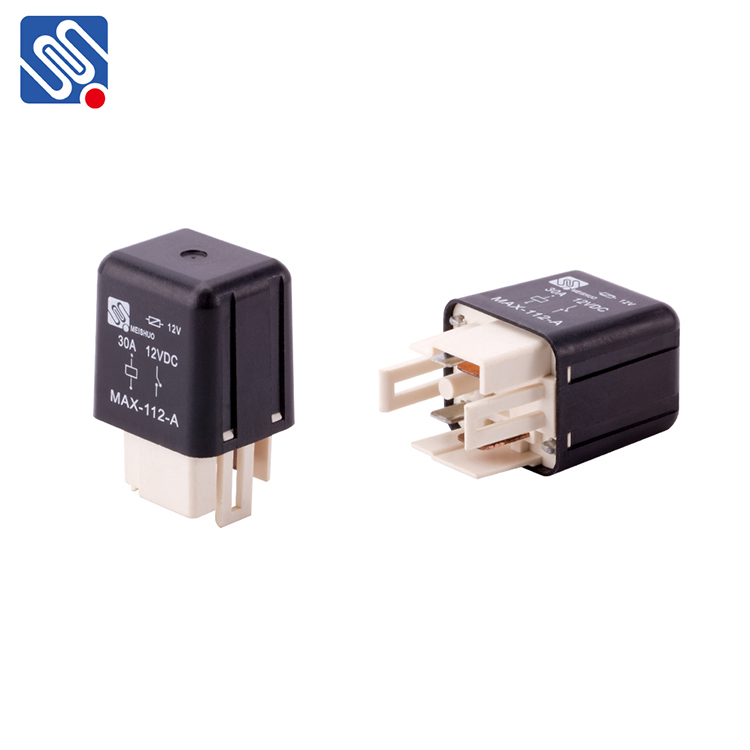

MAX relay has the characteristic of high temperature resistance, with a working temperature of up to 125 degrees Celsius. There are two structures to choose from: a set of normally open contacts or a set of conversion contacts. MAX relays have the advantages of high reliability, safety, and stability, which can serve as isolation and protection to avoid circuit failures caused by load faults.
Contact Parameters
| Contact Arrangement | 1A, 1C |
| Contact Material | Silver Alloy |
| Voltage Drop(Initial) | Typ.50mV, Max.300mV(at 10A) |
| Max. Continuous Current | 30A |
| Max. Switching Voltage | 30VDC |
| Electrical Life | 100000 OPS |
| Mechanical Life | 1000000 OPS |
Characteristics
| Insulation Resistance | 500MΩ(500VDC) |
| Dielectric Strength | Between Coil & Contacts: 500VAC 1min |
| Between Open Contacts: 500VAC 1min | |
| Operate Time | ≤7ms |
| Release Time | ≤5ms |
| Ambient Temperature | -40℃～+125℃ |
| Vibration | 10Hz～500Hz 49m/s²(5G) |
| Shock | 147m/s² |
| Terminal Form | QC |
| Construction | Dust Protected |
| Unit Weight | Approx.40g |
| Mechanical Data | Cover Retention:(Pull, Push) 200N |
| Terminal Retention:(Pull, Push) 100N | |
| Terminal Retention To Bending:(Front, Side) 10N |

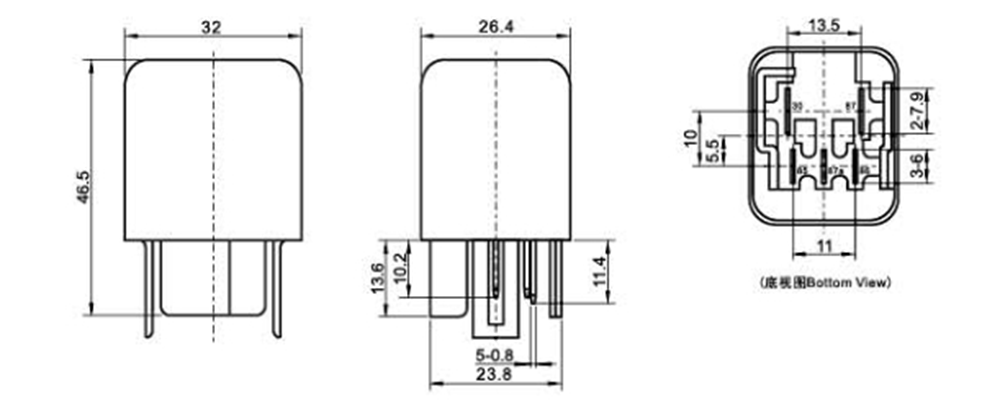

Outline Dimensions
Naming Rules
Model: MAX
Contact Group: 1 Group
Coil Voltage: 06, 12, 24VDC
Contact Form: 1A, 1C
Coil Derived Resistance: Nil: Without parallel components
R: With Resistor
D1: With Parallel Diode(Anode on 86)
D2: With Parallel Diode(Anode on 85)
