Product Overview

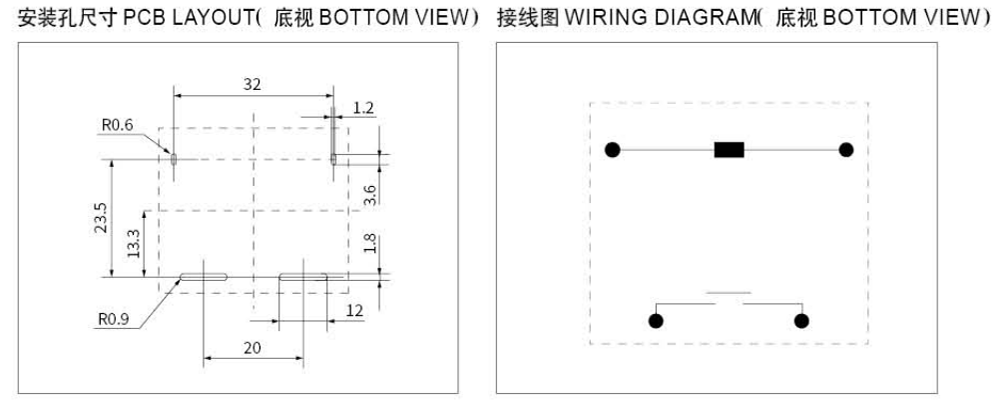

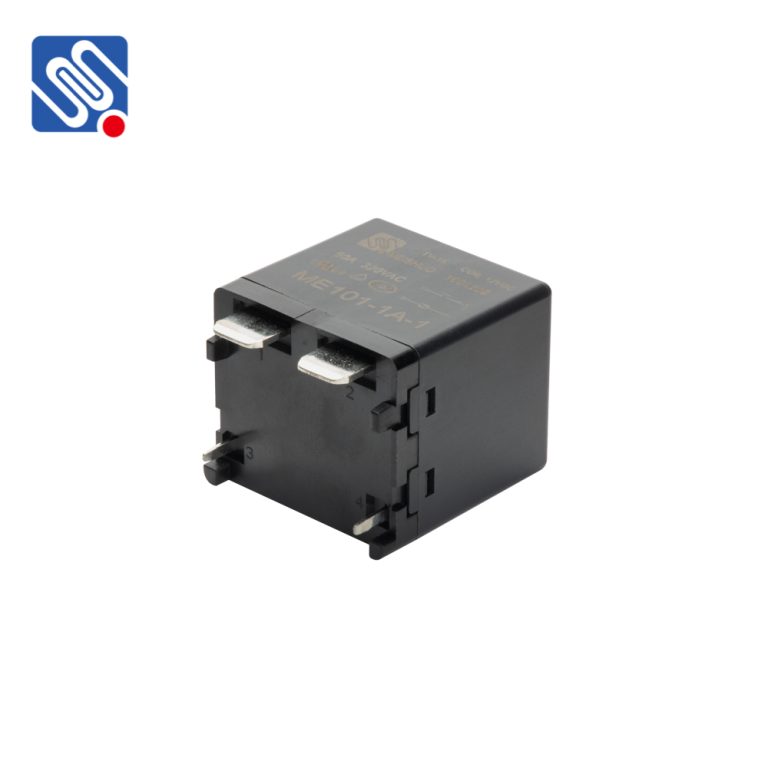

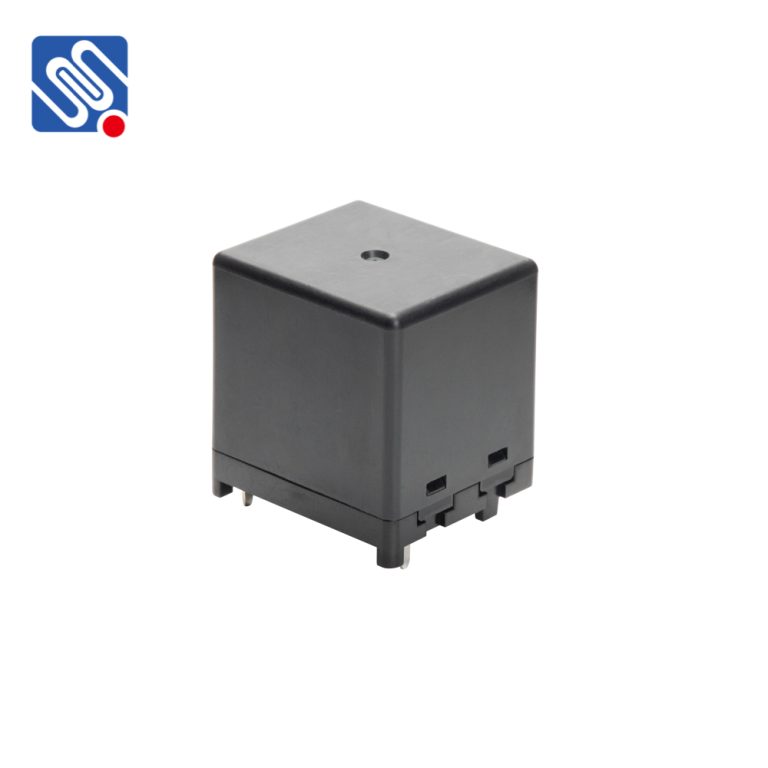

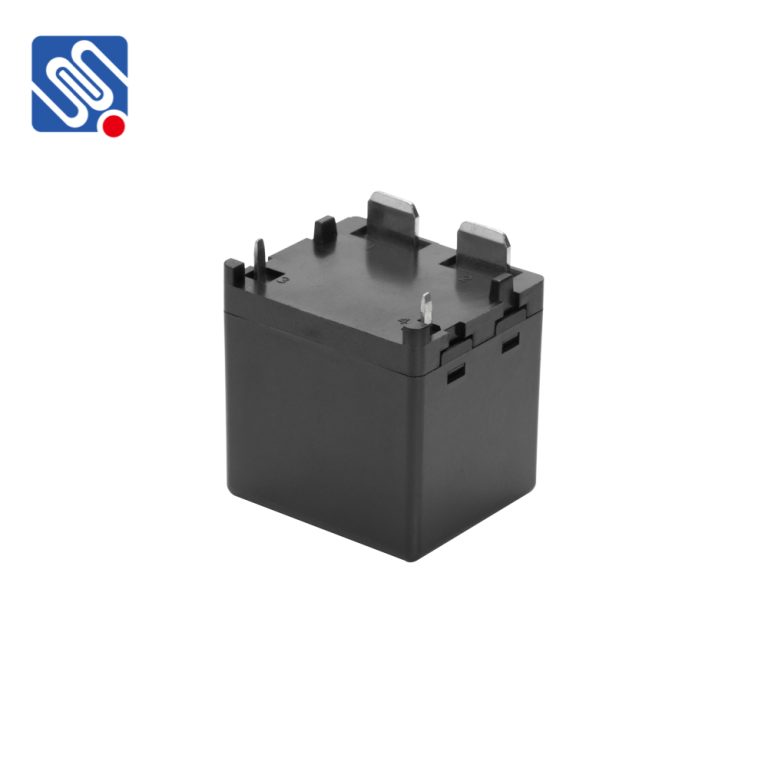

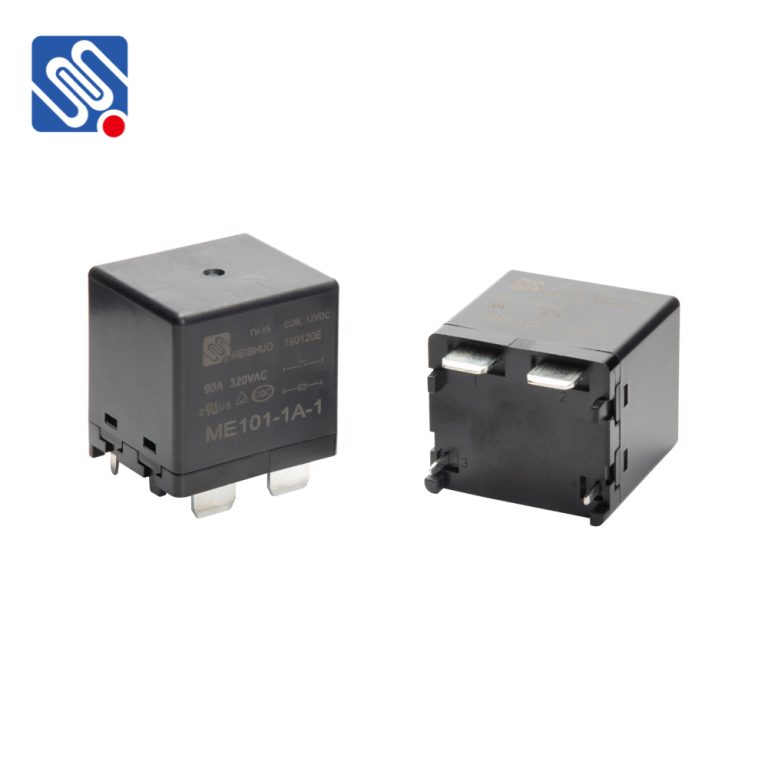

ME101 relay has a load switching capability of 90A 320VAC, which can be well used in equipment such as photovoltaic inverters and UPS power supplies. This high-performance relay is designed to meet the strict requirements of modern energy systems, providing excellent reliability and service life.
Contact Parameters
| Contact Arrangement | 1A |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤100mΩ(1A 6VDC) |
| Max. Switching Current | 90A |
| Max. Switching Voltage | 400VAC |
| Max. Switching Power | 25920VA |
| Electrical Life | ≥3000 OPS(Res.Load, 85℃, 1s On:9s Off) ≥30000 OPS(Making 30A, Loading 100A, Breaking 30A 400VAC, Res.Load, 85℃, 1s On:9s Off) |
| Mechanical Life | ≥1000000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ (500VDC) |
| Dielectric Strength | Between Coil&Contacts: 5000VAC 1min Between Open Contacts: 2000VAC 1min |
| Surge Voltage | 10kV (1.2/50us) |
| Operate Time | ≤30ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃~+85℃ |
| Vibration | 10Hz~55Hz 1.5mm（DA） |
| Shock | Functional: 98m/s²(10G) Destructive: 980m/s²(100G) |
| Terminal Form | PCB |
| Construction | Flux Proofed |
| Unit Weight | Approx.100g |
Naming Rules
Model: ME101
Contact Group: 1 Group
Contact Form: 1A
Contact Material: 1: AgSnO2 2: AgNi
Insulation Class: Class F
Application
New energy system: ME101 relay can be used for solar photovoltaic energy storage inverters and fixed EV chargers and other equipment.
Uninterruptible Power Supplies (UPS): The ME101 can be used in UPS systems to switch between mains power and battery backup, ensuring continuous power supply.
