STOCK CODE: 301295
STOCK CODE: 301295
— Your Prime Source for Advanced Relays And Water Valves —
Overview:

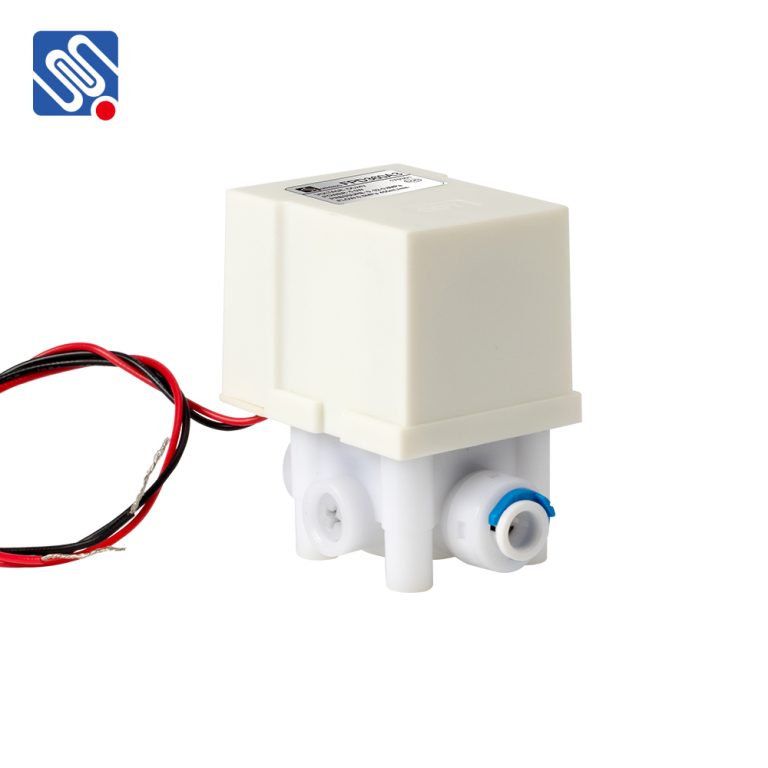

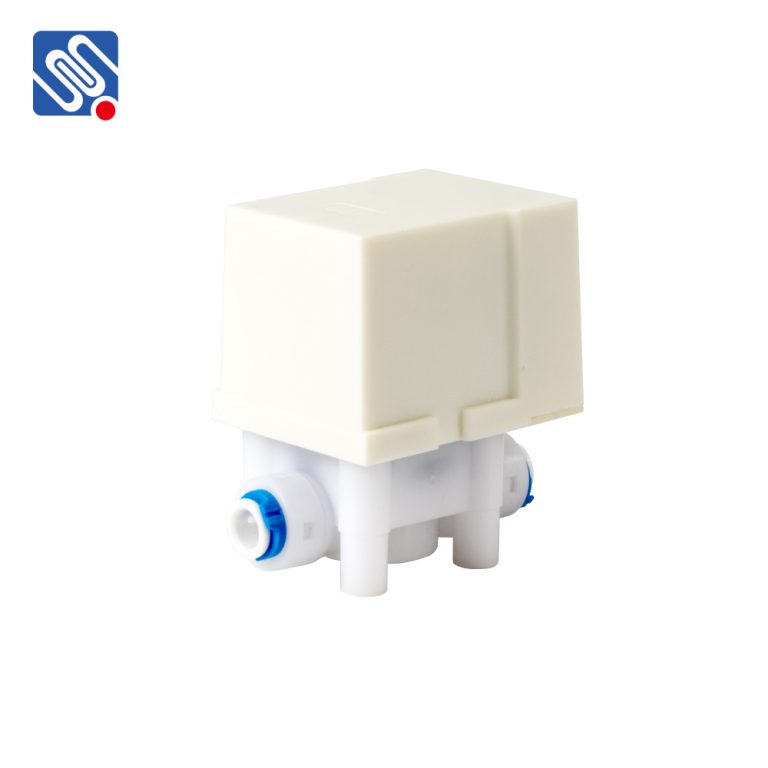

The FPD360A3 delay combined flushing solenoid valve belongs to the water purifier and water dispenser series. It can effectively remove impurities and residues from the system, ensuring the quality of the effluent, and is suitable for occasions that require high-quality water quality. It can open or close after a certain delay upon receiving a control signal.
| Product Model: | FPD360A3 |
| Rated Voltage: | DC12V 24V 36V |
| Operate Life: | ≥100000 OPS |
| Pressure Range: | 0.02-0.8MPa |
| Inlet: | 1/4” Quick Connect Fitting |
| Outlet: | 1/4” Quick Connect Fitting |
| Flow Rate: | 0.3MPa, ＞3L/min |
| Waste Flow Rate: | 0.42/0.5MPa, 300/450/800/1000/1500mL/min |

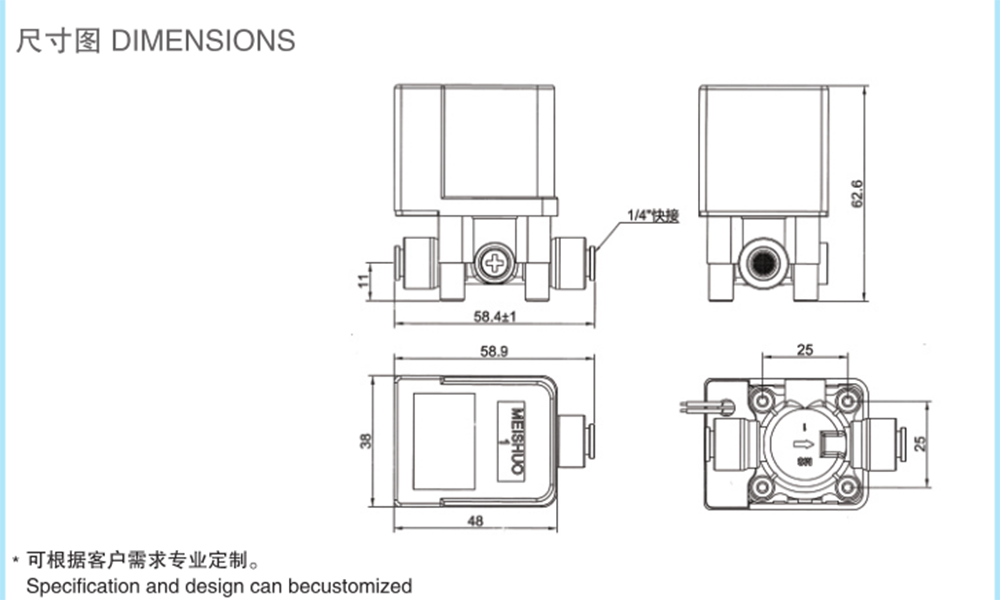

| Spacing: | 25×25mm |
Naming rules
Product series: F
Inlet and outlet angle: P: Parallel type
Outlet number: D: Single Outlet
Coil terminal direction: 360: 0°(360°)
Product design code: A3

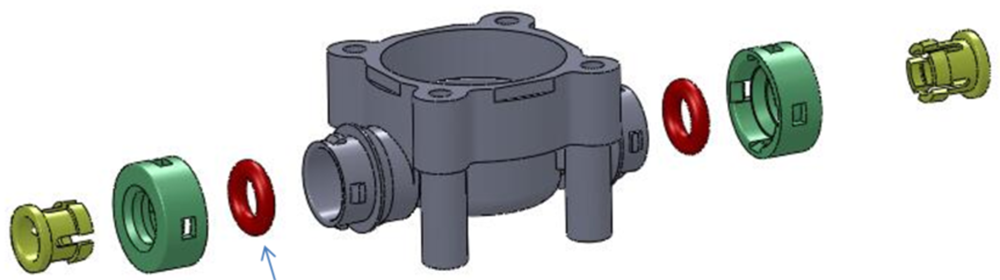

Product structure

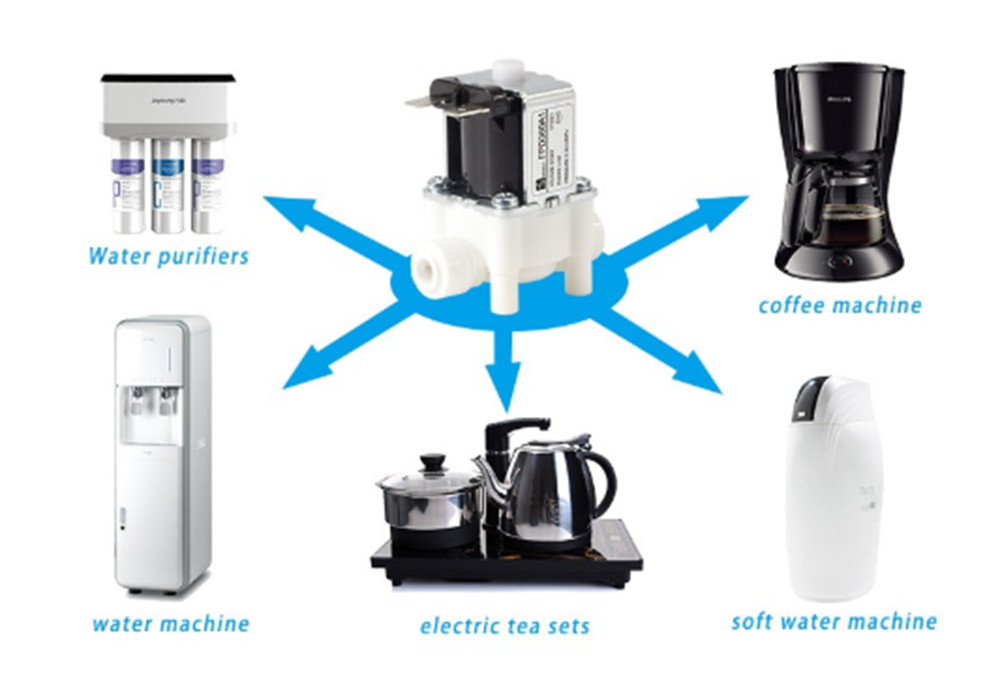

Product application
FPD360A3 delay combined flushing solenoid valve is suitable for water purifiers, water dispenser, water softener, coffee machine, electric tea sets, etc.

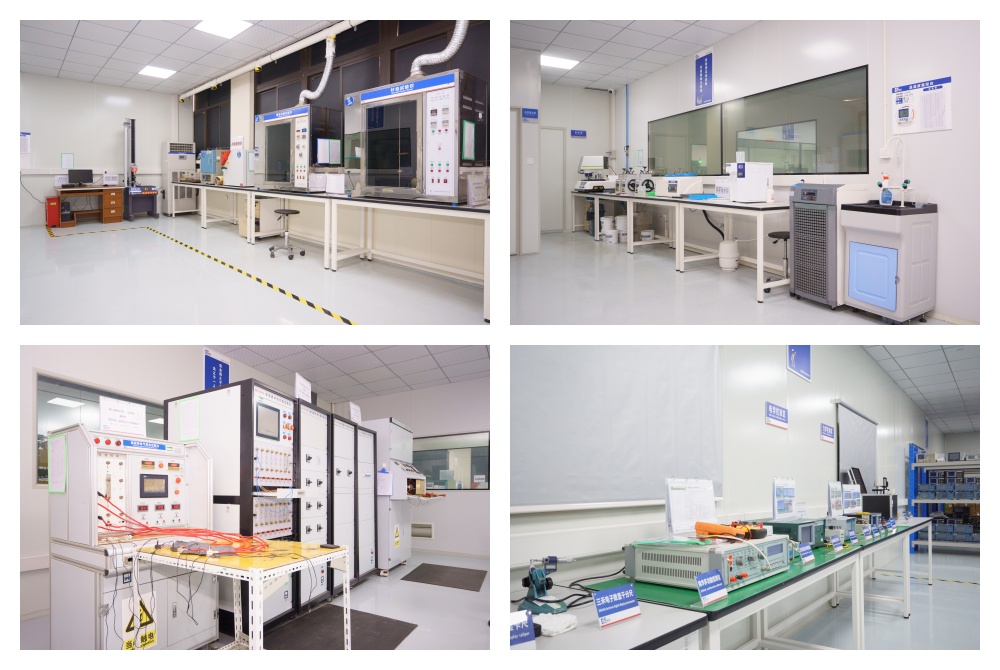

laboratories
The company has established a comprehensive quality control management system, with UL Witness Laboratories in the United States, TUV Witness Laboratories in Germany, and CNAS accredited laboratories in China.
Our customers
With high-quality products and services, our product market has gradually expanded globally and received good feedback from customers in different countries.
Support your OEM/ODM needs and provide one-stop customized solutions
