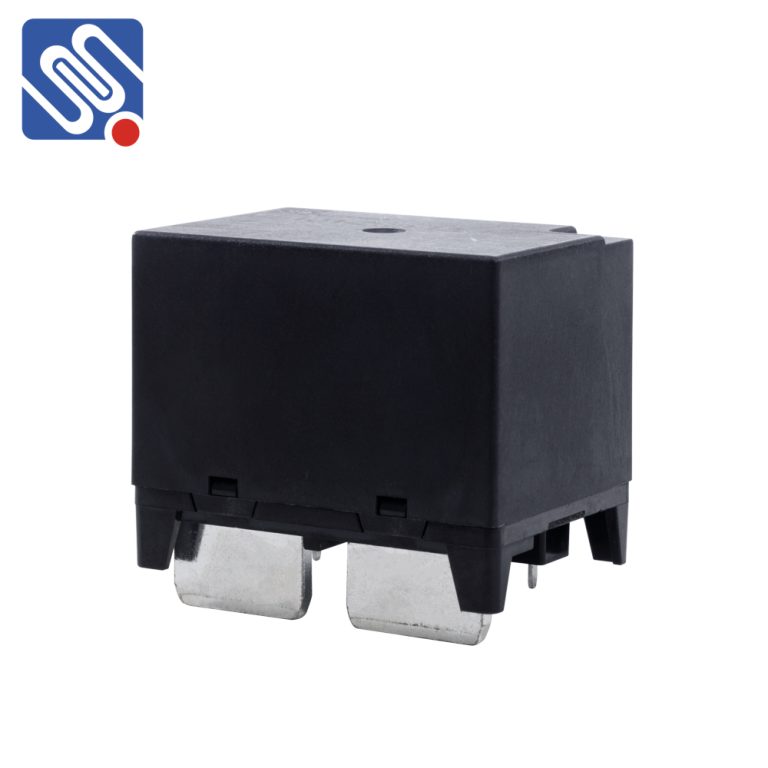

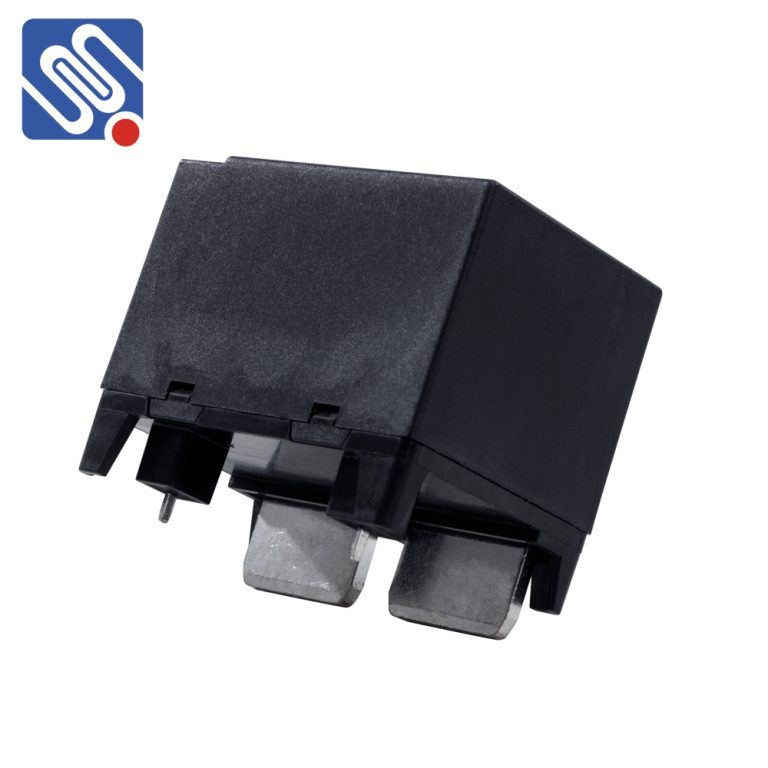

Product Overview
The ME101-200 relay has strong switching capability, with a maximum switching power of 45640VA. It adopts a contact gap greater than 3.6 millimeters and complies with the European solar power generation standard “VDC0126”. The relay can withstand high output voltages and support power output voltages at high levels, meeting circuit voltage requirements.
Contact Parameters
| Contact Arrangement | 1A |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤10mΩ（1A 6VDC） |
| Max. Switching Current | 200A |
| Max. Switching Voltage | 830VAC |
| Max. Switching Power | 45650VA |
| Electrical Life | ≥30000 OPS(Making 55A, Loading 200A, Breaking 55A, 800VAC, Res.Load, 85℃, 1s On:9s Off) |
| Mechanical Life | ≥1000000 OPS |
Characteristics

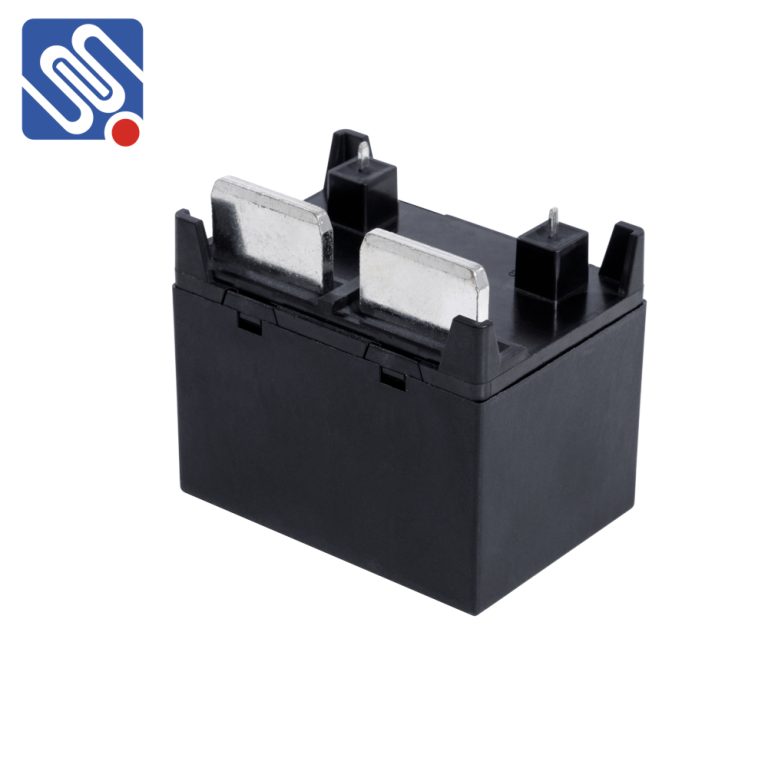

| Insulation Resistance | 1000MΩ(500VDC) |
| Dielectric Strength | Between Coil& Contacts:5000VAC 1min Between Open Contacts:2000VAC 1min |
| Surge Voltage | 10kV (1.2/50us) |
| Operate Time | ≤30ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃～+85℃ |
| Vibration | 10Hz～55Hz 1.0mm(DA) |
| Shock | Functional:98m/s²(10G) Destructive:980m/s²(100G) |
| Terminal Form | PCB |
| Construction | Flux Proofed |
| Unit Weight | Approx.230g |

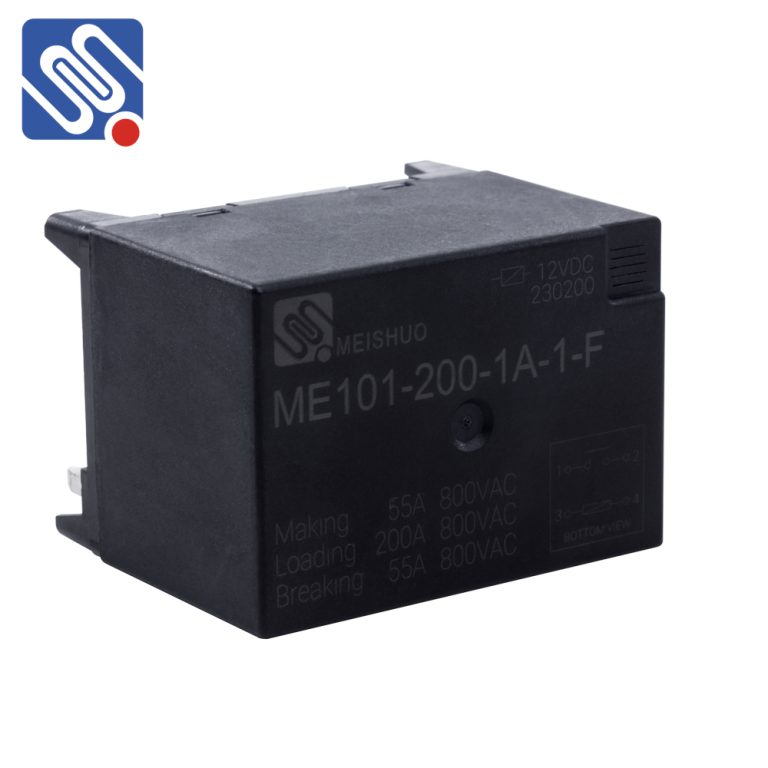

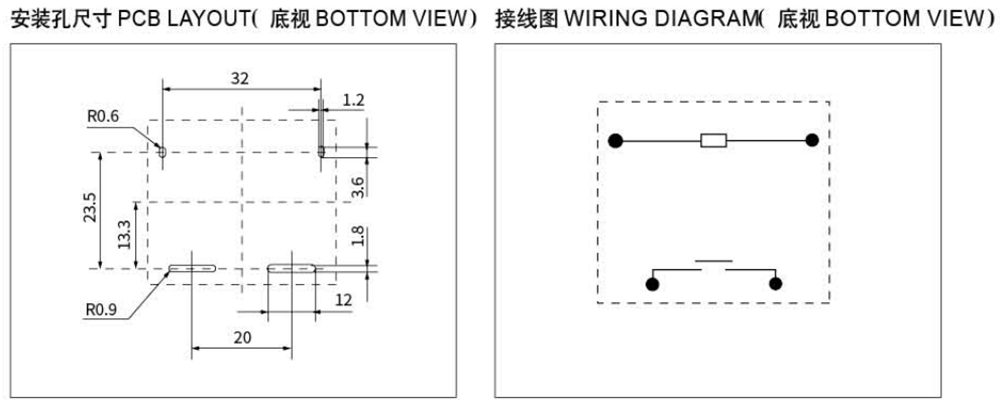

Naming Rules
Model: ME101-200
Number of Pole: 1 Pole
Contact Form: 1A
Contact Material: AgSnO2
Insulation Class: Class F
Product Advantages
All-copper coil with standard turns
Stronger suction and more stable performance
Flame retardant plastic shell
Has better thickness and smoothness
Maintenance free and long service life
Service life is more than 100000 times in normal environment
Application
New energy system: ME101-200 relay can be used for solar photovoltaic energy storage inverters and fixed EV chargers and other equipment.
Uninterruptible Power Supply (UPS): ME101-200 can be used in UPS systems, mainly to provide stable and uninterrupted power supply, ensuring that critical equipment can still operate normally in the event of power interruption or other power disturbances.

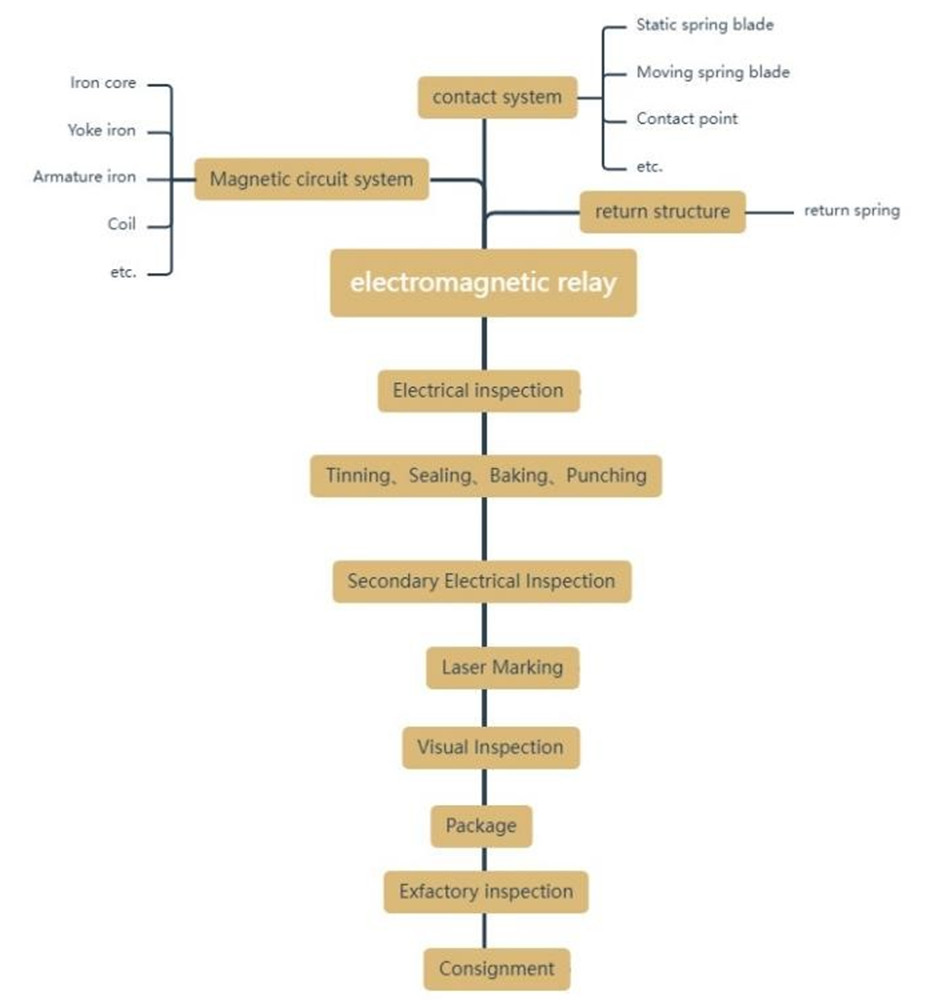

Production Process
Production Workshop Display

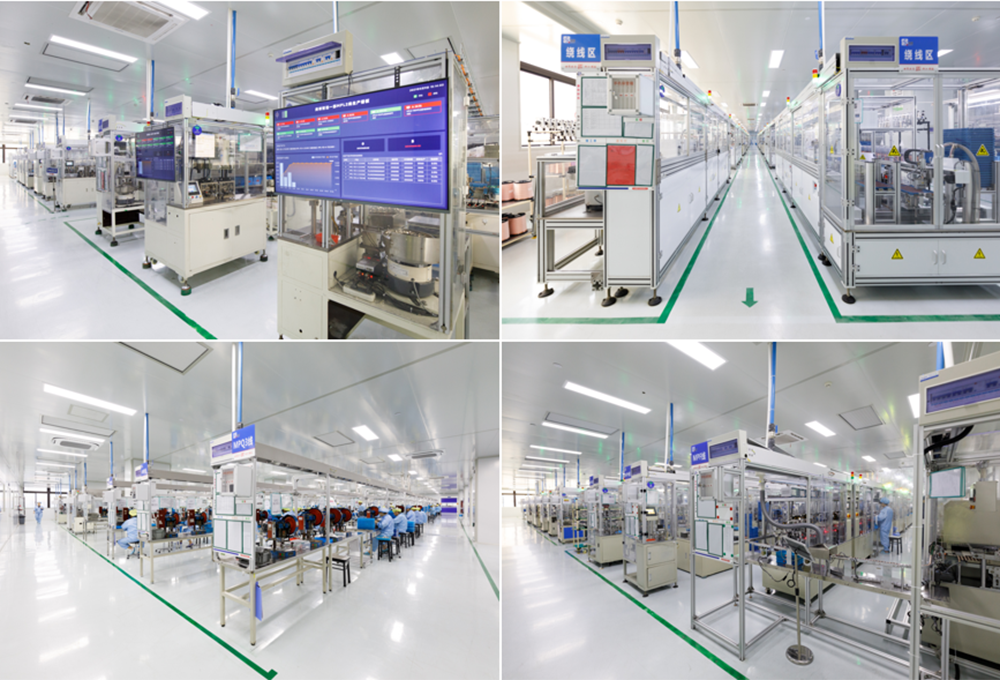

In terms of production, Meishuo has a complete automation equipment system and independent research and development manufacturing capabilities. The fully automated production line ensures product consistency and reliability.
