Product Overview

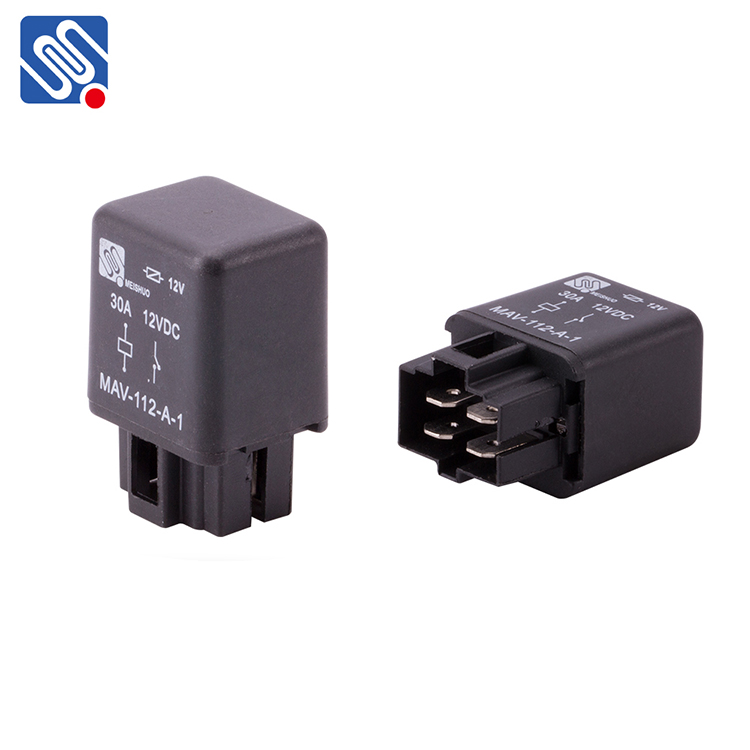

MAV relay is a normally open relay widely used in the automotive field. This product has high reliability and is easy to maintain. MAS relays have the ability to withstand high temperatures and can operate normally at temperatures up to 125 degrees Celsius. It achieves switching and regulation functions through small current control and large current control, ensuring the reliable execution of various functions of the car.
Contact Parameters
| Contact Arrangement | 1A |
| Contact Material | Silver Alloy |
| Voltage Drop(Initial) | Typ.50mV, Max.300mV(at 10A) |
| Max. Continuous Current | 27A |
| Max. Switching Voltage | 30VDC |
| Electrical Life | 100000 OPS |
| Mechanical Life | 1000000 OPS |
Characteristics
| Insulation Resistance | 500MΩ(500VDC) |
| Dielectric Strength | Between Coil & Contacts: 500VAC 1min |
| Between Open Contacts: 500VAC 1min | |
| Operate Time | ≤7ms |
| Release Time | ≤5ms |
| Ambient Temperature | -40℃～+125℃ |
| Vibration | 10Hz～500Hz 49m/s² |
| Shock | 147m/s² (30G) |
| Terminal Form | QC |
| Construction | Dust Protected |
| Unit Weight | Approx.34g |
| Mechanical Data | Cover Retention:(Pull, Push) 200N |
| Terminal Retention:(Pull, Push) 100N | |
| Terminal Retention To Bending:(Front, Side) 10N |
Naming Rules
Model: MAV
Contact Group: 1 Group
Coil Voltage: 06, 12, 24VDC
Contact Form: 1A
Structure:
1:Cover Without Bracket

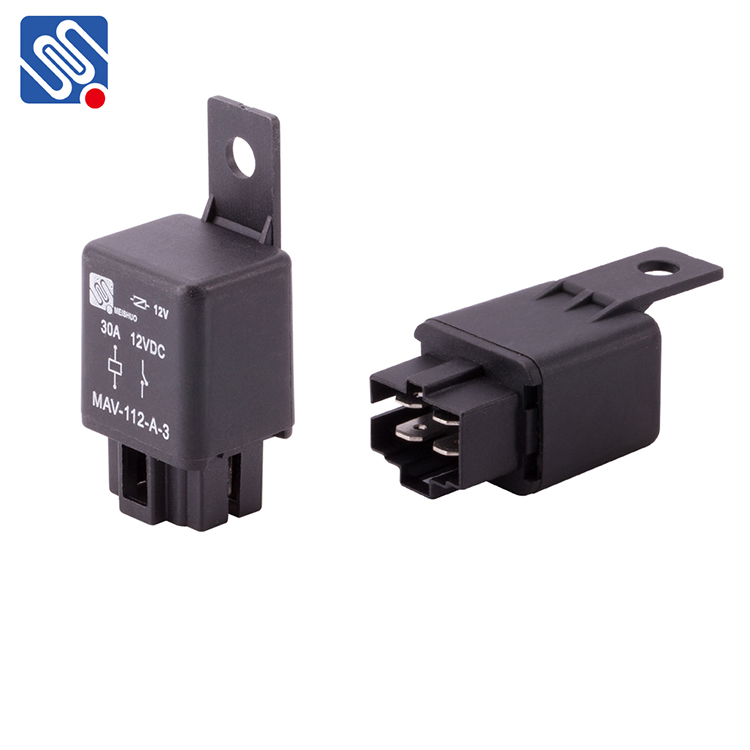

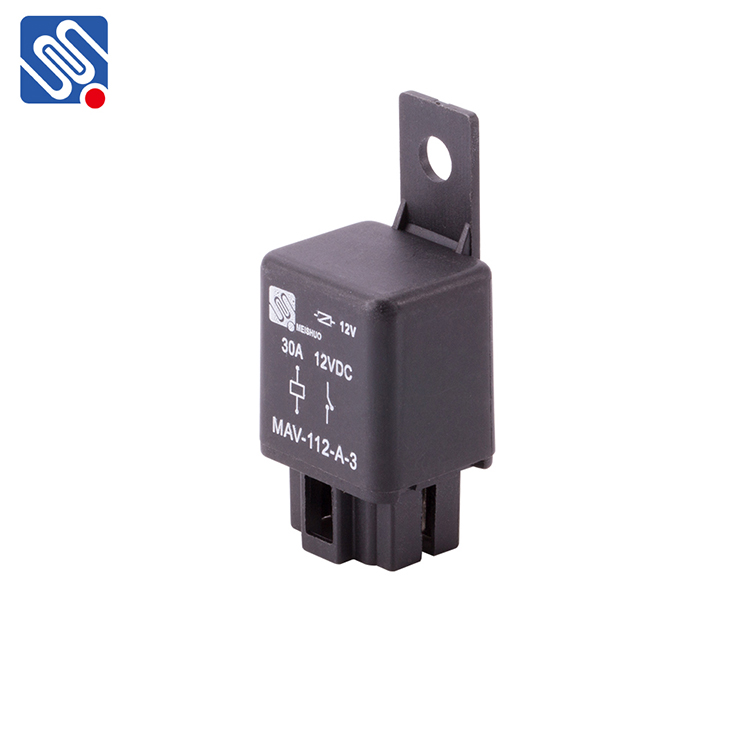

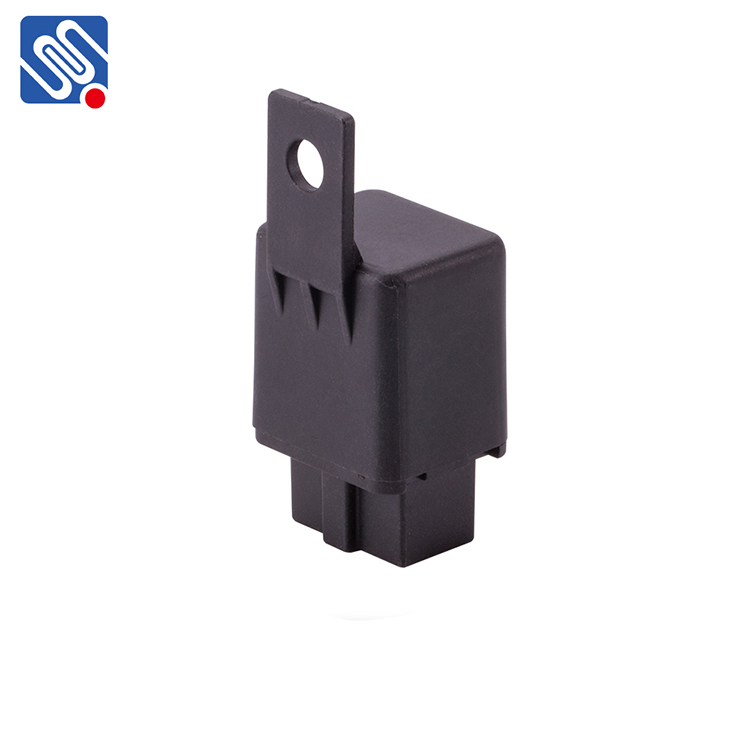

2: Cover With Metal Bracket
3: Cover With Plastic Bracket

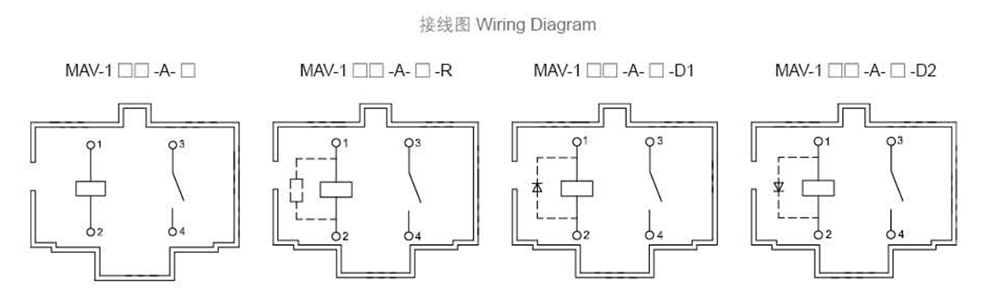

Coil Derived Resistance: Nil: Without parallel components
R: With Resistor
D1: With Parallel Diode(Anode on 2)
D2: With Parallel Diode(Anode on1)
Product Advantages
Advantage 1:
Strong impact resistance: Due to its structural characteristics and materials used, relays have strong impact resistance, ensuring the stability and reliability of switching power supplies.
Advantage 2：
Quick response: MAV automotive relays have a fast response speed and can complete switch actions in milliseconds, improving the control accuracy and efficiency of the circuit.
