Overview:

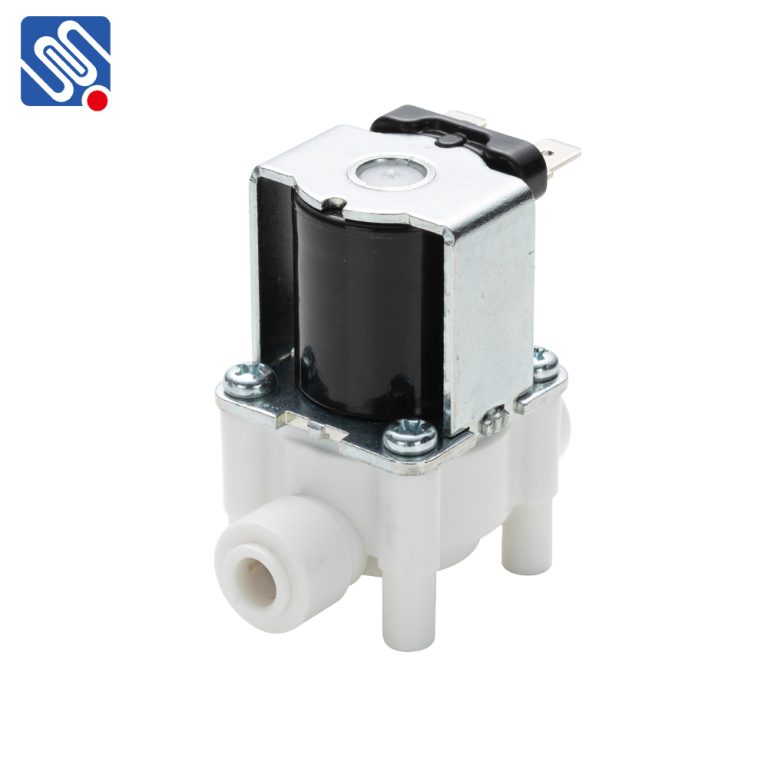

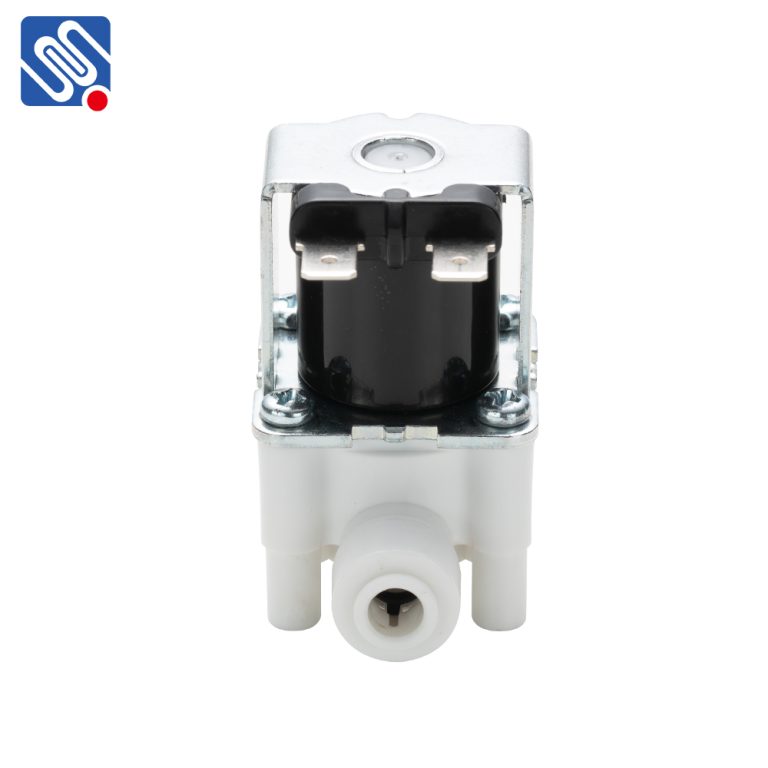

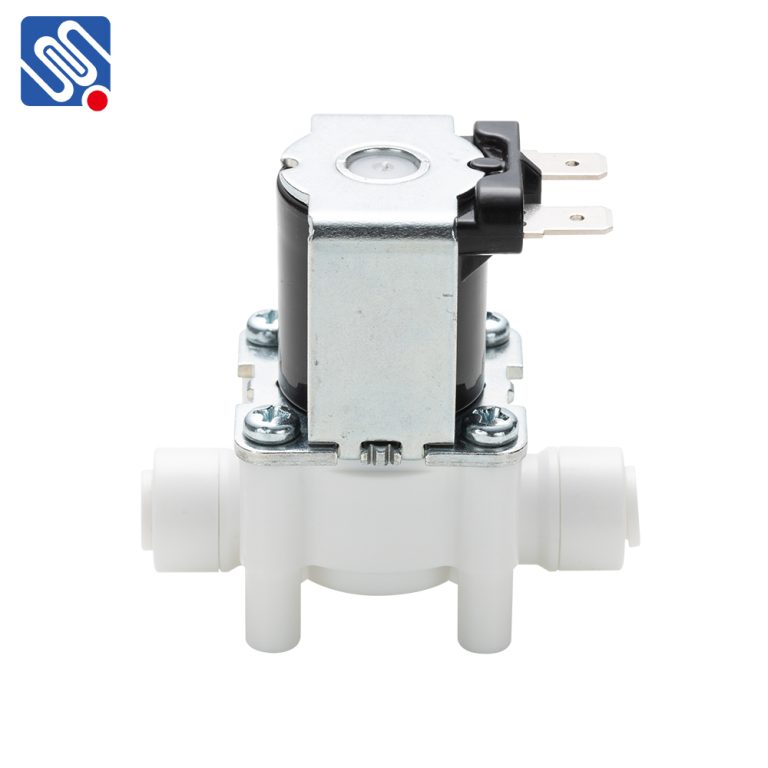

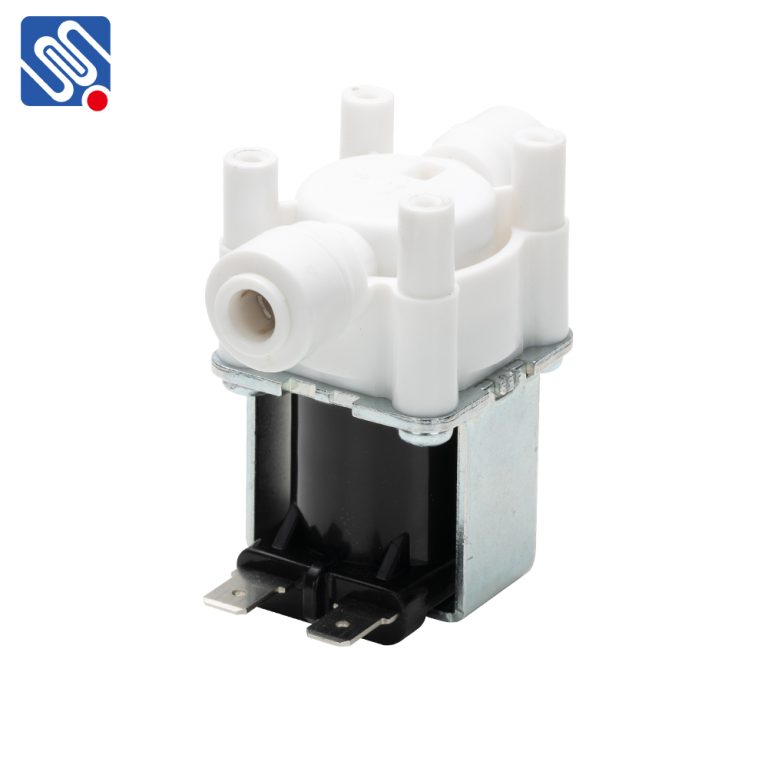

The FPD360A2Z combined flushing solenoid valve belongs to the water purifier and water dispenser series. It has a flushing function and can adapt to a maximum water pressure of 0.8 MPa. The inlet and outlet sizes of this solenoid valve are 1/4 quick connect, with a long service life.
| Product Model: | FPD360A2Z |
| Rated Voltage： | DC12V 24V 36V |
| Operate Life: | ≥100000 OPS |
| Pressure Range: | 0.02-0.8MPa |
| Inlet： | 1/4” Quick Connect Fitting |
| Outlet： | 1/4” Quick Connect Fitting |
| Hydraulic Pressure： | 0.3MPa |
| Flow Rate: | ＞3L/min |
| Waste Flow Rate： | 0.42/0.5MPa, 300/450/800/1000/1500mL/min |

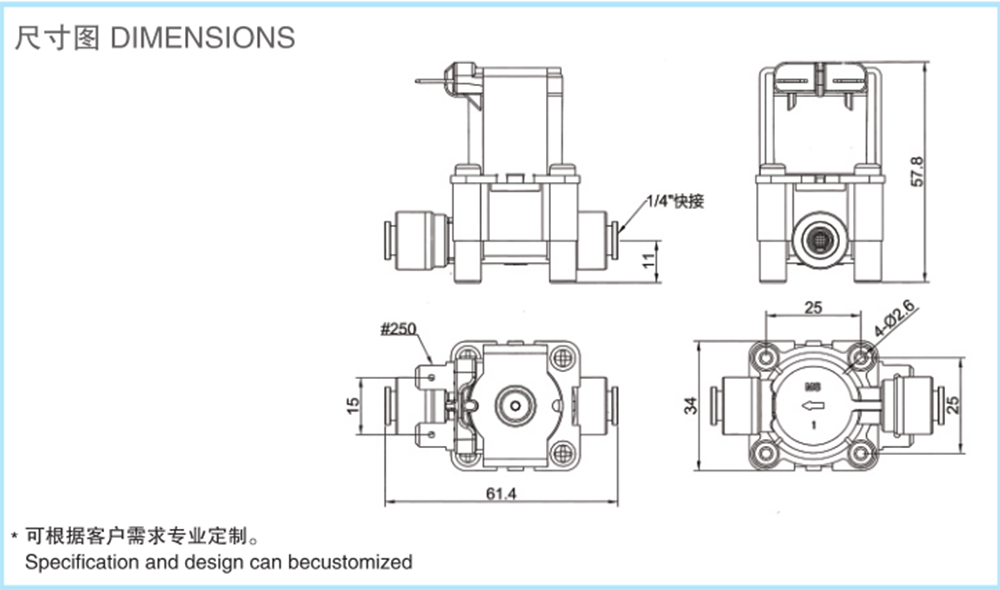

| Spacing： | 25×25mm |
R&D strength

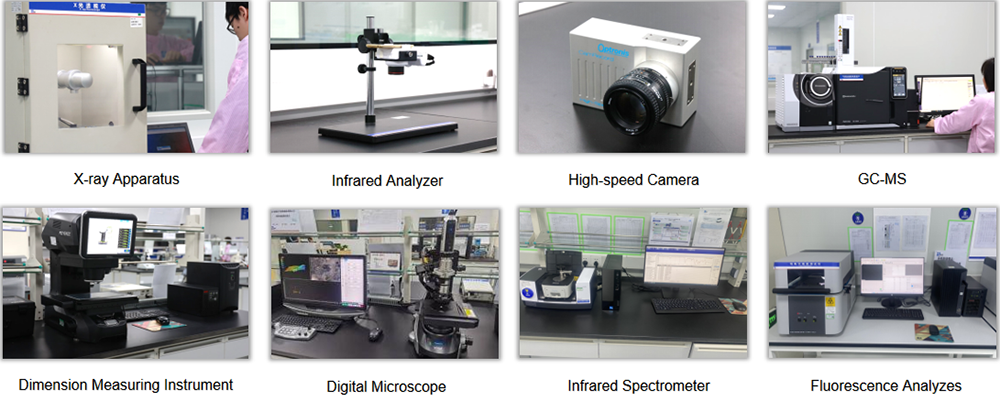

Experimental Center: The company has obtained certifications from UL Witness Laboratory, TUV Witness Laboratory, VDE Witness Laboratory, and CNAS Laboratory, making it one of the most comprehensive testing companies in the relay industry.
R&D Team: The company continues to invest in research and innovation, with over 100 dedicated R&D personnel.
Technical Cooperation: With the help of university platforms and talent resources, the company has achieved fruitful results in basic research, advanced manufacturing, and testing.
Product application

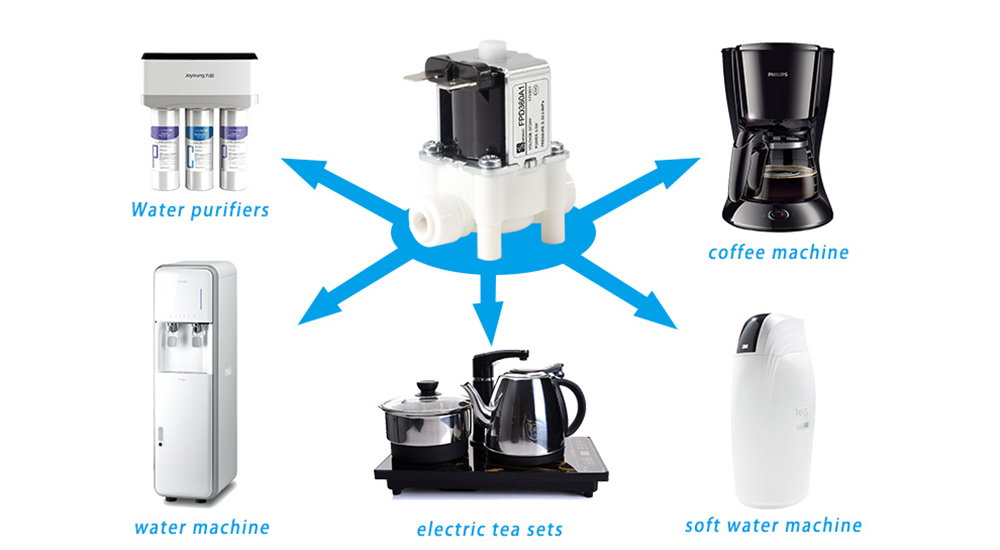

FPD360A2Z combined flushing solenoid valve is suitable for water purifiers, water dispenser, water softener, coffee machine, electric tea sets, etc.
Quality control management
In the past three years, we have invested approximately $4.5 million in the research and development of new products, technologies, and equipment, gradually establishing and possessing complete product inspection and analysis equipment.

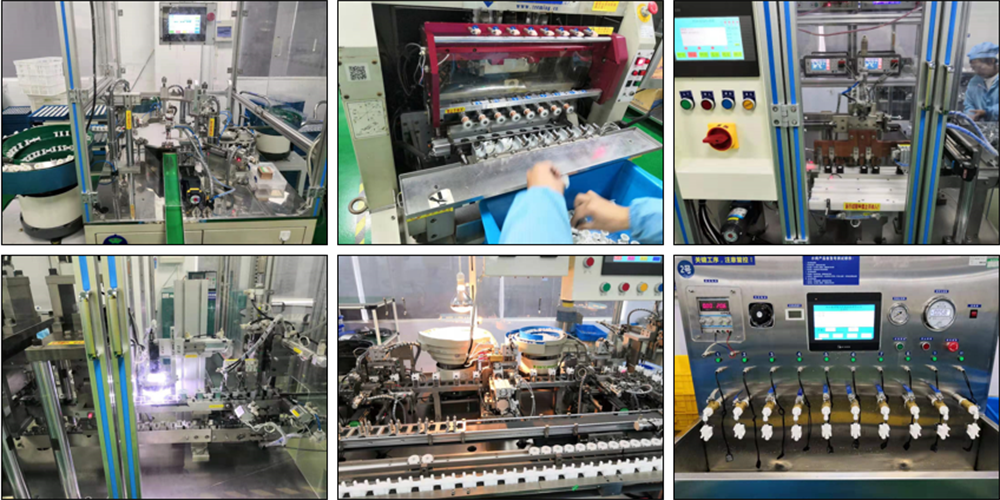

Technological process
Support your OEM/ODM needs and provide one-stop customized solutions
