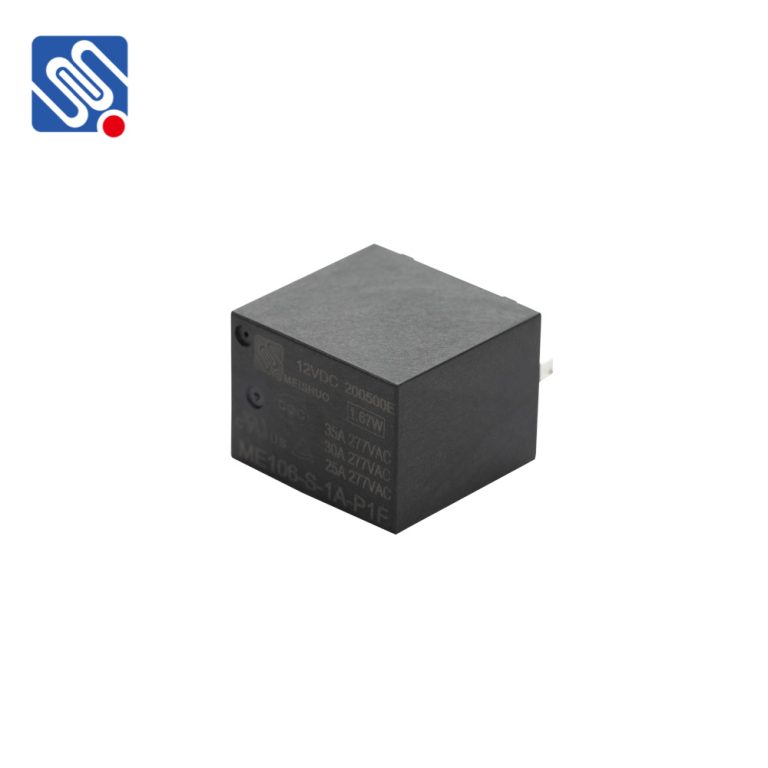

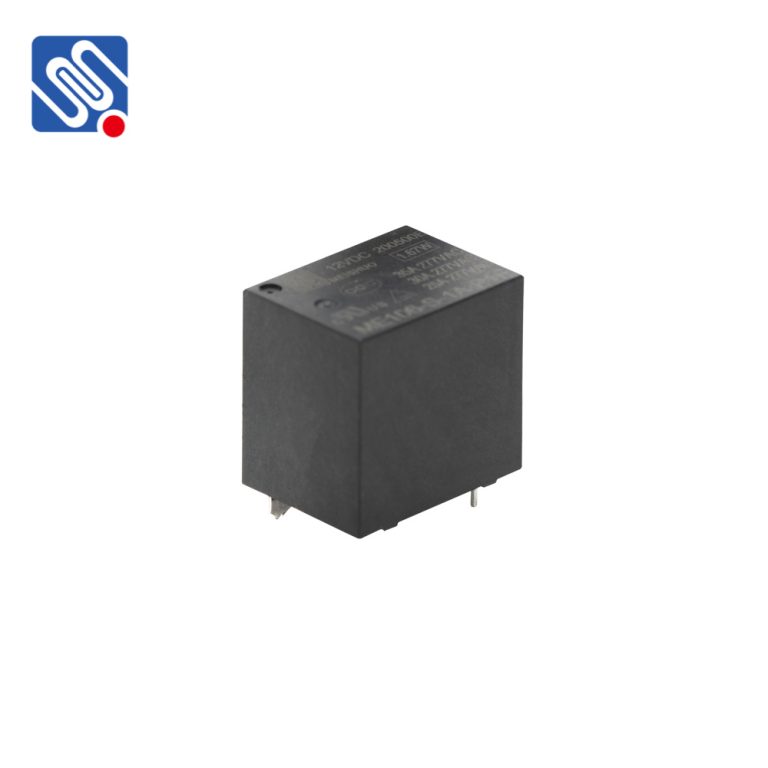

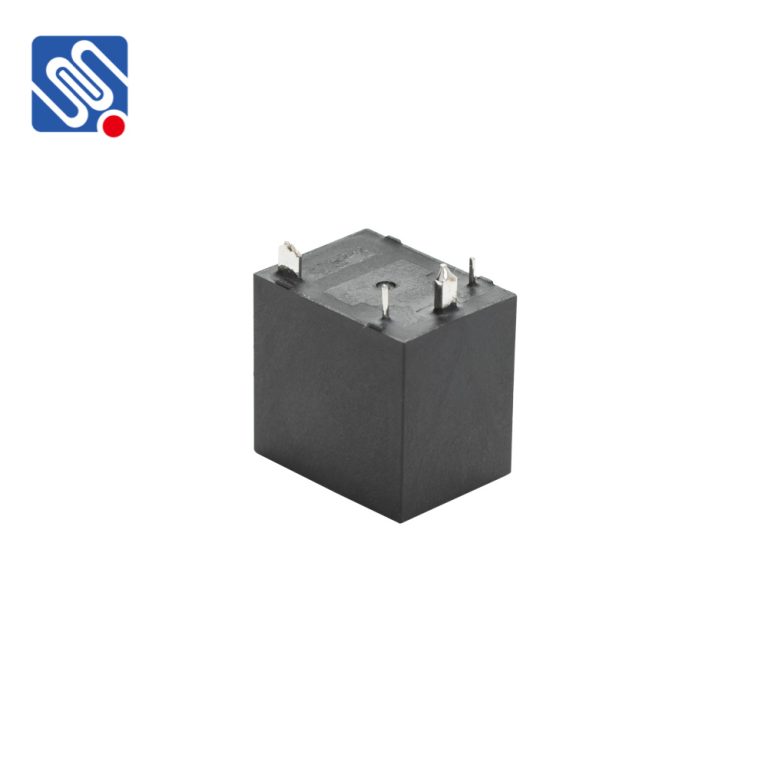

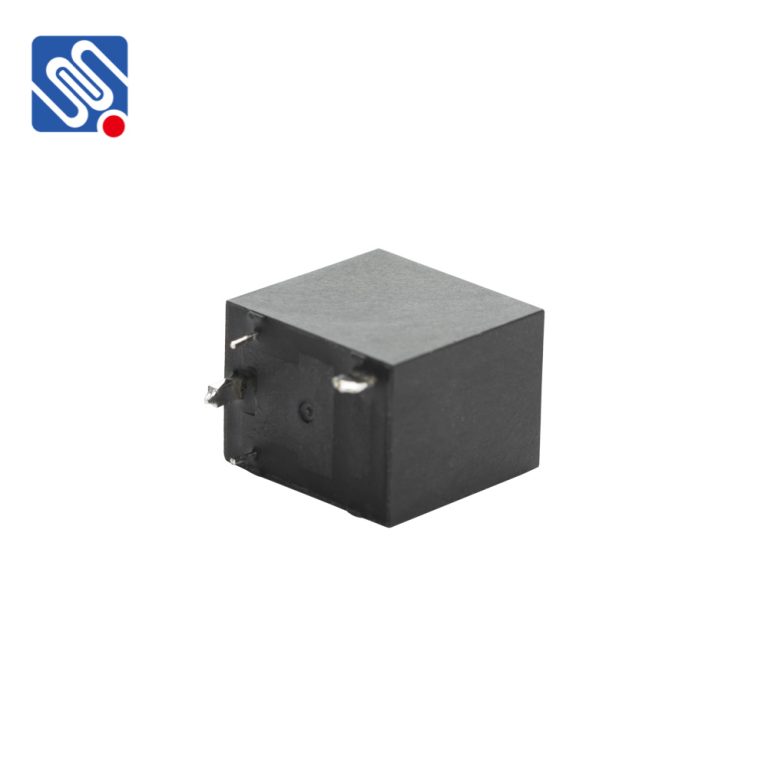

Product Overview
The design of ME106 meets the strict requirements of new energy systems, including solar energy, electric vehicle charging stations, and other systems. According to the customer’s usage requirements, this relay has multiple contact clearances and coil power consumption options to choose from.
Contact Parameters
| Contact Arrangement | 1A,1C | |
| Contact Material | Silver Alloy | |
| Contact Resistance | ≤100mΩ (20A 6VDC) | |
| Rated load | 32A | |
| Max. Switching Current | 32A | |
| Max. Switching Voltage | 277VAC | |
| Max. Switching Power | 8864VAC | |
| Electrical Life | Sensitive type | 10000 OPS(25A 250VAC, Res.load, 105℃, 1s on:9s off) |
| Standard type | 10000 OPS(25A 250VAC, Res.load, 105℃, 1s on:9s off) | |
| 10000 OPS (32A 250VAC, Res.load, 85℃, 1s on:9s off) | ||
| 30000 OPS (26A 277VAC, Res.load, 85℃, 1s on:9s off) (Only applicable to 1and 2 contact gap models) | ||
| High power | 10000 OPS (32A 277VAC, Res.load, 85℃, 1s on:9s off) (Only applicable to 1 and 2 contact gap models) | |
| Mechanical Life | 100000 OPS | |
| Insulation Resistance | 1000MΩ (500VDC) |
| Dielectric Strength | Between contact and coil: 4000VAC 1min P1type foot position 2500VAC 1min P2 type foot position |
| Between open contacts: 1000VAC 1min Regular contact clearance 1500VAC 1min 1.8mm Contact clearance 2000VAC 1min 2.4mm Contact clearance | |
| Operate Time | ≤15ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃～+105℃ |
| Vibration | 10Hz～55Hz 1.5mm (DA) |
| Shock | Functional: 98m/s²(10G) Destructive: 980m/s²(100G) |
| Terminal Form | PCB |
| Construction | Sealed Flux proofed |
| Unit Weight | Approx.16g |
Naming Rules
Model: ME106
Construction: Sealed / Flux Proofed
Contact Group: 1 Group
Contact Form: 1A

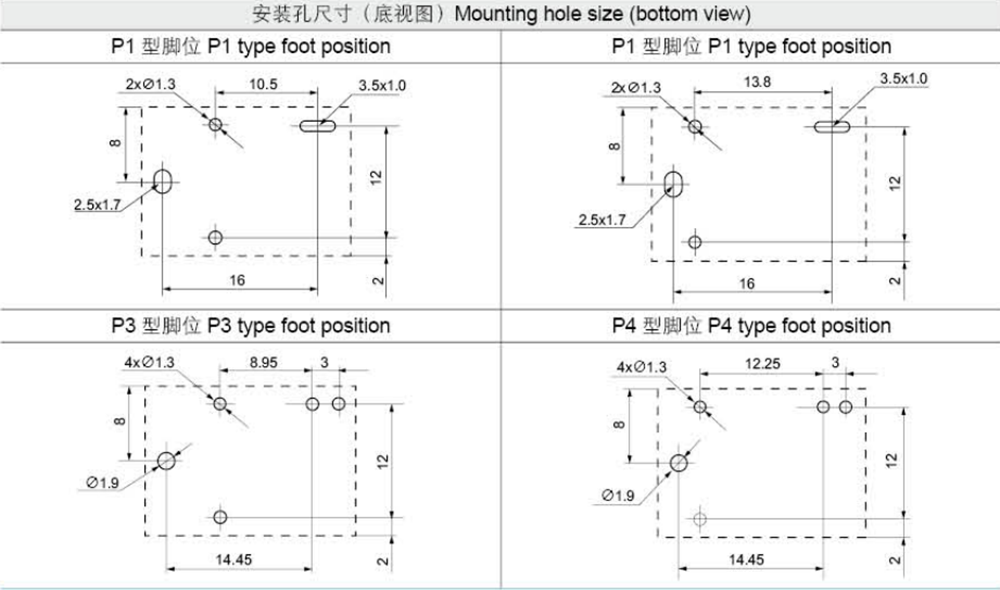

Pin layout: Type 1 Pin layou
Type 2 Pin layout
Contact Clearance: 1: 1.8mm 2: 2.4mm
Coil power consumption: nil: General L: Sensitive H: High power
Insulation Class: Class
Application
Solar Power Systems: The ME106 can be integrated into residential solar power systems to manage the flow of electricity from solar panels to the home’s electrical system or back to the grid.
Electric Vehicle Charging: For homes with electric vehicles, the ME106 can play a crucial role in managing the charging process, ensuring safe and efficient energy transfer to the vehicle’s battery.
