Overview：

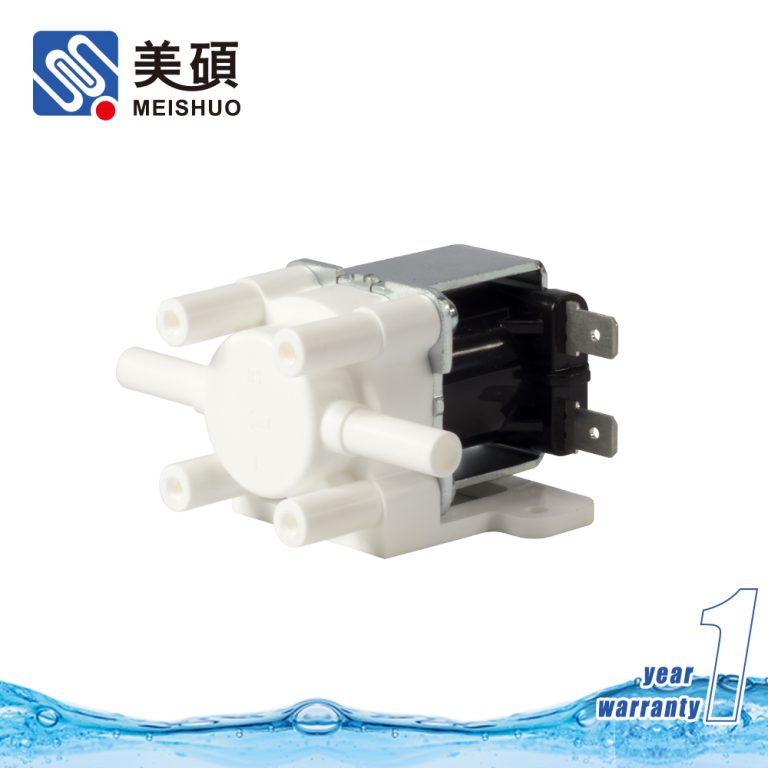

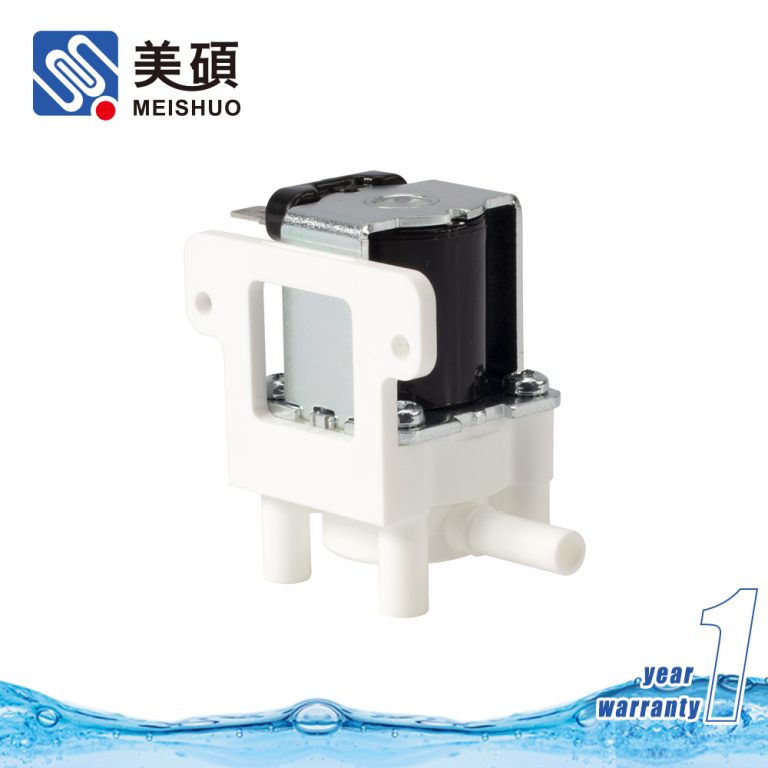

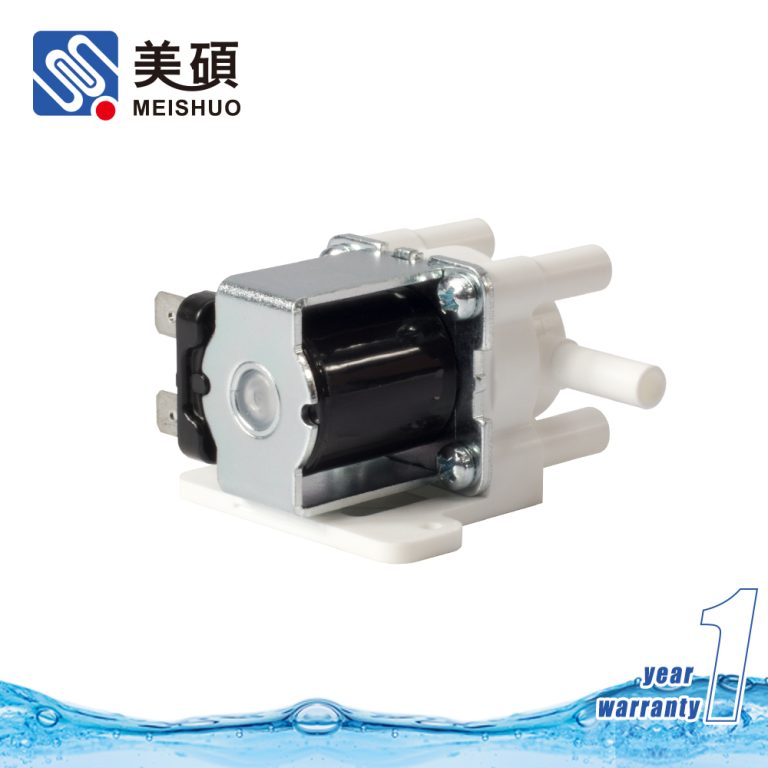

The FPD360B inlet solenoid valve belongs to the water purifier and water dispenser series. The inlet and outlet size of this solenoid valve is φ6.35mm, which can adapt to a water pressure range of 0.02MPa to 0.8MPa, with excellent control accuracy and durability.
| Product Model: | FPD360B |
| Rated Voltage: | DC12V 24V 36V AC110V 220V 50/60Hz |
| Pressure Range: | 0.02-0.8MPa |
| Operate Life: | ≥100000 OPS |

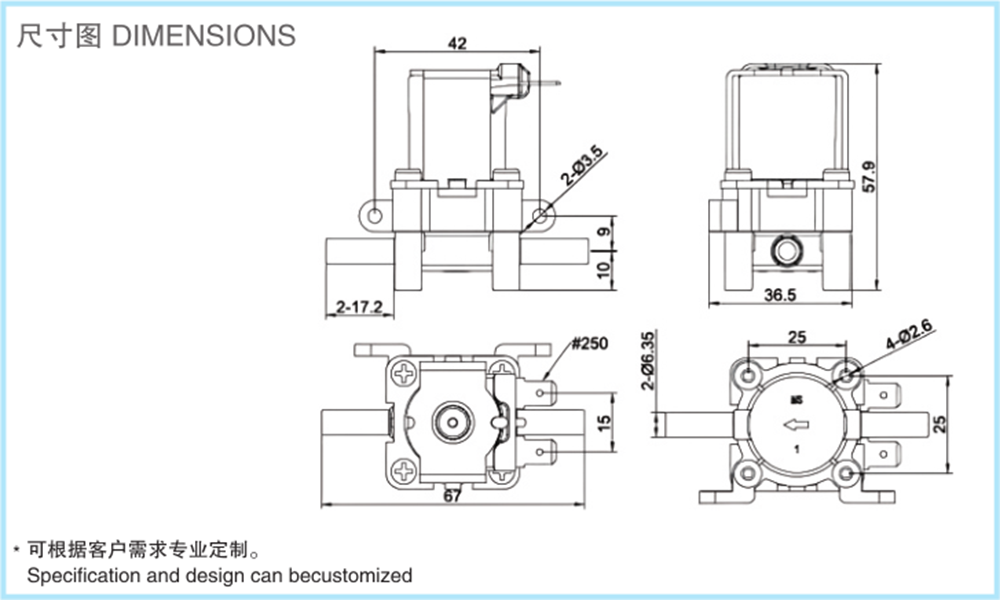

| Spacing: | 25×25mm or 42mm |
| Inlet: | φ6.35mm |
| Outlet: | φ6.35mm |
| Hydraulic Pressure: | 0.3MPa |
| Flow Rate: | ＞3L/min |
Naming rules
Product series: F
Inlet and outlet angle: P: Parallel type
Outlet number: D: Single Outlet
Coil terminal direction: 360: 0°(360°)
Product design code: B
Product advantages
Advantage 1:
Highly automated: The current generates a magnetic field through the coil to control the opening and closing of the solenoid valve, which can achieve fully automatic operation.
Advantage 2:
Good airtightness: When designing and producing solenoid valves, high sealing materials and structures such as O-rings and seals are used to ensure good sealing performance within the working pressure range.
Product application
FPD360B inlet solenoid valve is suitable for water purifiers, water dispenser, water softener, coffee machine, electric tea sets, etc.
Certificate

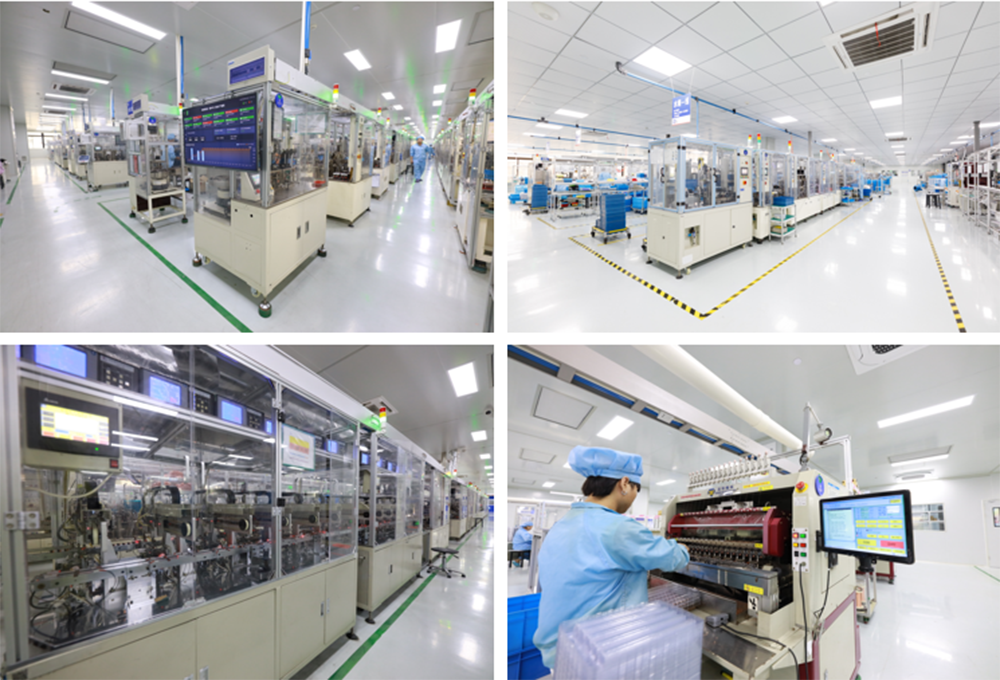

Production workshop display
Our company always adhere to the principle of providing customers with higher quality products, constantly absorbing advanced concepts from home and abroad to improve and optimize manufacturing processes and automation equipment.
Support your OEM/ODM needs and provide one-stop customized solutions
