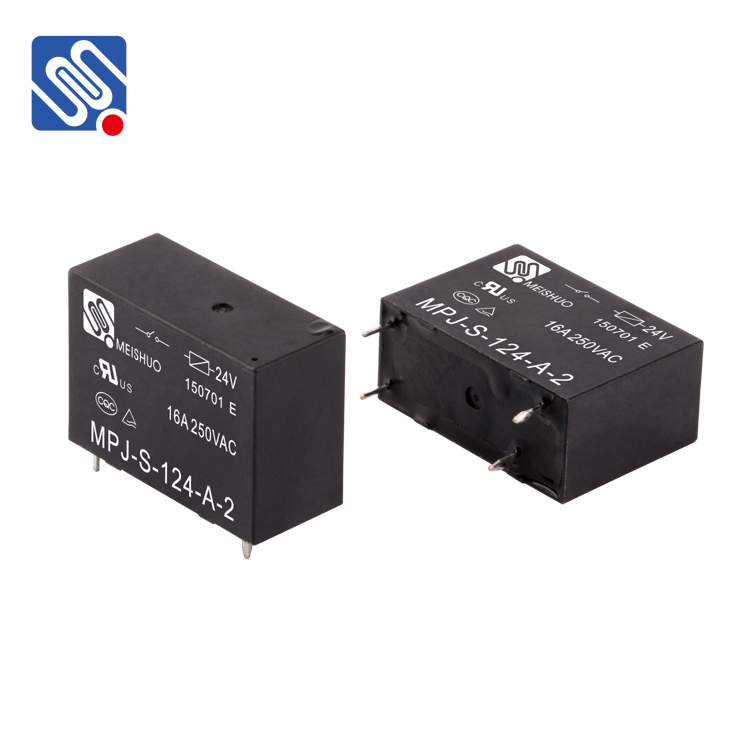

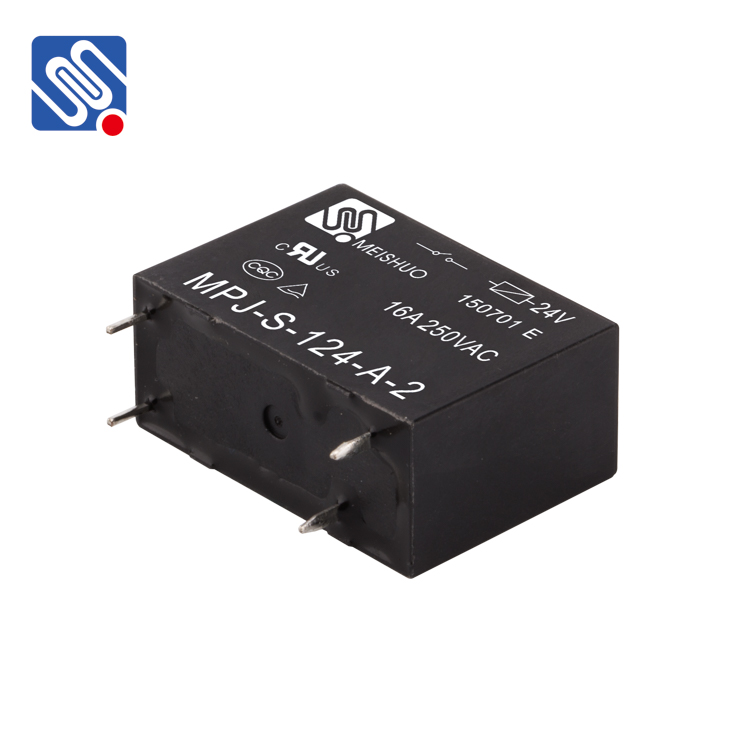

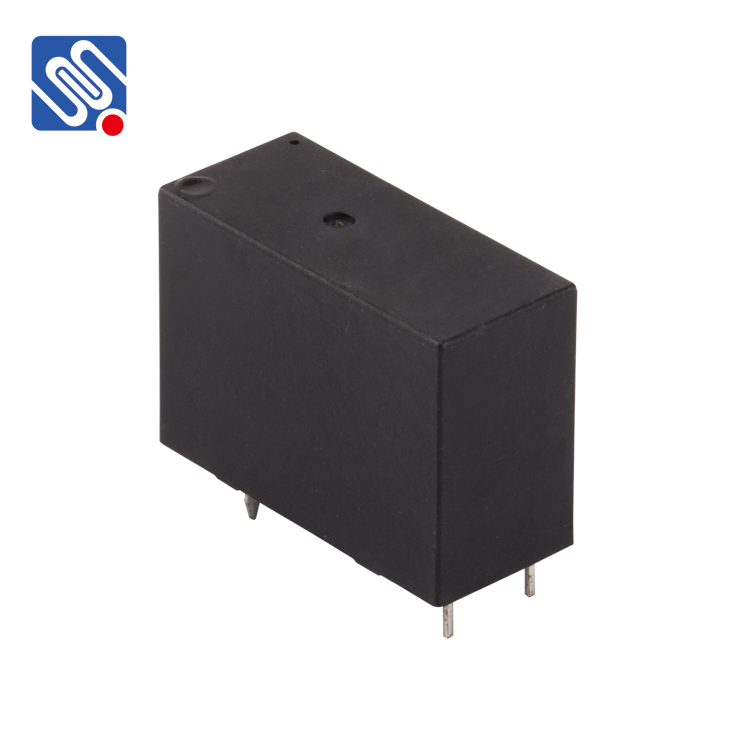

Normally Open Sealed PCB Relay

•16A Contact switching capability •Matching to various sockets •Sensitive type coil power only 0.54W •Outline dimensions L*W*H:29.2*12.8*20.6mm

Certification
UL E358149
TUV R50294981
CQC CQC15002131098

Contact Arrangement	1A
Rated Load	16A 250VAC
Max.Switching Current	16A
Operate Time	≤20ms
Release Time	≤8ms
Coil Power	0.72W/0.54
Construction	Wash tight
Unit Weight	Approx.13g

Naming rules
Model: MPJ
Structure: Wash tight
Contact group: 1 pole
Coil voltage: 05,06,09,12,24 VDC
Contact form: 1A
Load type:1:Common type
High load type
Coil power:Nil:0.54W
N:0.72W
Insulation class:F:Class F
Nil:Standard type, Class B

Packing Information For MPJ
400pcs/cartons, carton size:44*31.5*22cm
High-strength cartons, good for long-distance export transport

Company Information

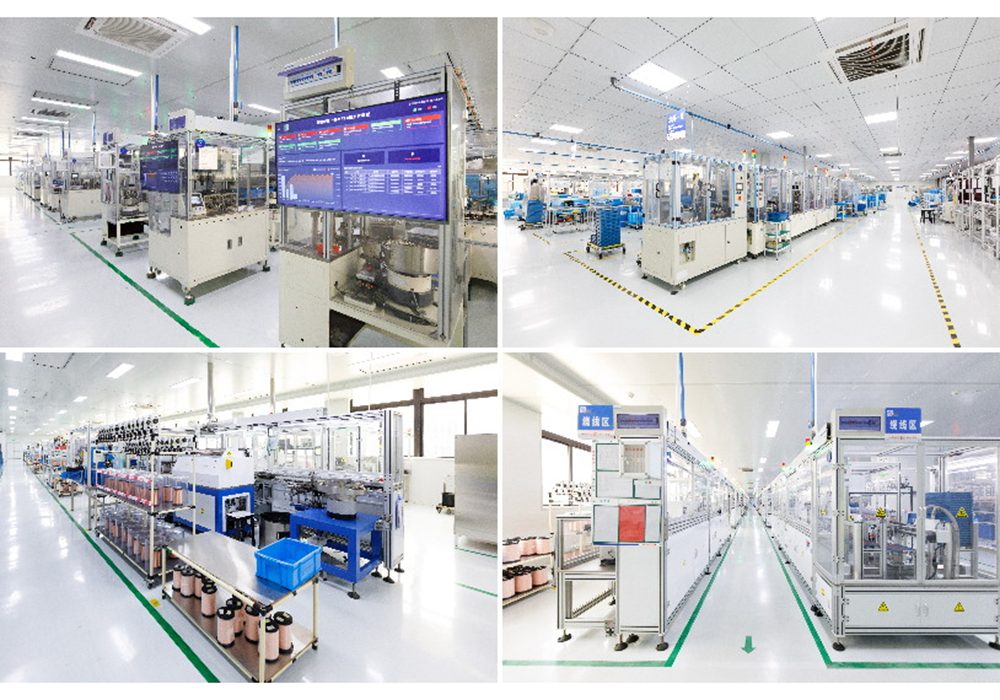

We opened the company in 2007, and make relay by automatic production line, Now, totally is 45 automatic production lines. And day-yield is more than 1,850,000pcs. Some lines are built by ourselves.

Get Meishuo products in five steps
