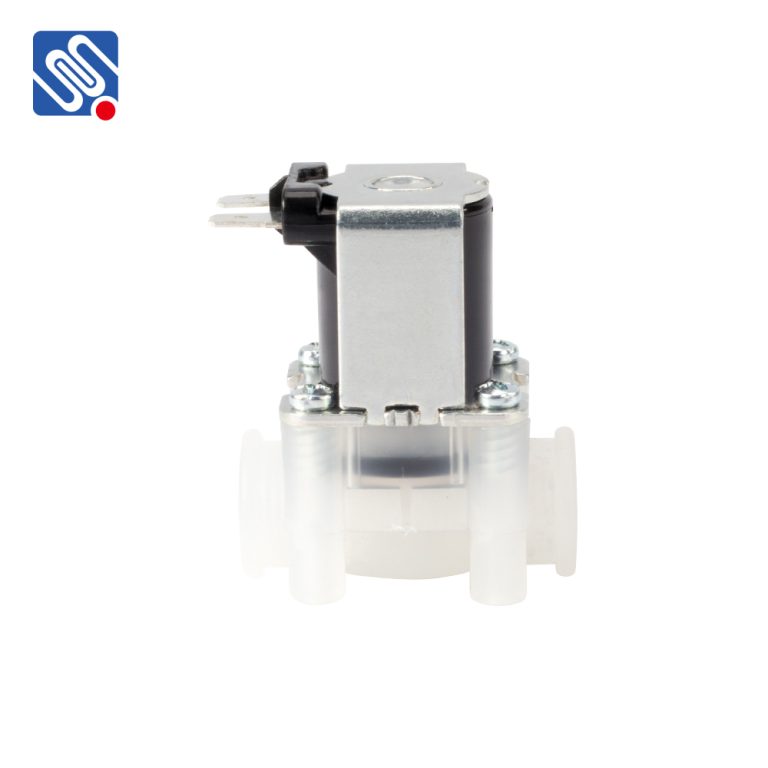

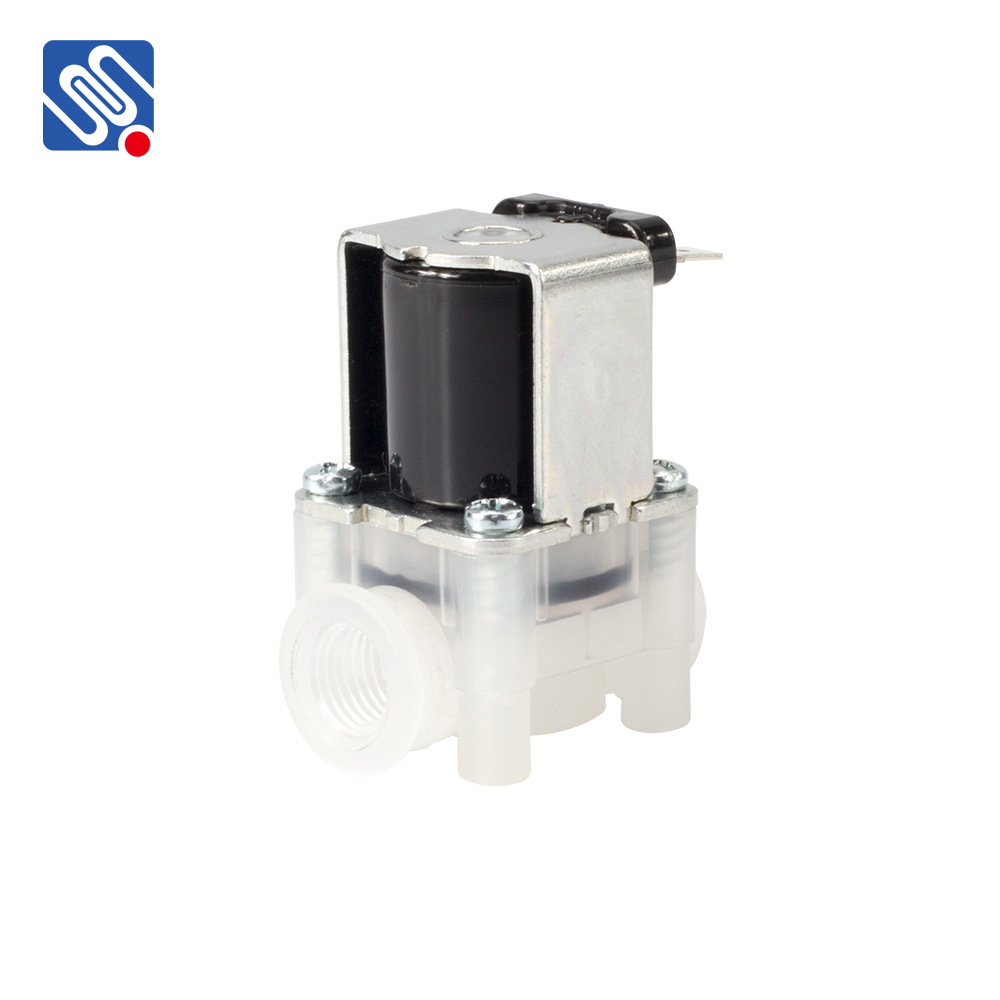

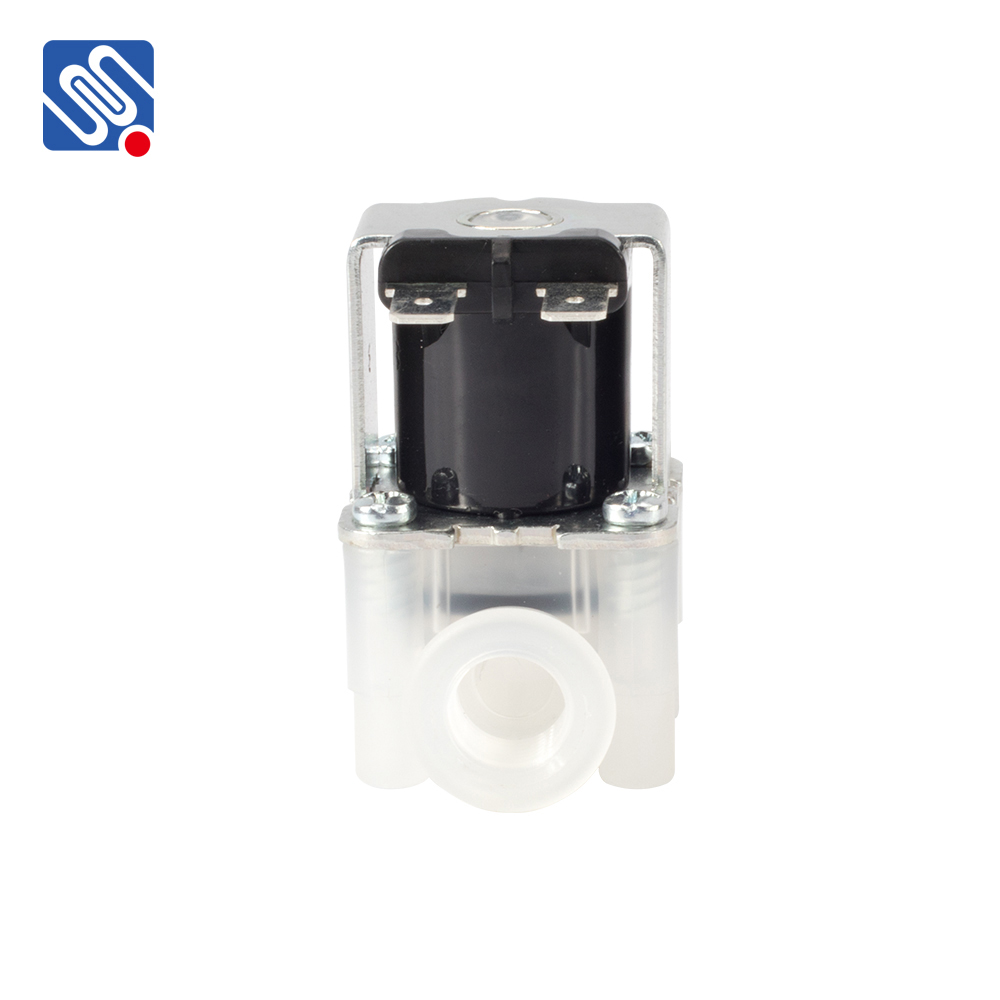

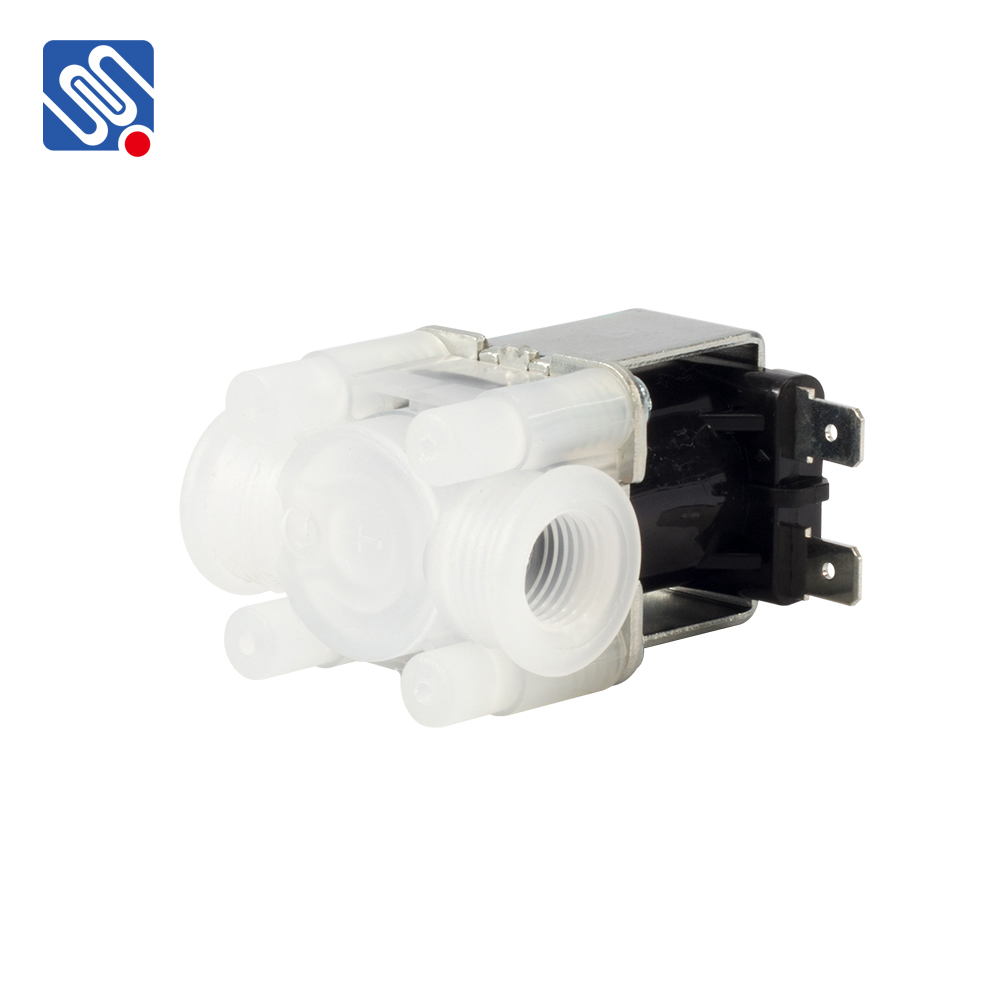

OverviewThe FPD360K2 combined flushing solenoid valve can automatically clean the waterway as needed, effectively avoiding waterway blockage. This function is particularly important in water treatment systems, as it can ensure the normal operation of the system and extend the service life of equipment.
| Product Model: | FPD360K2 |
| Rated Voltage: | DC12V 24V 36V |
| Pressure Range: | 0.02-0.8MPa |
| Operate Life: | ≥100000 OPS |

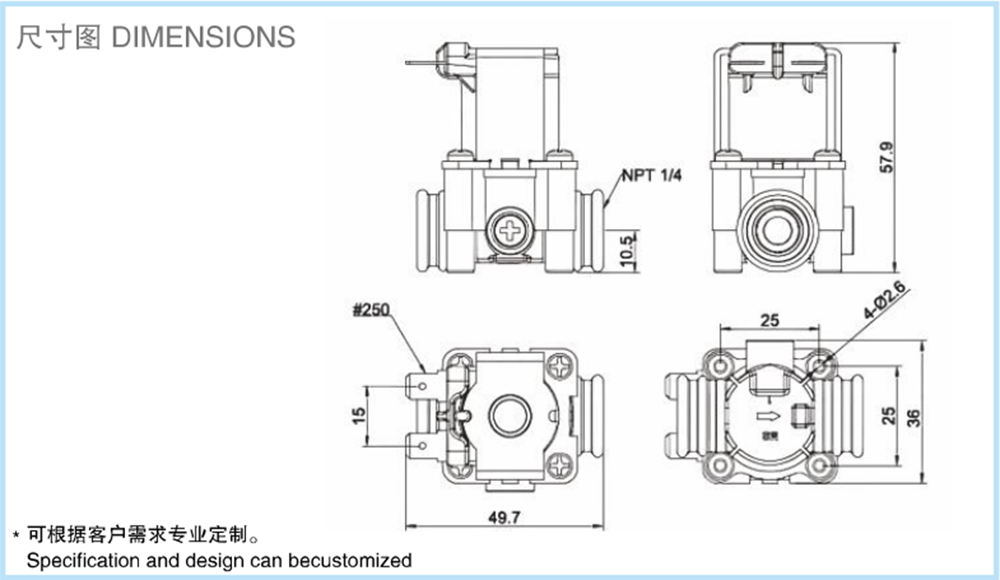

| Spacing: | 25×25mm |
| Inlet: | NPT 1/4’’ internal thread |
| Outlet: | NPT 1/4’’ internal thread |
| Flow Rate: | 0.3MPa,＞3L/min |
| Waste Flow Rate: | 0.42/0.5MPa, 300/450/800/1000/1500mL/min |
Naming rules
Product series: F
Inlet and outlet angle: P: Parallel type
Outlet number: D: Single Outlet
Coil terminal direction: 360: 0°(360°)
Product design code: K2

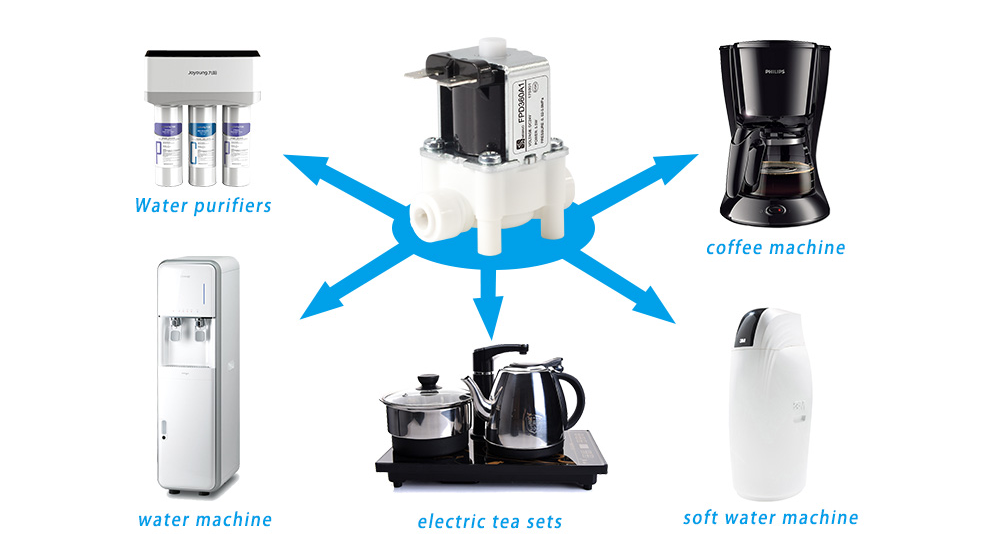

Product application
FPD360K2 combined flushing solenoid valve is suitable for water purifiers, water dispenser, water softener, coffee machine, electric tea sets, etc.

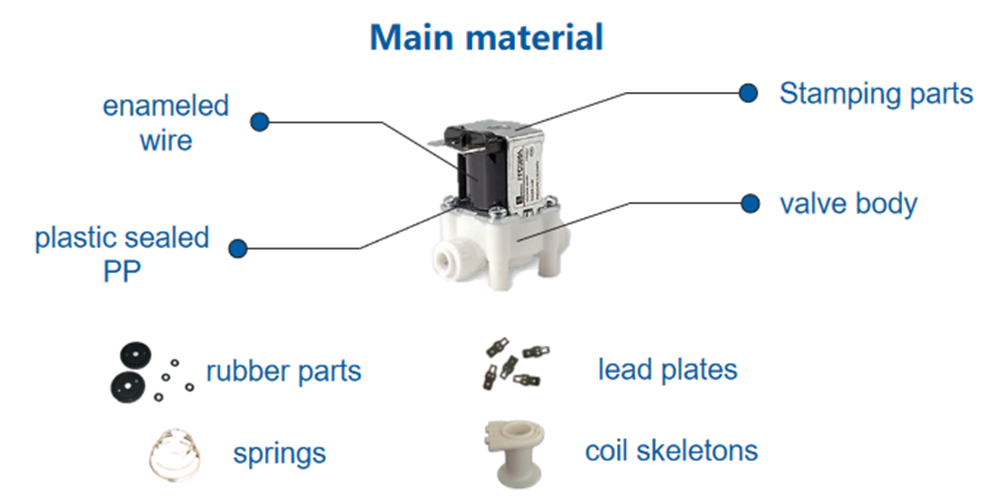

Main materials

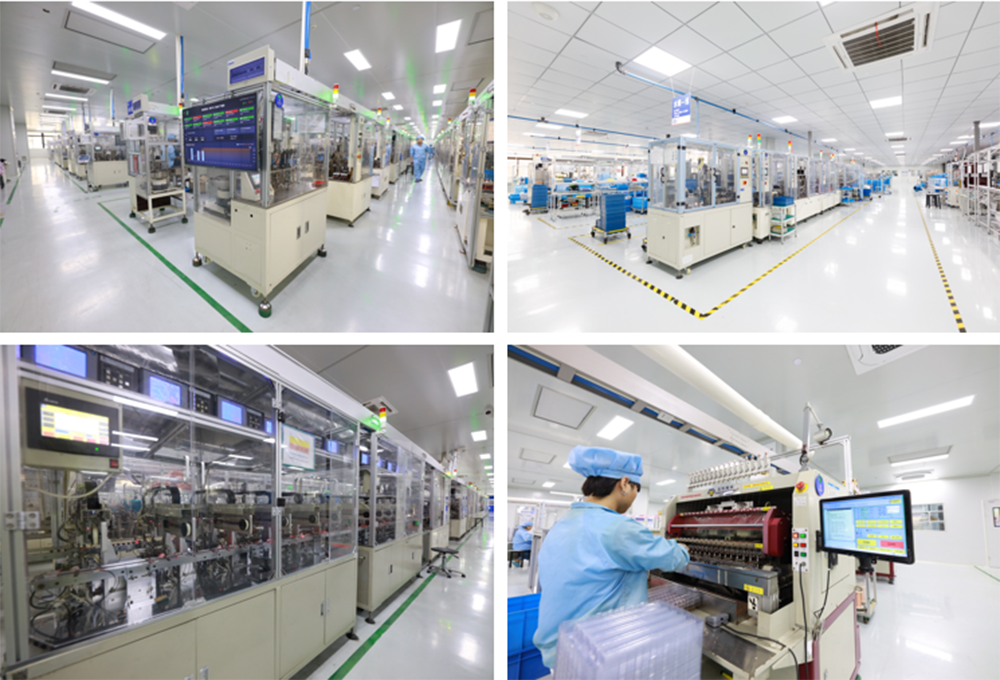

Production workshop display
We always adhere to the criterion to provide customers with better quality product, put quality control ideas into the automated production process, finally increase product consistency and reliability.
Order process
1.Confirm product specifications, pricing, delivery terms, etc.
2.Sign the contract
3.payment
4.Salesperson places an order
5.Production and Inspection
6.Shipment and notify customers
7.Reception and inspection
8.Provide after-sales service
Support your OEM/ODM needs and provide one-stop customized solutions
