Product Overview

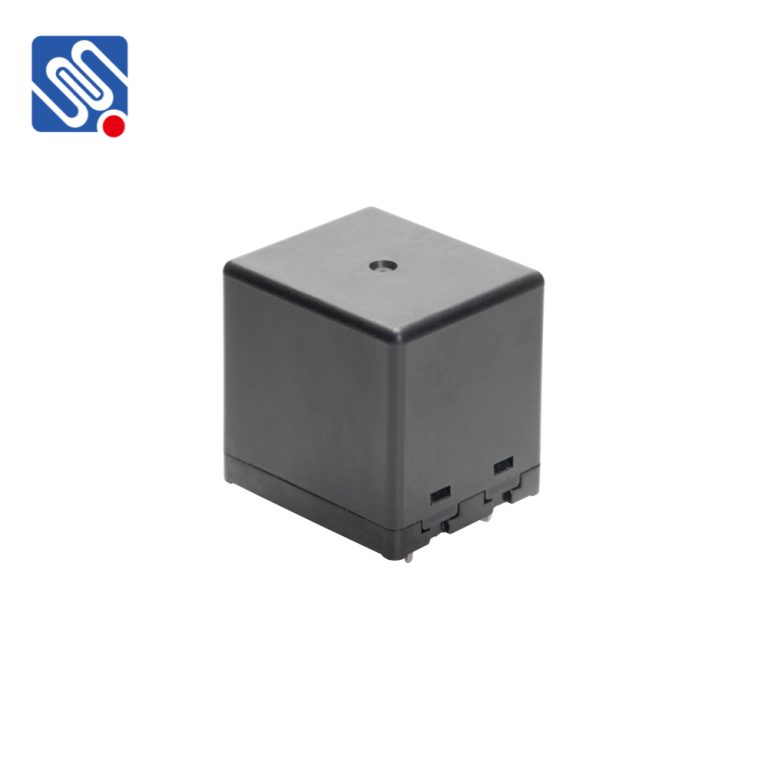

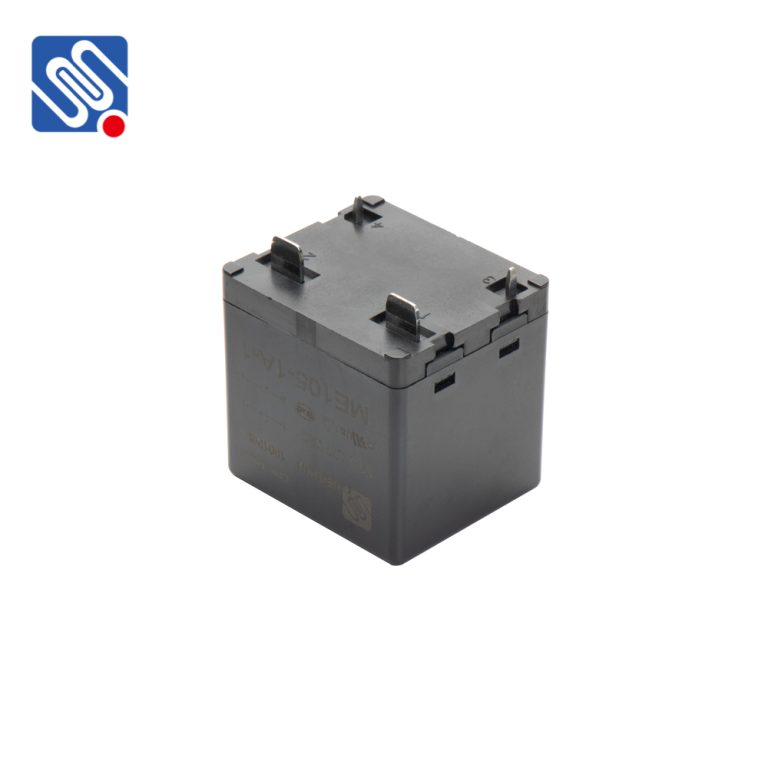

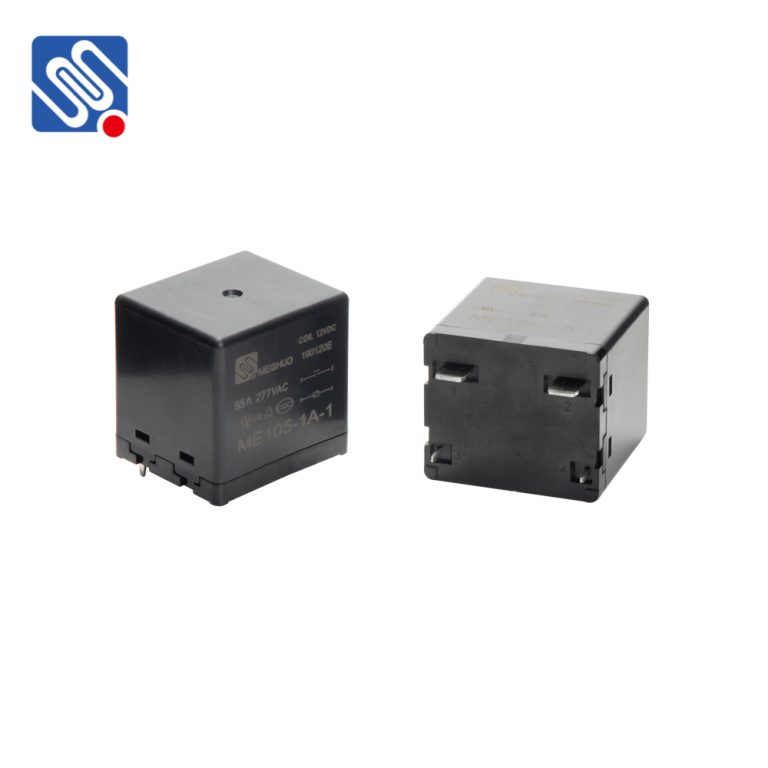

ME105 relay has good overcurrent performance, with a load of up to 65A 400VAC, and can provide reliable switching for various circuits. Its manufacturing meets the highest industry standards, ensuring consistent performance and lifespan.
Contact Parameters
| Contact Arrangement | 1A |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤10MΩ (1A 6VDC) |
| Max. Switching Current | 65A |
| Max. Switching Voltage | 400VAC |
| Max. Switching Power | 26000VA |
| Electrical Life | ≥3000 OPS(Res.Load, 85℃, 1s On:9s Off) ≥30000 OPS (Making 20A, Loading 65A, Breaking 20A 400VAC, Res.Load, 85℃, 1s On:9s Off) |
| Mechanical Life | ≥1000000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ (500VDC) |
| Dielectric Strength | Between Coil& Contacts: 5000VAC 1min Between Open Contacts: 2000VAC 1min |
| Surge Voltage | 10kV (1.2/50us) |
| Operate Time | ≤30ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃～+85℃ |
| Vibration | 10Hz～55Hz 1.5mm(DA) |
| Shock | Functional: 98m/s²(10G) Destructive: 980m/s²(10G) |
| Terminal Form | PCB |
| Construction | Flux Proofed |
| Unit Weight | Approx.100g |
Application
New energy system: ME105 relay can be used for solar photovoltaic energy storage inverters and fixed EV chargers and other equipment.
Uninterruptible power supply: UPS is widely used in IT equipment to protect equipment from damage, and ME105 relay can be responsible for power control in UPS uninterruptible power supply.
Company Profile

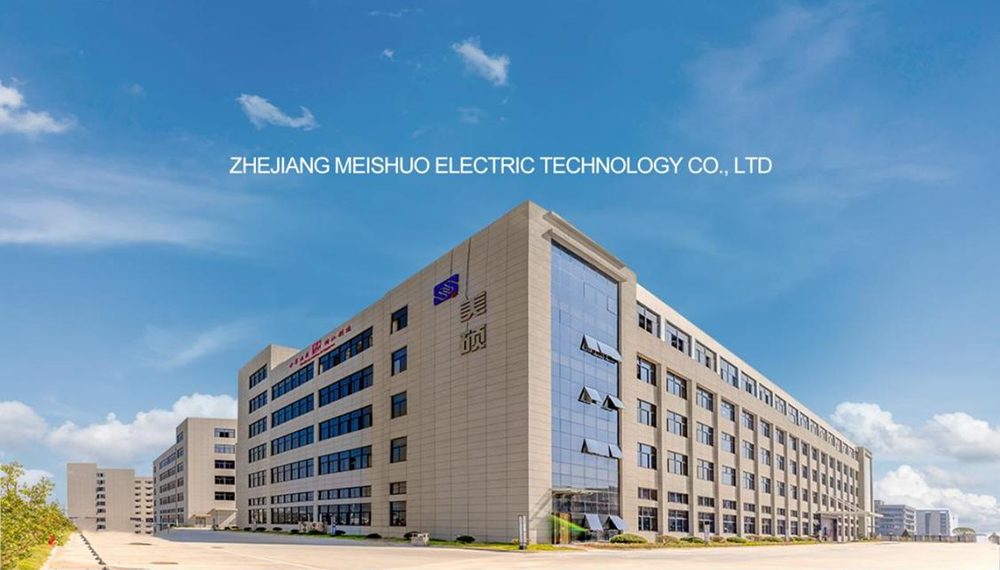

Zhejiang Meishuo Electric Technology Co., Ltd. is a high-tech enterprise specializing in the production of various electromagnetic water valves and relays. The company was founded in 2007.
Meishuo Technology is committed to maintaining the highest quality standards in its products and complying with international quality management systems and certifications. The company has strong technical strength and development capabilities, with product testing centers and material testing centers to ensure product quality.

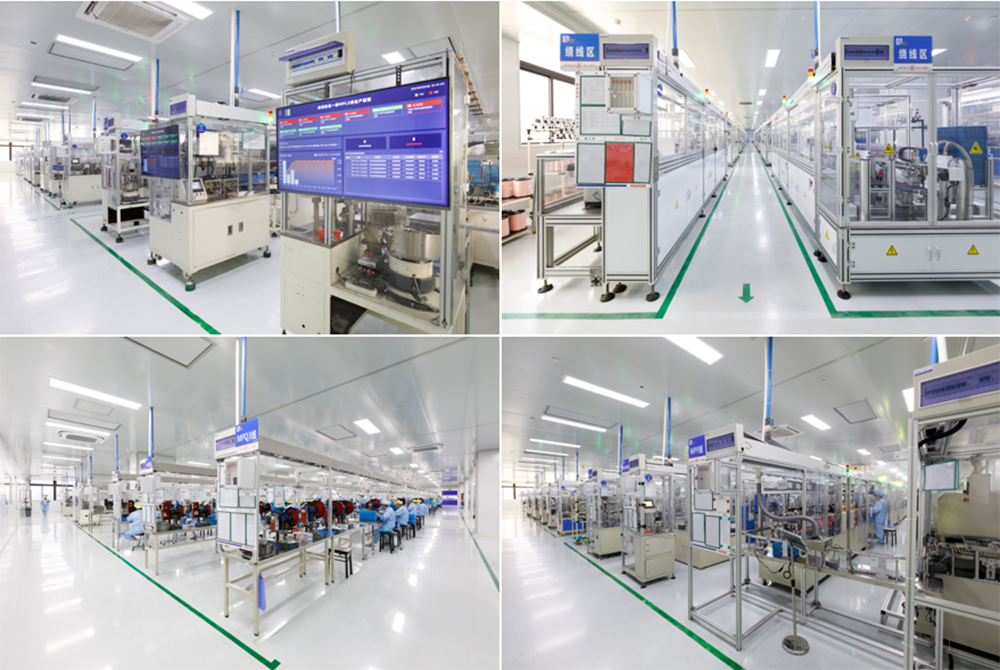

Production Workshop Display
Nearly 50 fully automated production lines are constantly operating, maintaining good production efficiency. CCD image detection systems and various detection equipment are widely used to ensure stable performance and quality of products.
Quality Control Management

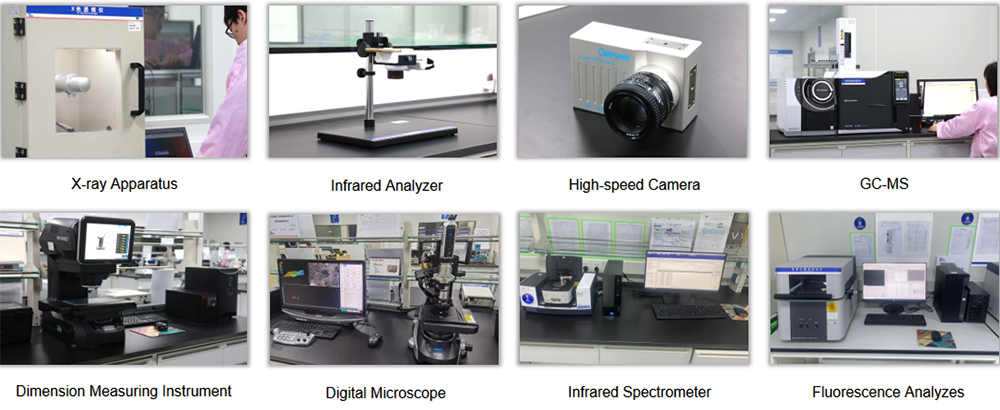

Meishuo has established an experimental center in accordance with the requirements of GB/T21711.1, IEC61810.1, and UL508 standards. The company has also equipped high-speed cameras, X-ray machines and other instruments and equipment for the early research and analysis of products, providing strong guarantees for high-quality design and development.
Shipping
Support your OEM/ODM needs and provide one-stop customized solutions
