A relay is an electrical device used to control the switching of circuits. It allows a low-power signal to control a higher power circuit.
Load Type: Determine the relay’s compatibility with resistive, inductive, or capacitive loads, and the rated current of the load.
Rated Voltage: Choose a relay with a rated voltage greater than or equal to the operating voltage of the load circuit.
Contact Type and Configuration: Select the appropriate contact configuration, such as SPST, DPDT, and the type of contact material.
Coil Voltage and Power Consumption: Ensure the coil voltage matches the control circuit to avoid overheating or excessive power consumption issues.
Environmental Conditions: Identify the environmental conditions where the relay will be installed and used.
Size and Mounting: Choose the relay size and mounting method according to the application space and installation requirements.
Reliability and Lifespan: Consider the relay’s reliability and expected lifespan.
Electromagnetic Relays: Use an electromagnet to operate the switching mechanism.
Solid State Relays (SSRs): Utilize semiconductor devices for switching, offering high reliability and speed.
Reed Relays: Feature contacts sealed within a glass tube, ideal for low current applications.
Thermal Relays: Protect against overloads by using a bimetallic strip to break the circuit.
Time Delay Relays: Include a built-in timer to delay the switching operation.
Understand Load Requirements: Know the type of load (resistive, inductive, capacitive) and its specifications.
Environmental Conditions: Consider factors such as temperature, humidity, and exposure to dust or chemicals.
Mounting Type: Choose between PCB mount, DIN rail mount, or panel mount depending on your setup.
Durability and Longevity: Check the relay’s mechanical and electrical life ratings.
It depends on the relay type. Some relays are designed specifically for AC or DC loads, while others can handle both. Always check the relay’s datasheet for compatibility.
Single-Pole Relays (SP): Control one circuit.
Double-Pole Relays (DP): Control two independent circuits simultaneously.
Switching speed is the time it takes for the relay to open or close the contacts. It is crucial for applications requiring fast or precise switching.
Coil Resistance Test: Measure the resistance of the coil to ensure it is within the specified range.
Contact Resistance Test: Verify the resistance across the contacts when the relay is actuated.
Function Test: Apply the control voltage to the coil and observe the operation of the contacts.
Inconsistent Operation: If the relay does not switch reliably.
Burnt Contacts: Visible signs of arcing or burning on the contacts.
Unusual Sounds: Clicking or buzzing noises indicating mechanical failure.
Physical Damage: Cracks or other damage to the relay housing.
For detailed specifications, datasheets, and technical support, refer to the manufacturer’s website or contact their customer support. Many manufacturers also provide application notes and design guides.
A relay operates on the principle of electromagnetism. When current flows through the control circuit’s coil, it generates a magnetic field that attracts or releases a mechanical switch, thereby closing or opening the circuit.
Relays are used in various applications, including:

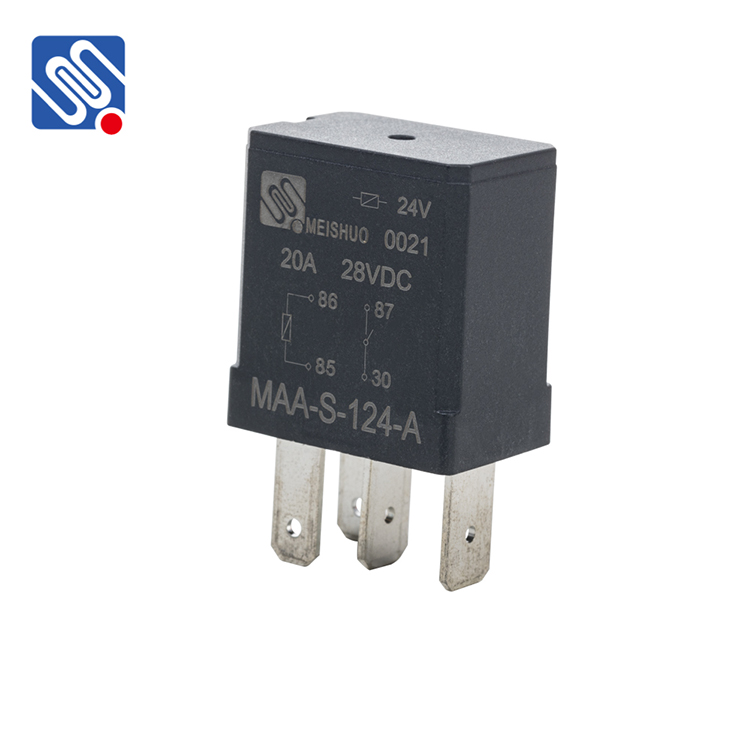

Automotive: Controlling headlights, horns, and other electrical components.
Industrial Automation: Managing machinery and production lines.

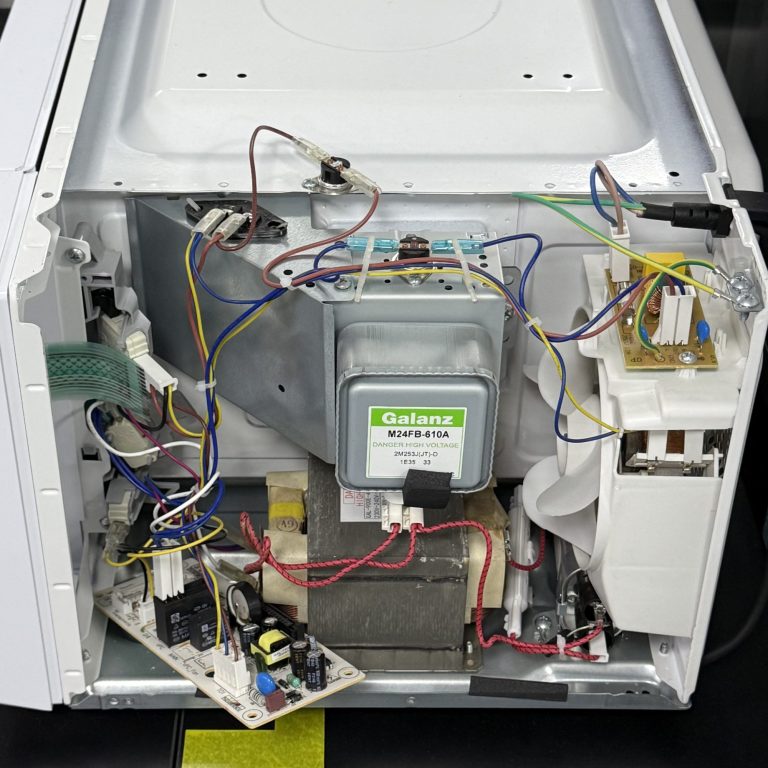

Home Appliances: Operating washing machines, dryers, and HVAC systems.
Telecommunications: Switching signals in communication networks.
If a relay is not functioning properly, follow these steps:
Check Connections: Ensure all wiring and connections are secure and correctly configured.
Test Coil Voltage: Verify that the control voltage is present at the relay coil.
Inspect Contacts: Check for signs of wear, pitting, or corrosion on the relay contacts.
Measure Resistance: Use a multimeter to measure the resistance of the coil and contacts to ensure they are within specification.
Replace if Necessary: If the relay is damaged or worn out, replace it with a suitable replacement.
Regular Inspection: Periodically inspect relays for signs of wear or damage.
Cleaning: Keep relay contacts and surrounding areas clean from dust and debris.
Testing: Perform functional tests to ensure the relay is operating correctly.
Replacement: Replace relays that show signs of malfunction or wear beyond acceptable limits.
A relay is typically used for low-power applications and signal switching, while a contactor is designed for switching higher power loads, such as motors and industrial equipment.
