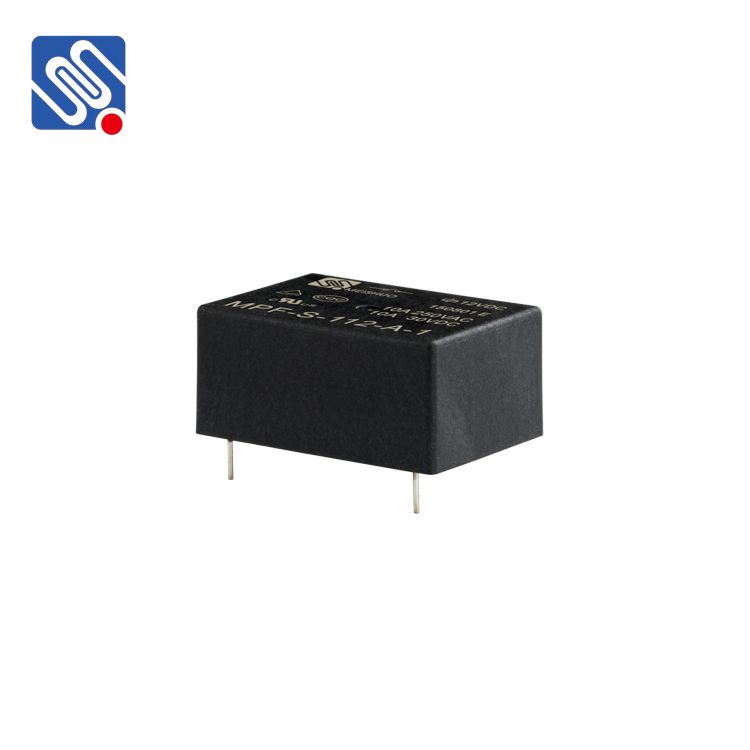

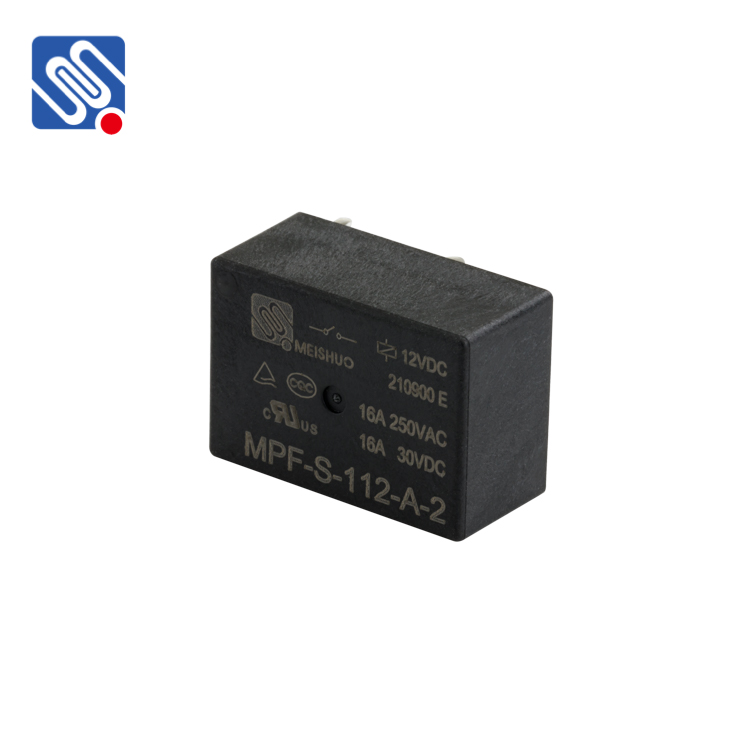

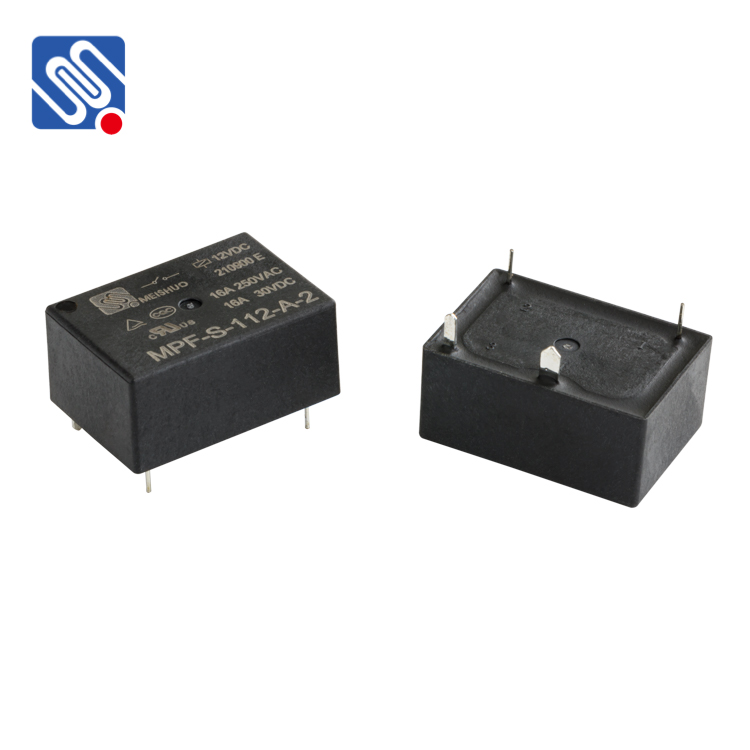

Single Pole Single Throw Relay

•16A Switching capability •Low height:10.6mm •Sensitive type coil power only 0.2W •Outline dimensions L*W*H:23*16.1*10.6mm

Certification
TUV R50332928
UL E313266
CQC CQC15002128204

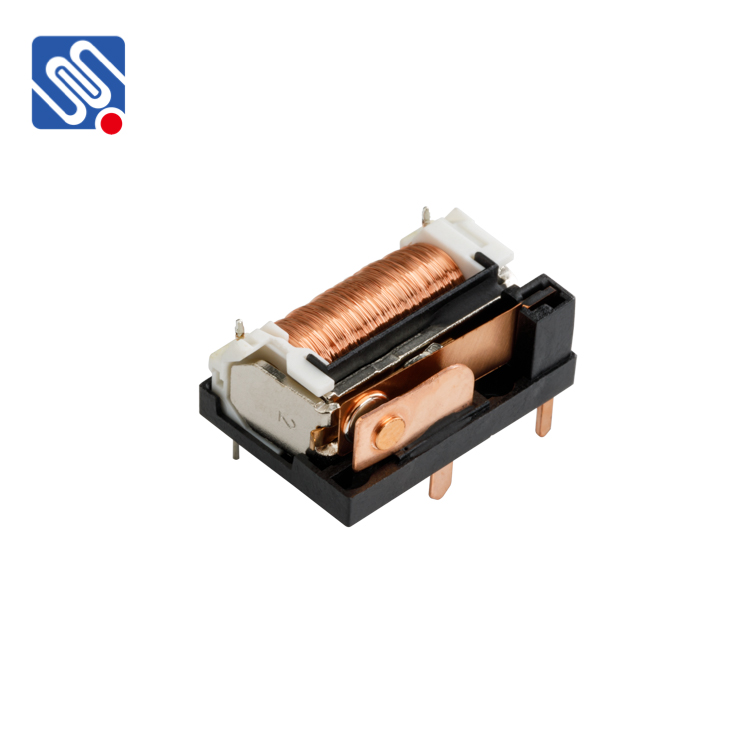

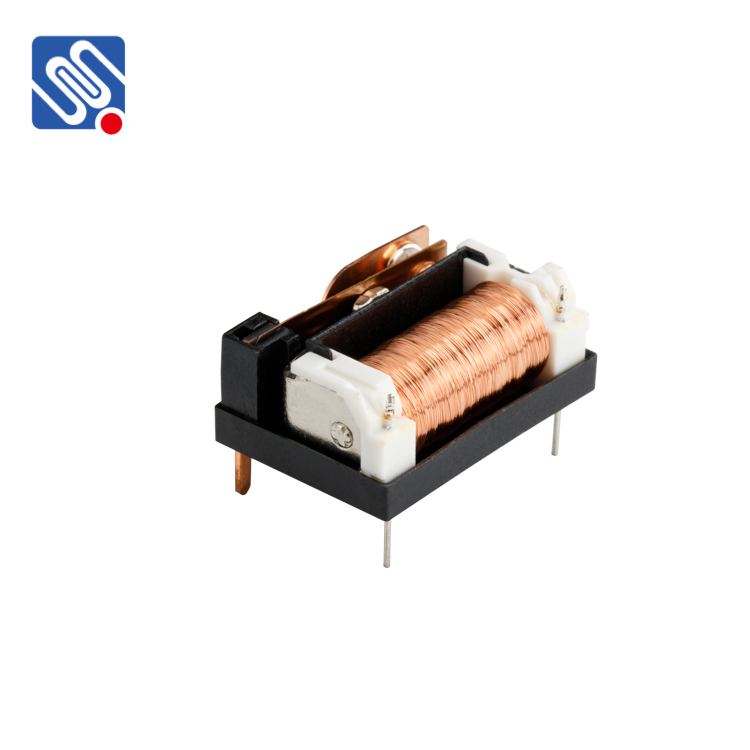

MPF produces coils that are processed by the company. The coils have sufficient turns and are more reliable, which can effectively reduce circuit breakage and short circuits. The silver alloy contacts have good conductivity and a service life of up to 100,000 times. All products comply with domestic and international standards and are shipped after strict quality inspection.

Contact Arrangement	1A
Rated Load	16A 250VAC
Max.Switching Current	16A
Operate Time	≤15ms
Release Time	≤8ms
Coil Power	0.2W
Construction	Wash tight
Unit Weight	Approx.9g

Product Model Rules：
Model: MPF
Structure: Wash tight
Contact group: 1 group
Coil voltage: 05,06,09,12,24 VDC
Contact form: 1A
Load type:
1.Common type
2.High load type
Insulation Class: F: Class F
Nil: Standard type, Class

MPF	A	1	12	A	2	F
Model	Structure	Number of Poles	Cod Voitage	Contact Fom	Load Type	Insulation Class
Model	S:Wash tight	1 Pole	05,06,09,12 18,24,48VDC	A:NO	1:Common Type 2:HighLoad Type	Nit StandardTyp Class B

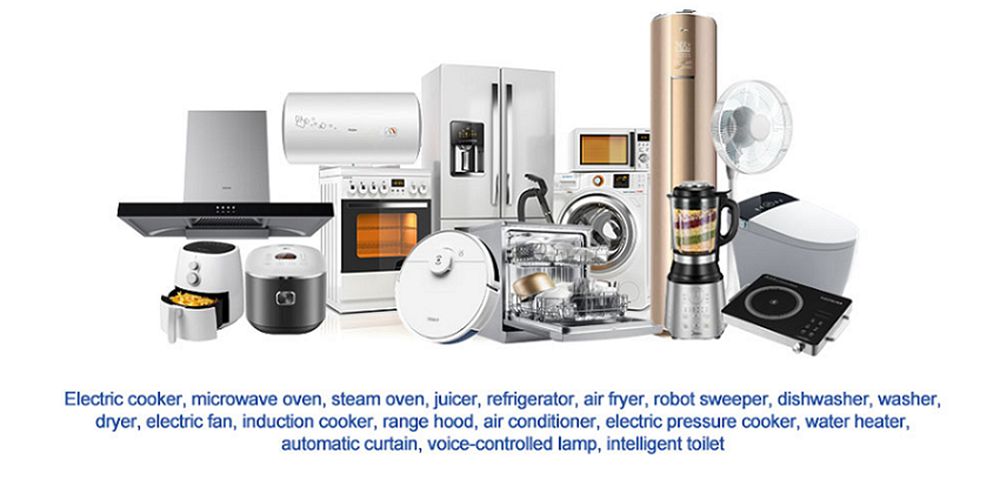

Application:
coffee machine/soybean milk machine/wall breaking machine/smart socket/heater/controller electric kettle/electric pressure fort/humidifier/water purifier/juicer/beauty instrument/electric iron and other small appliances and smart home products.

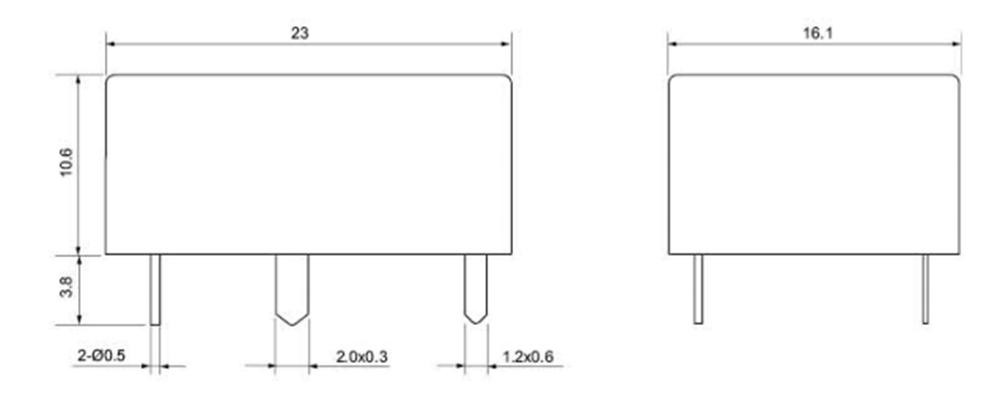

Outline dimension：L*W*H:23*16.1*10.6mm

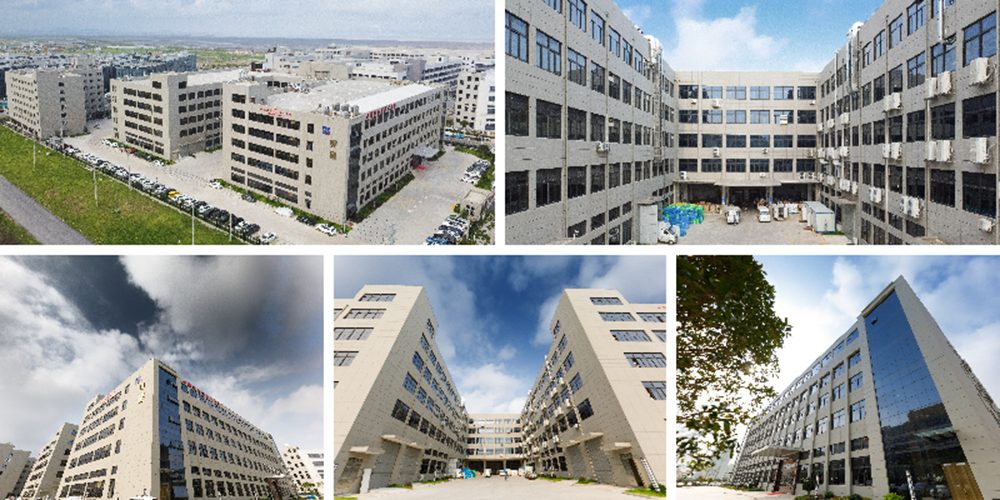

Zhejiang Meishuo Electric Technology Co., Ltd. is a technology-based enterprise specializing in the design, development, production and sales of relay products. The company has passed ISO9001, ISO45001, ISO14001 system certification, and some products have passed UL, TUV, VDC and other quality and safety certifications.The company mainly produces household appliance relays, automotive relays, magnetic latching relays and other categories; products are widely used in household appliances, artificial intelligence, smart homes, automobiles, machine tools, electric power, instrumentation, communications, power protection, electric toys and other automation control fields.
If oyu have any needs, please feel free to contact us!
