Solenoid Water Valve DC 12V 1/4″ PE Pipe

•Rated Voltage: DC12V 24V 36V •Operate Life: ≥100000 OPS •Inlet and Outlet: 1/4’’ Quick Connect Fitting •Waste Flow Rate: 0.42/0.5MPa, 300/450/800/1000/1500 mL/min

Overview:

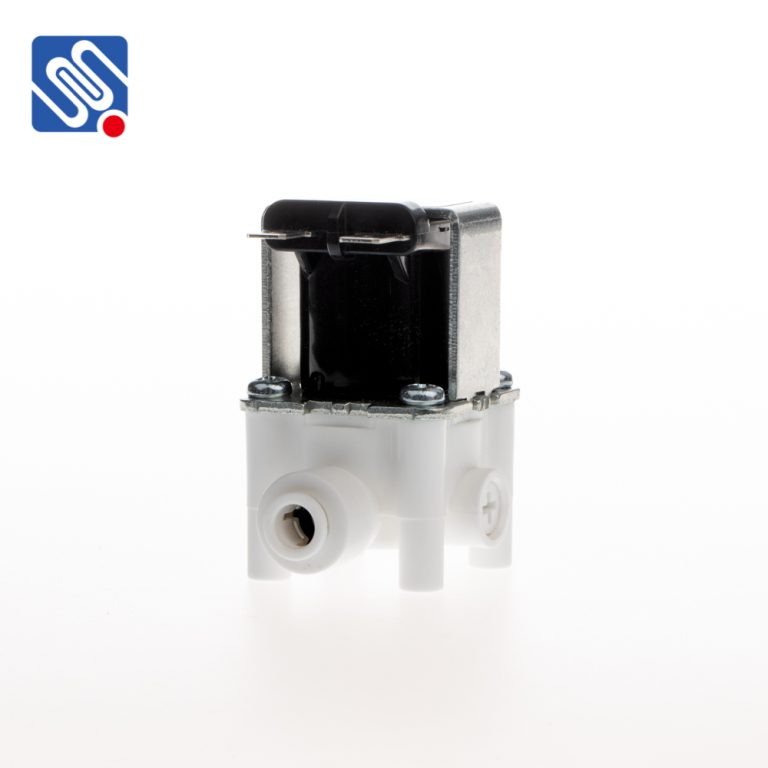

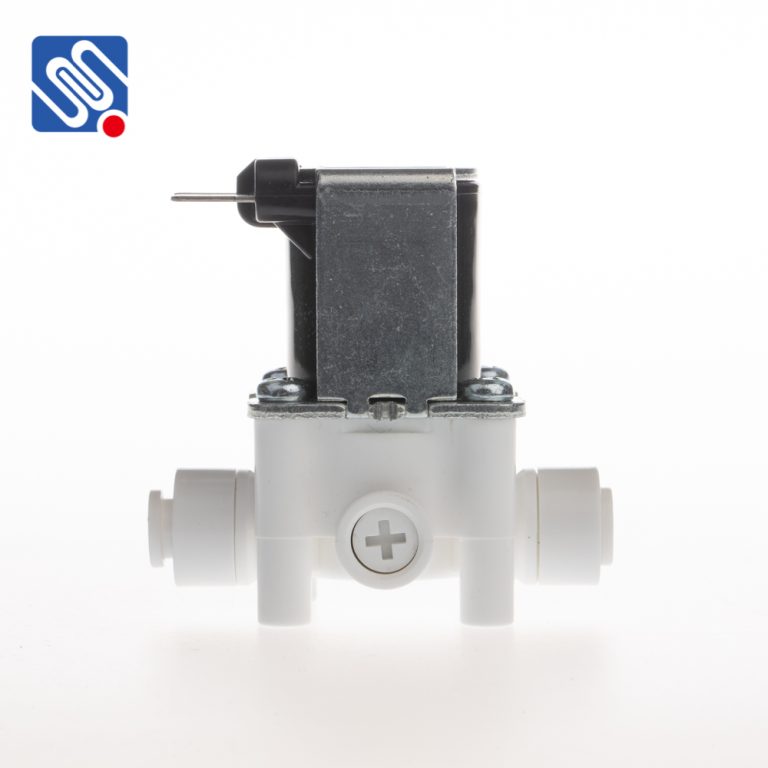

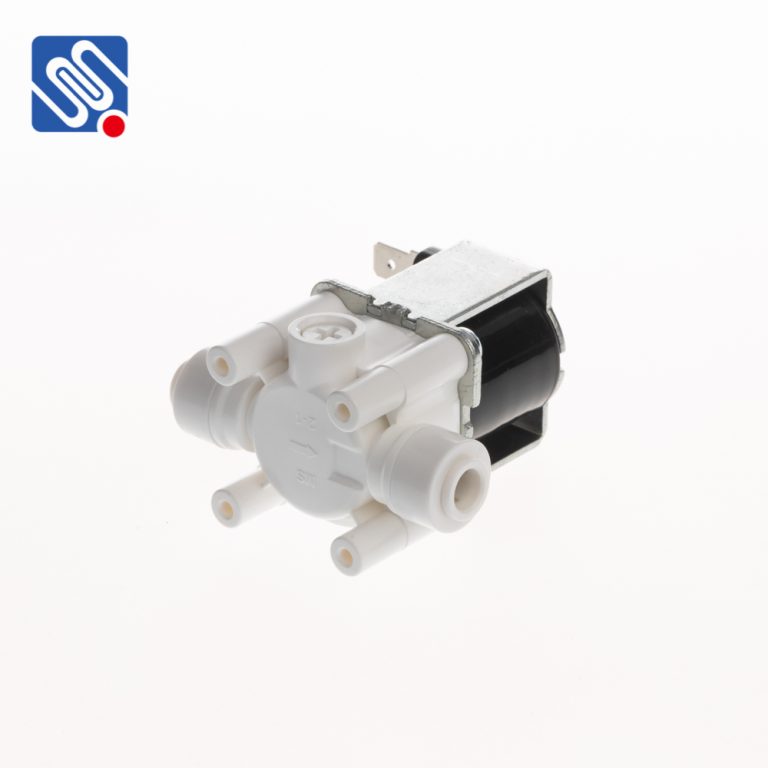

The FPD360A2 solenoid valve is a combined flushing solenoid valve and is suitable for water purifiers, water dispenser, water softener, coffee machine, electric tea sets,etc. This valve can achieve a waste flow rate of 1500ml per minute at the maximum rated flow rate.

Product advantages
Advantage 1:
Automated control: The solenoid valve can automatically open and close through electrical signals, thereby controlling the process of water flowing into the water purifier. This helps to improve water treatment efficiency and convenience.
Advantage 2:
High security: The operation of electric water valves is simpler and more convenient than manual valves, and can achieve automatic control, effectively reducing errors in manual operation and reducing safety risks caused by human errors.

Product Model:FPD360A2
Rated Voltage:DC12V 24V 36V
Operate Life:≥100000 OPS
Pressure Range0.02-0.8MPa
Inlet:1/4” Quick Connect Fitting
Outlet:1/4” Quick Connect Fitting
Hydraulic Pressure:0.3MPa
Flow Rate:>3L/min
Waste Flow Rate:0.42/0.5MPa,
300/450/800/1000/1500 mL/min

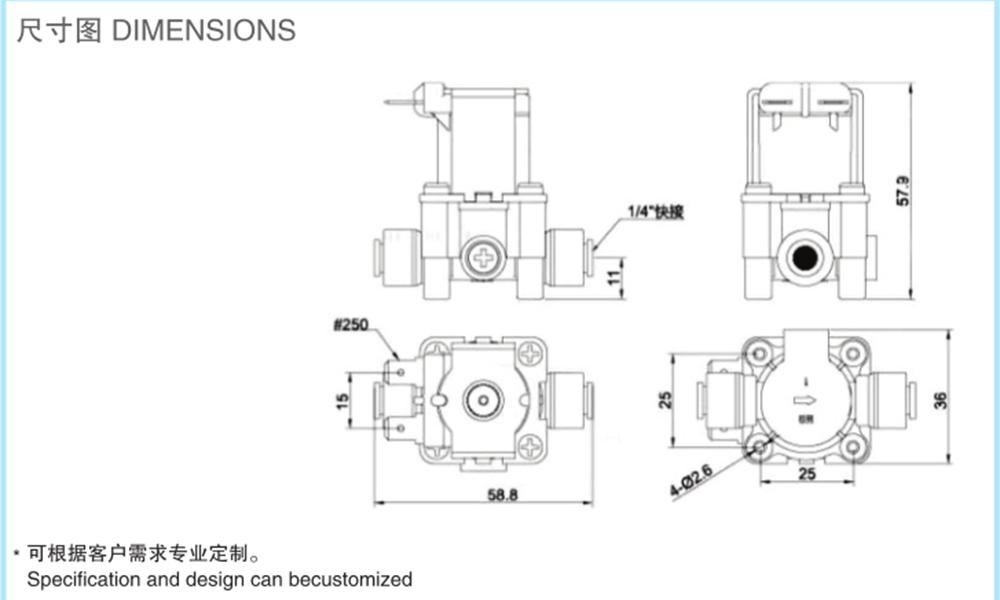

Spacing:25×25mm

Company Profile
Zhejiang Meishuo Electric Technology Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in the production of various electromagnetic water valves and relays. After more than a decade of development, the company has formed an enterprise integrating production and scientific research.

Our advantages
Strong technical strength and a fully functional laboratory
The company has passed multiple quality certifications and implemented a strict quality control system
A professional R&D team with high investment in product development
Excellent chat support, providing customers with high-quality service

Certificate



laboratories
The company has established an experimental center in accordance with the requirements of GB/T21711.1, IEC61810.1, and UL508 standards. Equipped with sufficient and suitable experimental equipment, and accredited by UL Witness Laboratory, TUV Witness Laboratory, VDE Witness Laboratory, and CNAS Laboratory, it is one of the relay industry companies with the most comprehensive testing capabilities.

Tell Us Your Requirements Questions Needs Ideas Plans
