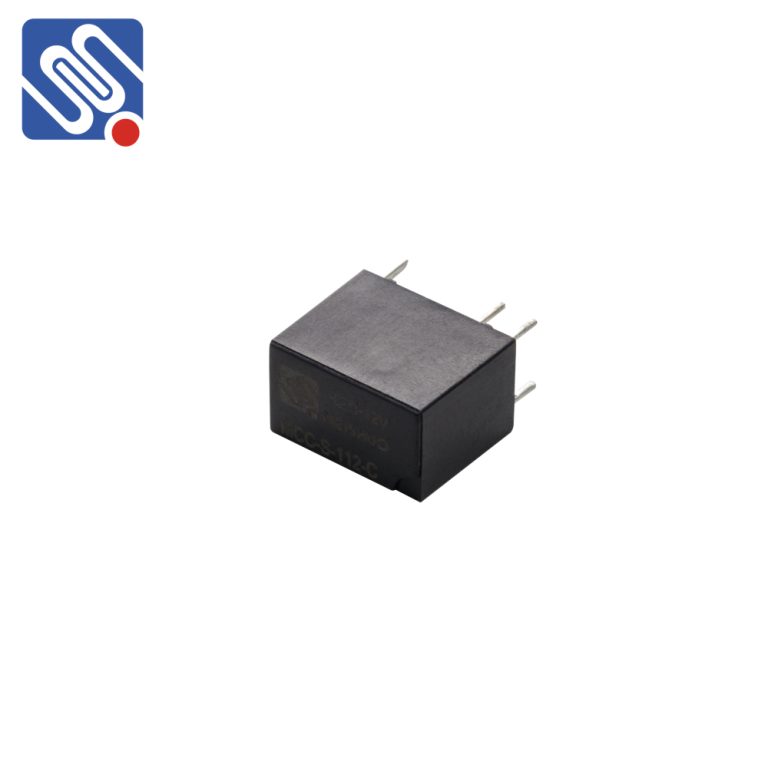

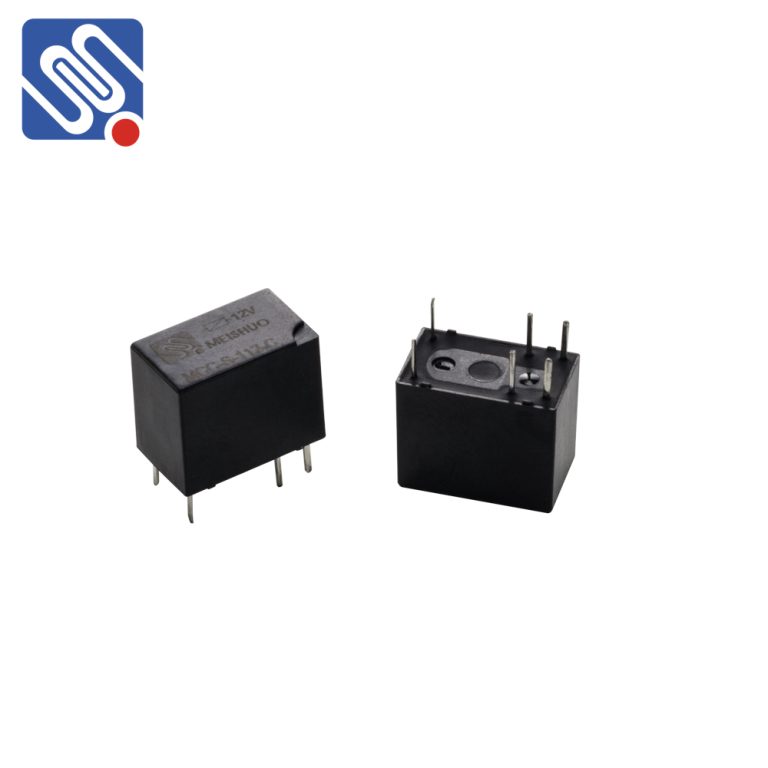

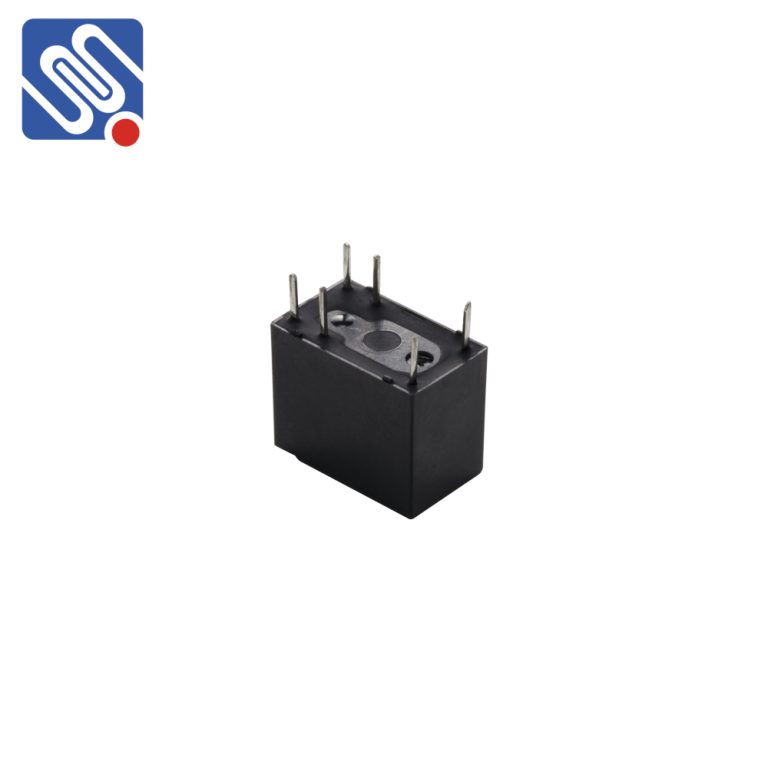

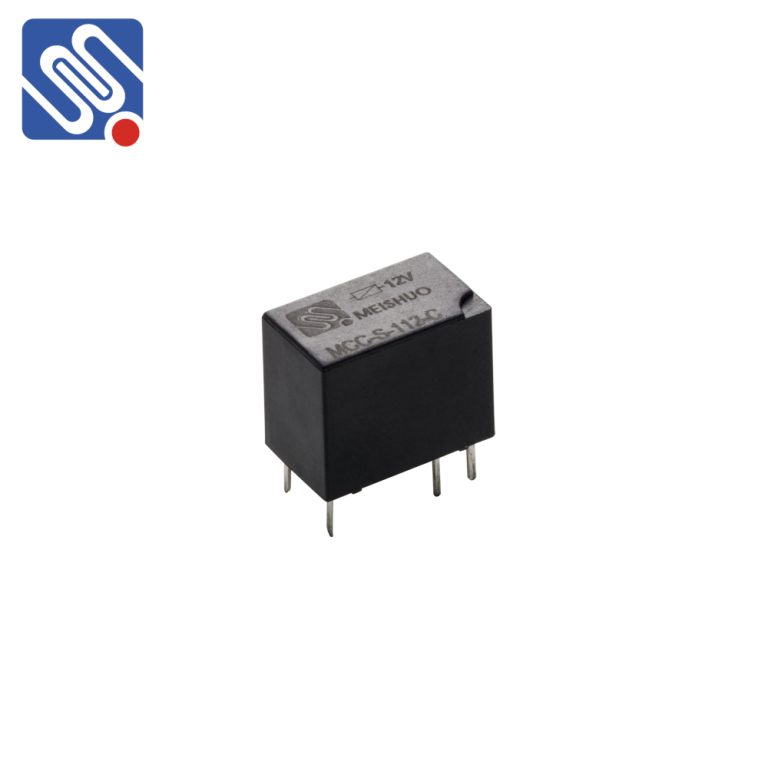

Product Overview
The MCC signal relay has a set of switching contacts and 2A contact switching capability, commonly used in signal relay equipment systems. The MCC relay adopts a subminiature structure and standard PCB layout structure design, which has fast action time and response capability, and can quickly complete the switching action of the relay, improving the response speed and transmission efficiency of the circuit.

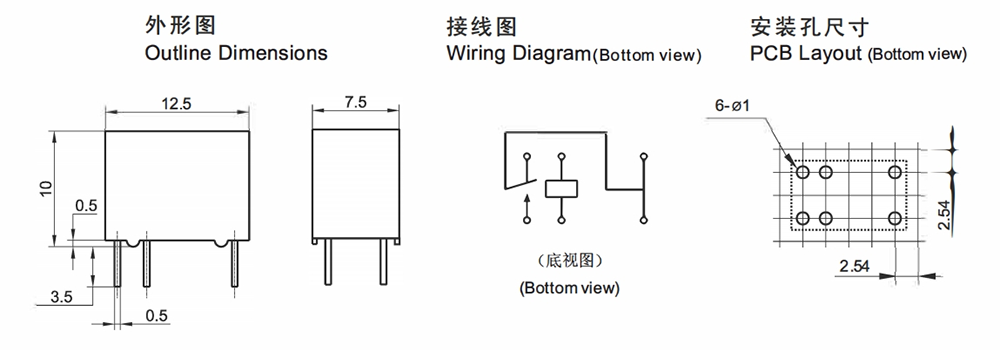

Contact Parameters
| Contact Arrangement | 1C |
| Contact Resistance | 100mΩ(1A 6VDC) |
| Contact Material | Silver Alloy |
| Contact Rating | 0.5A 125VAC/1A 30VDC |
| Max. Switching Current | 2A |
| Max. Switching Voltage | 125VAC/60VDC |
| Max. Switching Power | 62.5VA/30W |
| Electrical Life | 100000 OPS |
| Mechanical Life | 10000000 OPS |
Characteristics
| Insulation Resistance | 1000MΩ(500VDC) |
| Dielectric Strength | Between Coil & Contacts: 1000VAC 1min Between Open Contacts: 400VAC 1min |
| Operate Time | ≤5ms |
| Release Time | ≤5ms |
| Humidity | 5%～85%RH |
| Ambient Temperature | -30℃～+70℃ |
| Vibration | 10Hz～55Hz 1.5mm(DA) |
| Shock | 100m/s²(10G) |
| Terminal Form | PCB |
| Construction | Sealed |
| Unit Weight | Approx.5g |
Naming Rules
Model: MCC
Structure: Sealed
Contact Group: 1: 1 Group
Coil Voltage: 1.5, 3, 5, 6, 9, 12, 18, 24VDC
Contact Form: 1C
Coil Power: S: Sensitive type(150mW) P: Standard type(200mV)
Packaging
25 pcs/plastic tube
500pcs/inner box
2000 pcs/master box
shockproof packing: packaging filler foam board
MEAS: 38.5*25*13cm G.W.: 5.6KGS N.W.: 4.5KGS
Application
Telecommunications Infrastructure: The MCC signal relay is ideal for use in telecommunications systems to manage the routing of calls and data traffic. With its fast response time, the MCC relay ensures minimal signal delay, which is crucial for maintaining the efficiency and reliability of communication networks. Its ability to quickly switch between circuits helps prevent network congestion and ensures smooth, uninterrupted communication.
Company Profile
Meishuo Technology was established in February 2007 and is a high-tech enterprise specializing in the R&D, production, and sales of relay control components and related actuator fluid solenoid valve products.
Meishuo Technology is committed to maintaining the highest quality standards for its products, adhering to international quality management systems and certifications such as ISO 9001 and IATF 16949. With years of experience and a strong market presence, the company provides high-quality services to customers across different regions and industries.
Laboratories

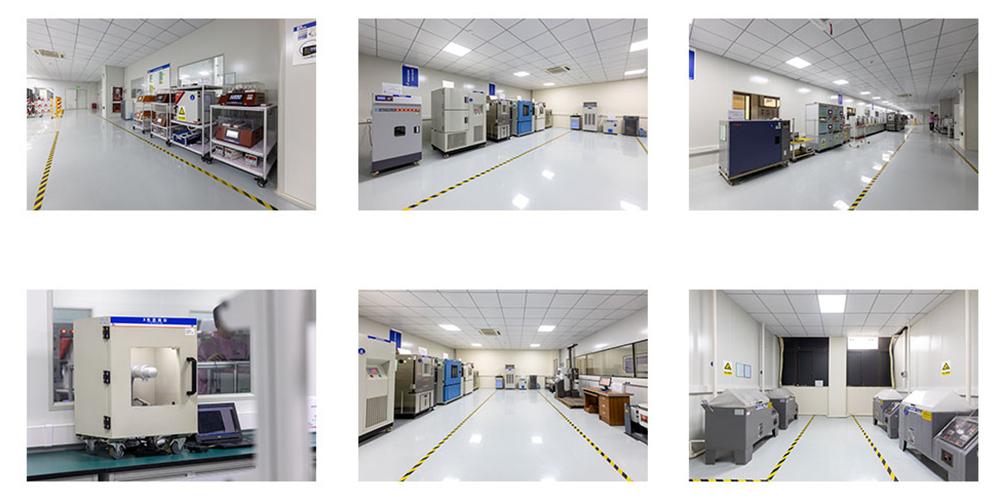

Meishuo has invested about $4.8 million in sophisticated instruments and equipment, such as high-speed cameras for analyzing microscopic movements and arc separation, X-ray machines, for nondestructive testing, and Infrared spectrometer for analyzing the consistency of plastic components, to provide a strong guarantee for design development and quality analysis.
