Product Overview

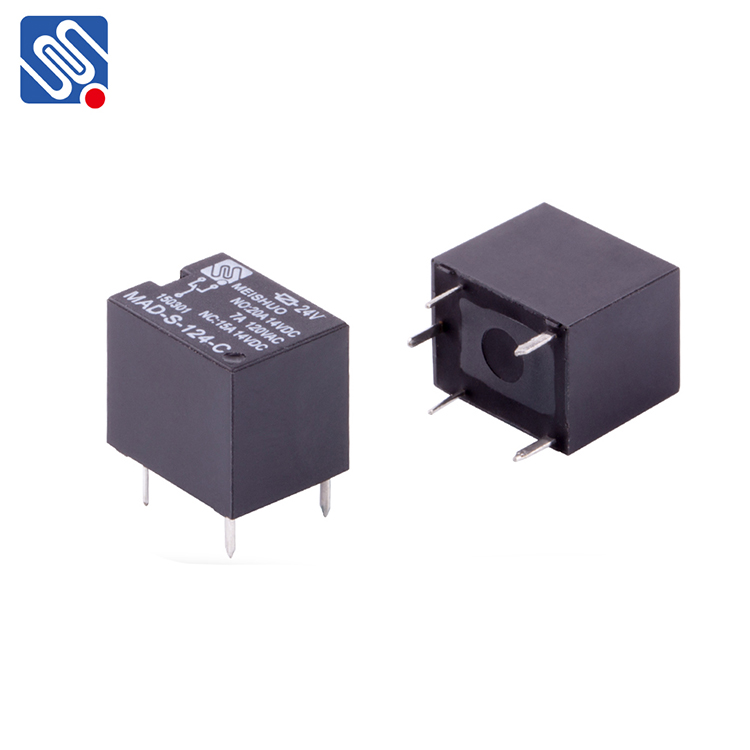

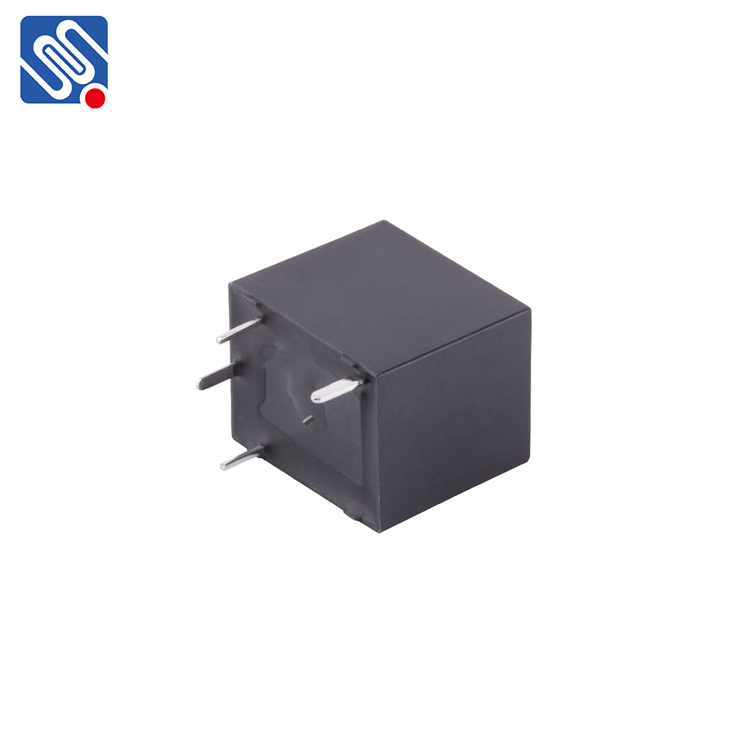

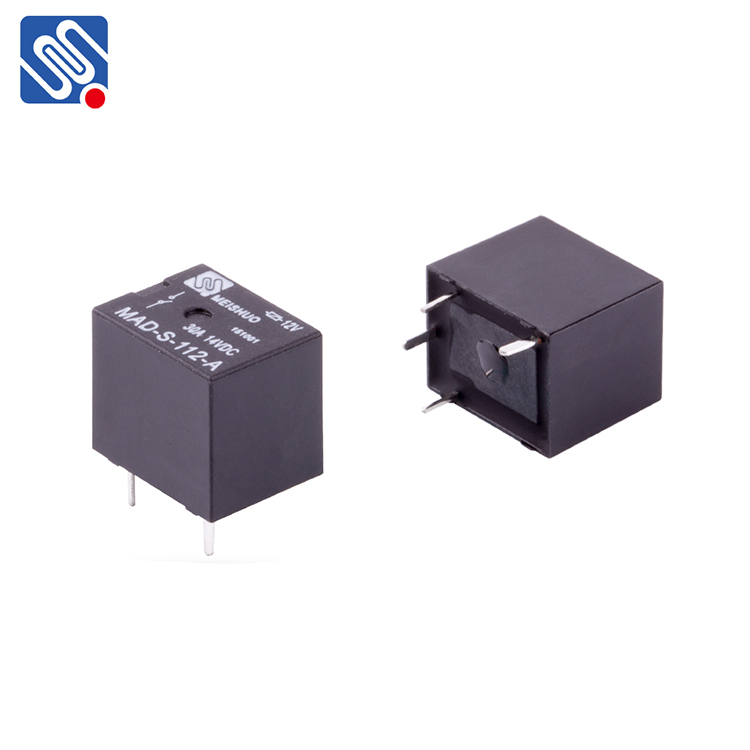

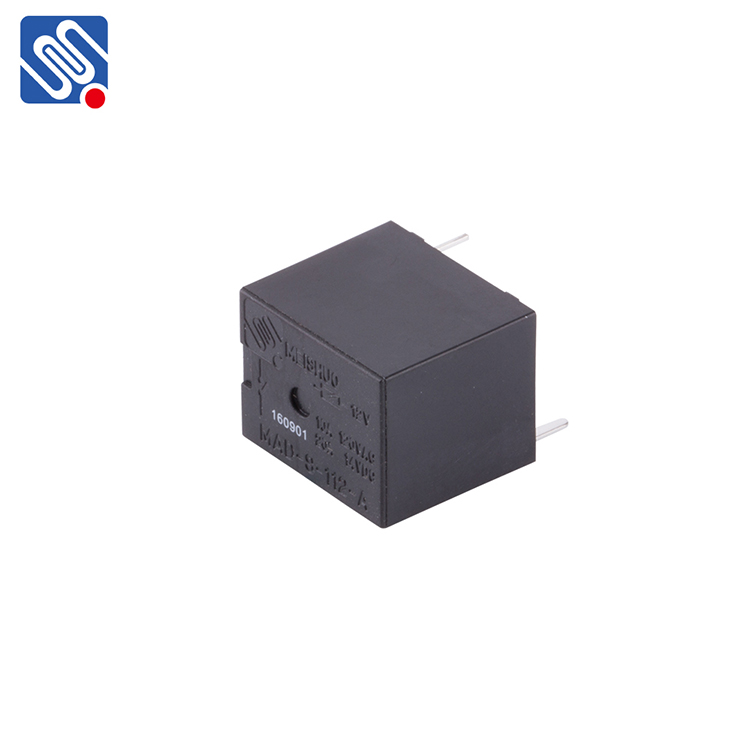

MAD automotive relays have a compact structure, light weight, and high heat resistance. They can reach a rated current of 20A in a working environment of 85 degrees Celsius. It achieves switching and regulation functions by controlling high current with small current, ensuring the reliable execution of various functions of the car.
Contact Parameters
| Contact Arrangement | 1A, 1B, 1C |
| Contact Material | Silver Alloy |
| Voltage Drop(Initial) | NO:Type.100mV, Max.300mV |
| NC: Type.100mV, Max.300mV | |
| Rated Load | NO: 20A 14VDC |
| NC: 15A 14VDC | |
| Max. Continuous Current | NO: 20A |
| NC: 15A | |
| Max. Switching Voltage | 16VDC |
| Electrical Life | 100000 OPS |
| Mechanical Life | 1000000 OPS |
Characteristics
| Insulation Resistance | 100MΩ(500VDC) |
| Dielectric Strength | Between Coil & Contacts: 500VAC 1min |
| Between Open Contacts: 500VAC 1min | |
| Operate Time | ≤10ms |
| Release Time | ≤5ms |
| Ambient Temperature | -40℃～+85℃ |
| Vibration | 10Hz～500Hz 49m/s²(5G) |
| Shock | 98m/s² (10G) |
| Terminal Form | PCB |
| Construction | Sealed |
| Unit Weight | Approx.6g |
Product advantages
Advantage 1: MAD relays have low power consumption, which can effectively reduce the energy consumption of switching power supplies and ensure their reliability.
Advantage 2: High temperature resistance: MAD relays have high heat resistance. In an environment of 85 degrees Celsius, their rated current load can reach 20A and still maintain stable performance.
Application
MAD Automotive Relays are designed to be suitable for a wide range of automotive applications, including electric windows, door locks, wipers, radiators, power distribution systems, and other essential vehicle components. With their robust design, MAD relays are adaptable to different vehicle models and provide long-lasting durability in demanding automotive environments.
Product Packaging
100 pcs/inner box
20 inner boxes/middle boxes, 2 middle boxes/master box
4000 pcs/master box
MEAS: 40×35×38cm G.W.: 23.5KGS N.W.: 22.5KGS
