STOCK CODE: 301295
STOCK CODE: 301295
— Your Prime Source for Advanced Relays And Water Valves —
Certification
UL E358149
TUV R50184977
CQC CQC10002051838
T92 DC 12V Electromagnetic Relay is a switching device suitable for various household appliances such as air conditioners, induction cookers, bread makers, etc. It has excellent water proof and dust proof ability, high quality in any weather conditions. 12V relays can operate with anywhere between 9V and 14V, very suitable for 12V household and commercial appliances.
Product Description
Rated load: 40A 250VAC
Contact switching current: 40A
Contact switching voltage: 05,06,09,12,24,48 VDC
Contact form: NO, conversion
Protective features: Wash tight,Dust protected
Operate Time:≤15ms
Release Time:≤10ms
Coil power: 0.9w
Unit Weight: Approx.35g
Naming Rules
| MPQ4 | s | 1 | 12 | D | A | T |
| Model | Stnucture | Number of Poles | Coil Voltage | Coil Power | Contact Arrangement | Structural Style |
| S:Wash tight Nill:Dust protected | 1 Pole | 05,06,09,12,18, 24,48,110VDC | D:D C | A:N O B:N C C:C/O | T:Copper Terminal Structure Nit:Standard type |

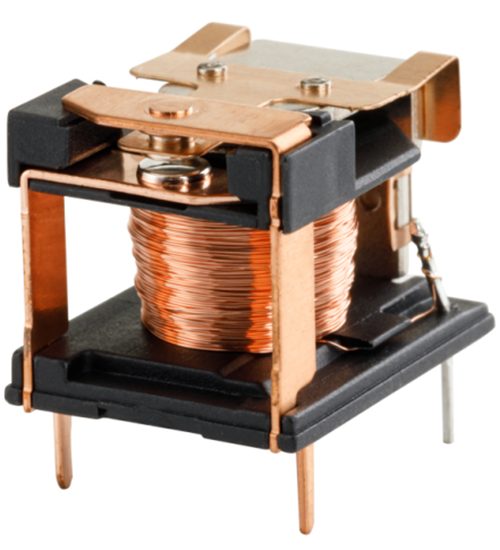

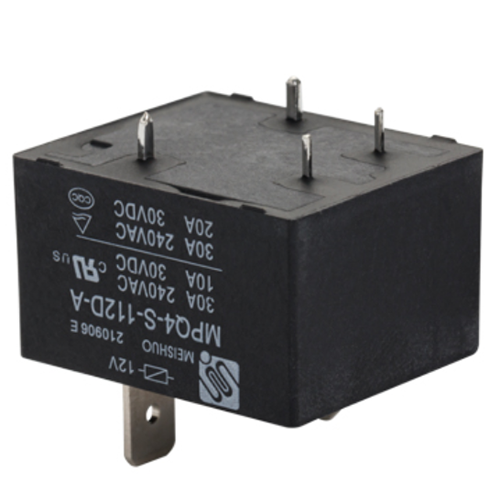

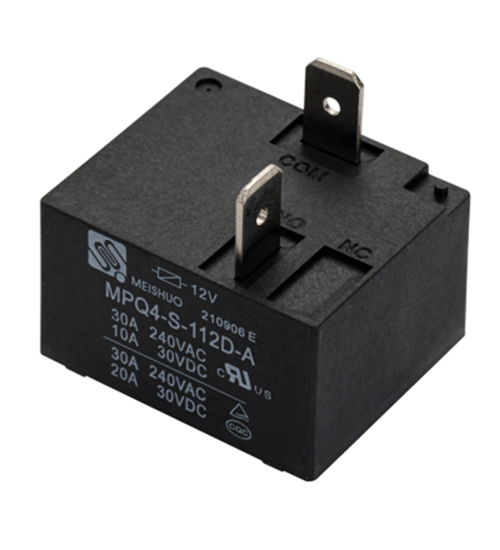

Detail Display
1.PET shell:high-temperature resistant and flame-retardant up to 105°C, with a compact and unique design.
2.Silver alloy contacts: impact-resistant and high-pressure durable, non-welding with high current, and low contact resistance.
3.Alloy pins with excellent conductivity: capable of carrying high current, and customizable leads.”

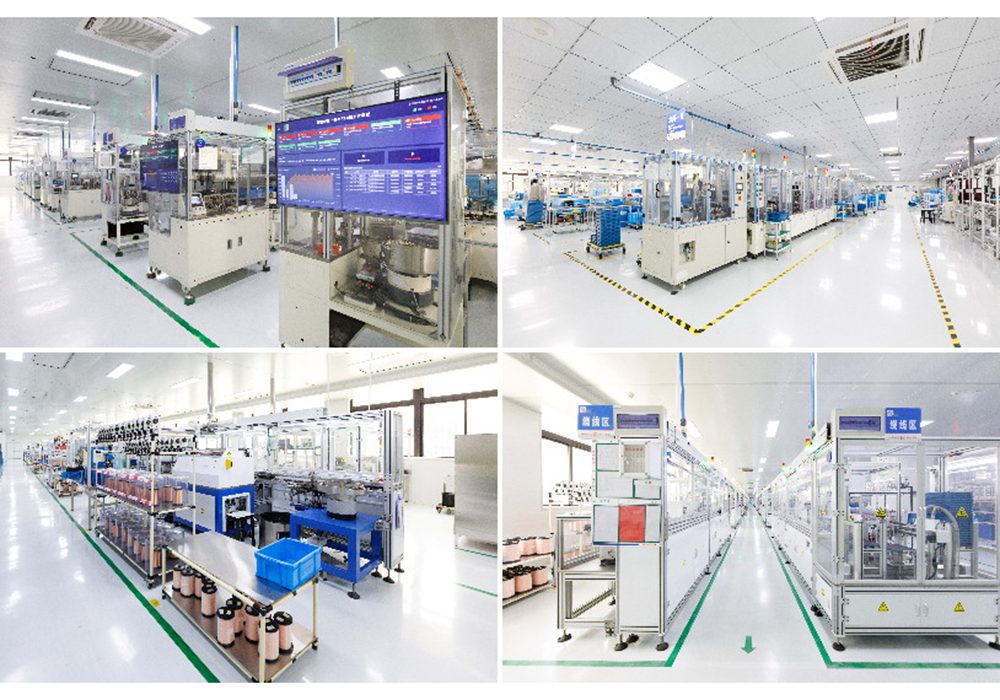

Workshop Display
Support your OEM/ODM needs and provide one-stop customized solutions
