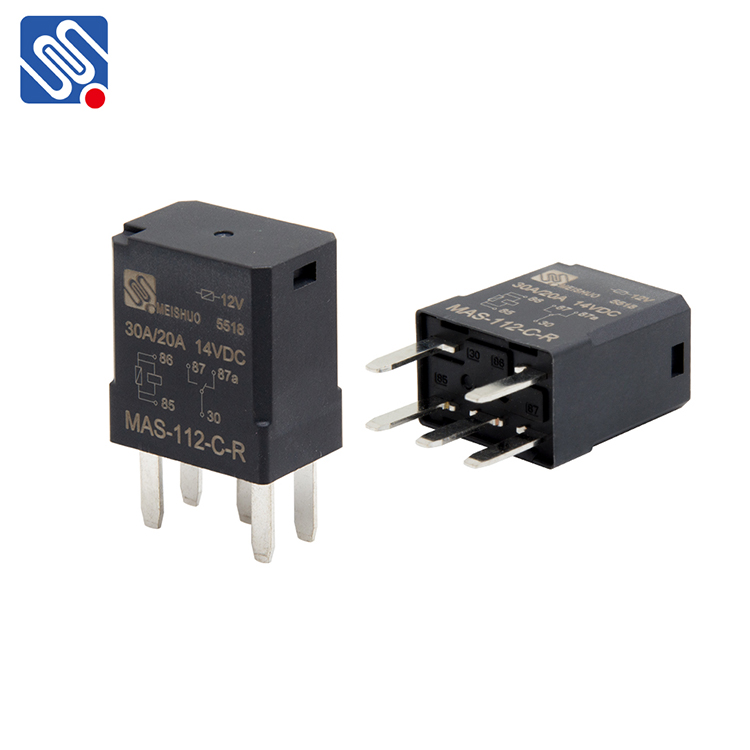

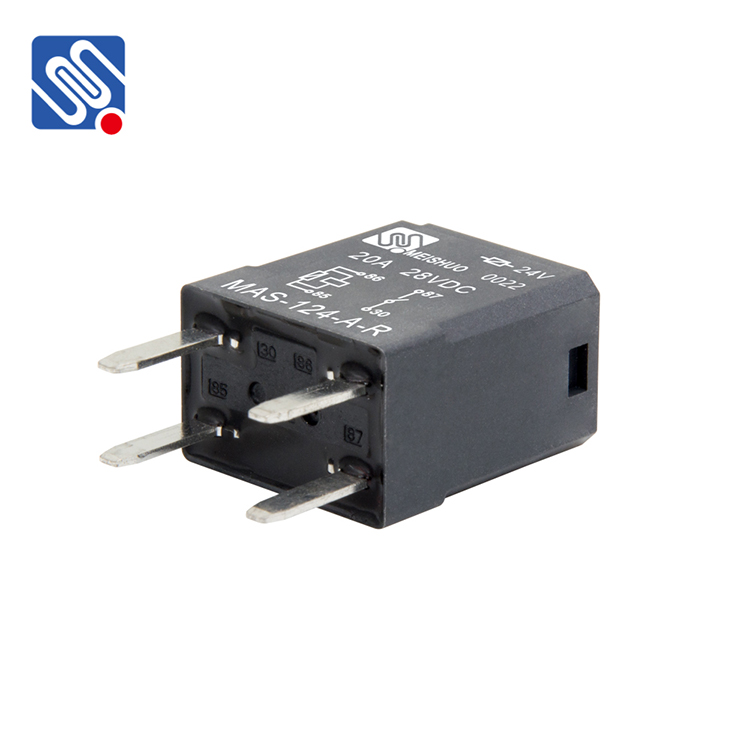

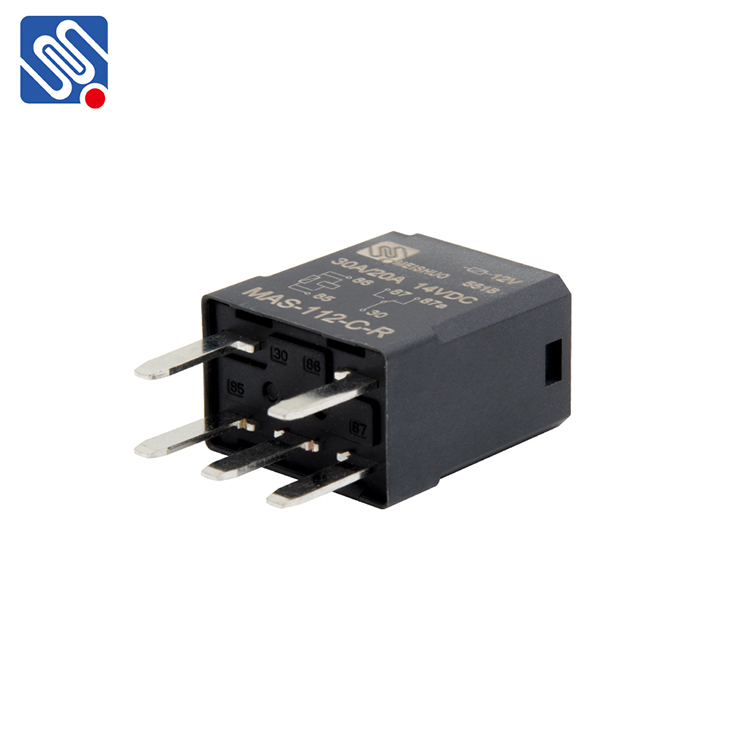

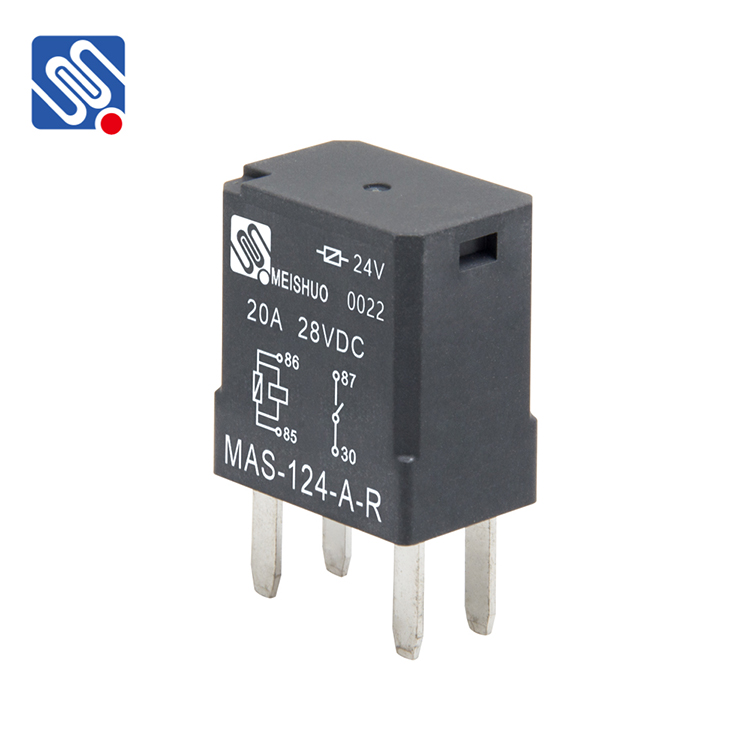

Product Overview
MAS relays are mainly used in automotive body systems, such as windows, wipers, door locks, seat controls, and other equipment. They have high temperature resistance and can maintain normal operation in a temperature environment of 125 degrees Celsius. MAS automotive relays ensure that the body system can respond quickly and function effectively by precisely controlling the on/off of the circuit, ensuring stable operation of the circuit.
Contact Parameters
| Contact Arrangement | 1A, 1C |
| Contact Material | Silver Alloy |
| Voltage Drop(Initial) | NO: Typ.20mV, Max.250mV |
| Max. Continuous Current | NO/NC: 30A/20A |
| Max. Switching Voltage | 28VDC |
| Electrical Life | 100000 OPS |
| Mechanical Life | 1000000 OPS |
Characteristics
| Insulation Resistance | 100MΩ(500VDC) |
| Dielectric Strength | Between Coil & Contacts: 500VAC 1min |
| Between Open Contacts: 500VAC 1min | |
| Operate Time | ≤10ms |
| Release Time | ≤10ms |
| Ambient Temperature | -40℃～+125℃ |
| Vibration | 10Hz～1000Hz 19.8m/s² |
| Shock | 1000m/s² (30G) |
| Terminal Form | QC |
| Construction | Dust Protected, Sealed |
| Unit Weight | Approx.20g |
| Mechanical Data | Cover Retention:(Pull, Push) 200N |
| Terminal Retention:(Pull, Push) 100N | |
| Terminal Retention To Bending:(Front, Side) 10N |
Product Advantages
Advantage 1:
Safe and reliable: the relay can be isolated and protected to avoid circuit failure caused by load failure and improve safety.
Advantage 2:
High reliability: Because of its structural characteristics and the material used, the relay has strong impact resistance, and can work normally even when the power supply receives a strong external impact, ensuring the stability and reliability of the switching power supply.
Application
Automotive systems: MAS relays can be applied to automotive power systems, safety systems, chassis systems, driving information systems, power management systems, body systems, anti-theft systems, etc.
Company Profile

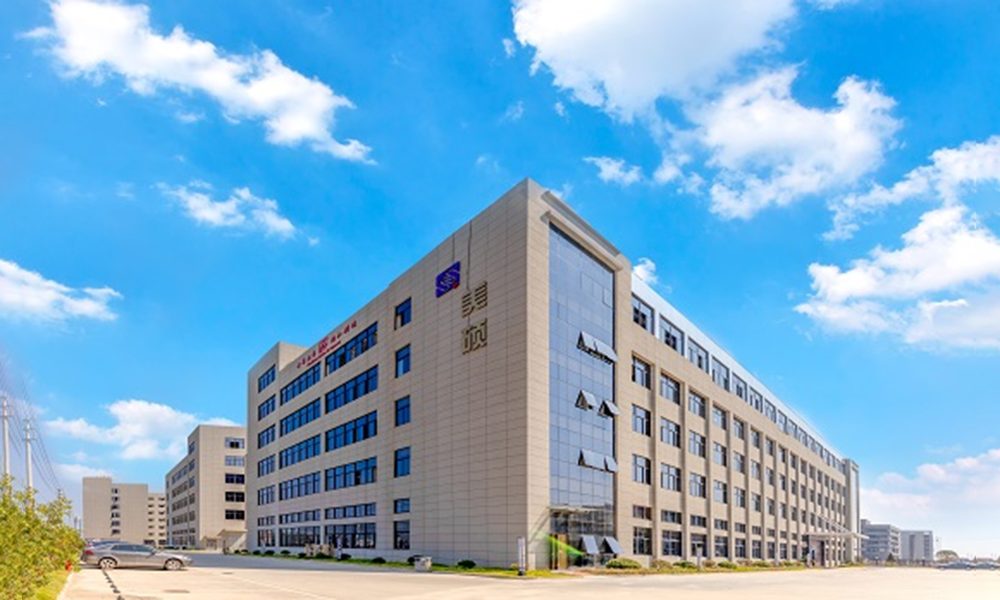

Meishuo Technology was established in February 2007, focusing on providing products with relays and solenoid valves as the core, and continuously providing customers with corresponding solutions.
As one of the leaders in China’s relay industry, Meishuo has its own R&D team, including modern laboratories, engineers, and technicians. It has established a complete product development process and continuously improves and optimizes advanced automated production equipment to ensure product quality and enhance testing capabilities.

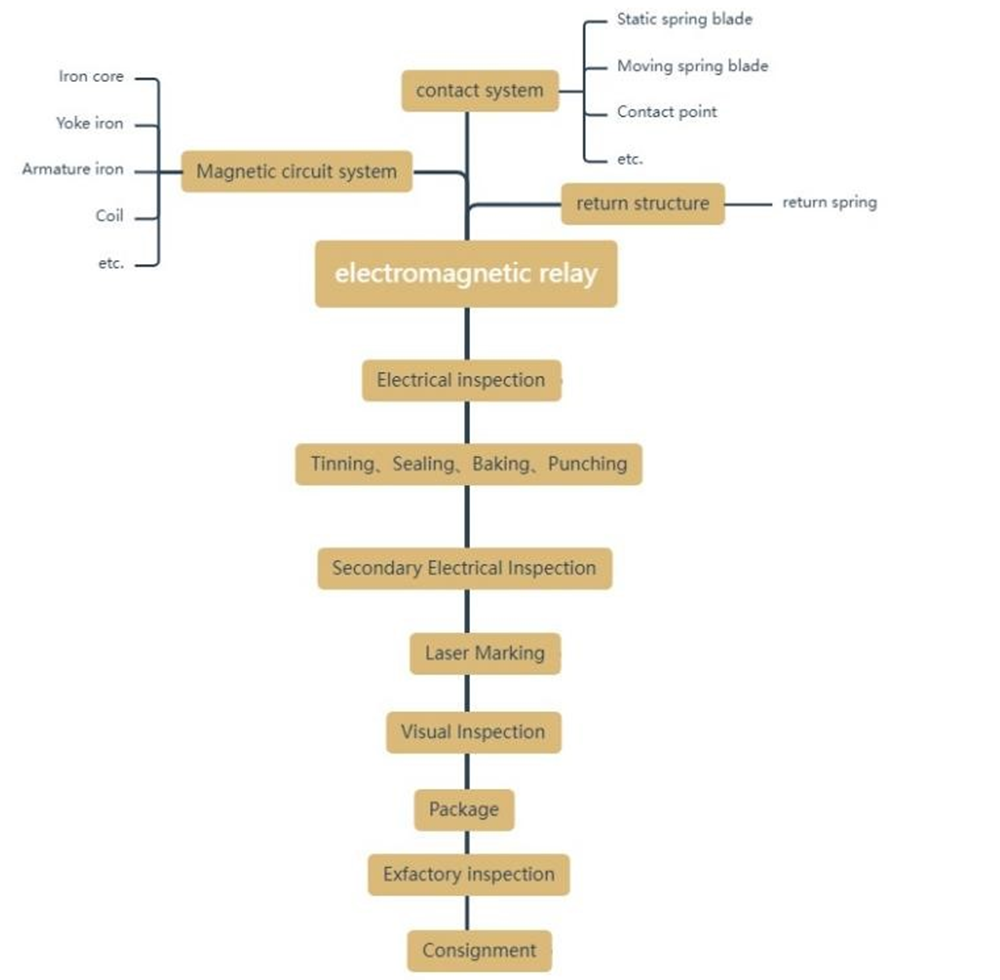

Production Process
Our workshop production is controlled from raw materials, with strict control and stable process flow to ensure good product quality and production efficiency.

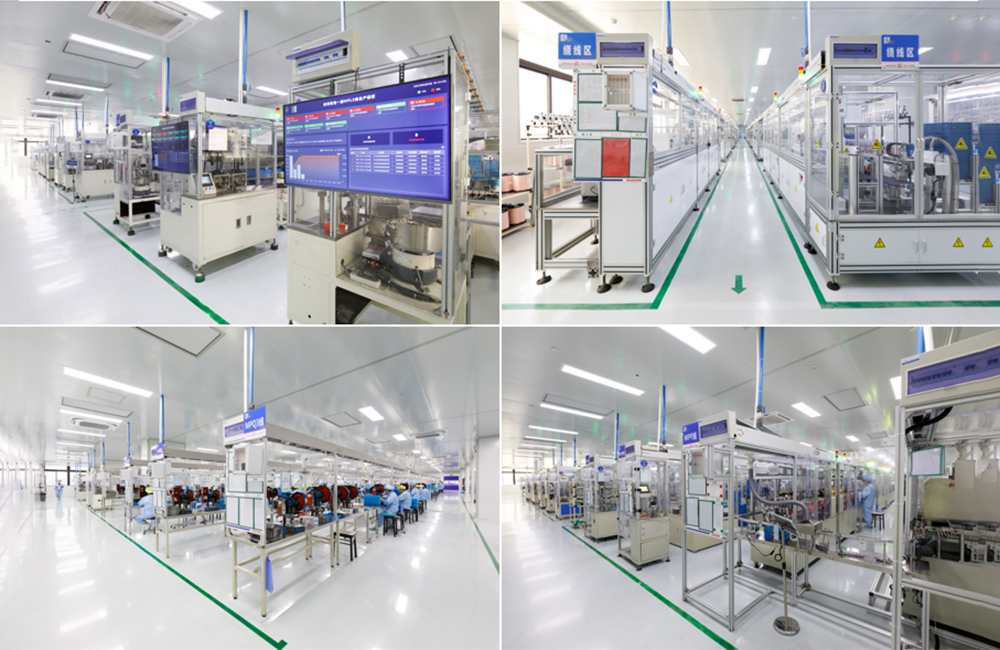

Production Workshop Display
The production workshop adopts dust-free control and constant temperature and humidity environment to improve the reliability of products. Very strict in terms of quality control, from raw material procurement to finished product delivery, every process undergoes rigorous quality testing and screening.
Support your OEM/ODM needs and provide one-stop customized solutions
